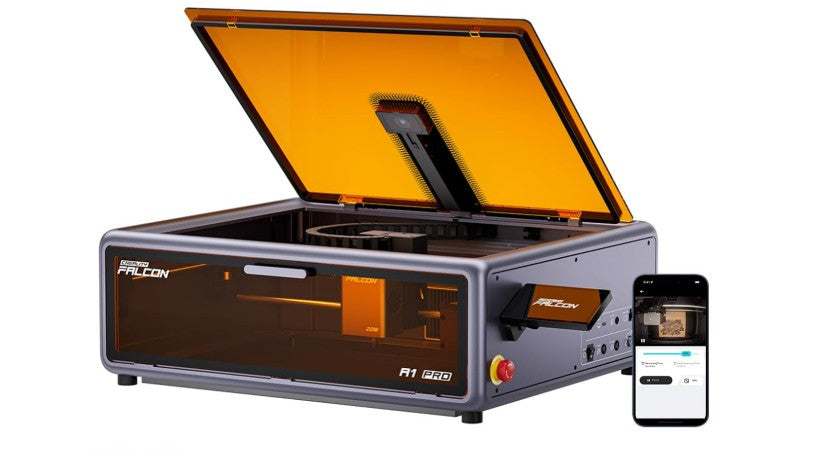

Creality Falcon A1 Pro 20W LASER ENGRAVER
Creality Falcon A1 Pro 20W is a powerful Class 1 laser engraver delivering high-precision cutting and engraving with enhanced safety and professional performance.

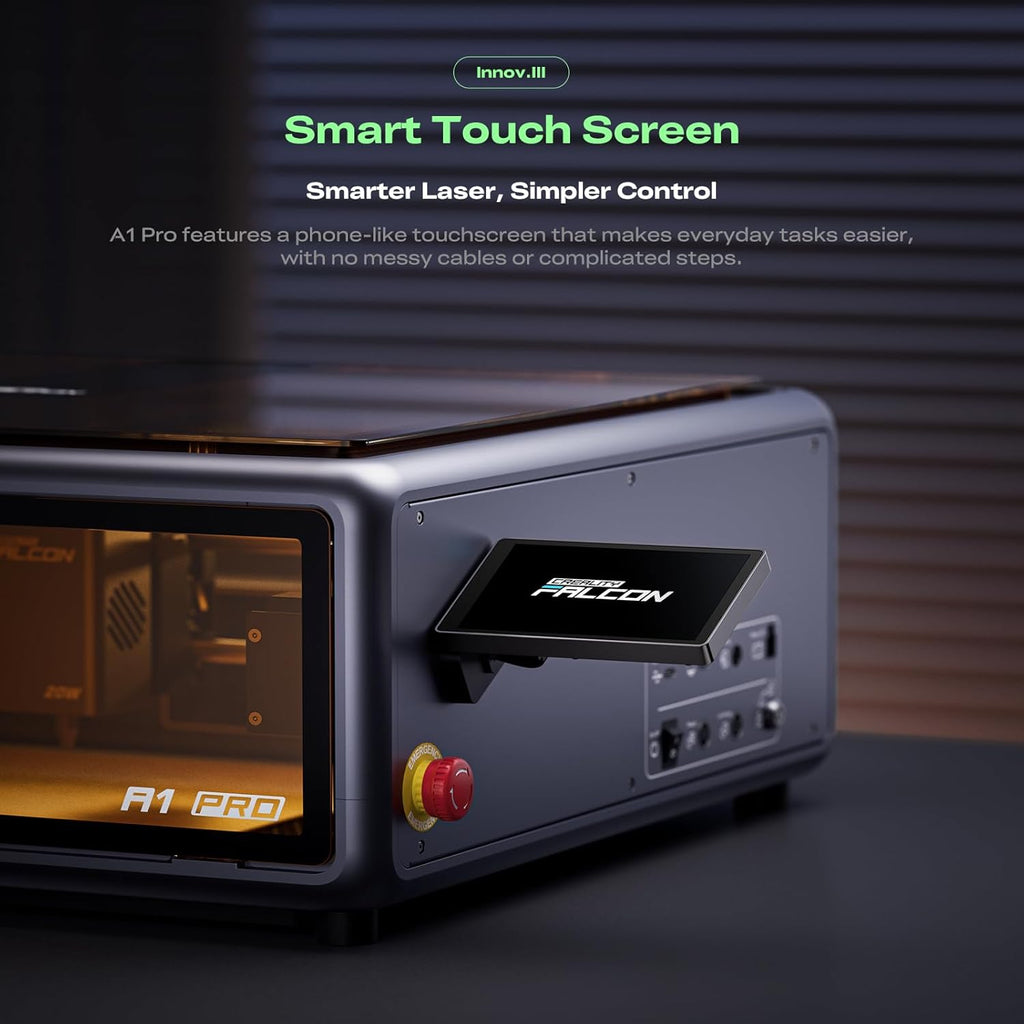

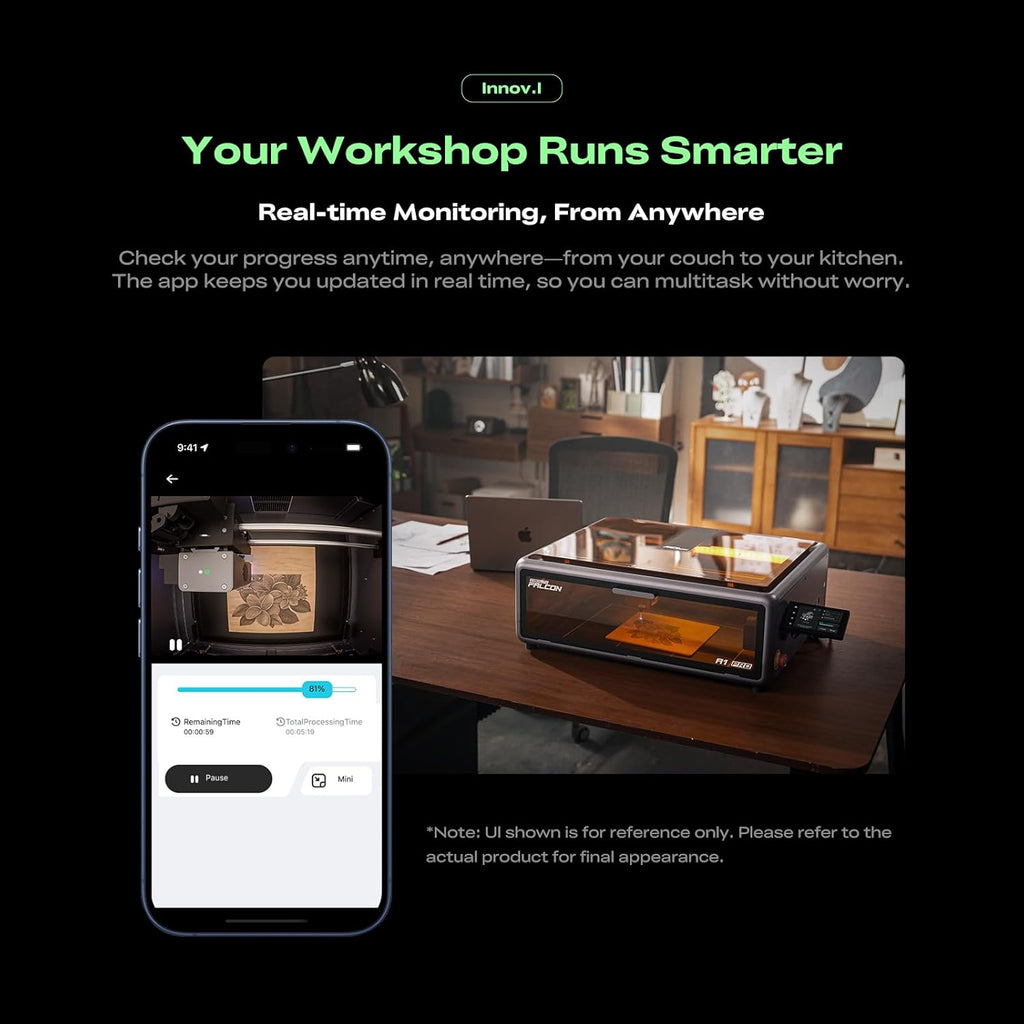

Smart Touch Screen & APP Control
The Creality Falcon A1 Pro 20W laser engraver machine boasts a sleek, smartphone-style touchscreen for effortless, cable-free operation. Intelligent app control elevates your workflow with real-time monitoring from anywhere—whether on the couch or in the kitchen—keeping you instantly informed so you can multitask with confidence
3× Faster Speed & 8 Safety Shields
Creality A1 Pro 20W Laser engraver outpaces its peers with speeds up to 600 mm/s—three times faster—delivering batch efficiency to meet most needs. Dual protective covers filter 99% of light, protecting your eyes without goggles, while the enclosed design blocks smoke and noise. An internal fan speeds smoke removal, and safety is enhanced by an emergency stop and lid-open halt feature

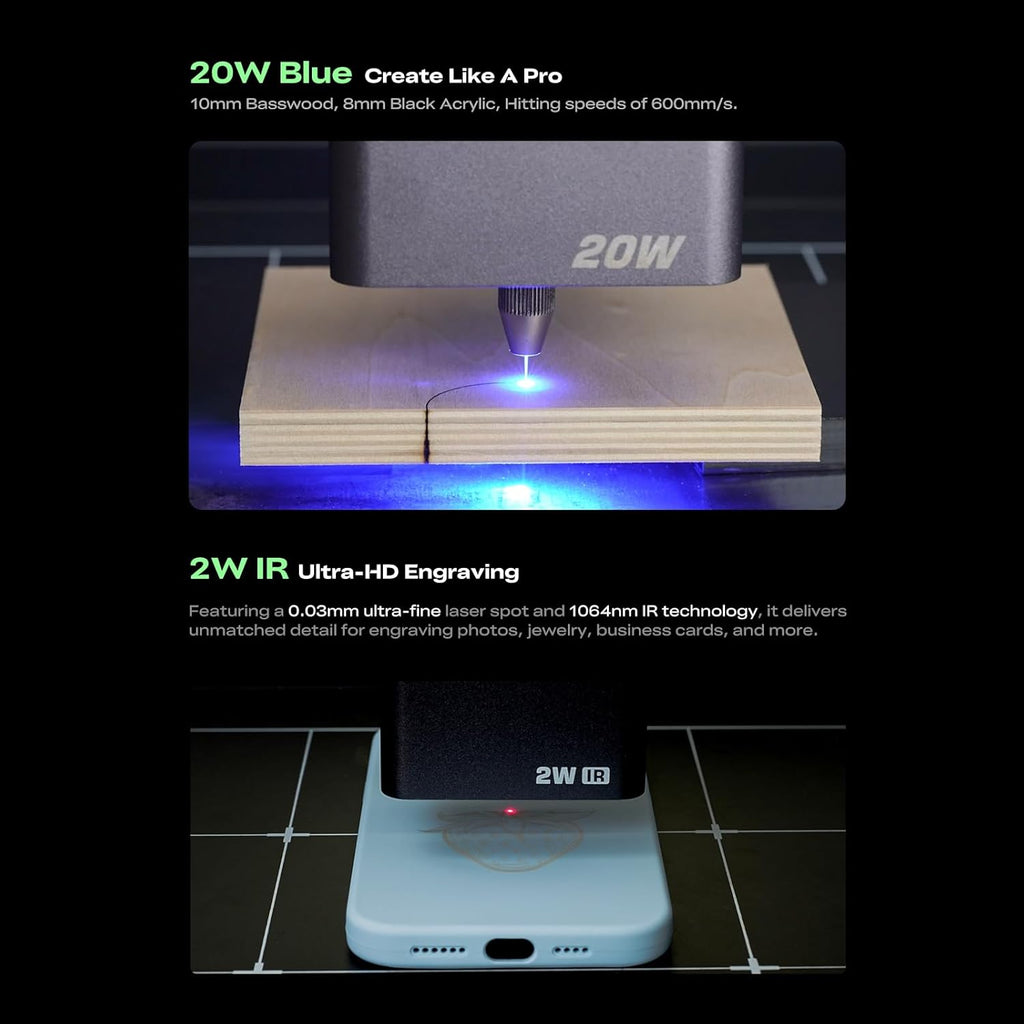

20W Blue & 2W Red Light Switching
The Falcon A1 Pro 20W blue-laser engraver empowers you to create with professional precision—capable of cutting through 10 mm basswood and 8 mm black acrylic at speeds reaching 600 mm/s. For unparalleled fine work, the optional purchased 2W infrared (IR) module harnesses 1064 nm technology and a 0.03 mm ultra-fine laser spot, delivering extraordinary clarity for engraving photographs, jewelry, business cards, and more

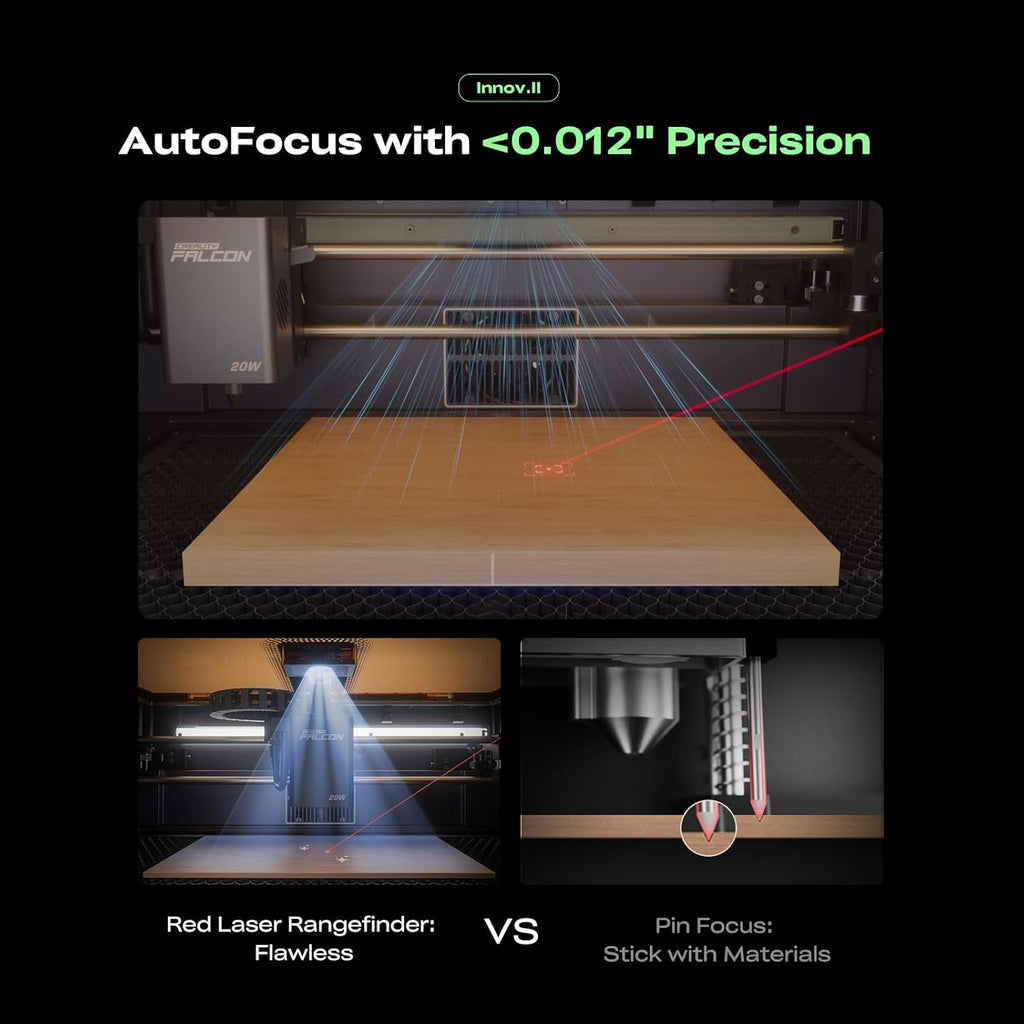

HD Camera & Leading Autofocus
Falcon A1 Pro Laser engraver machine has a high-definition camera that previews the entire workspace, enabling precise object positioning for flawless cuts and engravings. Its camera control module, AI vision system, red-dot ranging laser, and Z-axis auto-lift deliver automatic focusing in just 3 seconds, achieving measurement accuracy within 0.012 inches for perfect results from the very first cut
Pre-Assembly & Falcon Design
The Falcon A1 Pro 20W laser engraver arrives 80% pre-assembled, requiring only minimal setup to begin creating—ideal for seasoned designers and small businesses alike. With Falcon Design Space, effortlessly manage model selection, printing, and monitoring. Its streamlined UI offers intuitive guidance, enabling anyone to master the A1 Pro with ease, no expertise needed
PLEASE NOTE THAT the Falcon A1 is only compatible with 460 × 346mm(18.11” x13.62”) honeycomb panels
Key Features
· 20w blue / 2w IR laser modules (purchased separately), work with 350+ materials
· Smart camera for auto focus < 0.012-inch precision
· App control: real-time monitoring 8 safety shields, 3x faster
· Smart touch screen: convenient working
· Compact all-in-one modular design
· All-new smart workflow
SPECIFICATIONS:
| Feature |
Specification |
| Product Name |
Creality Falcon A1 Pro Laser Engraver |
| Safety Certifications |
FDA, CE, ROHS, FCC, PSE |
| Safety Class |
Class 1 (FDA) |
| Optical Power |
20W |
| Laser Source |
Semiconductor Laser |
| Laser Wavelength |
455 ± 5 nm |
| Product Dimensions |
567 × 468 × 211 mm |
| Product Size (After Screen Installation) |
685 × 468 × 211 mm |
| Engraving Area |
268 × 358 mm |
| Net Weight |
16.8 kg |
| Input Voltage |
100–240V ~ 50–60Hz |
| Output Voltage |
DC 24V 7.5A |
| Operating System |
Windows / MacOS |
| Operating Temperature |
5°C – 35°C |
| Laser Engraving Software |
Falcon Design Space, LightBurn, LaserGRBL |
| Supported File Formats |
JPEG, JPG, PNG, BMP, SVG, DXF, etc. |
WHAT'S IN THE BOX:
1 x Creality Falcon A1 Pro 20W Laser Engraver
1 x Laser Module (20W Installed)
1 x Touchscreen Display
1 x Power Adapter
1 x USB Cable
1 x Protective Glass / Safety Shield
1 x Tool Kit
1 x User Manual
