CREALITY HI COMBO OPEN FRAME 3D PRINTER
Creality Hi Combo is a high-speed open-frame 3D printer with multi-color CFS support, auto leveling, and smart filament management.

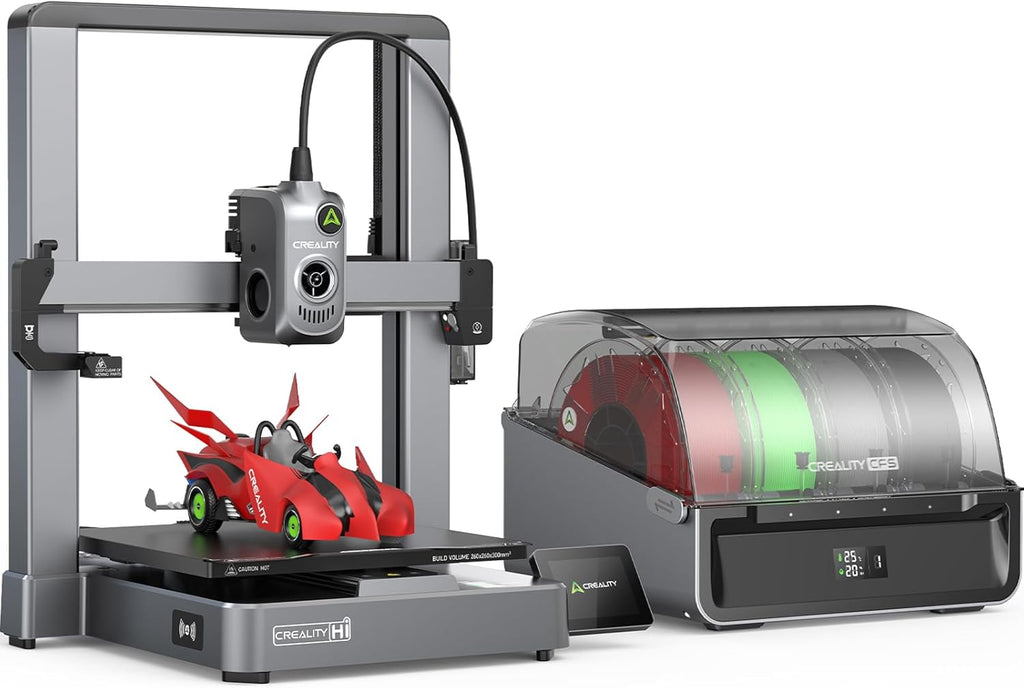

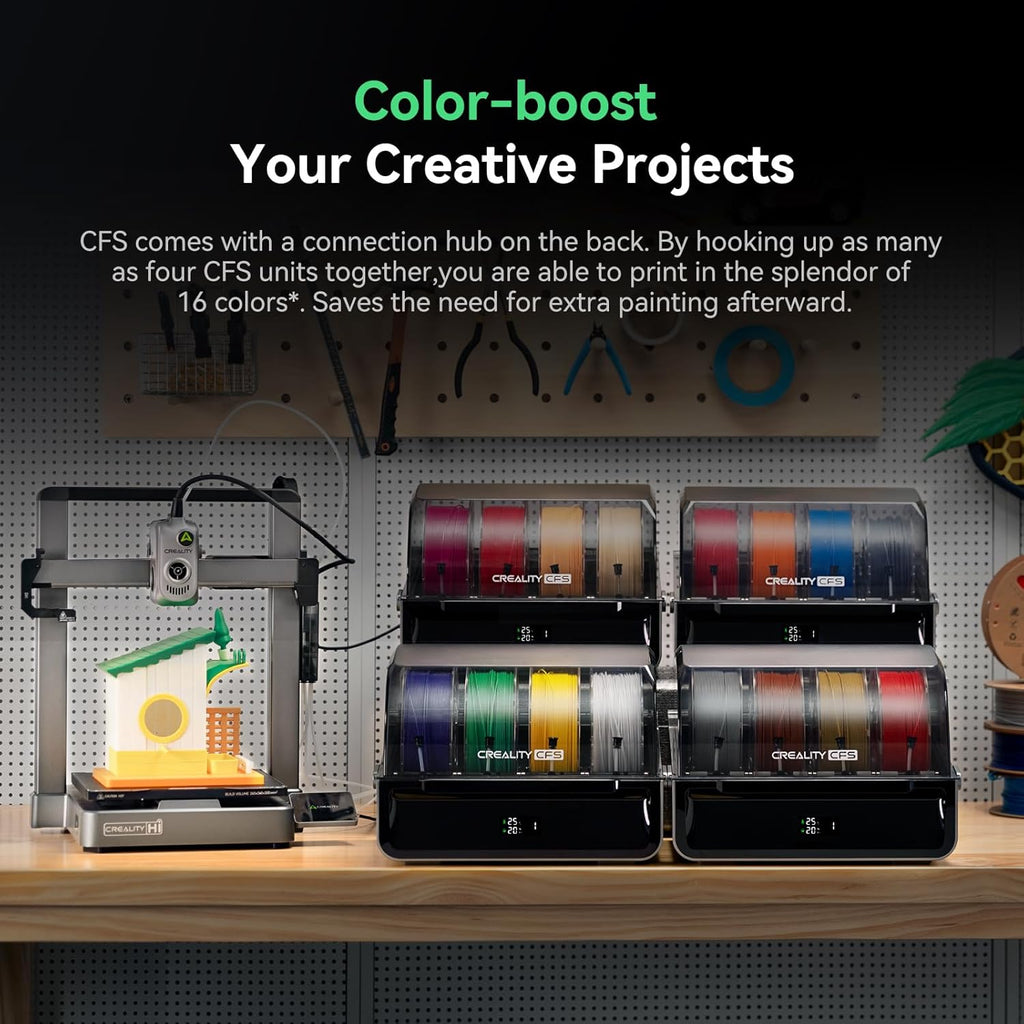

Multi-color 3D Printing with CFS
Creality Hi Combo, an innovative multi-color 3D printer. Not another reiteration but a brand-new innovation. You can now print visually stunning models in multiple colors and up to 16 colors with 4 CFS. The CFS also offers auto filament selection, a switch, and a relay, as well as airtight storage for filament.
500mm/s High Speed Printing
The X and Y axes of Creality Hi are driven by step-servo motors with FOC algorithms. This has made ultra-smooth motion possible for the Creality Hi combo with a speed up to 500mm/s with a max acceleration of 12000mm/s².

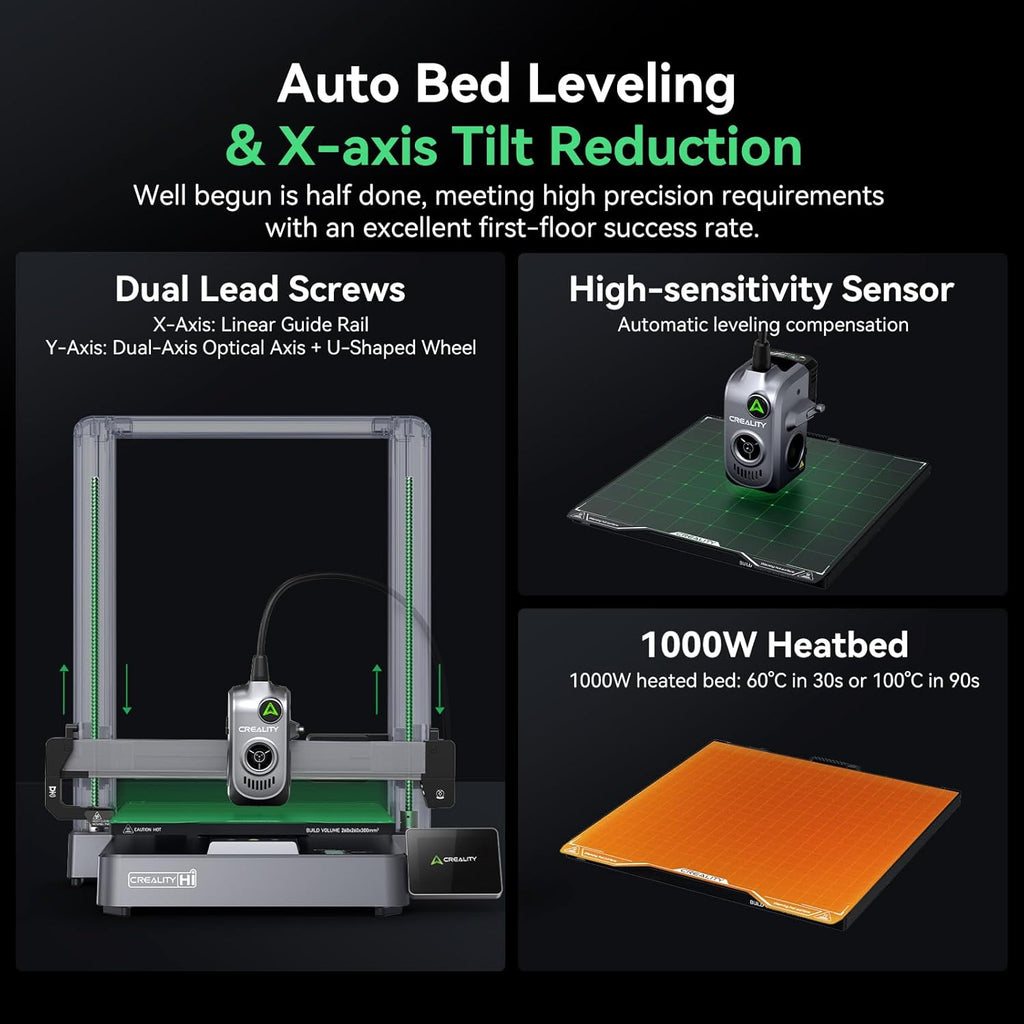

Built-in RFID Reader & Auto Bed Leveling
Creality Hi has an RFID reader that, after scanning, automatically recognizes the color and filament type in use (for Creality RFID filaments only). Two independently motorized lead screws adjust the X-axis to the horizontal position.
Highly Pre-assembled & Easy 3D Printing
This Creality 3D printer 95% highly pre-assembled. A responsive 3.2" touch screen that can be folded away for a smaller footprint and a boot-up quick guide to help you set everything ready. A webcam to capture time-lapse photography for sharing and to monitor printing in real-time (built-in camera cap for privacy protection).
Creality Official Support Service
Creality provides a 12-month after-sales service for the Creality 3D printer. If you have any questions or need support about the product, please contact, and you will have a response within 24 hours.
SPECIFICATIONS:
Build Volume：260×260×300 mm

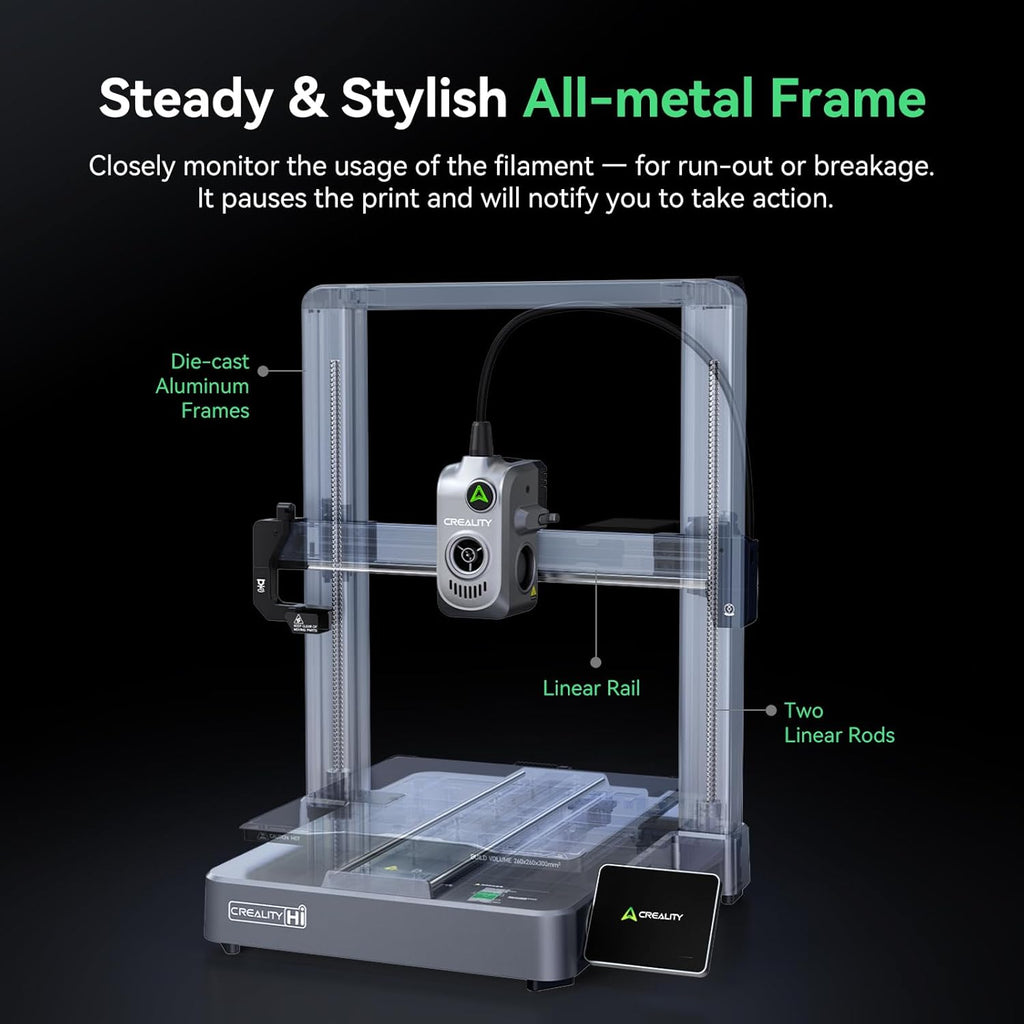

Frame: Aluminum Alloy
Printing Speed: 300 mm/s typical speed; 500 mm/s max speed
Acceleration:≤12000 mm/s²
3D Printer Dimensions: 409 × 392 × 477 mm
Printer Package Dimensions: 650 × 460 × 240 mm
Combo Package Dimensions: 650 × 460 × 560 m
3D Printer Net Weight: 8.75 kg
Combo Net Weight:13.31 kg
3D Printer Gross Weight:11.58 kg
Combo Gross Weight: 19.14 kg
Build Plate: Two-sided epoxy flexible build plate
Heatbed Temperature: ≤ 100 ℃
Part Cooling Fan: Closed-loop Control
Hotend Fan: Closed-loop Control
Extruder Direct: drive extruder
Hotend: All-metal & integrated
Extruder Gears: Steel

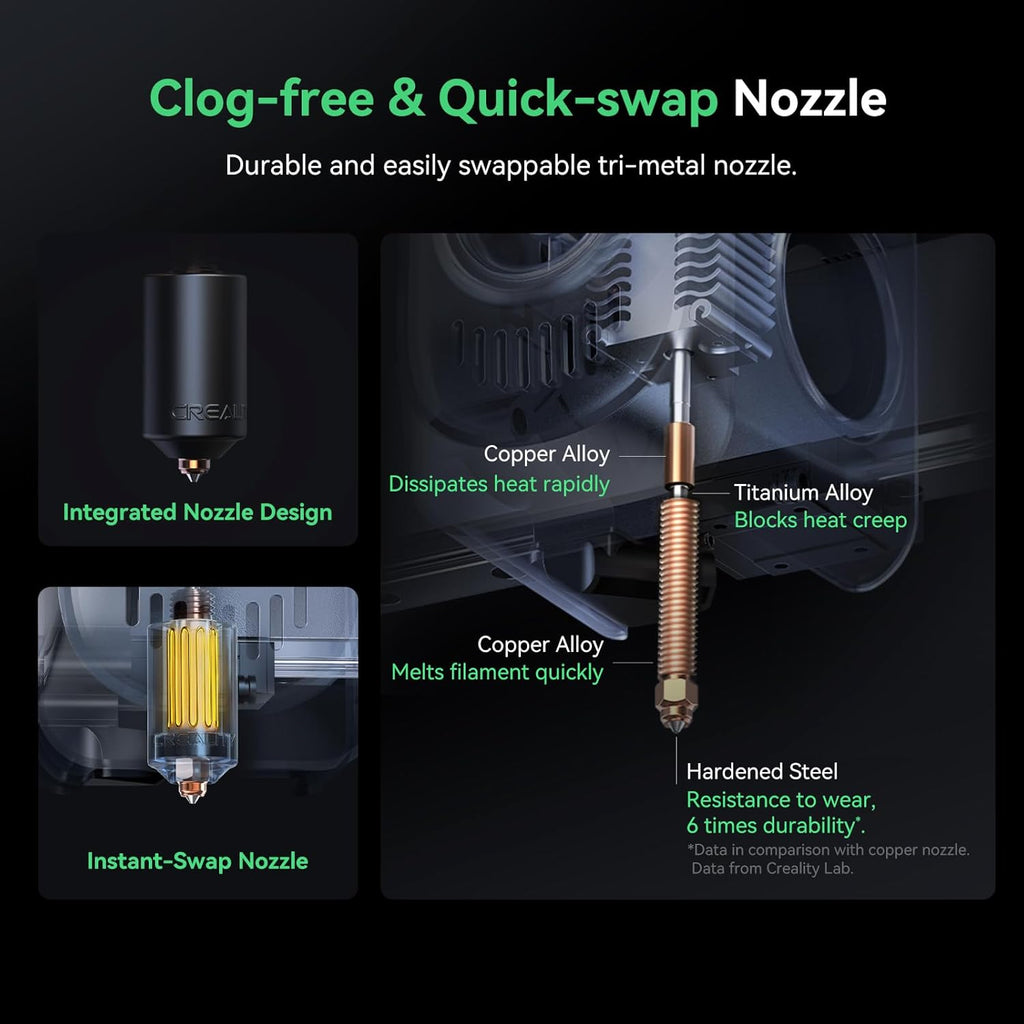

Nozzle: Durable tri-metal nozzle
Nozzle Temperature: ≤300℃
Nozzle Diameter (Default): 0.4 mm
Nozzle Diameter (Optional): 0.6 mm、0.8 mm
Filament Cutter: Built-in
Filament Diameter: 1.75 mm
Monitoring Camera: Yes
Filament Run-out Sensor: Yes
Filament Tangle Detection: Yes
Auto Filament Relay: Yes (with CFS)
Supported Filaments: Hyper-PLA/PLA/PETG/ABS/PLA-CF
Display Screen: 3.2″ color touch screen (320×240px)
File Transfer: USB drive/WiFi
File Storage: 8GB
User Interfaces: Touch screen, Creality Cloud App, PC program
MCU: Dual-core ARM Cortex-A7 microprocessor
Slicing Software: Creality Print 5.1 and newer versions
Supported Languages: English, German, Spanish, French, Italian, Portuguese, Turkish, Russian, Japanese, Chinese
Leveling Method: Leveling with a strain gauge
XYZE Motor: Step-servo motor for X/Y axis; step motor for others
Input Shaping (G-Sensor): Yes
Lighting Kit: Yes
CFS Connection: ≤ 4 (Separate power source required for 2 or more units)
CFS SPECIFICATIONS
Product Dimension: 379 × 314 × 276 mm
Product Net Weight: 4.56 kg
Input Voltage: DC 24V
Rated Power 20W
CFS Connection: ≤ 4
RFID Filament Recognition：Yes
Supported Filaments：PLA/PETG/ABS/ASA/PET/PLA-CF *Not compatible with flexible TPU, damp BVOH/PVA, or warped cardboard spools.
Display Screen Digital: Screen showing temperature and humidity
WHAT'S IN THE BOX:
1 x Creality Hi Combo 3D Printer
1 x CFS (Color Filament System) Module
1 x Build Plate
1 x Power Cable
1 x Filament Sample
1 x Tool Kit
1 x Spare Nozzle
1 x Nozzle Cleaning Needle
1 x USB Cable
1 x User Manual
