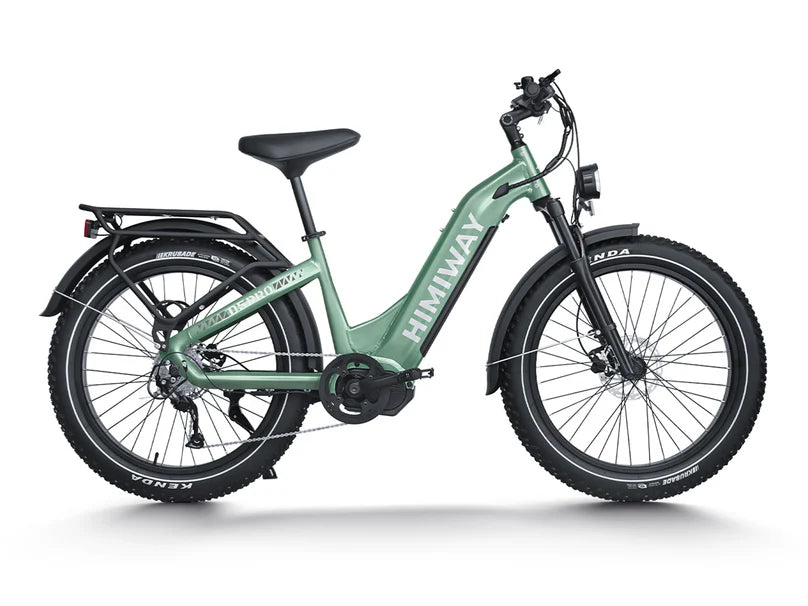

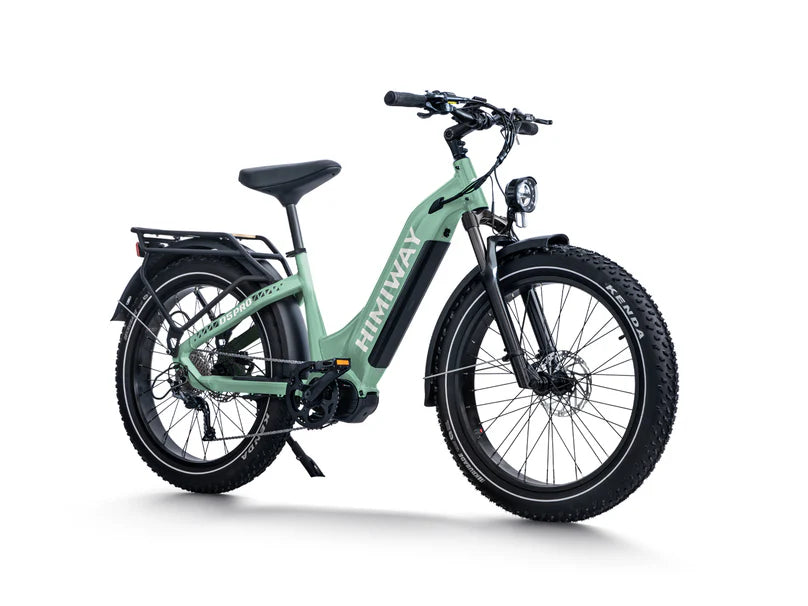

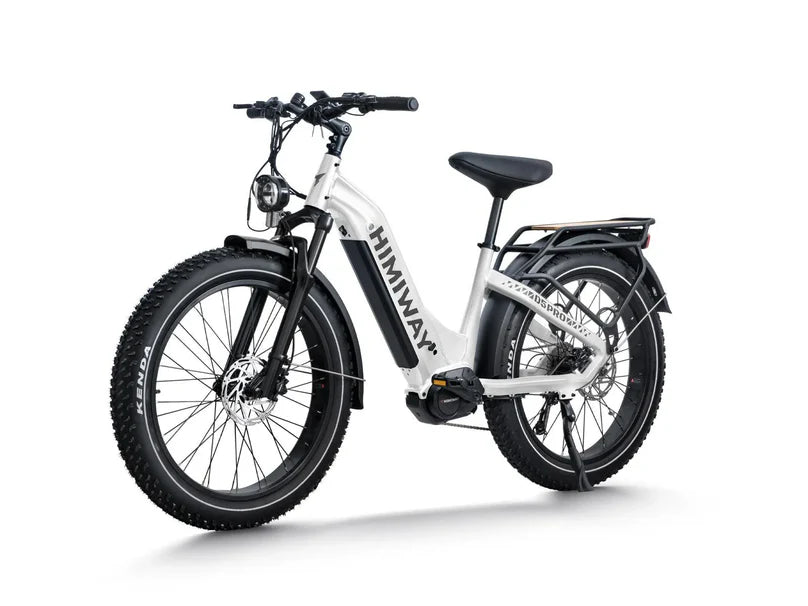

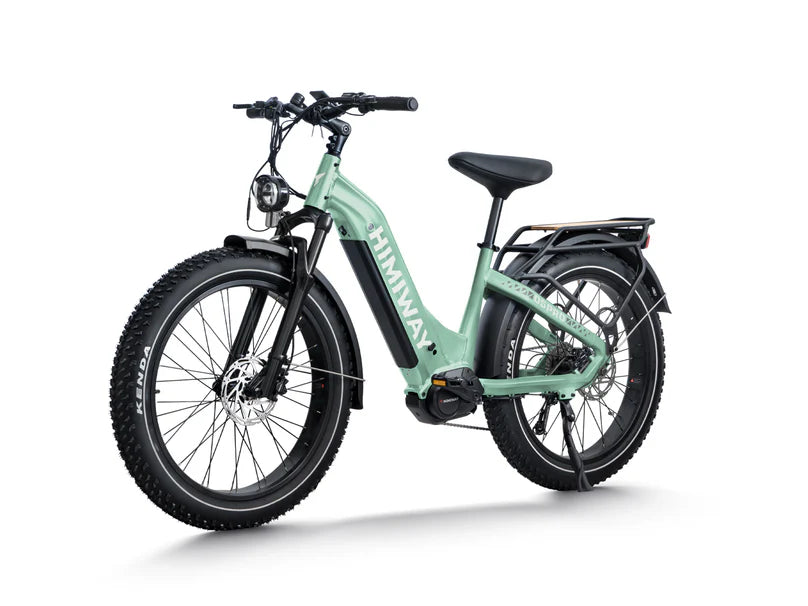

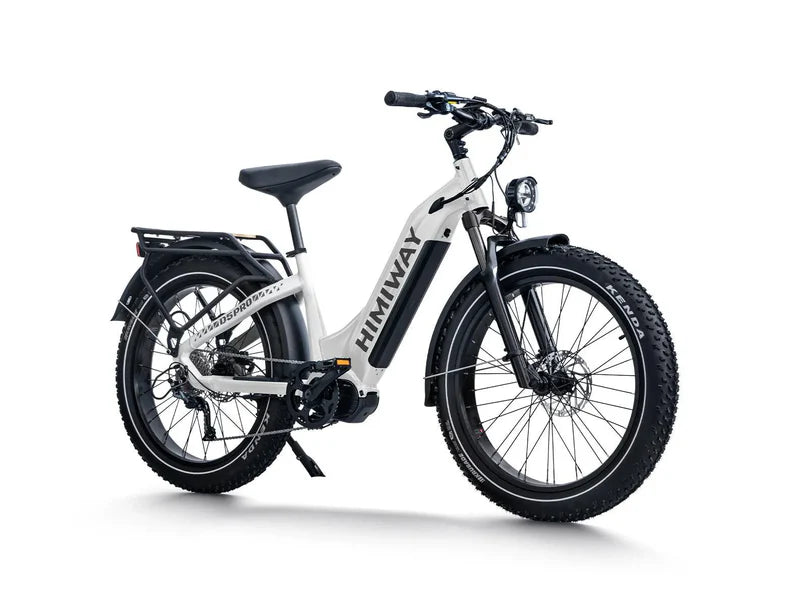

Himiway D5 Pro ST / All-terrain Electric Fat Bike
Himiway D5 Pro ST Step-Thru Electric Bike Overview
The Himiway D5 Pro ST brings powerful all-terrain performance to riders who prioritize accessibility. Its low step-thru frame allows easy mounting and dismounting—ideal for riders carrying gear, wearing restrictive clothing, or needing added mobility support.
Designed for confidence and control, this mountain e-bike maintains the same strength and endurance as the standard D5 Pro while offering a more approachable riding experience.
Why It Breaks Barriers
-
Step-Thru Convenience: Easy access with no high-leg swing required
-
Same D5 Pro Power: 750W motor and up to 80-mile range
-
Balanced Agility: Lower center of gravity improves control on descents and technical terrain
Is the D5 Pro ST less powerful than the standard D5 Pro?
No. Both models share the same motor, battery, and off-road capabilities. The difference is purely in frame design.
Specifications
Frame: 6061 Aluminum frame
Headset: Neco H156EM 28.644-5630
Fork: TRAMA FAT34-PLS-26" 100mm travel, 15135mm thru axle
Shock: Alloy front suspension fork with lockout and adjustment
Front Wheel: Rim: MD-147 264.0"36H12G A/V | Spoke: 12G 255/256L stainless | Hub: MB015-92 M912G135145W
Rear Wheel: Rim: MD-147 264.0"36H12G A/V | Spoke: 12G 256/257L stainless | Hub: GSMB019R-190F-GM14
Tires: Kenda 264.0
Battery: Samsung/LG 48V 20Ah
Motor: 500W mid-drive motor
Display: KD718-P LCD display with Type-C charger
Throttle: Thumb throttle
Sensors: Torque sensor | Shifting sensor | Speed sensor | Brake sensor
Crankset: Crankarm: Prowheel 170mm | Chainring: 44T BCD104
Freewheel: Shimano CS-HG201-9 11-36T
Chain: KMC E9 EPT 124L
Groupset: Shimano Altus M2000 9 speed
Front Brake: Tektro HD-E3520 hydraulic brake
Rear Brake: Tektro HD-E3520 hydraulic brake
Rotors: F:180mm R:180mm
Stem: Zoom TDS-C269-8FOV 31.890mm
Handlebar: Promax HB-3188 22.231.8700mm
Seatpost: Himiway Seatpost
Saddle: Himiway Saddle
Pedal: Aluminum pedal
Lights: 48V LED light
Kickstand: Heavy-duty aluminum kickstand
Range: 60–80 miles
Controller: 48V/22A
Charger: U.S. standard 3.0A fast charger
Rider Height: 5′3″ ~ 6′5″
Weight: 79 lb. (with battery)
Max Payload Capacity: 400 lb.
What's In The Box
- E-bike
- Protection Fender Kit
- Rear Rack
- 16 in 1 Repair Tool
- Charger
- Manual
