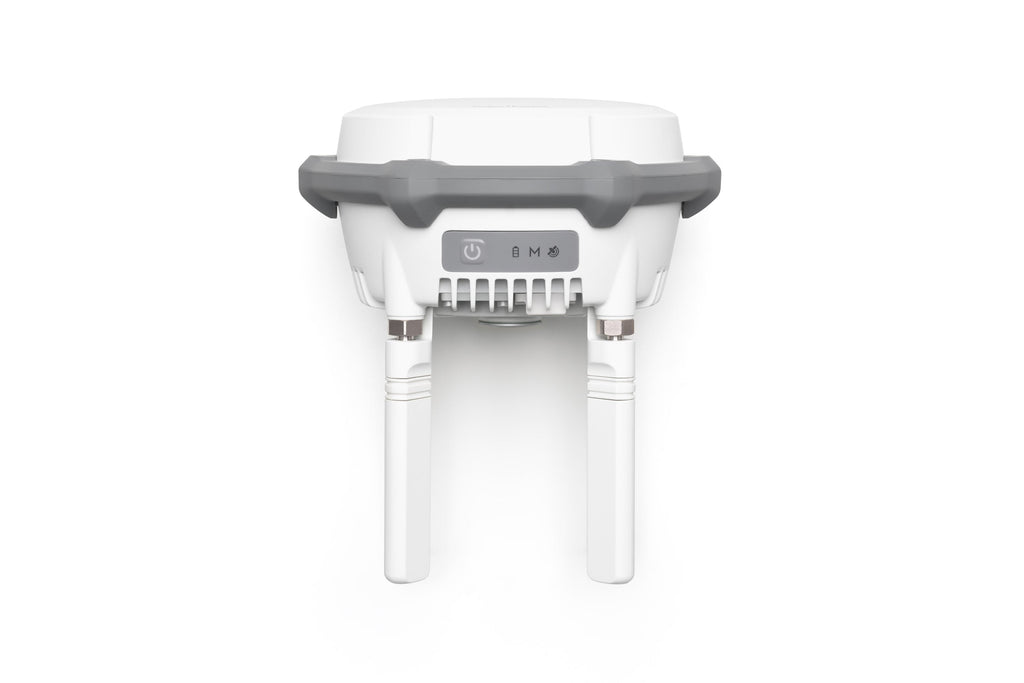

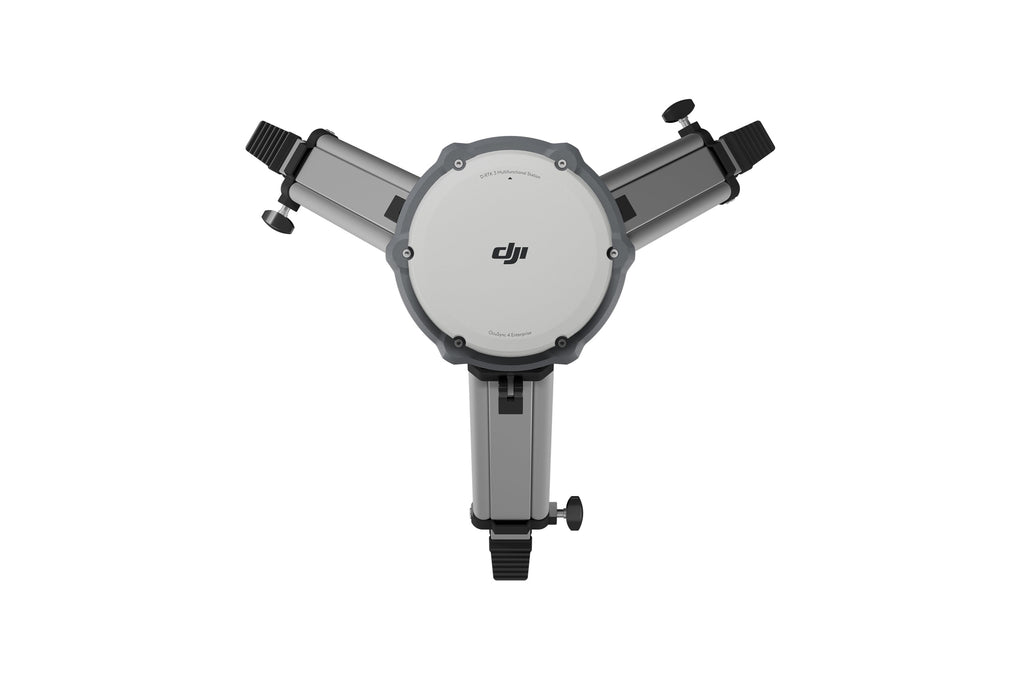

DJI D-RTK 3 Multifunctional Station
The all new D-RTK 3 Multifunctional Station combines high-performance antennas and receiver modules, enabling it to track and resolve data from major global satellite navigation systems.
It supports multiple data transmission links and can analyze device position and orientation through its built-in high-performance inertial measurement unit.
`These advanced features allow it to function as a base station, providing centimeter-level positioning for multiple drones simultaneously, or extend the operational range of drones in relay station mode.
Additionally, the new rover station mode, in conjunction with the DJI ENTERPRISE app and DJI Terra, offers a comprehensive solution for high-precision aerial surveying applications.
Specifications:
Positioning Performance
GNSS: GPS, GLONASS, Galileo, BeiDou, QZSS supported
RTK Positioning Accuracy (horizontal): ±1 cm + 1 ppm
RTK Positioning Accuracy (vertical): ±1.5 cm + 1 ppm
Cold Start: < 50 s
Hot Start: < 15 s
Reacquisition: < 1 s
Communication
OcuSync / OcuSync Enterprise: Supported (for compatible DJI Enterprise drones)
Data Link: Long-range wireless transmission
Frequency Bands:
2.400–2.4835 GHz
5.725–5.850 GHz (region dependent)
Max Transmission Distance: Up to ~15 km (FCC, unobstructed)
Power & Battery
Built-in Battery Type: Li-ion
Battery Life: Up to ~8 hours (varies by mode)
Charging Port: USB-C
Charging Time: ~2 hours (with high-power charger)
Physical Specifications
Weight: ~1.26 kg
Dimensions (folded): approx. 163 × 163 × 122 mm
Ingress Protection: IP65 (dust-tight and water-resistant)
Operating Temperature: −20°C to 55°C

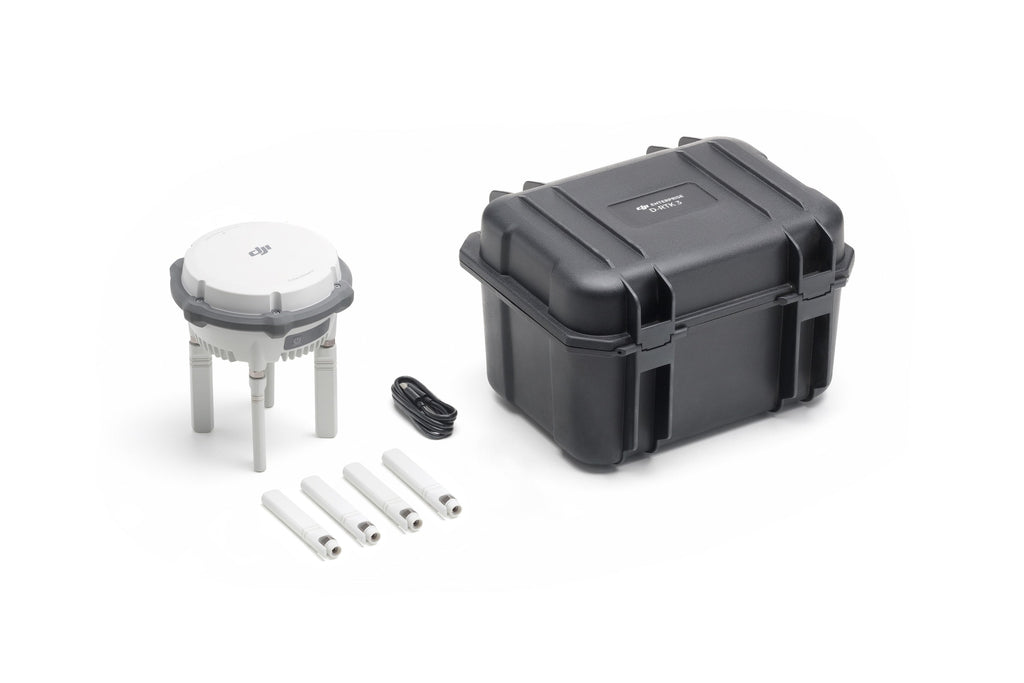

What's in the Box:
1 x D-RTK 3 Multifunctional Station
4 x Spare OcuSync Directional Antennas
1 x USB-A to USB-C Cable
