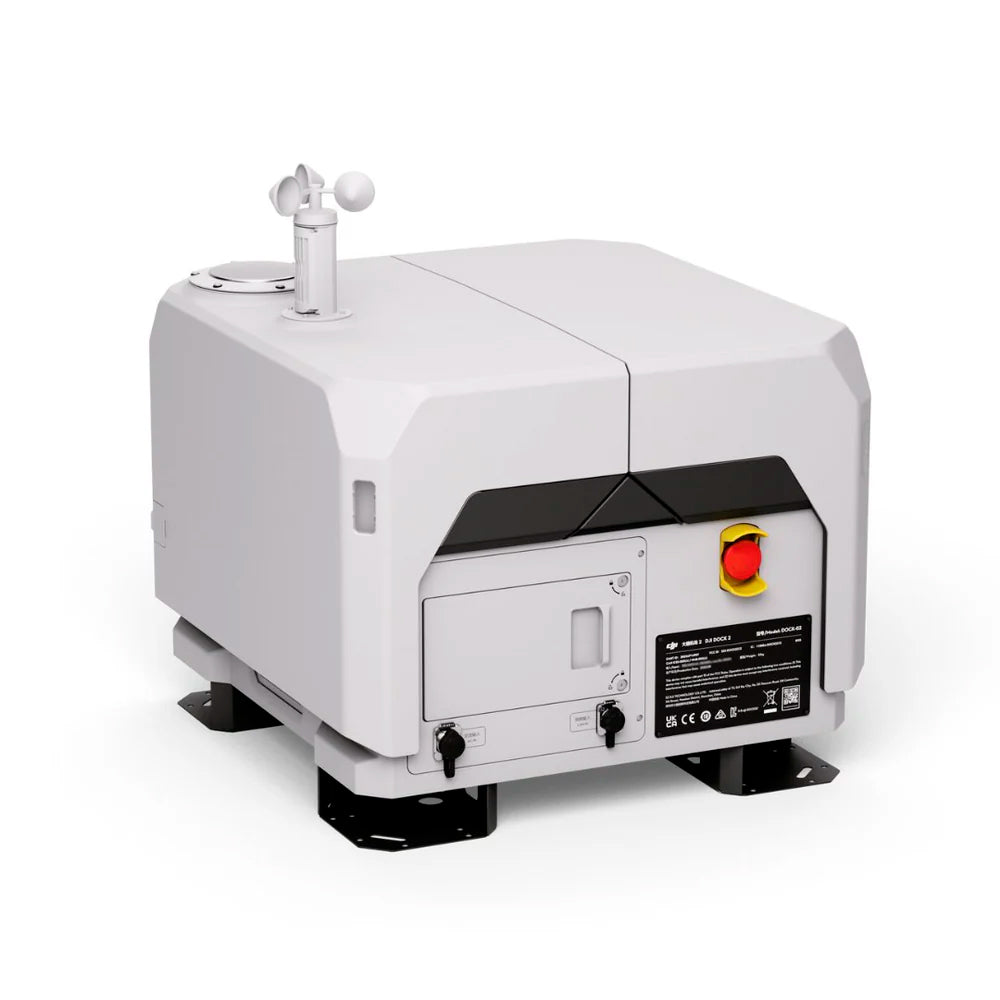

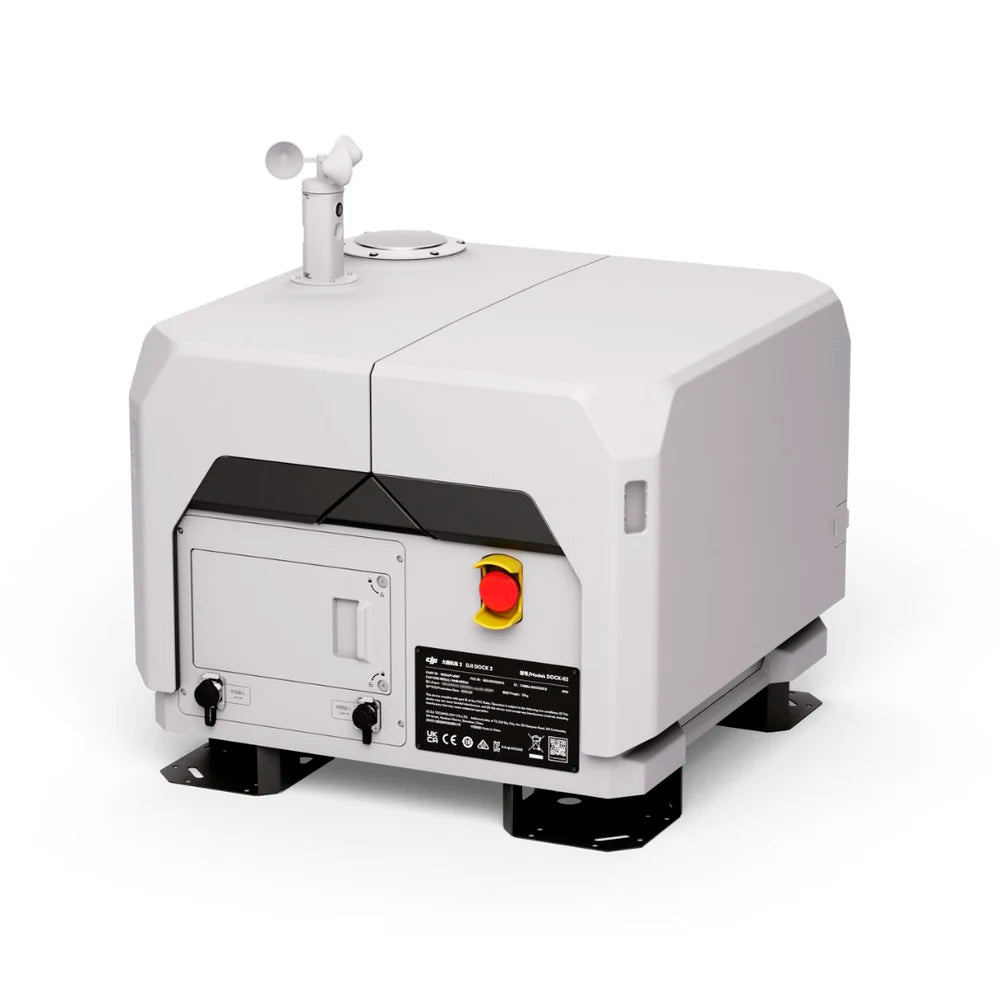

DJI Dock 2
Dock 2 is here to revolutionize automated operations of DJI drones, specifically for Matrice 3D or Matrice 3TD drones. More capable, yet noticeably smaller, Dock 2 is lightweight yet rugged and is loaded with high-level operation capabilities and allows easy deployment of your drone.
LIGHTWEIGHT DESIGN
75% smaller and 68% lighter than its predecessor, Dock 2 needs just 2 people to tote it around places and allows easy installation, also bringing down installation costs significantly.
EFFICIENT SITE EVALUATION
Before deploying, this Dock 2 lets aircraft detect the immediate environment using vision sensors and zero in on the area that has stronger GNSS signals. This vision-based evaluation is supposedly a new feature that helps accelerate site selection, substantially reducing scan time from five hours to twelve minutes or less.
RUGGED RELIABLE RECHARGED
The IP55 ingress protected Dock 2 is engineered to operate consistently for extended periods braving weather anomalies. This docking station integrates multiple sensors to perceive impending real-time weather changes and work in conjunction with weather forecasting. This helps the Dock to send out timely warnings or terminate a takeoff effectively reducing flight risk.
HIGH PERFORMANCE AIRCRAFT MODELS
DJI's all new Matrice 3D/3TD is designed exclusively for Dock 2. Ready to deployed for high end missions, while Matrice 3D is equipped with a tele camera and wide-angle camera to meet 1:500 high-precision mapping tasks, Matrice 3TD with a wide-angle camera, a tele camera and an infrared camera is perfected for search and rescue missions.
STEADY OPERATION, UNCOMPROMISED EFFICIENCY

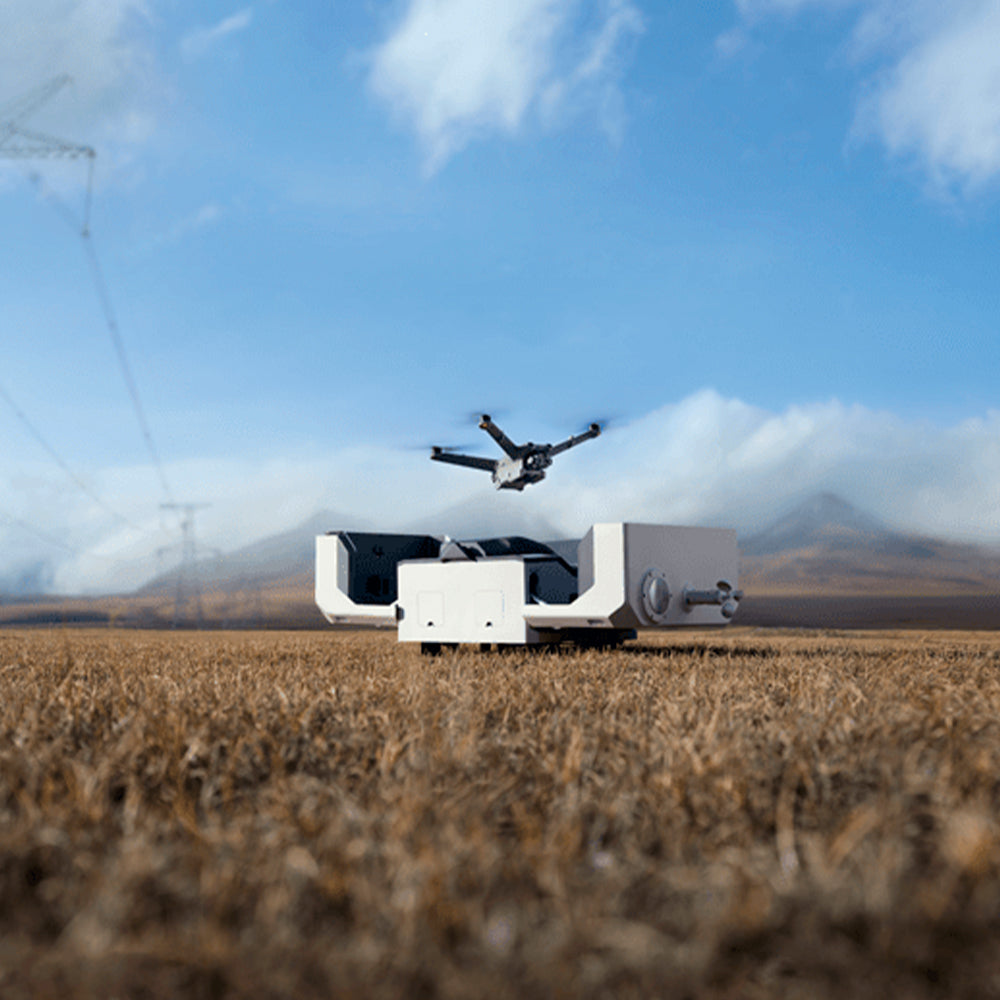

Dock 2 integrates dual RTK antennas to perform a complete propeller inspection and takeoff in just 45 seconds, venturing into its operational status that allows the aircraft to get accurate RTH location info.
Highlights:
- Integrated environmental monitoring system
- Improved landing stability
- Built-in backup battery
- Six-month maintenance interval
- Abnormal condition notifications
- Dual camera monitoring
Specifications:
Total Weight: 34 kg (without aircraft) The actual product weight may vary due to differences in batch materials and external factors.
Dimensions

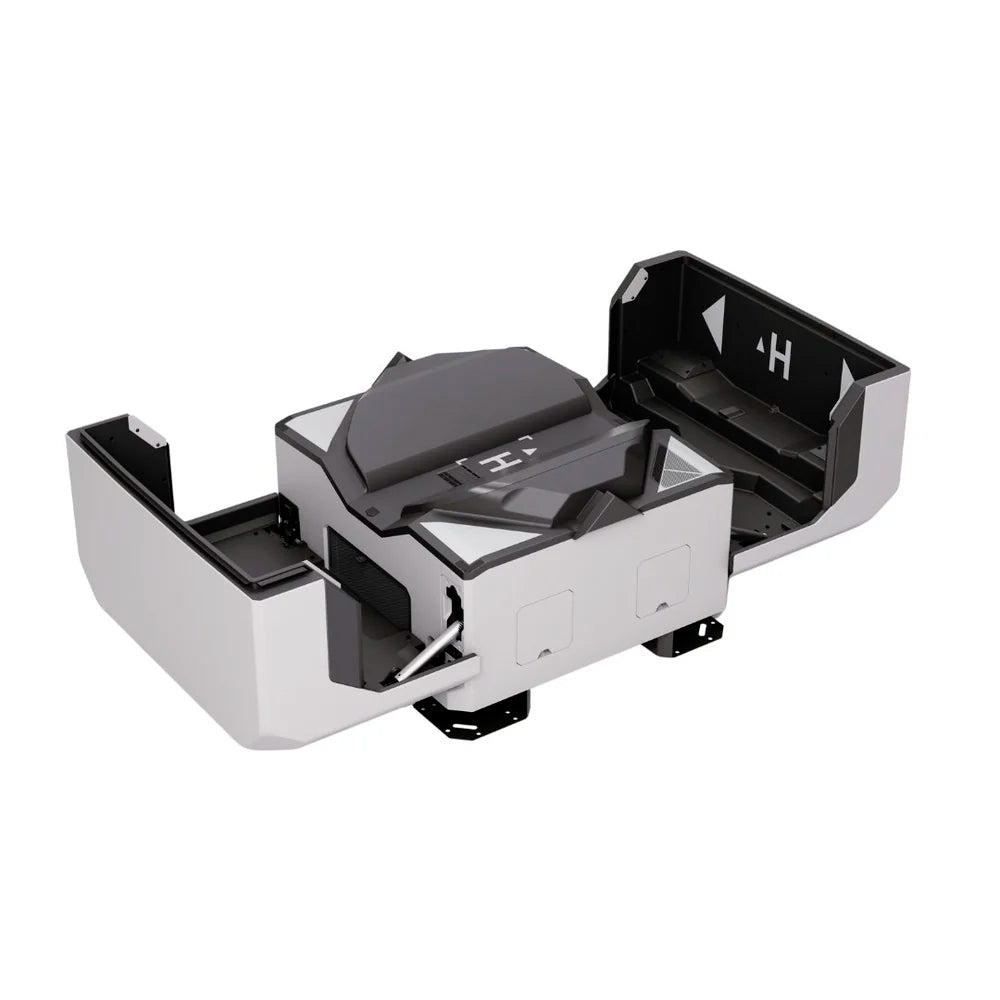

Dock Cover Opened: 1228×583×412 mm (L×W×H)
Dock Cover Closed: 570×583×465 mm (L×W×H) The above data does not include the height of the wind speed gauge (145 mm) but includes the height of the mounting base brackets (55 mm).
Input Voltage: 100-240 V (AC), 50/60 Hz
Input Power: Max 1000 W
Operating Temperature: -25° to 45° C (-13° to 113° F) When the ambient
temperature is below -20° C (-4° F), the dock is in standby status, and the aircraft cannot perform flight tasks.
Ingress Protection Rating: IP55
Number of Drones Accommodated: 1
Max Allowable Landing Wind Speed: 8 m/s
Max Operating Altitude: 4000 m
Receiving Frequency of RTK Base Station Satellite Simultaneously receive:
GPS: L1 C/A, L2
BeiDou2: B1l, B2l, B3l
BeiDou3: B1l, B3l
GLONASS: L1, L2
Galileo: E1, E5B
Positioning Accuracy of RTK Base Station
Horizontal: 1 cm + 1 ppm (RMS)
Vertical: 2 cm + 1 ppm (RMS)
Warranty: 1 Year Limited
What's in the Box:
1 x DJI Dock 2
1 x Wind Speed Gauge Module
4 x Expansion Bolt
1 x Ethernet Cable Connector
1 x Power Cable Connector
6 x Wire Ferrule
1 x Installation Hardware & Tools
