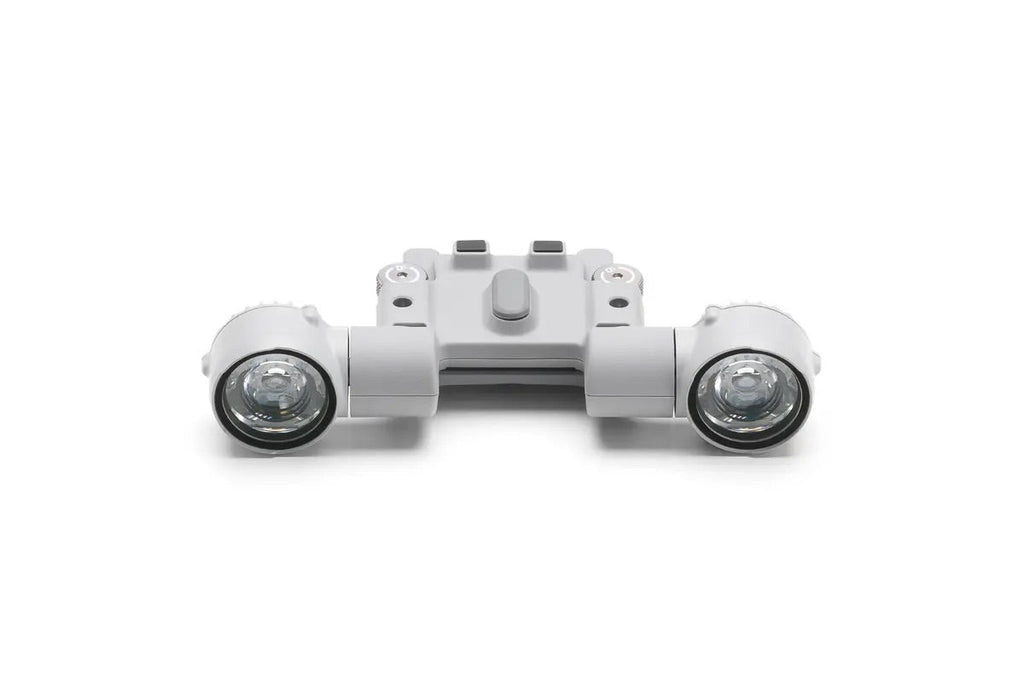

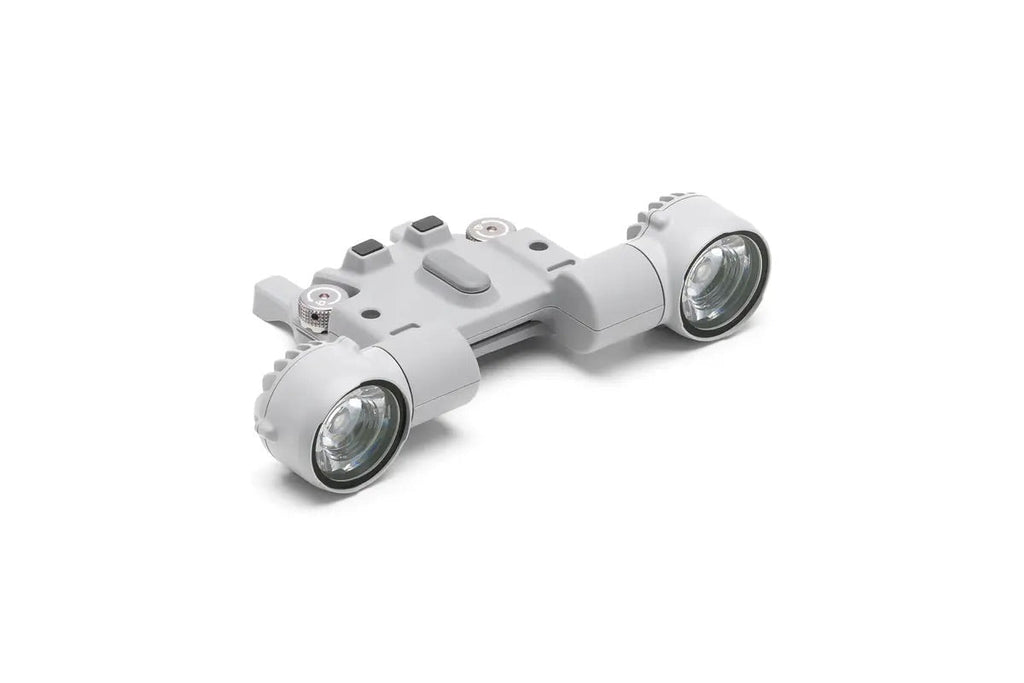

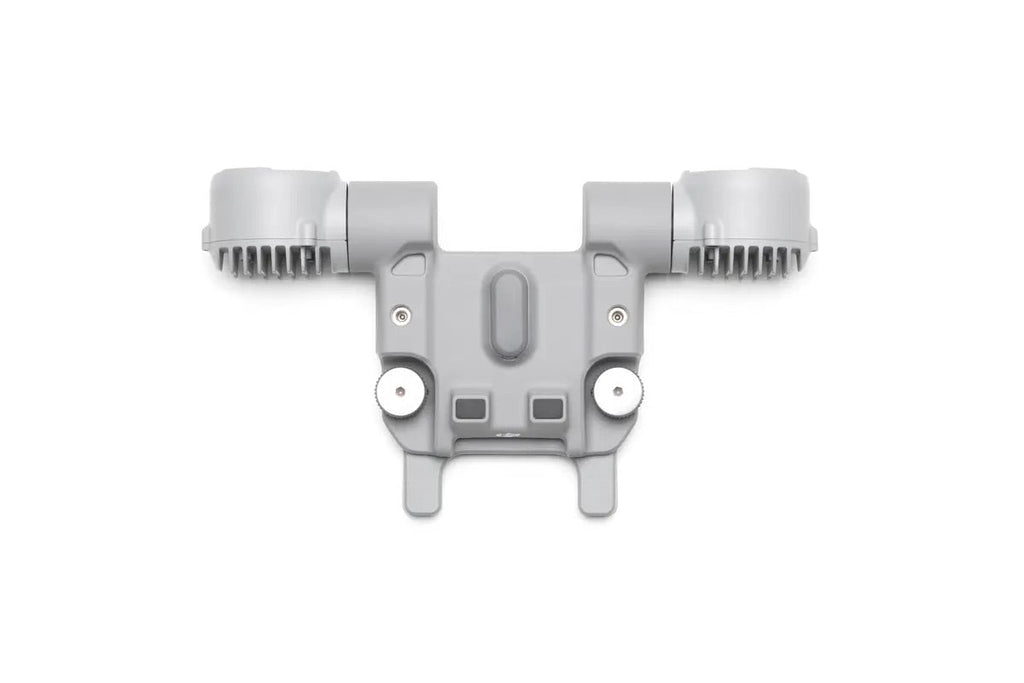

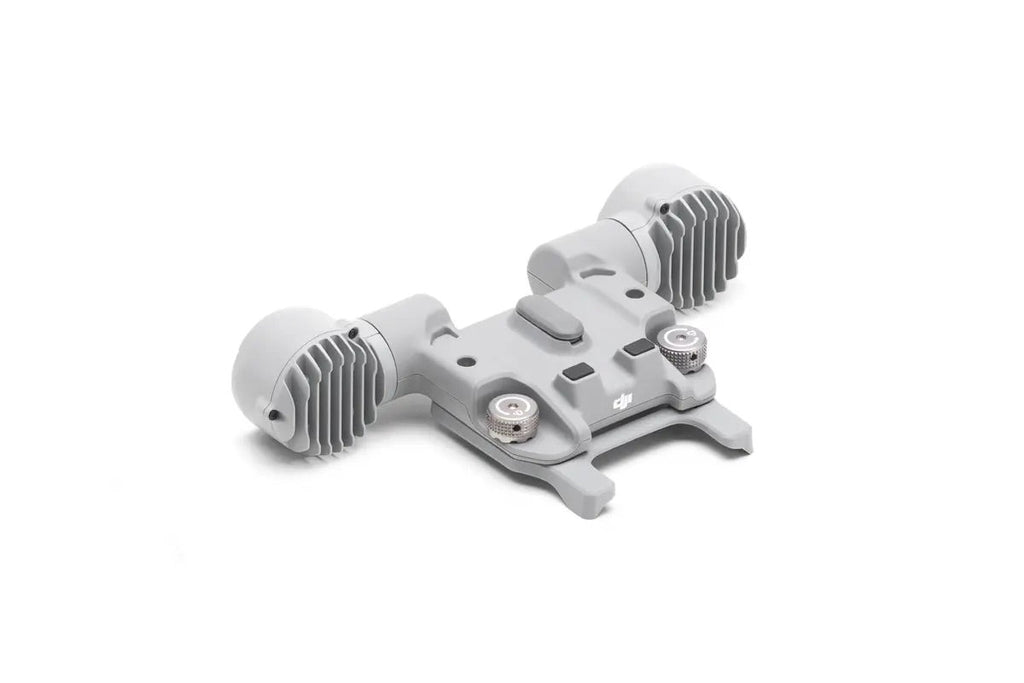

DJI Matrice 4 Series AL1 Spotlight

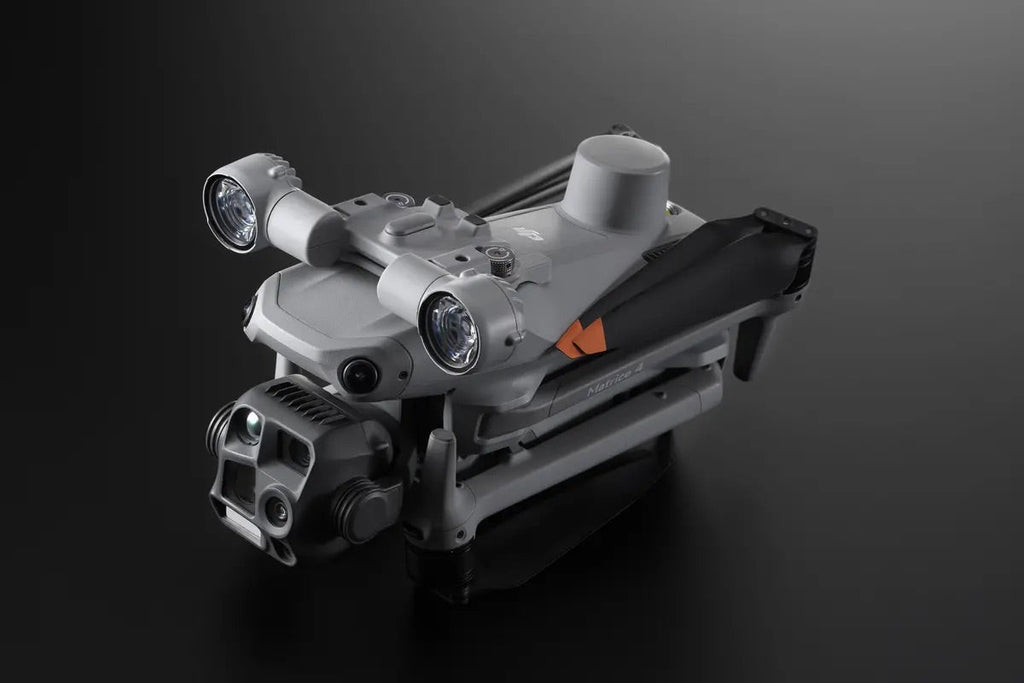

The DJI AL1 Spotlight offers two modes: always-on and strobe, providing clear illumination even from up to 100 meters away. It can intelligently link with the gimbal, following the camera's movements to ensure the illuminated area aligns with the camera's view.
Additionally, the spotlight features a wide FOV lighting mode, allowing for broader area coverage when in wide-angle mode. The spotlight and speaker can be used separately or together, offering flexibility to meet the demands of various operational scenarios.
Specifications:
Optical Performance
Max central illuminance: up to ~40 lux @ 100 m
Effective illumination distance: up to ~100 m
Beam type: Narrow, high-intensity spotlight
Light source: High-power LED module
Color temperature: approx. 6500 K (cool white)
Power
Power supply: Powered by aircraft payload port
Max power consumption: approx. ≤ 30 W
Operating voltage: Via drone payload interface (no external battery)
Gimbal / Adjustment
Stabilization: Linked with aircraft gimbal system
Angle control: Remote adjustable with camera linkage
Modes:
Always-on mode
Strobe mode
Brightness adjustment
Physical
Weight: approx. ~200 g (±)
Dimensions: Compact payload form factor
Housing: Aluminum alloy + high-strength plastic
Color: Black
Environmental
Operating temperature: approx. -10°C to 40°C
Protection rating: Designed for outdoor aerial use
Cooling: Passive heat dissipation
What's in the Box:
1 x DJI AL1 Spotlight
2 x Spare Screw
1 x Hex Key
