DJI Matrice D-RTK Ground System Kit (Datalink Pro 900-G)

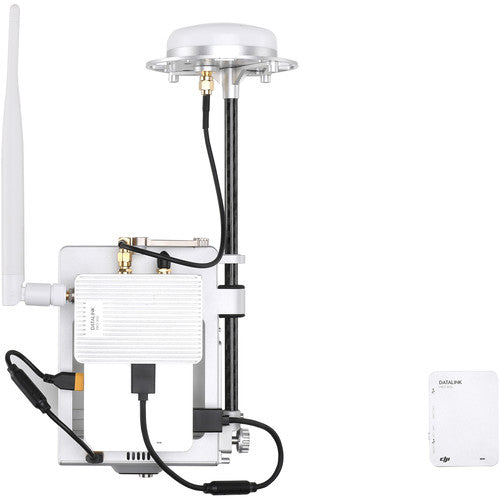

If you're utilizing a drone for commercial, industrial, or scientific purposes, and precision is a top priority, then you may need the D-RTK GNSS with DATALINK PRO 900 from DJI. Designed for drones that use A3 flight controllers, such as the Matrice 600, this navigation and positioning system comprises three D-RTK antennas, a DATALINK PRO 900 base station, a mobile station, and all of the hardware needed to mount the D-RTK antennas and mobile station to your UAV.

The system passes signals between the base and mobile stations via the A3 flight controller during flight, and utilizes the D-RTK antennas to access GPS + GLONASS via a dual-positioning module for centimeter-level, precision 3D positioning, enhanced altitude accuracy, and a true heading that is resistant to magnetic interference. For additional flight management, drone calibration, and more, D-RTK supports both the DJI GO and Assistant 2 apps.

DATALINK PRO

This wireless datalink supports the A3 flight controller and D-RTK antennas to provide Full Duplex or Broadcast transmission modes to your UAV. In Full Duplex Mode, the base and mobile station conduct two-way communication, but in Broadcast Mode, data is only sent from the base station to the mobile station, with the ability to transmit to up to 32 different UAVs with mobile stations attached to them. If your craft is highly customized, DATALINK PRO supports a range of ports if needed, such as USB, CAN, and UART. Ports can be individually selected by toggling a switch, and data is automatically transmitted from one to another

Precision Positioning

Precise positioning of one centimeter vertically and horizontally is made possible through dynamic differential technology. This extreme accuracy allows for the creation of repeatable flight routes that provide reliable and valuable visual data that can be essential for commercial and industrial scenarios.

Altitude Accuracy

Barometers commonly found in UAS systems may suffer from altitude discrepancies when faced with fluctuations in airflow, such as during takeoff, under braking, or after extended flying. This affects an aircraft's flight and introduces unwanted data variation that complicates workflows. D-RTK's precision altitudinal calculations reduce variation to one centimeter, effectively eliminating variations, giving you data that you can rely on.

True Heading

Dual antennas create heading references that are significantly more accurate than possible with a single compass sensor. By removing compass dependence, the system is also resistant to magnetic interference, such as that generated by metal structures and high voltage power lines, allowing for accurate flight in environments where other aircraft cannot function.

Key Features

For UAVs with DJI A3 Flight Controllers
Works with the DJI Matrice 600
Provides Centimeter-Level Precision
GPS + GLONASS Navigation Access
Enhanced Altitude Accuracy
Magnetic-Resistant True Heading
Full Duplex or Broadcast Transmission
Control up to 32 Similarly Equipped UAVs

Specifications:

Compatibility	Drones with DJI A3 flight controllers
Transmission Mode	Full Duplex Broadcast
Navigation System	GPS + GLONASS
Precision	0.4" / 1.0 cm (vertically and horizontally)
Ports	Base and Mobile Station Antenna Interface Micro-USB CAN/UART (CAN and UART can be used simultaneously)
Dimensions	8.1 x 13.9 x 6.1" / 20.7 x 35.2 x 15.5 cm
Weight	3.3 lb / 1.5 kg

What's in the Box:

1 x DJI D-RTK GNSS with DATALINK PRO 900 (GPS + GLONASS)
2 x D-RTK Processor
3 x D-RTK GNSS Antenna
3 x D-RTK Antenna Cable
1 x D-RTK Antenna Bracket I
2 x D-RTK Antenna Bracket II
1 x D-RTK Base Board
1 x D-RTK DATALINK PRO Bracket
1 x D-RTK Thumb Screw
1 x D-RTK 8-Pin Cable
1 x D-RTK 4-Pin CAN Cable
1 x D-RTK Micro-USB Cable
1 x D-RTK Ground System Power Cable
1 x D-RTK Air System Power Cable I
1 x D-RTK Air System Power Cable II
1 x D-RTK Installation Hardware
1 x DATALINK PRO Base Station Antenna
3 x DATALINK PRO Mobile Station Antennas
2 x DATALINK PRO 8-Pin Cables
1 x DATALINK PRO Micro-USB Cable
1 x DATALINK PRO 4-Pin Cable
1 x DATALINK PRO Double-Sided Tape
1 x Limited 3-Month Warranty (DATALINK Antenna)
1 x Limited 6-Month Warranty (D-RTK Antenna)
1 x Limited 1-Year Warranty (D-RTK Processor, DATALINK Transmitter, and DATALINK Receiver)

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Security

Product FAQs

Name: DJI Matrice D-RTK Ground System Kit (Datalink Pro 900-G)
Brand: DJI
SKU: CP.HY.000088
Price: 1499.0 USD
Availability: InStock

What is the positioning accuracy of the DJI Matrice D-RTK Ground System Kit?

The system provides centimeter-level 3D positioning and enhanced altitude accuracy.

Which GNSS systems does the D-RTK Ground System Kit support?

It supports GPS + GLONASS.

What flight controllers are compatible with this system?

The D-RTK Ground System Kit is designed for drones using the A3 flight controller, such as the Matrice 600.

What are the transmission modes supported by the DATALINK PRO 900?

The DATALINK PRO 900 supports Full Duplex and Broadcast transmission modes.
