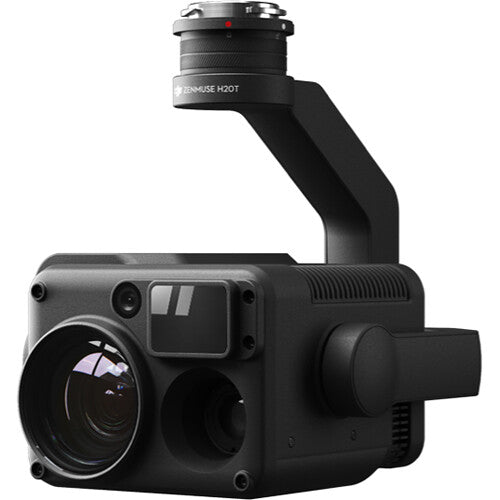

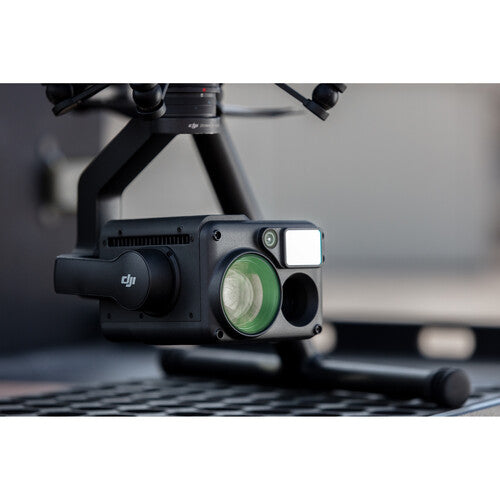

DJI Zenmuse H20T Camera

MODEL

Enjoy $20 OFF TODAY with code NEW20

Free shipping over $100. Ships in 2-3 days

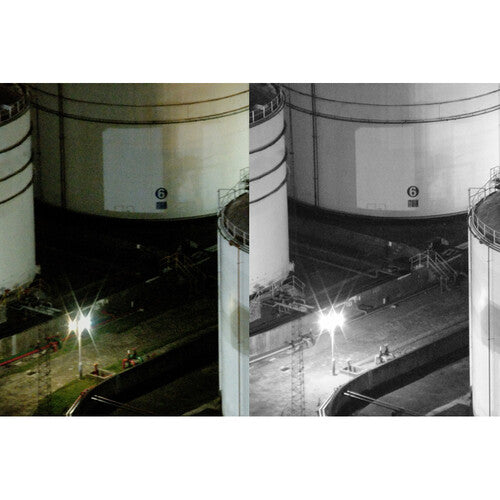

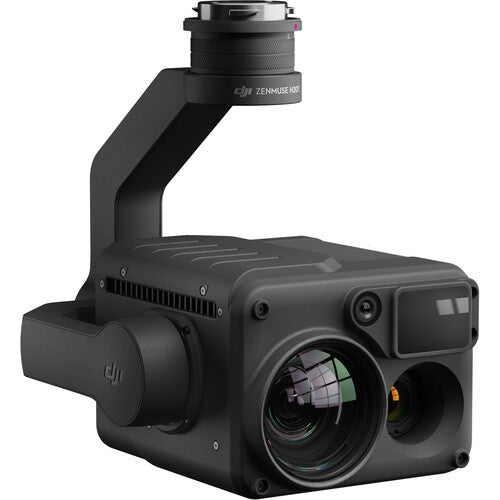

  • Discover DJI Zenmuse H20T, the first hybrid sensor solution from DJI. The "T" model offers a quad-sensor solution with a 640 x 512 radiothermical thermal camera. As for the Zensume H20 camera, it has a 20MP zoom camera with a 23x hybrid optical zoom. A 12 MP wide camera as well as a laser rangefinder (3 to 4 miles range) are  part of this model. The Zenmuse H20T has intelligent features. It is notified when object temperatures exceed a threshold that you can set; you can adjust the colors applied to the thermal data; the High / Low gain modes can be adjusted to change the temperature range captured; the night scene mode provides a much better vision in environments with little light; the AI technology can spot the pre-marked subject of interest in various automated missions to make sure the framing is consistent; you can also follow moving targets (people, cars, ships...) thanks to the auto-zoom function and monitor their temperature precisely.

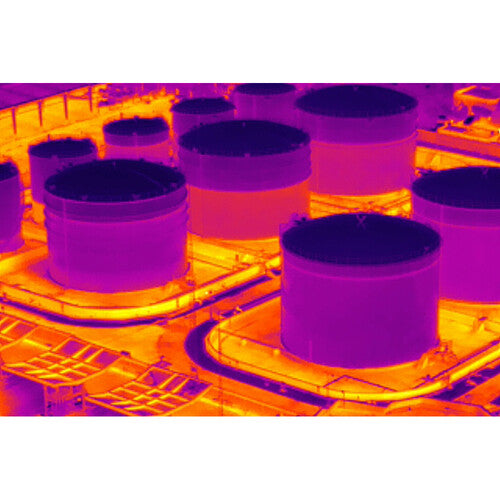

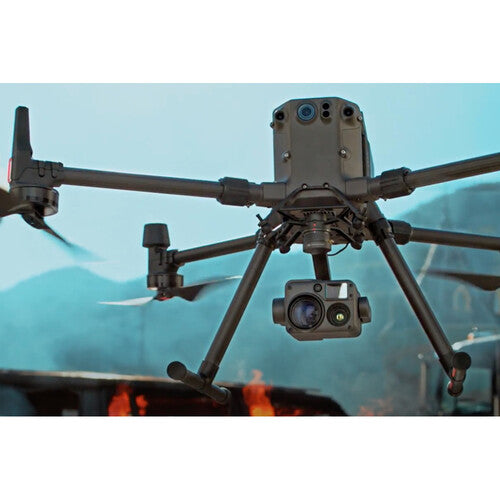

    This state-of-the-art product can be used in various situations like fighting fire without taking any human risk, searching and rescuing missing people, inspecting powerline networks or conducting inspections of pipelines and well sites while keeping operators away from potential danger.

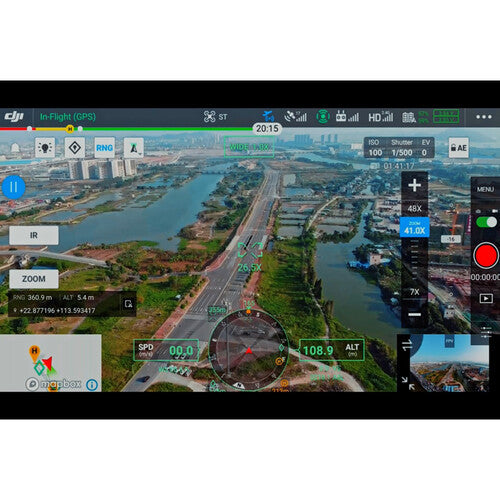

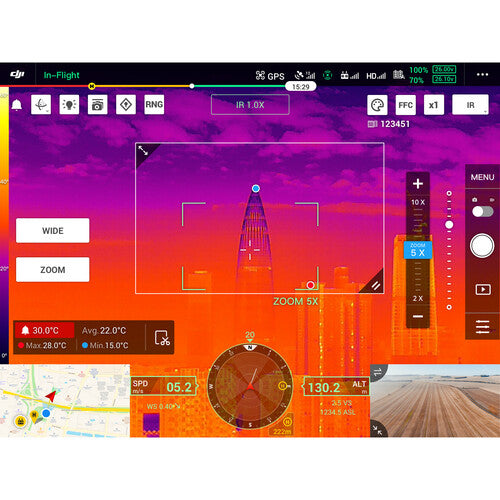

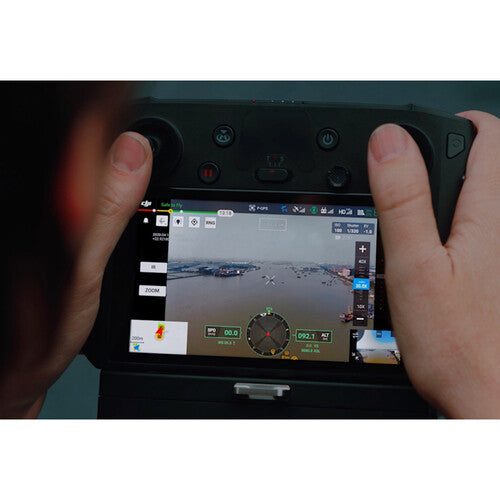

    The very user-friendly seamless user interface enables you to see wide, zoom, thermal camera views easily. In wide and thermal camera views, you can preview the zoom FOV.






  • - 1x DJI Zenmuse H20T camera

  • GENERAL

    Weight:
    830 g / 1.9 lbs

    Dimensions:
    167 x 135 x 161 mm / 6.6 in x 5.3 in x 6.3 in

    Ingress Protection (IP) Rating:
    IP44

    Operating Temperature:
    -20° C to 50° C / -4° F to 122° F
    Temperature measurement only available between -10°C and 50°C / -14° F and 122° F

    Storage Temperature:
    -20° C to 60° C / -4° F to 140° F

    Laser Safety:
    Class 1M (IEC 60825-1:2014)

    Supported Aircraft:

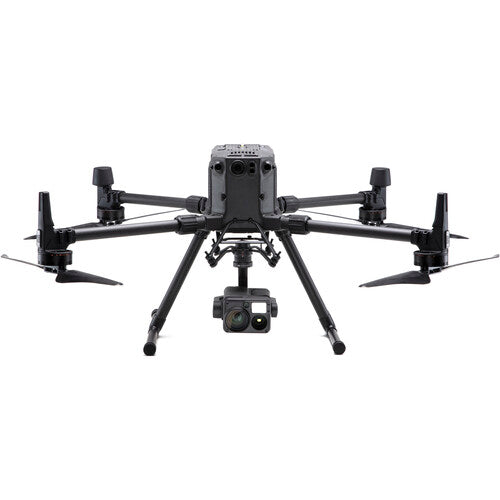

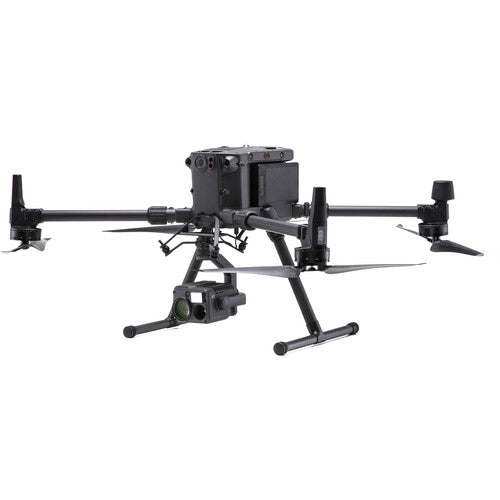

    Matrice 300 RTK

    GIMBAL

    Angular Vibration Range:
    +/- 0.01°

    Mount:
    Detachable

    Controllable Range:
    Pitch: -120° to +30°
    Yaw: +/- 320°

    Mechanical Range:
    Pitch: -132.5° to +42.5°
    Yaw: +/- 330°
    Roll: -90° to +60°

    ZOOM CAMERA

    Sensor:

    1/1.7'' CMOS, 20 MP

    Lens:
    DFOV: 66.6°-4°
    Focal length: 6.83-119.94 mm (equivalent: 31.7-556.2 mm)
    Aperture: f/2.8-f/11 (normal), f/1.6-f/11 (night scene)
    Focus: 1m to  (wide), 8m to ∞ (telephoto)

    Focus Mode:
    MF/AF-C/AF-S

    Exposure Mode:
    Auto, Manual

    Exposure Compensation:
    +/- 3.0 (1/3 increments)

    Metering Mode:
    Spot metering, Center-weighted metering

    AE Lock:
    Supported

    Electronic Shutter Speed:
    1 ~ 1/8000 s

    ISO Range:
    Video: 100 - 25600
    Photo: 100 - 25600

    Video Resolution:
    3840 x 2160 @ 30fps
    1920 x 1080 @ 30fps

    Video Format:
    MP4

    Video Subtitles:
    Supported

    Photo Size:
    5184 x 3888

    Photo Format:
    JPEG

    WIDE CAMERA

    Sensor:
    1/2.3'' CMOS, 12 MP

    Lens:
    DFOV: 82.9°
    Focal Length: 4.5 mm (equivalent: 24 mm)
    Aperture: f/2.8
    Focus: 1m to

    Exposure Mode:
    Auto

    Exposure Compensation:
    +/-3 (1/3 increments)

    Metering Mode:
    Spot metering, center-weighted metering

    AE Lock:
    Supported

    Shutter Speed:
    1 ~ 1/8000 s

    ISO Range:
    Video: 100 - 25600
    Photo: 100 - 25600

    Video Resolution:
    1920 x 1080 @30fps

    Video Format:
    MP4

    Video Subtitles:
    Supported

    Photo Size:
    4056 x 3040

    Photo Format:
    JPEG

    THERMAL CAMERA

    Sensor:
    Uncooled VOx Microbolometer

    Lens:
    DFOV: 40.6 °
    Focal Length: 13.5 mm (equivalent: 55mm)
    Aperture: f/1.0
    Focus: 5m to ∞

    Digital Zoom:
    1x, 2x, 4x, 8x

    Video Resolution:
    640 x 512 @30Hz

    Video Format:
    MP4

    Image Resolution:
    640 x 512

    Image Format:
    R-JPEG (16 bit)

    Pixel Pitch:
    12 μm

    Spectral Band:
    8-14 μm

    Sensitivity (NETD):
    < 50 mK @ f/1.0

    Temperature Measurement Method:
    Spot meter, Area measurement

    Scene Range:
    -40° C to 150° C (High Gain)
    -40° C to 550° C (Low Gain)

    Temperature Alert:
    Supported

    FFC:
    Auto / manual

    Palette:
    White hot / Fulgurite / Iron Red / Hot
    Iron / Medical / Arctic / Rainbow 1 / Rainbow 2 / Tint / Black Hot

    LASER RANGEFINDER

    Wavelength:

    905 nm

    Measurement Range:
    3-1200 m (to a vertical surface with > 12m diameter and 20% reflection rate)

    Measurement Accuracy:
    +/- (0.2 m + Dx0.15%)
    D is the distance to a vertical surface

    ZENMUSE H20 FEATURES

    Hybrid Optical Zoom:
    23x

    Max. Zoom:
    200x

    One Click Capture:
    One click to save the video or picture of 3 cameras (zoom, wide and thermal camera simultaneously)

    Night Scene:
    Supported (zoom camera only)

    Timestamp:
    Including GPS, date and time

    STORAGE

    Supported SD Card:
    MicroSD Card (Max capacity: 128 GB, UHS-1 Speed Grade 3 required)

    Supported File Systems:
    FAT32 (< 32GB)
    ex-FAT (> 32GB)


    SKU:

    DJI CP.ZM.00000121.SP

    UPC:
    190021016675
