Quick-Access Remote Shortcut
The Zenmuse V1 supports customizable shortcuts on the DJI remote controller—just press once to record, and again to play. This one-touch control boosts operational speed and convenience in the field.
Real Reviews from Real Users
Description

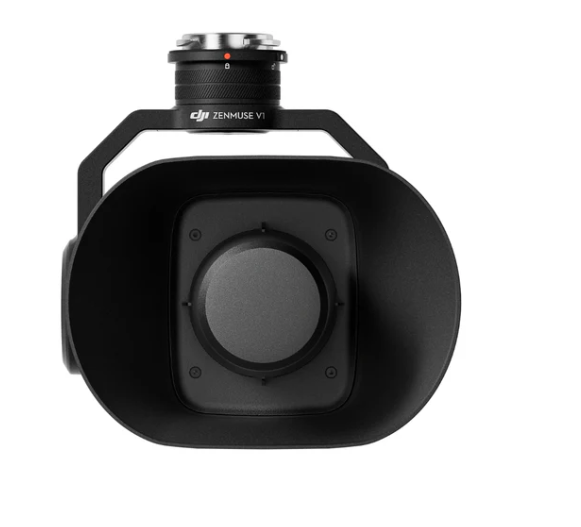

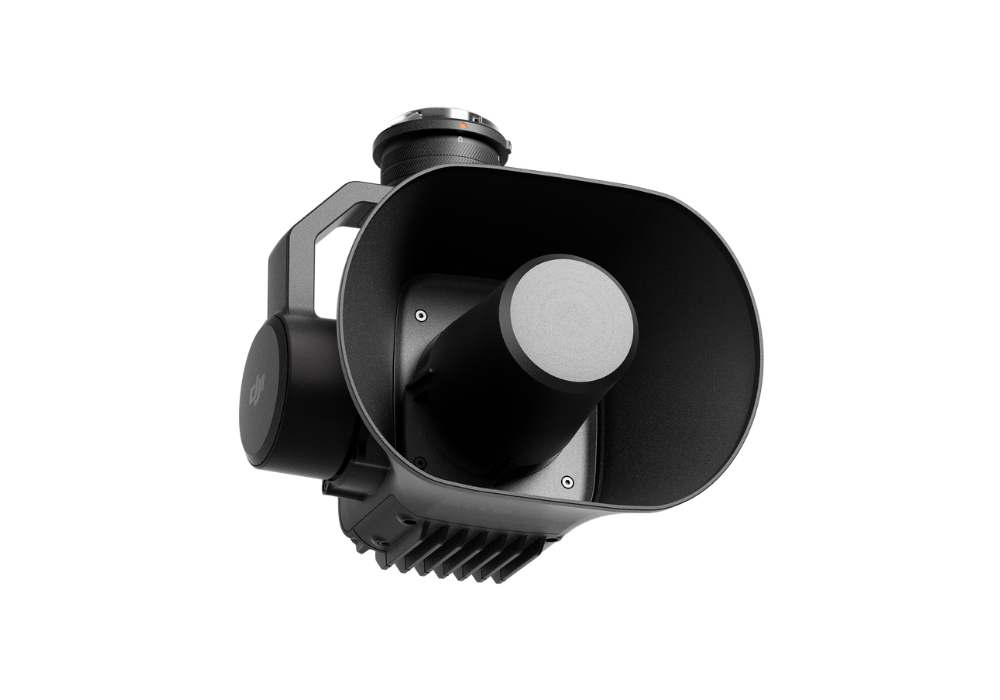

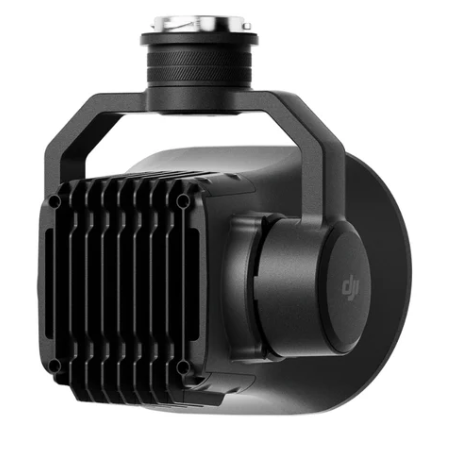

DJI Zenmuse V1

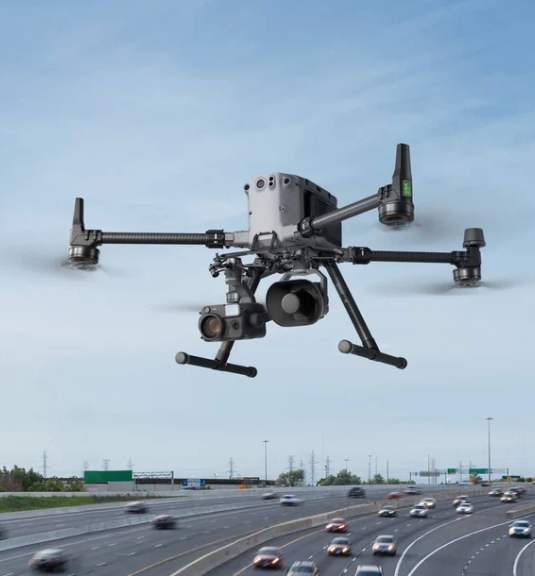

The DJI V1 is DJI’s first dedicated speaker for multi-payload drone systems, fully compatible with the Matrice 350 RTK and Matrice 300 RTK. With high volume output, extended broadcast range, and versatile transmission modes, it’s built for critical missions in public safety, emergency response, and more.
Text-to-Speech
Type a message and have it converted into clear audio with customizable tone, speed, and looping options. This ensures flexibility and clarity when delivering instructions or alerts to remote recipients.
Audio File Playback
Easily import pre-recorded audio files into the DJI Pilot 2 app for broadcast. Ideal for repetitive messaging or standardized announcements during operations, streamlining your workflow on-site.
Record & Broadcast
Quickly capture and transmit voice messages via the DJI Pilot 2 app. Recordings are stored locally and can be played back instantly—perfect for communicating vital information in fast-moving situations without complex setup.
High Volume, Long Range
The Zenmuse V1 delivers sound up to 127 dB at 1 meter—comparable to a jet engine at takeoff. With an effective range of up to 500 meters, it ensures your message reaches even the most remote locations.
Precision Sound Targeting
DJI V1 syncs with other gimbal-equipped payloads to match tilt angles, allowing the broadcast to be directed exactly where it’s needed. This ensures maximum clarity and effectiveness.
Compact and Flexible
Weighing just 0.69 kg, the Zenmuse V1 is lightweight and compatible with single or dual downward gimbals, as well as the upward gimbal on DJI enterprise drones, adapting seamlessly to various setups.
SDK Integration Ready
With Mobile SDK support, developers can integrate Zenmuse V1 functionality into their own applications, enabling deeper workflow customization and better operational efficiency.
Smart Protection Features
With safeguards for temperature, power, and overcurrent, the V1 is built to last and withstand demanding conditions.
Built-in Hearing Safety
When the drone is grounded, and the volume exceeds 40%, the DJI Pilot 2 app prompts a warning to protect nearby personnel from loud audio bursts.
Built to Handle Harsh Environments
Rated IP54 for dust and water resistance and designed to operate in temperatures from -20°C to 50°C (-4°F to 122°F), the Zenmuse V1 is ready for action in diverse conditions.
Rated IP54 for dust and water resistance and designed to operate in temperatures from -20°C to 50°C (-4°F to 122°F), the Zenmuse V1 is ready for action in diverse conditions.
Zenmuse V1 core features and advantages
- 129 decibel output: Powerful volume reaches levels comparable to a jet takeoff.
- 700m broadcast range: Effective communication distance extends up to 2,296 feet away.
- Real-time broadcasting: Transmit audio instantly through the Pilot 2 mobile app.
- Text-to-speech mode: Convert written text into spoken multi-language audio messages instantly.
- Anti-howling algorithm: Internal processing ensures professional clarity during live voice transmissions.
- Synchronized tilt control: Aligns speaker angle with camera view for targeted broadcasting.
- IP54 ingress protection: Durable housing resists dust and water in outdoor operations.
- Lightweight 1.52lb build: Compact design fits within standard Matrice aircraft carrying cases.
Specifications:
| Category | Specification | Details |
|---|---|---|
| General | Product Name | Zenmuse V1 |
| Weight | 690 ± 10 g | |
| Dimensions | 134 × 119 × 140 mm (L × W × H) | |
| Rated Power | 30 W | |
| Supported Aircraft | Matrice 400, Matrice 350 RTK, Matrice 300 RTK (requires DJI RC Plus) | |
| Shell Temperature | < 50°C (122°F) | |
| Ingress Protection Rating | IP54 | |
| Environment | Operating Temperature | -20°C to 50°C (-4°F to 122°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) | |
| Gimbal | Stabilization System | Single-axis (tilt) |
| Angular Vibration Range | Hover: ±0.01°, Flight: ±0.02° | |
| Mounting | Detachable DJI SKYPORT | |
| Mechanical Range | Tilt: -125° to +25° | |
| Controllable Range | Matrice 400: -120° to -5° (downward), -60° to 0° (third gimbal) | |
| Matrice 300/350: -120° to -5° (downward), -5° to +120° (upward) | ||
| Operation Modes | Follow / Free / Re-center | |
| Speaker | Impedance | 4 Ω |
| Nominal Power | 25 W | |
| Effective Broadcast Distance | 700 m (Matrice 400), 500 m (M300/350 RTK) | |
| Max Sound Pressure Level | 129 dB @ 1 m (M400), 127 dB @ 1 m (M300/350 RTK) | |
| Effective Bandwidth | 800 Hz – 8 kHz | |
| Features | Record & Broadcast | Supported |
| Real-Time Broadcasting | Matrice 400 only | |
| Text-to-Speech | Multi-language (varies by aircraft) | |
| Audio File Playback | MP3, AAC, WAV | |
| Playback Control | Start/Stop, Loop, Volume Adjustment | |
| Remote Controller Button | One-press record & playback | |
| Gimbal Synchronization | Supported | |
| Special Features | Intelligent Volume Adjustment | Auto gain control (Matrice 400) |
| Directional Audio Recording | Noise reduction supported | |
| Payload Protection | Temperature, overcurrent, power protection | |
| Directional Broadcasting | AR-based orientation via DJI Pilot 2 |
WHAT'S IN THE BOX:
1 x DJI Zenmuse V1 Speaker Payload
1 x Protective Packaging
1 x Documentation (User Manual & Quick Start Guide)
1 x Manufacturer Warranty Card
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Security
You may also like
Recently viewed
Product FAQs
The DJI Zenmuse V1 is fully compatible with the Matrice 350 RTK and Matrice 300 RTK.
The DJI Zenmuse V1 delivers sound up to 127 dB at 1 meter.
The DJI Zenmuse V1 has an effective broadcast range of up to 500 meters.
The DJI Zenmuse V1 supports Text-to-Speech, Audio File Playback, and Record & Broadcast modes.
Yes, the Text-to-Speech feature allows for customizable tone, speed, and looping options.
