DSLRPros Freefly Astro Max Mapping Bundle
Freefly Astro Max Mapping Bundle is a complete, professional-grade aerial mapping system built for accuracy, endurance, and efficiency. It combines the Freefly Astro Max aircraft, Sony ILX-LR1 61 MP camera with Sigma 24 mm f/3.5 lens,
Freefly gimbal, Pilot Pro Controller with tablet, six SL8-Air batteries, and a full charging and spare-parts suite. The Astro Max aircraft in this bundle is not NDAA approved, though an NDAA/Blue version of the Freefly Astro Max is also available separately. The Sony ILX-LR1 payload included here is NDAA and DIU approved, providing flexibility for a wide range of survey projects.
Precision Imaging Meets Proven Engineering
The Astro Max is Freefly’s most advanced compact industrial platform, built with open interface specifications that allow flexible payload integration. It ships ready to fly with the Astro Isolator, folding landing gear, and high-efficiency 2270 propellers for stable performance. The Sony ILX-LR1 full-frame 61 MP camera and Sigma 24 mm lens deliver crisp, low-distortion imagery ideal for mapping. RTK compatibility through a user-supplied ground-station computer enables centimeter-level positioning for survey accuracy.
Field Efficiency and Complete Readiness
This bundle ensures maximum uptime in the field. Six SL8-Air batteries and four SL8 Fast Chargers support continuous mission cycles, while the included SL8 Travel Case keeps the power system organized for transport. The Pilot Pro Controller, pre-installed with a Samsung Galaxy Active5 tablet and Herelink 1.1 radio, provides a durable, ready-to-fly control solution. A spare-parts kit, prop protectors, and replacement props ensure long-term reliability. Standard Remote ID is enabled for FAA compliance.
Key Features and Benefits
- Complete mapping bundle: aircraft, camera, controller, power system, and spares
- Astro Max aircraft: compact, industrial-grade platform with open interface specs
- Aircraft not NDAA approved; NDAA/Blue version available separately
- Sony ILX-LR1 61 MP camera: full-frame clarity for detailed aerial imagery
- Sigma 24 mm f/3.5 lens: optimized for distortion-free mapping capture
- Freefly Gimbal: quick-detach, vibration-isolated mount for smooth imaging
- Pilot Pro Controller: integrated Galaxy Active5 tablet and Herelink 1.1 radio
- Six SL8-Air batteries: three flight sets for extended operations
- Four SL8 Fast Chargers: parallel charging for rapid turnaround
- RTK ready: works with user-supplied ground-station computer
- Standard Remote ID enabled for U.S. operations
- 2270 high-efficiency props: about 10% longer flight times per charge
- Spare Parts Kit and Travel Case: support field maintenance and logistics
Compatibility and Integration
- Works with Freefly Pilot Pro Controller and included Herelink radio
- Supports RTK GPS Ground Station via user-supplied computer
- Outputs geotagged imagery compatible with major mapping software
- LTE modem compatibility (U.S. only) for network connectivity
- Uses Freefly SL8-Air batteries and SL8 Fast Chargers
Applications and Use Cases
- Survey and topographic mapping: collect high-resolution terrain data
- Construction monitoring: document progress and volumetric changes
- Asset inspection: capture infrastructure imagery with precision
- Urban planning: produce orthomosaics and digital site models
- Mining and stockpile surveys: support accurate 3D volume analysis
- Environmental assessment: monitor vegetation or erosion patterns
- Agricultural mapping: generate field imagery for resource planning
- Disaster response: perform quick aerial documentation of sites
- Research and education: gather repeatable geospatial datasets
Specifications:

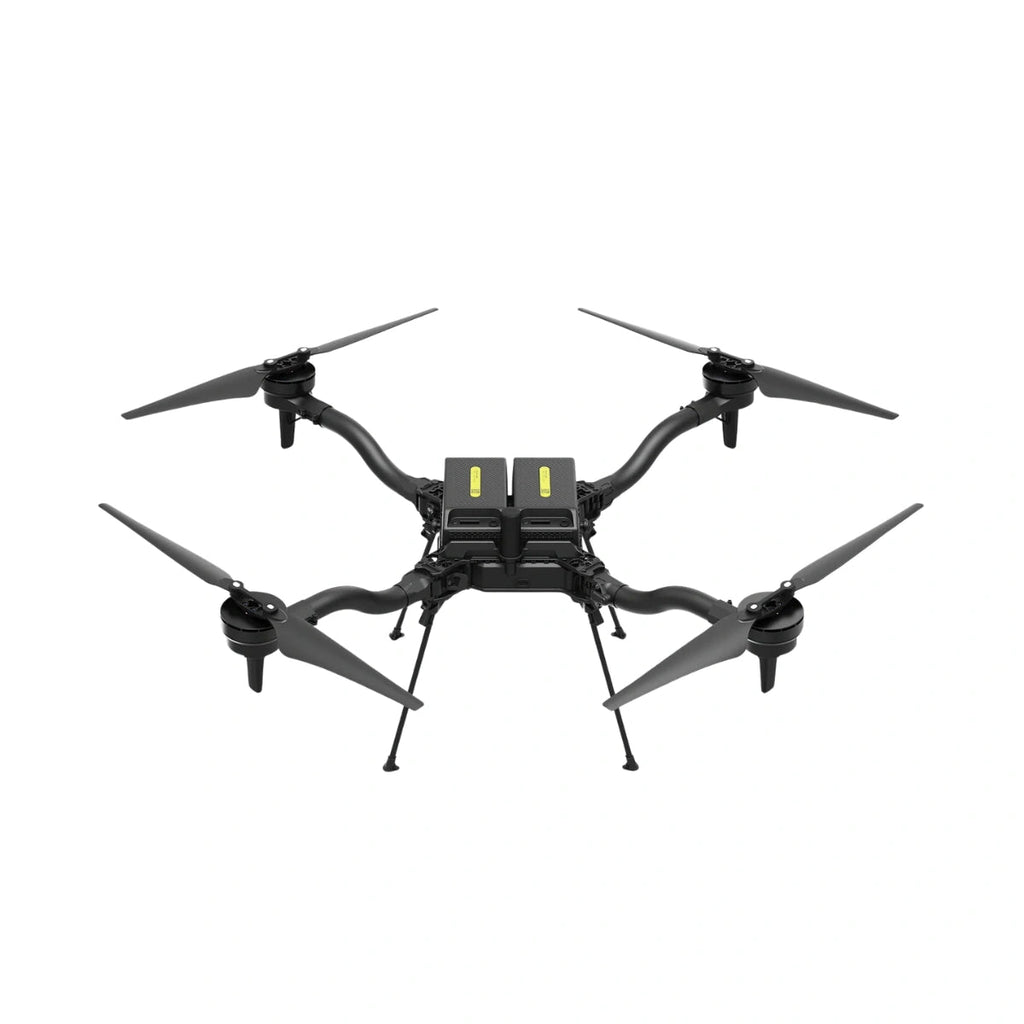

Astro Max Aircraft
- Up to 43 minutes max flight time
- 31 minutes flight time with LR1 Payload
- 20 minutes flight time with maximum 3 kg payload
- Maximum payload capacity: 3 kg
- Booms fold to half the aircraft's diameter
- Alternate payload attachments: Integrator Vibration Isolator, Smart Dovetail Kit
- Designed and assembled in the USA
Pilot Pro Controller
- Freefly Pilot Pro controller with high-resolution rockers for precise gimbal control
- Modular controller accepts various radio transmitters
- Ships with Herelink 1.1 Radio, 2.4 GHz (not NDAA compliant)
- Internal battery with external power input for hot-swapping
- Emergency kill-switch included
- Discreet physical buttons for all key user actions
- Includes pre-installed 8" Samsung Galaxy Tab Active5 tablet
- Real-time drone and gimbal speed limit control
- Includes padded custom neck strap
LR1 Payload
- Includes Freefly Mapping Gimbal
- Sony ILX-LR1 camera body with 61 MP resolution
- Sigma 24mm f/3.5 mapping lens (p/n 404965)
- Camera and gimbal controllable via Pilot Pro
Astro Compact Travel Case
- Holds full Astro Max mapping or inspection setup
- Fits Astro with 2 SL8 batteries installed and legs folded
- Fits Pilot Pro, LR1 payload, 2 SL8 chargers, spare props, and tools
- Custom-cut foam protects from 1-meter drops
- Waterproof and dust tight (MIL-STD 810G)
- Airline checkable SKB Rolling Case (3i-2217-10)
- Dimensions: 24.52" × 19.5" × 12.22" / 62.28 × 49.53 × 31.04 cm
- Weight (as shipped, no SL8s): 38.30 lbs / 17.37 kg
- Weight (full kit with 2 SL8s): 42.80 lbs / 19.41 kg
SL8-Air Batteries
- Two SL8-Air batteries required per flight
- Voltage: 21.6 V (6S)
- Capacity: 7.3 Ah, 157 Wh
- Weight: 2.25 lbs
- Chemistry: Lithium-Ion
- Auxiliary output: USB-C Power Delivery
SL8 Fast Charger
- Charges one SL8-Air battery at a time
- Charge time (0% to full): ~90 minutes
- Input: 100–240 VAC
- Output: 200 Watts
- Includes NEMA 1-15 (Type A) North America power cable
- Power cable is replaceable (IEC320 connector)
SL8 Travel Case
- Holds 8 SL8 batteries and 2 chargers
- Can hold 14 SL8 batteries without chargers
- Includes casters and stowaway handle
- Lockable, waterproof, and dust tight (MIL-STD 810H)
- SKB case model: 3i-1914-8B-E

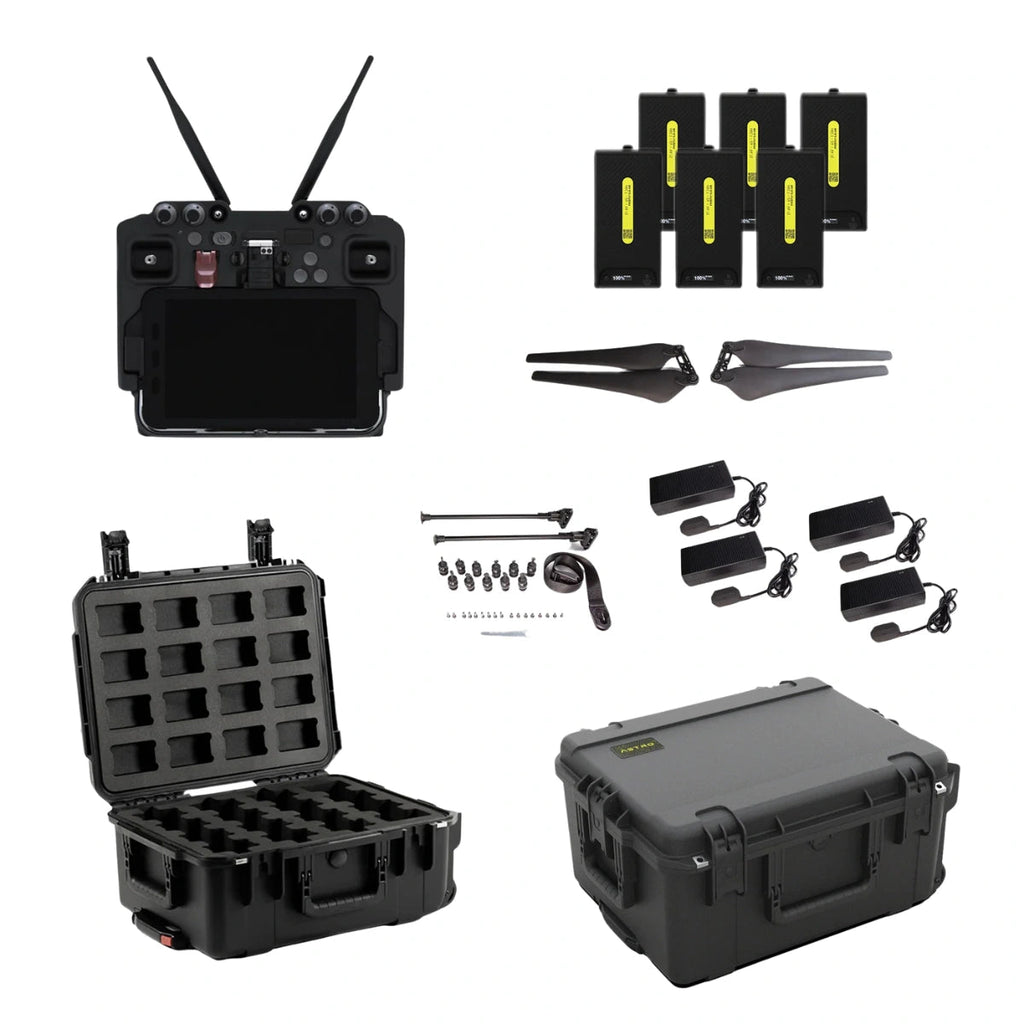

What's in the Box:
1 x Astro drone (with pre-installed landing gear, high efficiency props, and Astro Isolator)
1 x Astro compact travel case
1 x LR1 payload
1 x Freefly gimbal
1 x Sony ILX-LR1 61MP camera body
1 x Sigma 24mm f3.5 mapping lens (p/n 404965)
1 x USB-C thumb drive
1 x Foam insert set for Astro travel case
1 x each hex driver (1.5 mm, 2 mm, 2.5 mm)
4 x Proptectors
1 x Extra Proptector
4 x Spare isolators
2 x Rubber hole grommet
1 x Pilot Pro controller
1 x 8" Samsung Galaxy Tablet Active5 (pre-configured and installed into controller)
1 x Herelink 1.1 RF, 2.4 GHz radio (not NDAA approved)
1 x Custom padded neck strap
6 x SL8-Air batteries (3 pairs)
4 x SL8 fast chargers
1 x SL8 travel case
1 x Astro Max replacement props (2270 high efficiency, set with CW & CCW)
1 x Astro spare parts kit
