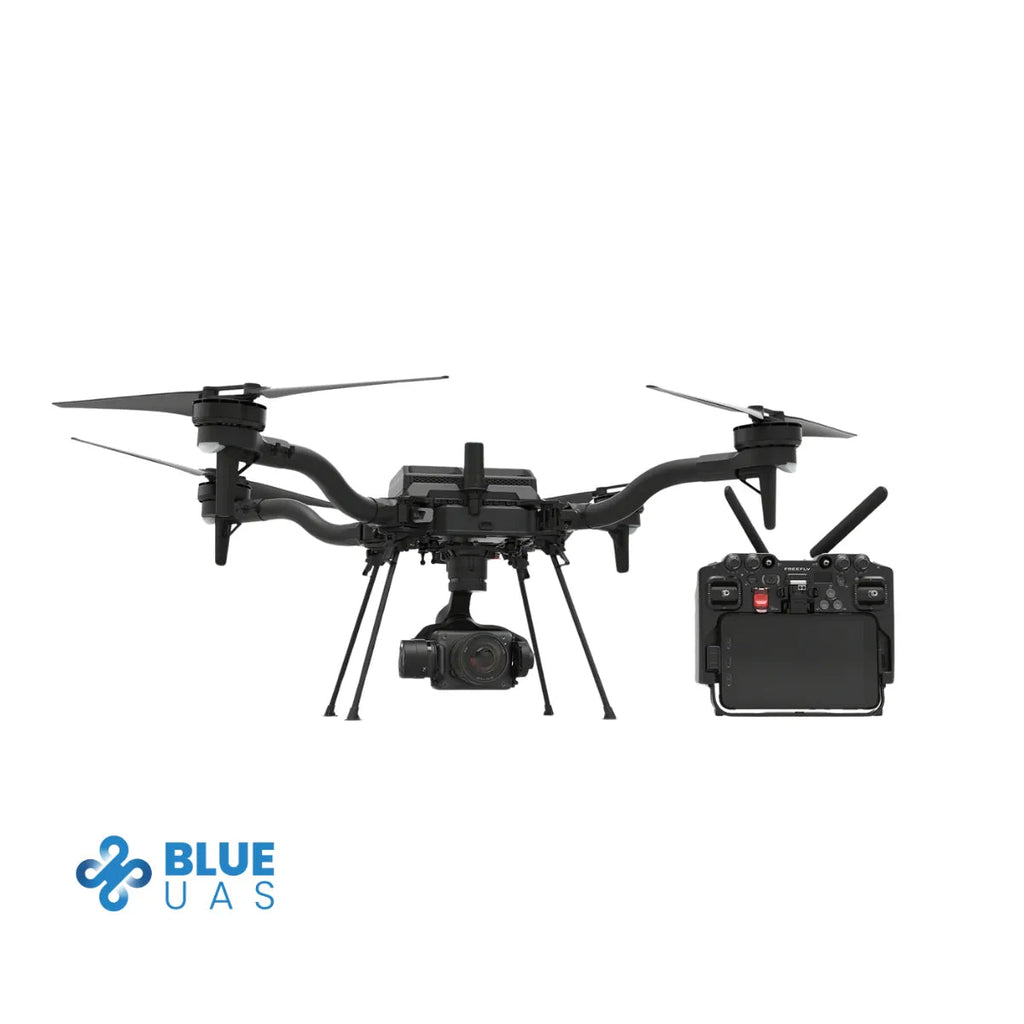

DSLRPros Freefly Astro Max Public Safety Bundle (NDAA/Blue)
Freefly Astro Max Public Safety Bundle (NDAA/Blue) provides secure, real-time aerial intelligence for first responders and emergency agencies operating under strict compliance requirements. Built on the NDAA and DIU Blue-approved Astro Max platform, this configuration integrates high-resolution visual and thermal imaging with extended power and robust control hardware.
The system combines the Astro Max NDAA/Blue aircraft, Sony ILX-LR1 61 MP camera, Sigma 24 mm f/3.5 lens, and Freefly LR1 Thermal Upgrade to deliver accurate, actionable data day or night—while meeting U.S. government procurement and data-security standards.
Dual-Imaging Capability for Critical Missions
The Astro Max NDAA/Blue enables operators to capture both high-definition RGB and radiometric thermal imagery for comprehensive scene awareness. The Sony ILX-LR1 camera provides 61-megapixel clarity for documentation and mapping, while the thermal module detects heat signatures through smoke, fog, and low-light environments. Designed for operational confidence, the aircraft features IP-rated durability, high-efficiency 2270 propellers, and RTK readiness for centimeter-level positioning accuracy. Its open-interface design supports flexible payload integration and secure, compliant performance for public-safety use.
Mission-Ready Power and Secure Control
This bundle is configured for extended deployments and reliable field operation. Six SL8-Air batteries and four SL8 Fast Chargers enable continuous sorties, while the SL8 Travel Case organizes power gear for quick turnaround. The Pilot Pro Controller with pre-installed Samsung Active Tab 3 and the Doodle Labs 2.4 GHz Blue radio deliver stable, encrypted communication links. Standard Remote ID comes pre-configured for FAA compliance, and authorized users may request an override through Freefly Support when exempt.
Key Features and Benefits
- Fully NDAA and DIU Blue-approved aircraft, controller, and radio link
- Dual-sensor system: 61 MP RGB + thermal imaging for full-spectrum awareness
- Sony ILX-LR1 camera with Sigma 24 mm f/3.5 lens for detailed documentation
- Freefly LR1 Thermal Upgrade detects heat sources in low-visibility conditions
- Astro Max NDAA/Blue platform: compact, reliable, and open-interface design
- RTK ready: supports centimeter-level positioning via user-supplied ground station
- Six SL8-Air batteries and four SL8 Fast Chargers for sustained missions
- 2270 high-efficiency propellers extend flight time by roughly 10 percent
- Standard Remote ID preinstalled for FAA compliance (override available)
- Spare Parts Kit and SL8 Travel Case for efficient field operations
Compatibility and Integration
- Works with Freefly Pilot Pro Controller and Doodle Labs Blue radio link
- Supports RTK GPS Ground Station through a user-supplied computer
- Outputs geotagged RGB and thermal imagery compatible with analysis software
- LTE modem functionality available in U.S. only
- Uses Freefly SL8-Air batteries and SL8 Fast Chargers
Applications and Use Cases
- Search and rescue: locate missing persons in low-visibility environments
- Firefighting: detect hotspots and monitor perimeter activity
- Law enforcement: provide secure aerial overwatch and evidence collection
- Disaster response: map damage zones for rapid assessment and recovery
- Emergency management: coordinate resources using real-time imagery
- Infrastructure inspection: detect heat anomalies or damage remotely
- Environmental monitoring: track wildfire impact and pollution sources
- Night operations: maintain visual and thermal awareness after dark
Specifications:
Astro Max (NDAA/Blue)
- Up to 39 minutes max flight time
- 28 minutes flight time with LR1 Payload
- 18 minutes flight time with 3 kg max payload
- 3 kg maximum payload capacity
- Booms fold to half the aircraft's diameter
- Standard Remote ID enabled; can be disabled with FAA waiver or exemption
- Optional LTE connectivity (North America only)
- Alternate payload attachments sold separately:
Integrator Vibration Isolator (non-electronic), Freefly Smart Dovetail Kit (hard mount)
- See Astro wiki for full technical specifications
- Designed and assembled in the USA
- NDAA and DIU Blue approved
Pilot Pro Controller
- Freefly Pilot Pro controller with high-resolution rockers for gimbal precision
- Modular design accepts a variety of radio transmitters
- Ships with Doodle Labs RF, 2.4 GHz NDAA & DIU Blue radio
- Internal battery supports external power input and hot-swapping
- Emergency kill-switch included
- Discrete physical buttons for all key user actions
- Includes pre-installed 8" Samsung Galaxy Tab Active5 tablet
- Realtime drone and gimbal speed limit controls
- Includes custom padded neck strap
LR1 Payload
- Freefly Mapping Gimbal with Sony ILX-LR1 camera (61 MP)
- Sigma 24mm f/3.5 mapping lens (p/n 404965)
- Full camera and gimbal control via Pilot Pro
- Ships in dedicated travel case with space for extra lenses
Astro Compact Travel Case
- Holds full Astro Max (NDAA/Blue) system for mapping or inspection
- Includes Astro with 2 SL8 batteries (legs folded)
- Fits Pilot Pro, LR1 Payload, 2 SL8 chargers, props, tools
- Custom-cut foam tested for 1-meter drop protection
- Submersible and dust-tight (MIL-STD 810G)
- Airline checkable SKB Rolling Case (3i-2217-10)
- Dimensions: 24.52" × 19.5" × 12.22" / 62.28 × 49.53 × 31.04 cm
- Weight (no SL8s): 38.30 lbs / 17.37 kg
- Weight (full kit with 2 SL8s): 42.80 lbs / 19.41 kg
SL8-Air Batteries
- Two SL8-Air batteries required per flight
- Voltage: 21.6 V (6S)
- Capacity: 7.3 Ah / 157 Wh
- Weight: 2.25 lbs each
- Battery chemistry: Lithium-Ion
- Auxiliary output: USB-C Power Delivery
SL8 Fast Charger
- Charges one SL8-Air battery at a time
- Charge time from 0% to 100%: ~90 minutes
- Input: 100–240 VAC
- Output: 200 Watts
- Includes NEMA 1-15 (Type A) North America power cable
- Power cable replaceable via IEC320 connector
SL8 Travel Case
- Holds 8 SL8 batteries and 2 chargers
- Can hold up to 14 SL8 batteries without chargers
- Features lockable casters and stowaway handle
- Waterproof and dust tight (MIL-STD 810H)
- SKB case model: 3i-1914-8B-E

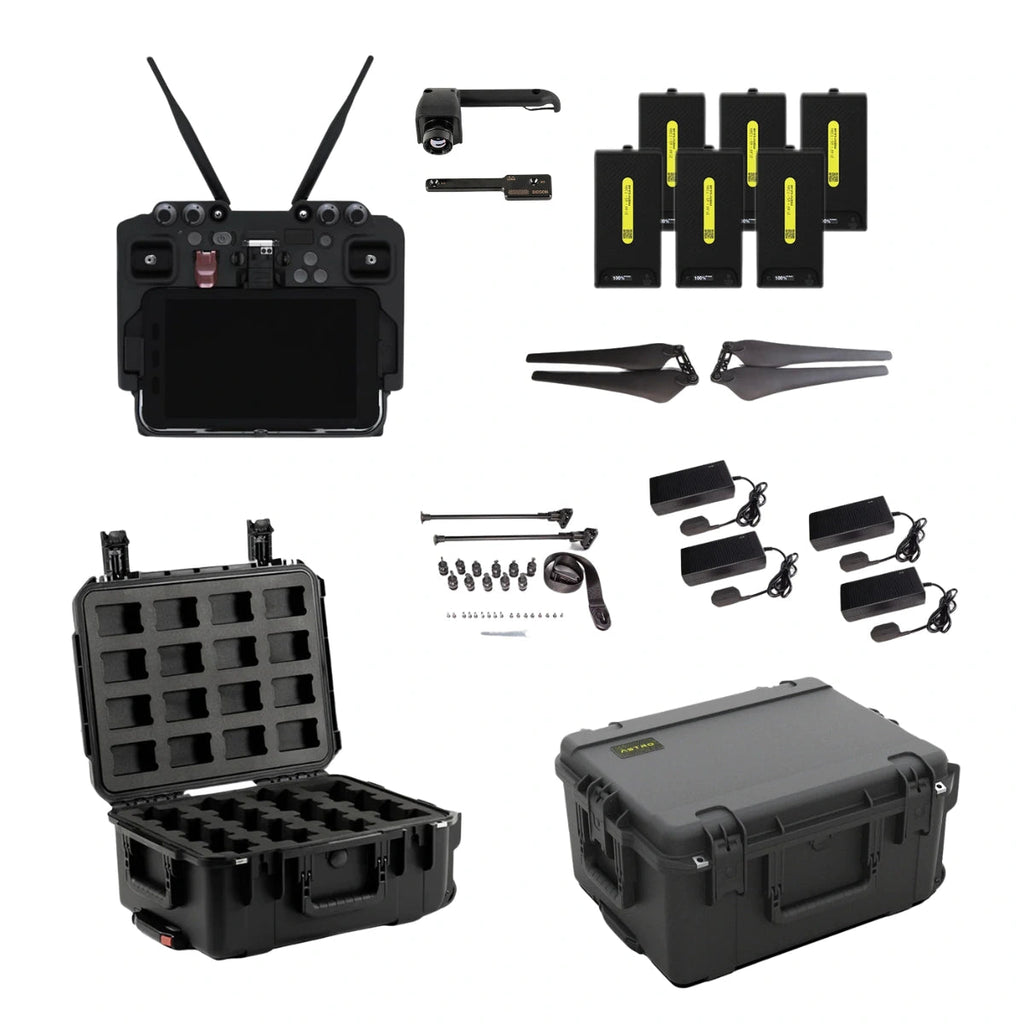

What's in the Box:
1 x Astro Max NDAA/Blue drone (with pre-installed landing gear, props, and Astro Isolator)
1 x Astro compact travel case
1 x LR1 payload
1 x Freefly gimbal
1 x Sony ILX-LR1 61MP camera body
1 x Sigma 24mm f3.5 mapping lens (p/n 404965)
1 x Freefly LR1 Thermal Upgrade
1 x USB-C thumb drive
1 x Foam insert set for Astro travel case
1 x each hex driver (1.5 mm, 2 mm, 2.5 mm)
4 x Proptectors
Spare parts:
1 x Extra Proptector
4 x Spare isolators
2 x Rubber hole grommet
1 x Pilot Pro controller
1 x Samsung Active Tab 3 (pre-configured and installed into controller)
1 x Doodle Labs RF, NDAA and DIU Blue 2.4 GHz radio (pre-configured and installed into controller)
1 x Custom padded neck strap
6 x SL8-Air batteries (3 pairs)
4 x SL8 fast chargers
1 x SL8 travel case
1 x Astro Max replacement props (2270 high efficiency, set with CW & CCW)
1 x Astro spare parts kit
