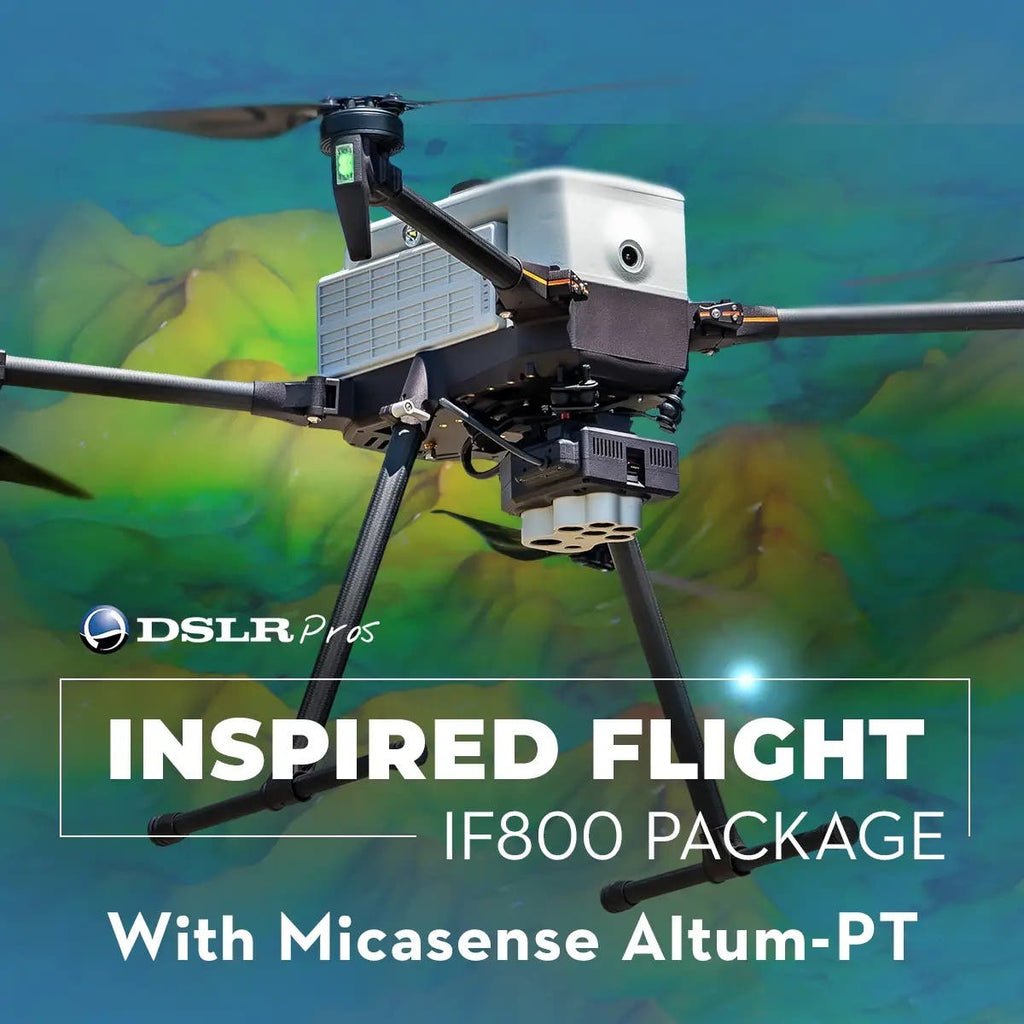

DSLRPros Inspired Flight IF800 Micasense Altum-PT Combo
DSLRPros Inspired FlightIF800-MicaSense Altum-PT Combo is the ultimate package for advanced aerial imaging and precision agriculture.
This comprehensive combo includes the IF800 Quadcopter equipped with the advanced Blue Herelink Ground Control Station, the Inspired Flight MicaSense Altum-PT Integration, and the high-performance MicaSense Altum PT sensor.
IF800 Core Features
The IF800 is built to endure long missions while carrying professional-grade payloads:
-
NDAA-compliant and Blue UAS-approved: Highly trusted platform for government, defense, and critical-infrastructure operations
-
Long flight time: Up to 54 minutes of endurance.
-
High payload capacity: 6.6 lbs (3.0 kg) for EO/IR, optical, and LiDAR sensors.
-
Fast & stable: Max speed of 49 mph with wind resistance up to 23 knots.
-
All-weather reliability: IP55-rated design protects against dust and water spray.
-
Uninterrupted operations: Hot-swappable batteries allow up to 5 hours of runtime.
-
Extended reach: Maintain control and data transmission up to 6 miles.
The IF800 Quadcopter is known for its lightweight, foldable frame, dual hot-swappable smart batteries, and up to 54 minutes of flight time, making it ideal for extended agricultural missions.
The MicaSense Altum-PT Advantage
Built for professionals who demand accuracy and efficiency, the Altum-PT combines thermal, multispectral, and panchromatic sensors in one streamlined payload.
From scientific trials to commercial agriculture, these features enable powerful insights in fewer flights.
-
Triple-sensor power in one payload: Capture multispectral, thermal, and panchromatic data in a single pass, with 12 MP pan-sharpened detail.
-
Global shutter and synchronized capture: All bands use a global shutter for pixel-aligned, distortion-free imagery during fast or low-altitude flights.
-
Radiometric thermal imaging: A FLIR thermal sensor provides calibrated temperature data for crop stress and irrigation insights.
-
Flexible integration: Works with many DJI drones and planning software like Pix4D and Agisoft, with full RAW data access.
-
Integrated RTK support: Supports external RTK systems for centimeter-level geotagging without ground control points
The MicaSense Altum PT sensor captures high-resolution multispectral and thermal imagery, providing detailed data for agricultural and environmental applications.
The Altum-PT Integration ensures seamless mounting and optimal performance, making it perfect for precise data collection and analysis.
IF800 Specs
Performance
-
Max Ascent Speed: 5 m/s
-
Max Descent Speed: 3 m/s
-
Max Air Speed: 22 m/s
-
Max Wind Resistance: 10 m/s, 12 m/s gusts
-
Max Tilt Angle: 30°
-
Max Angular Velocity: Tilt: 300°/s, Yaw: 120°/s
-
Operating Temperature: -20°C ~ 45°C
-
Operating Humidity: IP43 5% ~ 99%
Physical Features
-
Diagonal Size (propeller center to center): 905 mm
-
Unfolded Size (flight ready, WxLxH): 132 x 114 x 52 cm
-
Folded Size (stow, WxLxH): 36 x 44 x 20 cm
-
Empty Weight (w/o batteries): 4.2 kg
-
Weight w/ Batteries: 8.5 kg
-
Max Gross Takeoff Weight: 11.5 kg
-
Max Payload Capacity: 3.0 kg
-
Transport Case Size (WxLxH): 52.8 x 80.7 x 31.7 cm
-
Transport Case Weight (w/ aircraft & GCS): 18 kg
Flight Stack
-
Flight Controller: CubePilot Cube Blue H7, Triple Redundant IMU
-
GNSS / Compass: Dual CubePilot Here4 Blue
-
Downward Ground Sensor: LightWare SF000/B
-
Payload Power Rails: 6s Battery Voltage 5v, 12v, 18v
-
Payload Interface: IF800 Universal Payload Interface
-
Operating Software: Copter by Ardupilot
Flight Modes
-
Position Hold: Automatically holds altitude and position, manually change position
-
Loiter: Holds altitude and position, precision manual movements using GPS
-
Auto: Executes pre-defined waypoint mission
-
RTL: Auto returns to takeoff location and lands
-
Land: Auto land while maintaining horizontal position
-
Altitude Hold: Holds altitude only, failsafe mode if GPS signal lost
MicaSense Altum-PT Specs
Imaging Sensors
-
Multispectral Sensor Resolution: 2064 x 1544 (3.2 MP per band)
-
Panchromatic Sensor Resolution: 4112 x 3008 (12 MP)
-
Thermal Sensor Resolution: 320 x 256
- Pixel Size:
- Multispectral: 3.45 μm
- Panchromatic: 3.45 μm
- Thermal: 12 μm
- Aspect Ratio:
- Multispectral: 4:3
- Panchromatic: 6:5
- Thermal: 5:4
- Sensor Size:
- Multispectral: 7.12 x 5.33 mm
- Panchromatic: 14.18 x 10.37 mm
- Thermal: 3.84 x 3.07 mm
- Focal Length:
- Multispectral: 8 mm
- Panchromatic: 16.3 mm
- Thermal: 4.5 mm
- Field of View:
- Multispectral: 48° H x 36.8° V
- Panchromatic: 46° H x 35° V
- Thermal: 48° H x 39° V
-
Thermal Sensitivity: < 60 mK
-
Thermal Accuracy: ±5 K
- Output Bit Depth:
- Multispectral & Panchromatic: 12-bit
- Thermal: 16-bit
Performance Metrics
- Ground Sample Distance (GSD) at 120 m:
- Multispectral: 5.28 cm/pixel
- Panchromatic and Pan-sharpened: 2.49 cm/pixel
- Thermal: 33.5 cm/pixel
- GSD at 60 m:
- Multispectral: 2.64 cm/pixel
- Panchromatic and Pan-sharpened: 1.24 cm/pixel
- Thermal: 16.75 cm/pixel
Connectivity & Power
-
External Power Input: 7.0 V - 25.2 V
- Power Consumption:
- Continuous: 10 W
- Peak: 12 W
- Connectors:
- Power: JST-GH BM04B-GHS-TBT
- Data (Serial & Ethernet): JST-GH BM15B-GHS-TBT
- Downwelling Light Sensor (DLS): JST-GH GHR-06V-S
-
Power Supply Requirements: Must be capable of 12 W peak, recommend connection of both Power and Ground pins for minimal voltage drop.
Physical Dimensions
- Size:
- Length: 110 mm
- Width: 80 mm
- Height: 69 mm
-
Weight: 460 g (including camera and DLS2)
Operational Features
-
Capture Rate: Up to 2 captures per second (2 Hz)
- Operational Modes:
- Overlap
- Timer
- External Trigger (PWM or edge-triggering)
API Support: HTTP API via Ethernet or Wi-Fi, MAVLink over serial
What's in the Box:
Hardware:
- 1x IF800 Quadcopter with Blue Herelink Ground Control Station
- 1x Inspired Flight - MicaSense Altum-PT Integration
- 1x MicaSense Altum PT
Also comes with:
- 1x Firmware Upgrade Service
Optional Items:
- 1x IF800 Battery Kit
- 1x IF800 Battery Set
- 1x IF800 Spare Propeller Set
- 1x IF800 Spare Part Kit
- 1x PIX4Dfields - Perpetual Licens
