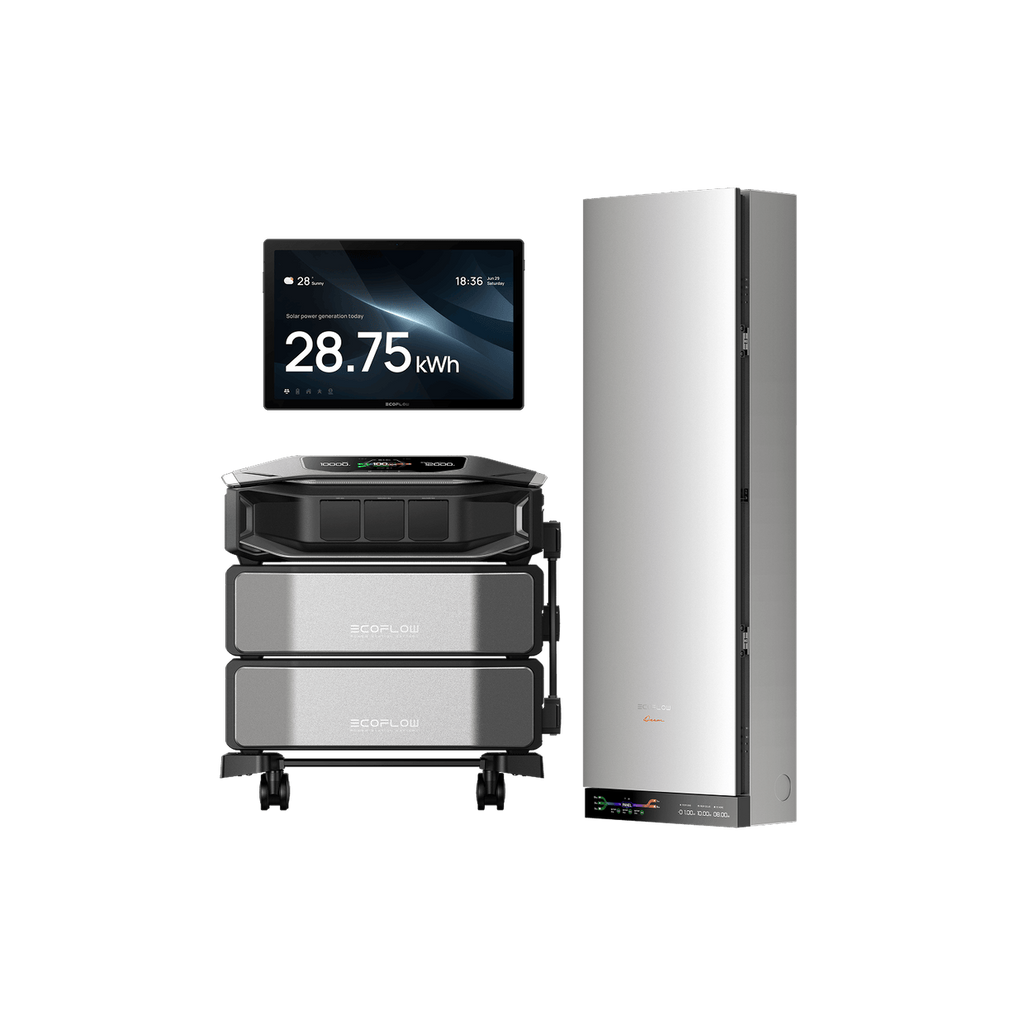

EcoFlow DELTA Pro Ultra X Inverter + Smart Extra Battery x 2 + Smart Home Panel 3 + PowerInsight 2 Monitor Bundle
Short Description: The most complete whole-home energy system EcoFlow has to offer. This bundle combines the DELTA Pro Ultra X Inverter, three Smart Extra Batteries for 18,432Wh of added capacity, the Smart Home Panel 3 for total circuit-level control, and the PowerInsight 2 Monitor for real-time energy visibility — everything you need to power, protect and optimize your entire home.
What's Included:
- EcoFlow DELTA Pro Ultra X Inverter
- EcoFlow DELTA Pro Ultra X Smart Extra Battery x 2 (18,432Wh total added capacity)
- EcoFlow Smart Home Panel 3
- EcoFlow PowerInsight 2 Monitor
Highlights:
- 12–36kW output — scales to power virtually any home appliance including 5-ton AC units
- Start with 12kWh, expand up to 180kWh with up to 30 plug-and-play batteries
- Handles surges up to 45kW with Adaptive Start algorithm
- 32 independently controlled circuits via Smart Home Panel 3
- 20ms auto switchover during outages — lights stay on, no interruption
- EV-grade LiFePO4 battery chemistry — 25% more efficient, 25% less self-heating
- Compatible with existing rooftop solar — no wasted watts
- AI Mode intelligently shifts between solar, storage and off-peak rates to maximize savings
- 11-inch PowerInsight 2 touch screen for real-time energy monitoring
- AI Voice Control — hands-free management from up to 5 meters
- Smart Home integration via Matter 1.4 — controls lights, thermostats, EV chargers and more
- NEMA 3R rated Smart Home Panel 3 — can be installed indoors or outdoors
- 10-year warranty on Smart Home Panel 3
Key Features:
- Adaptive Start algorithm intelligently identifies and tailors startup for each appliance
- Smart Home Panel 3 integrates solar, generators and EV charging in one hub
- Auto-recharges and switches between solar, storage and off-peak rates to maximize savings
- Compatible with EcoFlow Current Sense Transformer to redirect excess solar watts
- Plug-and-play battery expansion — no tools required
- 32 circuits independently controllable via app
- PowerInsight 2 automates energy based on habits and weather
- Shifts loads to solar when the sun shines and prioritizes battery before storms
- Digital photo frame mode on PowerInsight 2 lock screen
- 9,300mAh PowerInsight 2 battery — 24+ hours screen-off
- Compatible with 3–12kW split-phase 240V generators
- Supports both 120/240V and 208Y/120V commercial electricity
Specs:
| Spec |
DELTA Pro Ultra X Inverter |
Smart Extra Battery x3 |
Smart Home Panel 3 |
PowerInsight 2 |
| Capacity |
12.288kWh (standard) |
6,144Wh each (18,432Wh total) |
— |
9,300mAh |
| AC Output |
12kW, 120/240V |
— |
— |
— |
| Battery Chemistry |
LFP |
LFP |
— |
— |
| Circuits |
— |
— |
32 |
— |
| Switchover Time |
<20ms |
— |
<20ms |
— |
| IP / Enclosure |
IP54 |
— |
NEMA 3R |
— |
| Warranty |
5 years |
5 years |
10 years |
— |
| Weight |
34.5kg (inverter) |
— |
40.3kg |
620g |
| IoT Support |
— |
— |
BT/Wi-Fi/Ethernet/CAN/RS485 |
Wi-Fi, BLE, Matter |
| Noise |
<30dB |
— |
≤40dB |
— |
What's in the Box:
- DELTA Pro Ultra X Inverter
- DELTA Pro Ultra X Smart Extra Battery x 2
- Battery Connection Cables x 2
- Smart Home Panel 3
- PowerInsight 2 Monitor
- Wall bracket
- USB-C to USB-C Power Cable (2m)
- Wall expansion anchors x4 and self-tapping screws x4
- User Manuals and Warranty Cards
