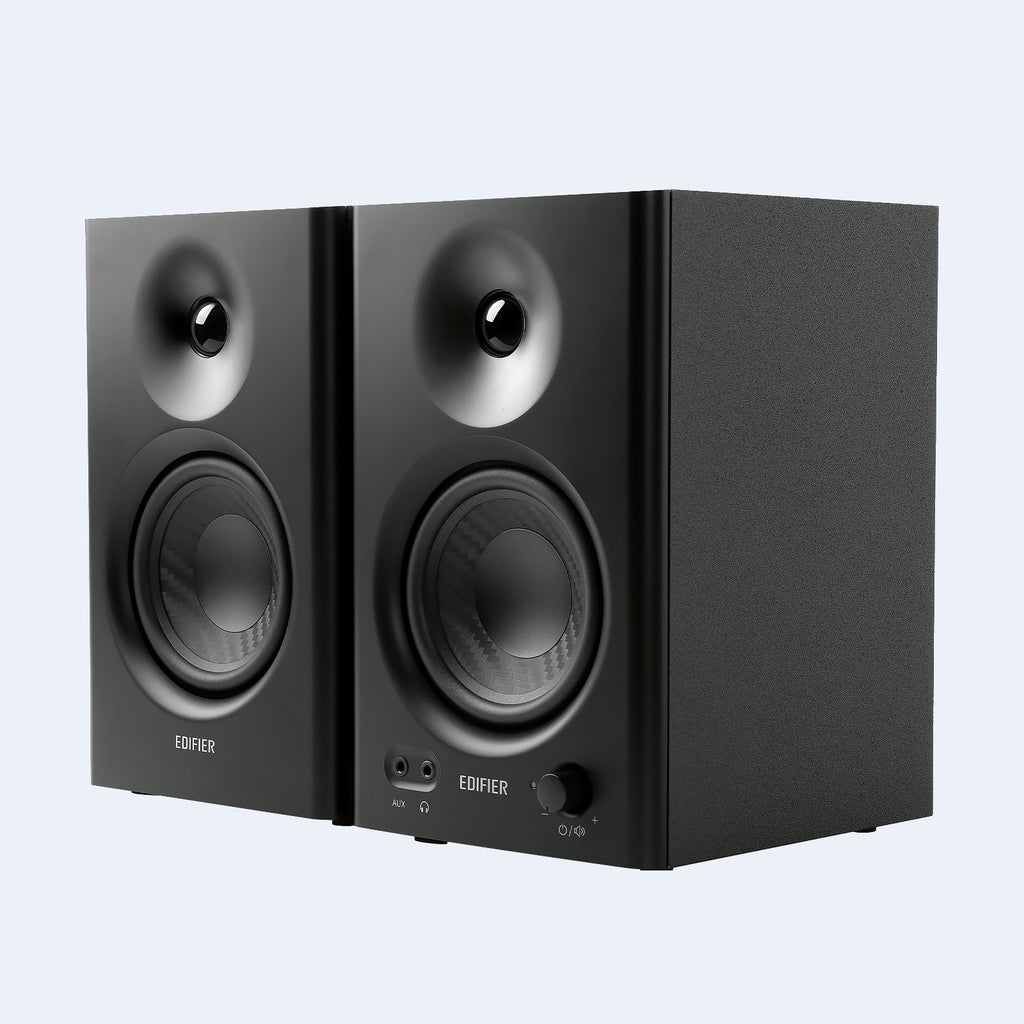

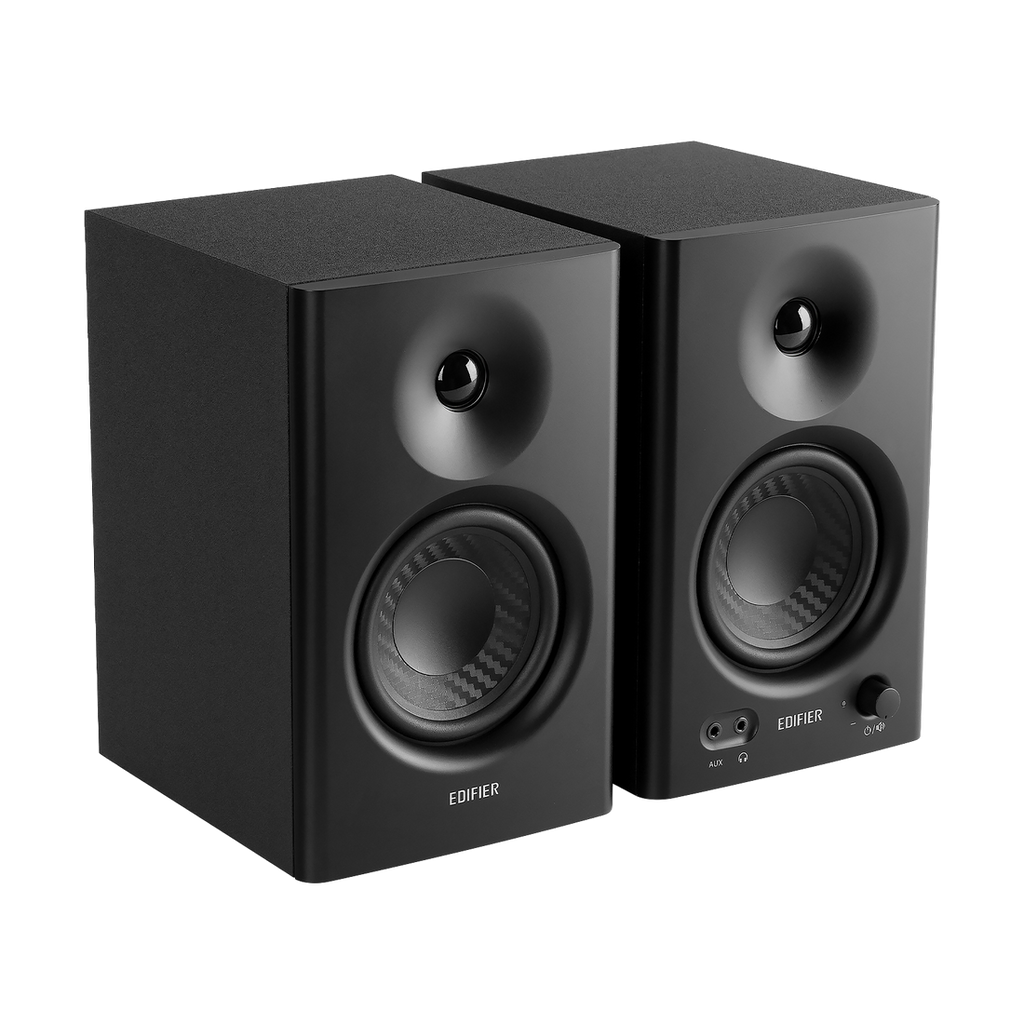

Edifier MR4 Powered Studio Monitor
The Edifier MR4 Powered Studio Monitor - Black is designed to deliver accurate, studio-quality sound for music production, content creation, and everyday listening. With a compact desktop design, professional acoustic tuning, and versatile connectivity options, the MR4 provides a balanced and detailed audio experience ideal for home studios and workspaces. Its durable wooden cabinet and high-quality drivers ensure clear highs, rich mids, and deep bass for both professional monitoring and entertainment.
Compact and Powerful Design
The MR4 features a compact yet powerful design, making it perfect for desks, small studios, and personal workspaces. Despite its size, it delivers professional-level audio performance that enhances your listening and production experience.
Natural High-End Tweeter
Equipped with 1-inch silk dome tweeters, the MR4 produces smooth and natural high frequencies. The specially coated tweeter helps deliver refined treble and improved clarity across the entire sound spectrum.
Deep Bass Driver
The speaker includes 4-inch low-frequency drivers with MICA diaphragms, designed to produce stronger bass and accurate low-end performance, ensuring a balanced and immersive sound.
Classic Wooden Speaker Cabinet
The MDF wooden enclosure reduces unwanted resonance and acoustic distortion. This helps restore the original tone of recordings and ensures consistent, natural sound reproduction.
Multiple Connection Methods
The MR4 provides flexible connectivity for different devices and professional audio equipment:
1/4-inch Balanced TRS Input – connect to audio interfaces and mixers
RCA Unbalanced Input – connect to computers and music players
3.5mm AUX Input – connect smartphones and tablets
Headphone Output – for private listening

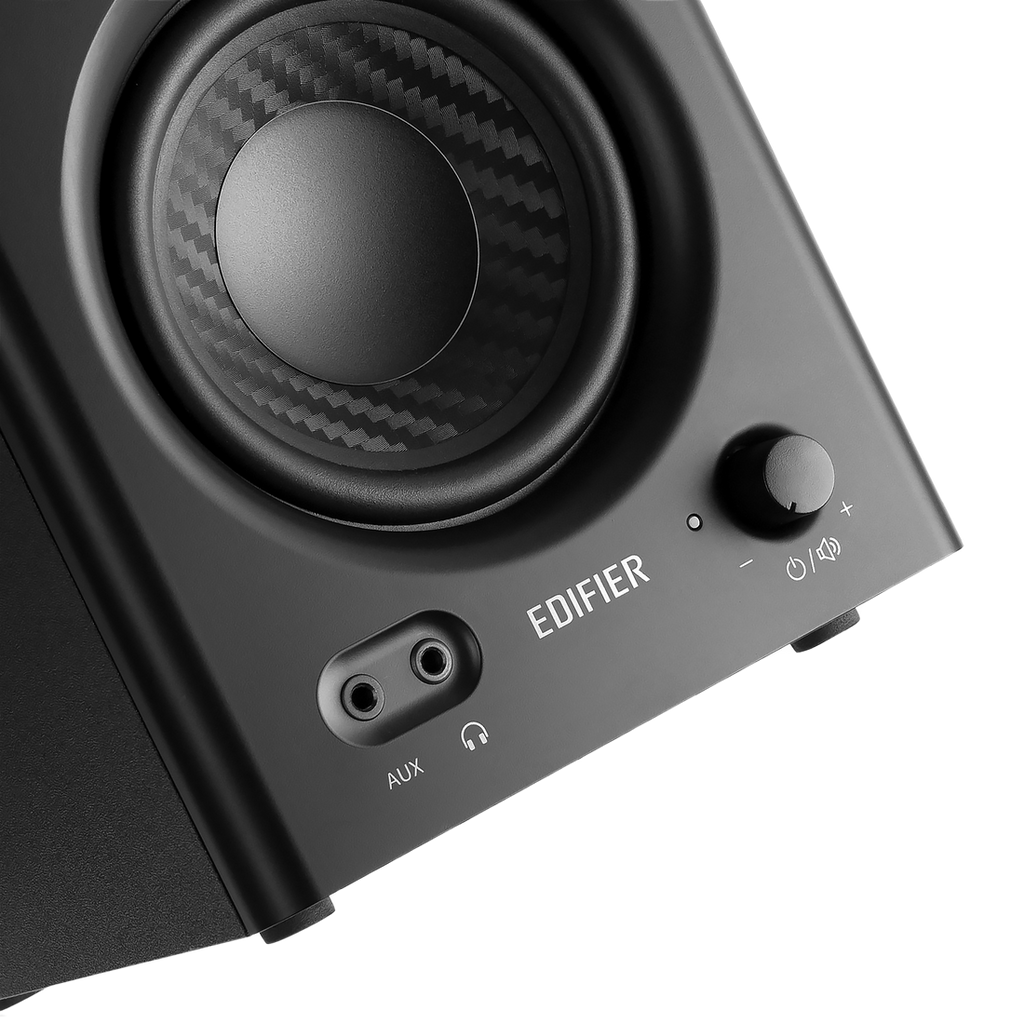

Adjustable Control Knob
A convenient multi-function knob allows easy control of the speaker:
Rotate to adjust volume
Long-press to power on/off
Short-press to switch sound effect mode
Near-Flat Frequency Response
The MR4 is professionally tuned for a near-flat response, ensuring recordings and mixes are reproduced accurately. This improves recording levels, mix balance, EQ adjustments, and mastering accuracy.
Professional Acoustic Calibration
Using precise analysis from the German KLIPPEL acoustic measurement system, the MR4 undergoes extensive tuning at the Edifier Acoustic Lab to achieve a flat response required for studio monitoring.
Dual Sound Modes
Switch between two listening modes depending on your needs:
Monitor Mode – accurate, neutral sound for production and mixing
Music Mode – enhanced sound profile for enjoyable listening
Superior Sound Performance
With 1-inch silk dome tweeters, 4-inch low-frequency drivers, and powerful Class-D amplification, the MR4 delivers clear, balanced, and detailed sound across the full frequency range.
Key Features:
- For Studios and Home Audio
- Designed for Smooth, Accurate Response
- 1" Silk-Dome Tweeter, 4" Woofer
- 21W RMS Class-D Amplifier
- Balanced 1/4" TRS Inputs
- Selectable Monitor and Music Modes
- TI TAS5713 DSP and ADC Chipset
- MDF Wood Reduces Resonance
- MICA and PP Cone for Rigidity
- Inductive/Capacitive Frequency Divider
SPECIFICATIONS:
| Category |
Specification |
| General |
|
| Monitor Type & Configuration |
Active 2-Way |
| Number of Included Monitors |
Stereo Pair |
| Enclosure |
Sealed |
| Color |
Black |
| Monitor Orientation |
Vertical or Horizontal |
| Enclosure Material |
MDF |
| Power |
|
| Total Power Output |
21W RMS per Monitor |
| Amplifiers |
Full-Range: 2 × 21W RMS Class-D |
| AC Input Power |
100–240V AC, 50/60Hz |
| Drivers (Per Monitor) |
|
| Tweeter |
1 × 1" (25.4 mm) Silk Dome |
| Woofer |
1 × 4" (10.2 cm) Polypropylene Cone |
| Performance |
|
| Frequency Response |
60Hz – 20kHz |
| Signal-to-Noise Ratio |
85 dBA |
| Signal Processing |
|
| EQ |
HF Shelf: ±6 dB |
|
LF Shelf: ±6 dB |
| Filters |
No |
| Phase Adjustment |
No |
| Connectivity |
|
| Audio Inputs |
2 × 1/4" TRS Balanced Line Input |
|
2 × RCA Unbalanced Line Input |
|
1 × 3.5mm TRS AUX Input |
| Headphone Output |
1 × 3.5mm TRS |
| Digital Audio I/O |
No |
| Network I/O |
No |
| USB |
No |
| Wireless |
No |
| Mobile App Compatible |
No |
| Physical |
|
| Dimensions (Active Speaker) |
9 × 7.8 × 5.5 in / 22.8 × 19.7 × 14 cm |
| Dimensions (Passive Speaker) |
9 × 7.2 × 5.5 in / 22.8 × 18.4 × 14 cm |
| Weight |
9.9 lb / 4.5 kg (Pair) |
WHAT'S IN THE BOX:
1 x Edifier MR4 Active 4" Studio Monitor Speakers (Black, Pair)
1 x Speaker Cable
1 x 3.5mm to RCA Audio Cable
1 x 3.5mm Audio Cable
Limited 1-Year Manufacturer Warranty
