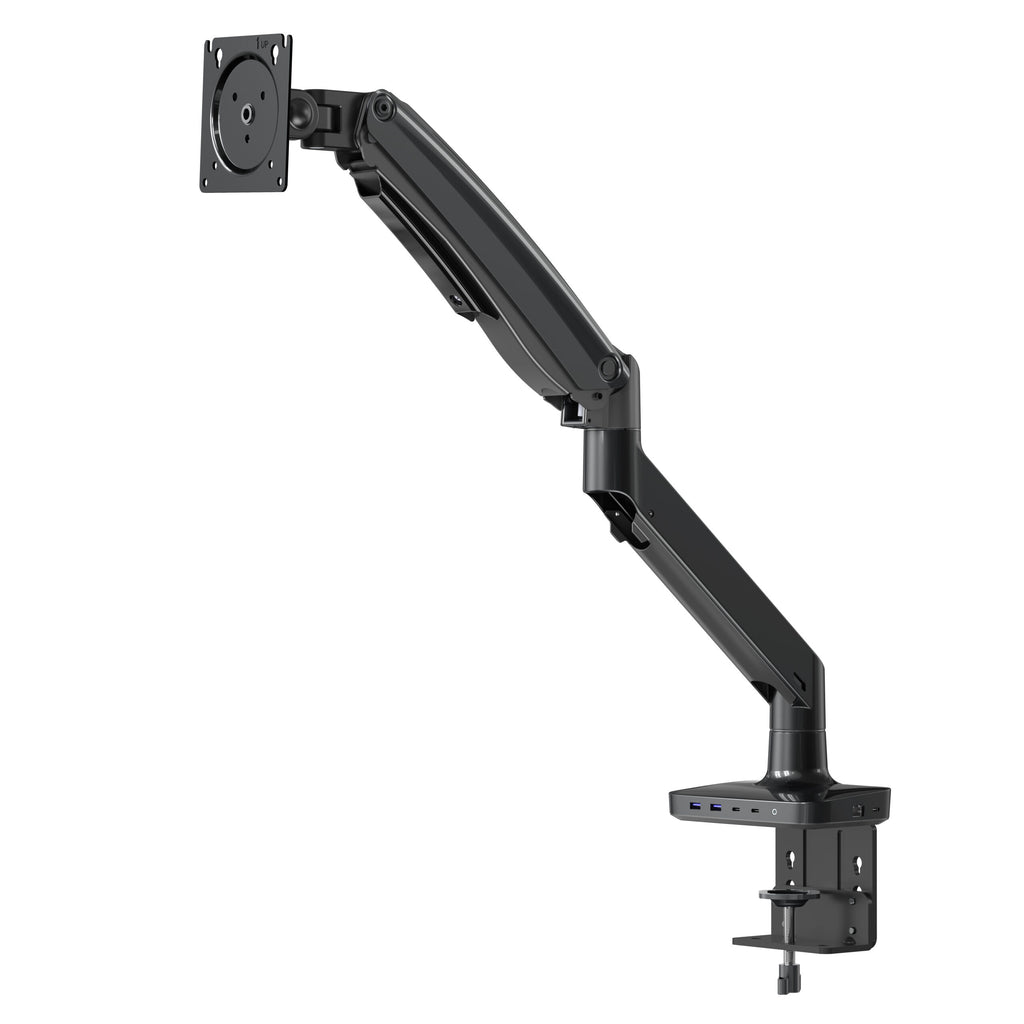

ErgoAV-Ergolink single arm monitor mount arm with built in USB-C docking station up to 35" monitor

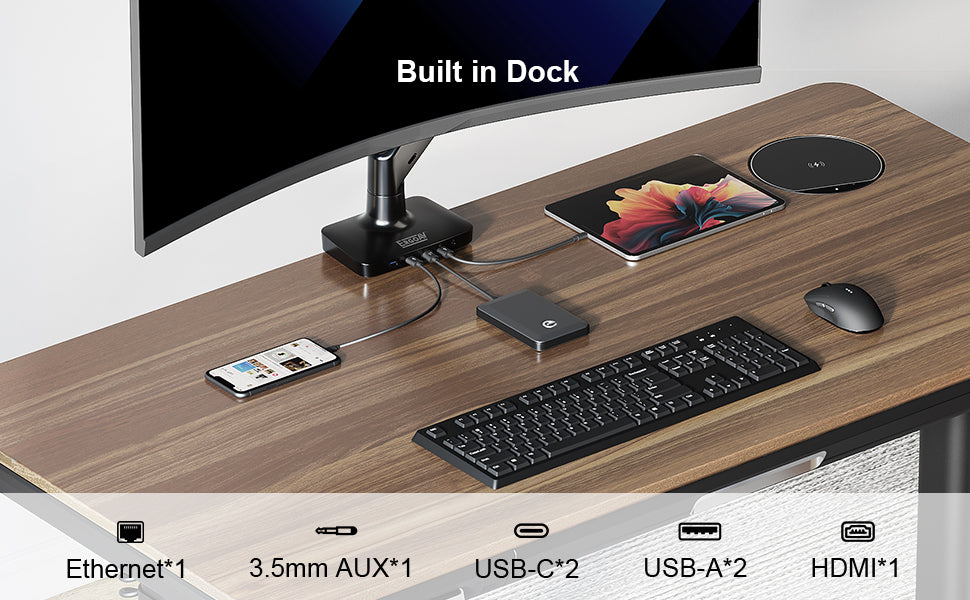

Ergolink is a versatile monitor desk mount with a built-in hub for monitors up to 34" with a capacity of up to 22lbs. Cleverly designed to create a comprehensive work station the mount includes 2 USB-C, 2 USB-A, 1 HDMI Port, 1 Ethernet Port and one 3.5mm AUX for versatile inputs.

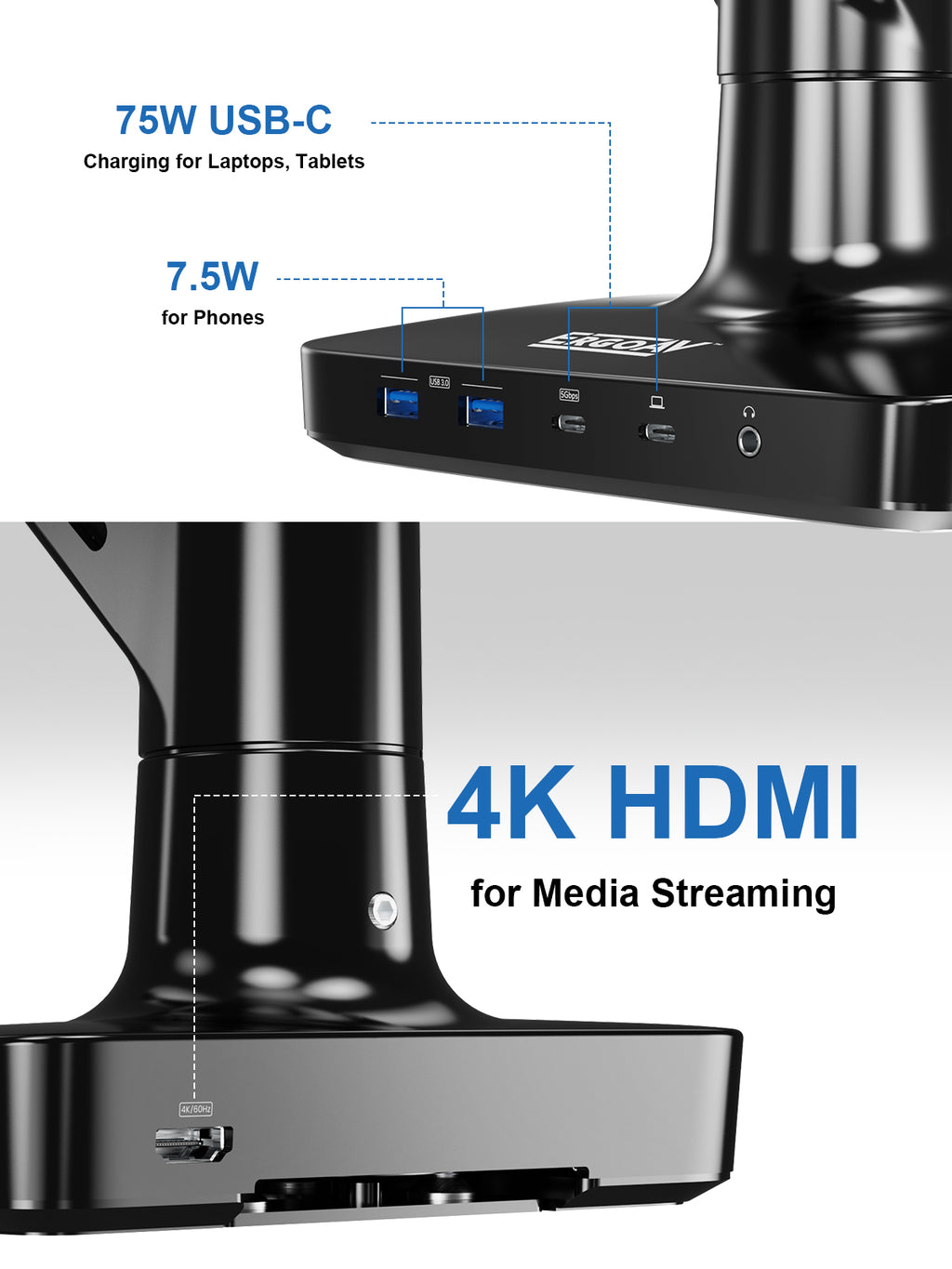

The docking station supports up to 75W via USB-C port to power up your laptops and 20W to charge phones and tablets. Enjoy streaming live concerts and favorite shows in stunning 4K@60Hz via the HDMI port. One may transfer files as huge as 5GBPS via the USB-C power delivery port or USB-A 3.0 port.

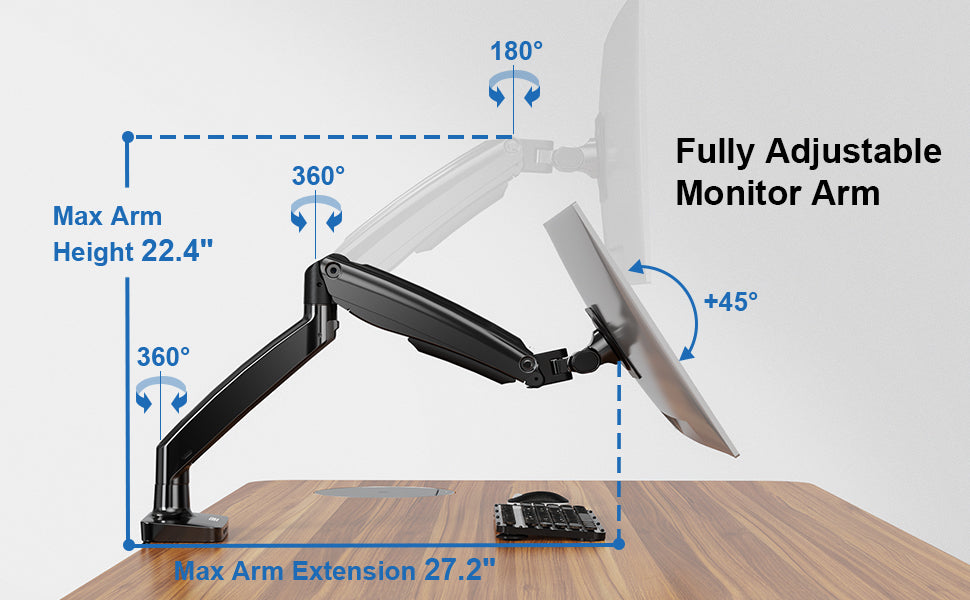

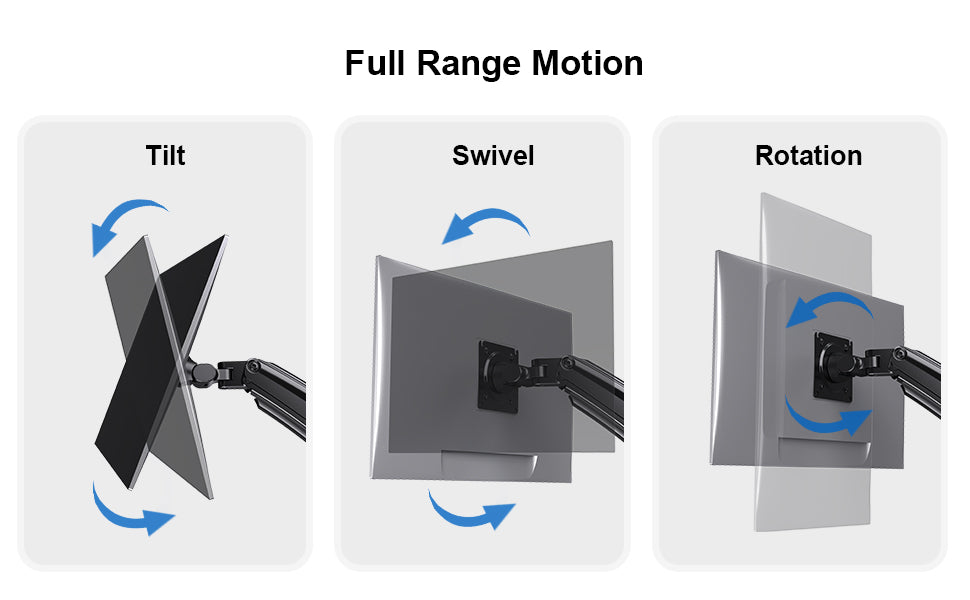

While you can optimally place the monitor with 15" vertical adjustment, 360° Rotation and 45° Tilt, the built-in cable management keeps all your power and HDMI cables organized, sorted and concealed to leave you with a technologically sound, clutter-free work space.
Specifications:
| Dimensions |
6.9 × 27.1 × 22.5 in |
| Monitor Arms |
Single Arm
|
| Arm Adjustment |
Yes
|
| Arm Max Extension |
27.2"
|
| Arm Max Height |
22.5"
|
| Arm Max Height Movement |
22.5"
|
| Base Size |
5.9"- 4.7"
|
| C-Clamp Desk Thickness |
0.79” ~ 3.54”
|
| Cable Management |
Yes
|
| Grommet Base Desk Thickness |
0.79” ~ 3.54”
|
| Pole Height |
12.2"
|
| Screen Rotation |
360°
|
| Swivel Range |
180°
|
| Tilt |
45°
|

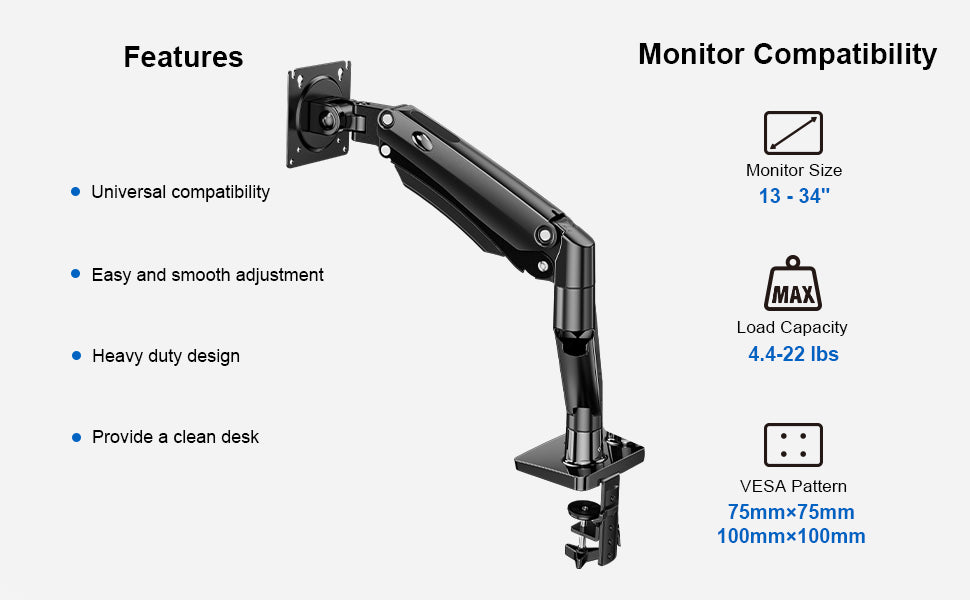

| Monitor Size Range |
13" to 34"
|
| VESA Pattern |
75×75, 100×100
|
| Weight Capacity Per Arm |
22 lbs. Monitor
|
| Desk Mount Hub Dimension (LxHxW) |
6.9" x 1.25" x 4.3"
|
| USB A Port Quantity |
2
|
| USB A Power |
3.0
|
| USB C Quantity |
2
|
| USB C Power |
75W
|
| Headphone Jack Quantity |
1
|
| Ethernet |
Yes
|
| HDMI Port Quantity |
1
|
| HDMI Resolution |
Max 4K/60Hz
|
| Operating Systems |
• Win10, Win11 or later
• Mac OS 10.12~13.3.1 versions (support M1 & M2 & Intel chip) or later
• Chrome OS 48.0.2564.82 or later
• iPad OS 12 or later
• Android 9.0 or later
• Linux Kernel 4.6 or later
(Apples website that clearly describes your Apple Intel/Silicon computers capabilities: https://support.apple.com/en-us/HT213503)
|
| Environment |
32° to 104° F / 0° to 40° C
|
What's in the Box:
1 x ErgoAV-Ergolink single arm monitor mount arm with built in USB-C docking station up to 35" monitor
1 x Instruction Manual
