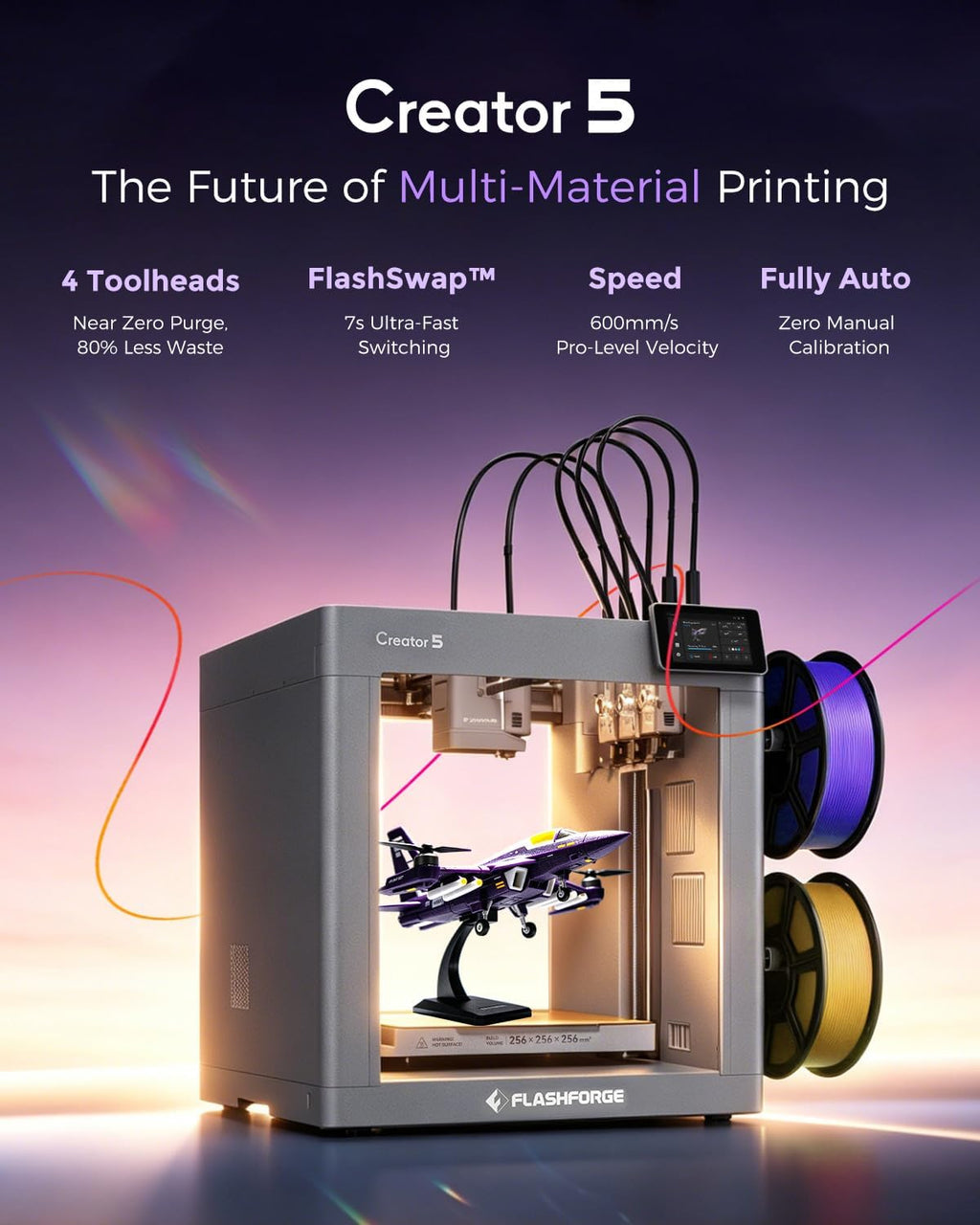

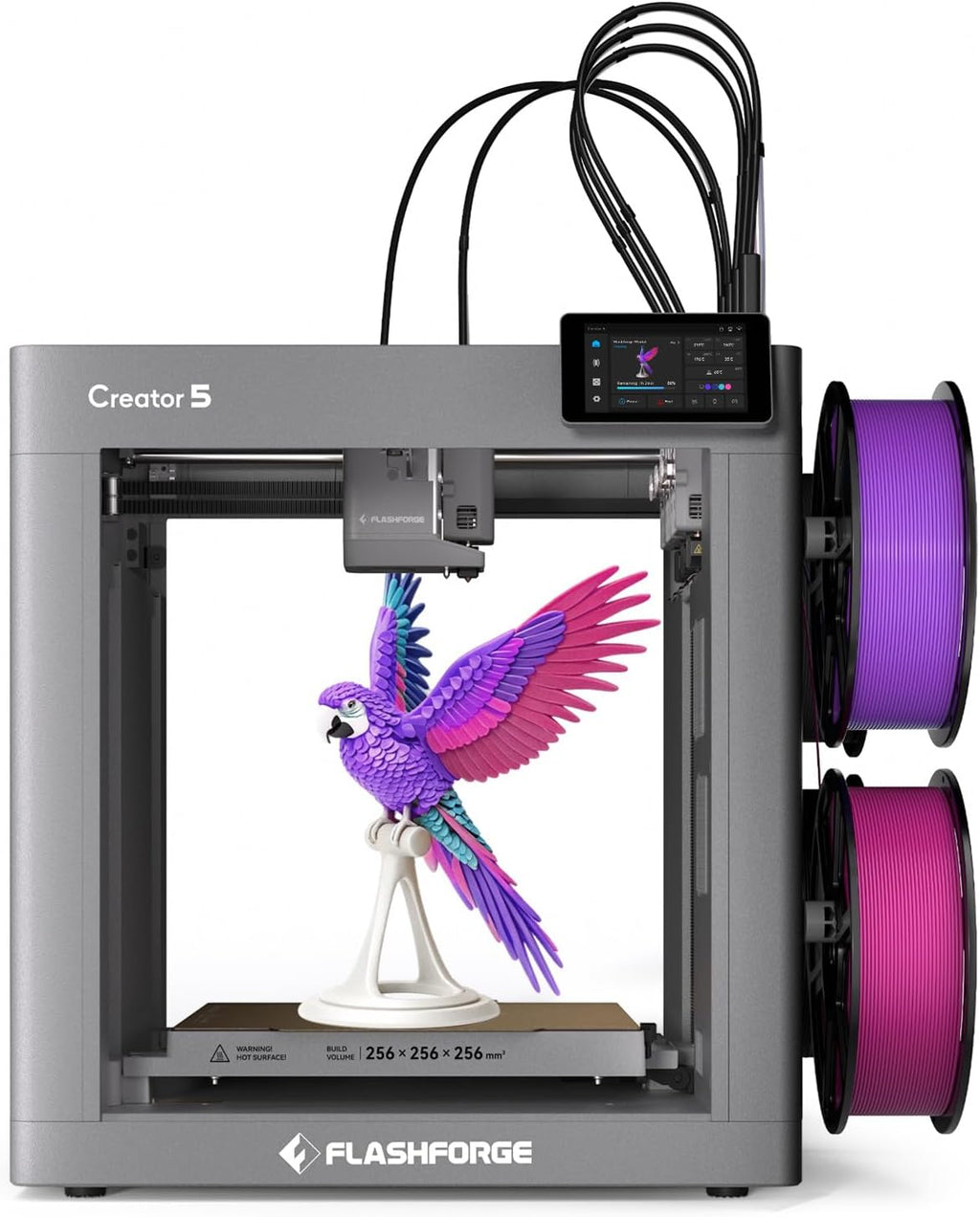

FLASHFORGE Creator 5 4-Toolhead Changer 3D Printer
The Flashforge Creator 5 is a versatile 3D printer featuring a 4-toolhead changer for efficient multi-color and multi-material printing, designed for reliable, high-quality results.
4 Independent Toolheads for True Multi-Color: Unlike traditional single-nozzle multi-color printers, the Creator 5 utilizes 4 independent toolheads to prevent color mixing and clogging while enabling consistent, flawless multi-color output.

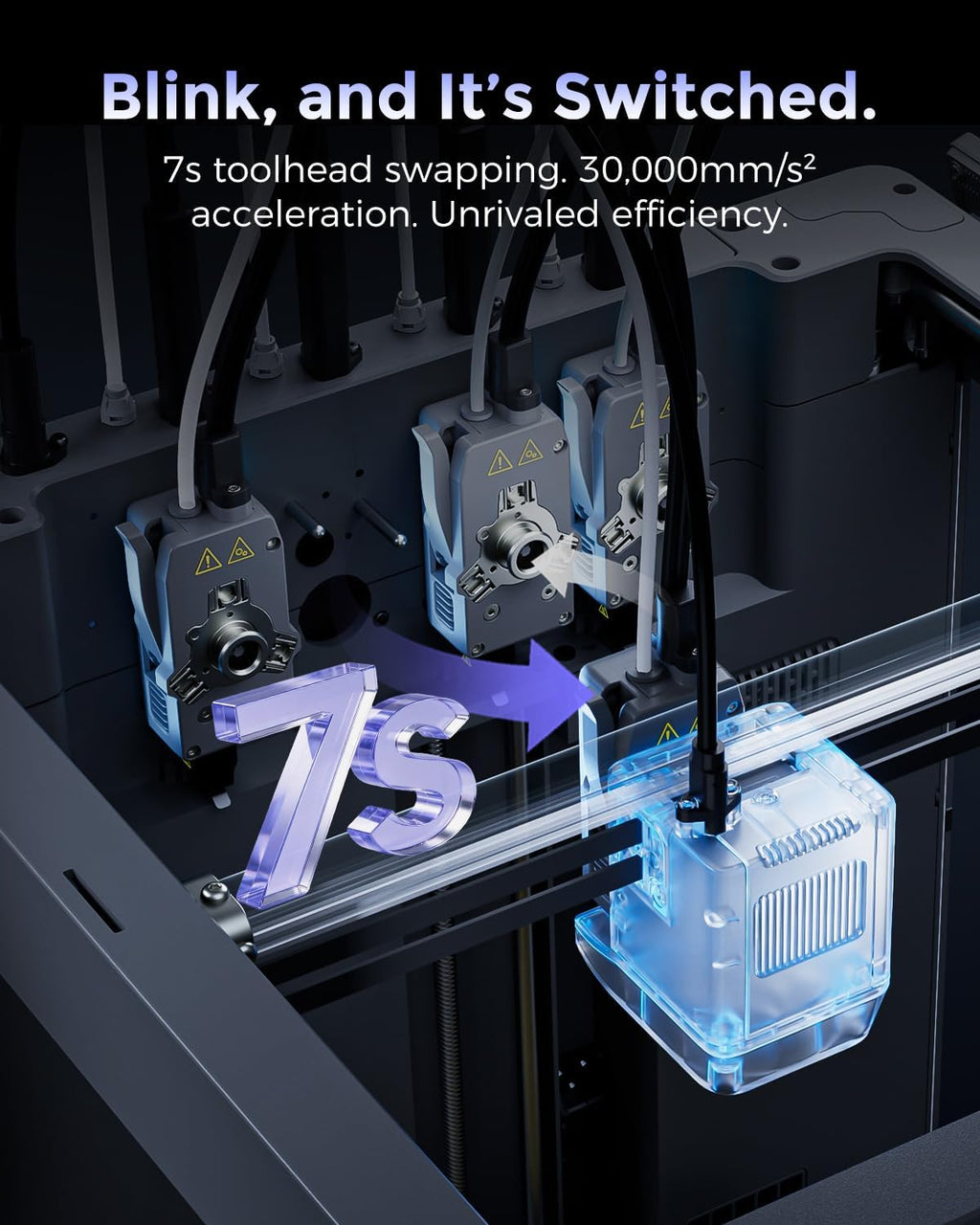

7-Second Swaps with Intelligent Preheating: Standard single-nozzle setups demand constant filament loading, unloading, and purging for every color change. The Creator 5’s FlashSwap toolheads preheat in the background, enabling seamless 7-second tool changes without long, tedious flush cycles.
Up to 80% Less Filament Waste: Single-nozzle multi-color printing generates massive amounts of wasted "poop." The Creator 5's independent architecture completely bypasses this dependency, significantly lowering the overall cost per print.
True Multi-Material & Clean Support Removal: Print PLA, PETG, TPU, PETG-CF and support materials in a single job. By allocating one toolhead exclusively to specialized support filament, the Creator 5 ensures faster, effortless removal and pristine, ultra-smooth surface finishes.
600mm/s CoreXY Speed & Auto Calibration: Built upon a rigid CoreXY motion system with fully automatic calibration, the Creator 5 delivers stable high-speed printing up to 600mm/s. Active vibration compensation and flow calibration guarantee exceptional, flawless model quality.
Key Features
- 4 independent toolheads for true multi-color and multi-material printing.
- FlashSwap tool-changing system switches between loaded toolheads instead of repeatedly changing filament.
- Near-zero purge waste during material changes.
- Build volume: 256 × 256 × 256 mm.
- High-speed printing: up to 300 mm/s print speed and 600 mm/s travel speed.
- High acceleration: up to 30,000 mm/s².

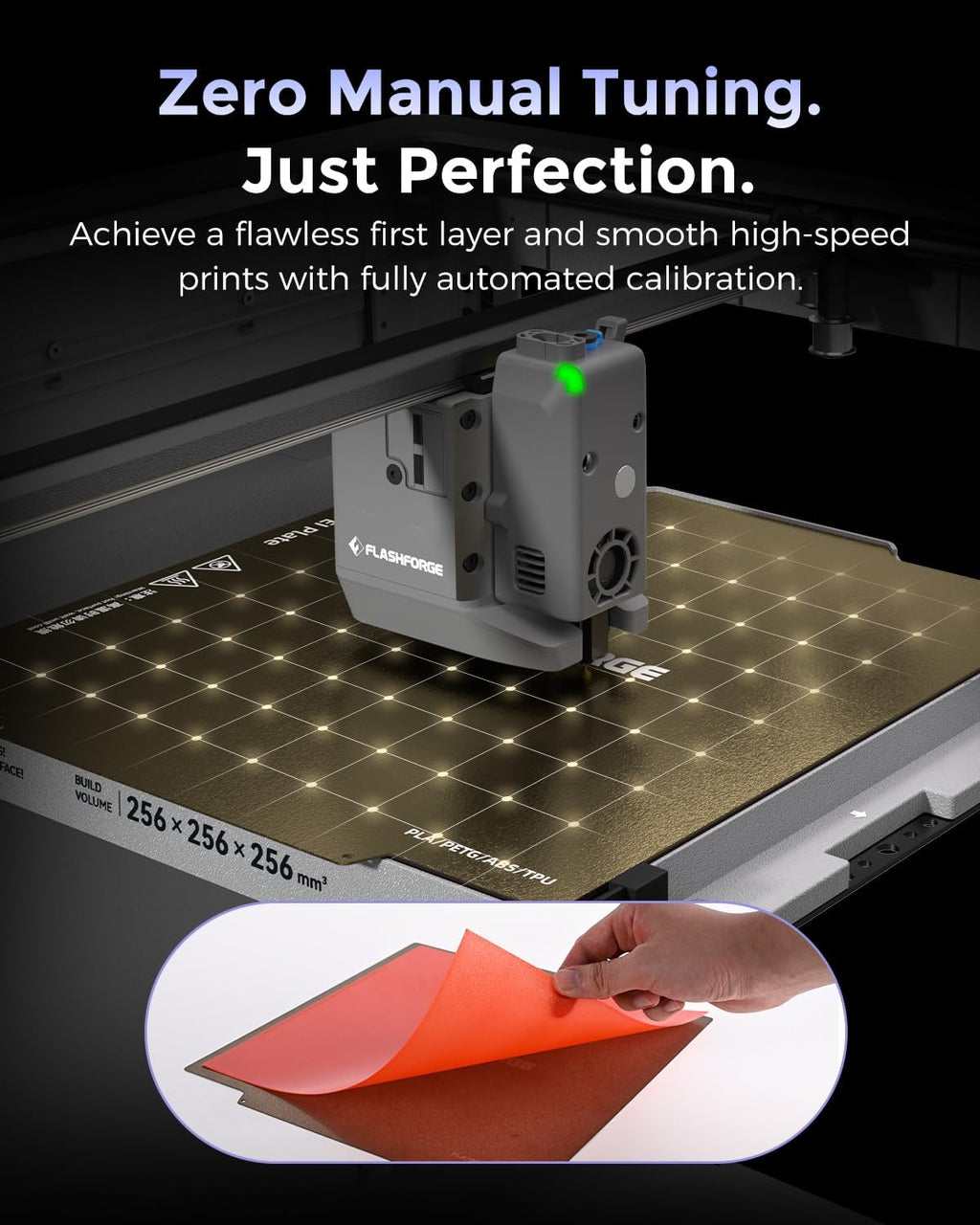

- Automatic leveling and automatic multi-toolhead offset calibration.
- 320°C maximum extruder temperature for a wide range of compatible filaments.
- 120°C heated build plate with textured PEI flexible steel sheet.
- Automatic flow calibration for consistent print quality.
- Built-in 720p camera for remote print monitoring.
- Filament run-out detection and power-outage recovery.
- 4-inch full-color touchscreen with 800 × 480 resolution.
- Wi-Fi and USB connectivity, with support for Orca-Flashforge and OrcaSlicer
Specifications
| Specification |
Details |
| Printer Type |
FDM 3D Printer |
| Toolheads |
4 independent toolheads |
| Build Volume |
256 × 256 × 256 mm |
| Maximum Print Speed |
300 mm/s |
| Maximum Travel Speed |
600 mm/s |
| Maximum Acceleration |
30,000 mm/s² |
| Maximum Extruder Temperature |
320°C |
| Maximum Bed Temperature |
120°C |
| Standard Nozzle |
0.4 mm |
| Optional Nozzles |
0.25 / 0.6 / 0.8 mm |
| Maximum Flow Rate |
32 mm³/s |
| Build Plate |
Textured PEI flexible steel |
| Layer Thickness |
0.1–0.4 mm |
| Auto Leveling |
Yes |
| Flow Calibration |
Automatic |
| Filament Diameter |
1.75 mm |
| Filament Detection |
Run-out sensor |
| Display |
4-inch, 800 × 480 full-color touchscreen |
| Camera |
1280 × 720, 30 fps |
| Connectivity |
USB, Wi-Fi |
| Wi-Fi |
2.4 GHz / 5 GHz |
| Compatible Software |
Orca-Flashforge, OrcaSlicer |
| Printer Dimensions |
520 × 443 × 710 mm* |
| Weight |
Approx. 14 kg net |
| Power |
100–120V / 200–240V AC, 50/60Hz, 700W |
| Structure |
Open-frame design |
What's in the Box
1 × FlashForge Creator 5 Multi-Color 3D Printer
4 × Filament (0.35 oz each)
1 × Build Plate
1 × Power Cable
4 × Spool Holders
1 × Touchscreen
4 × Nozzle Blockers
1 × Extruder Dock Module
1 × Allen Wrench Set
1 × Screw Set
