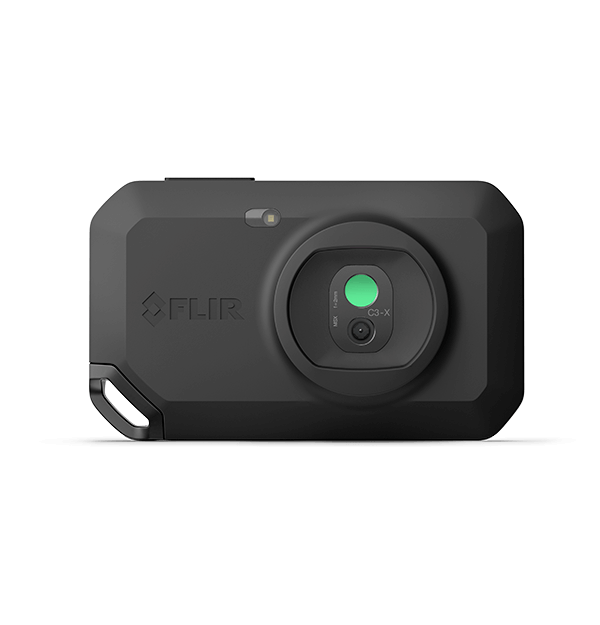

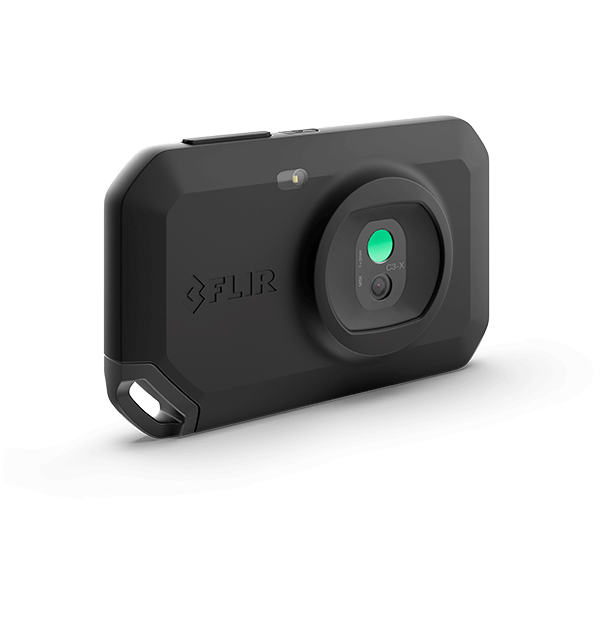

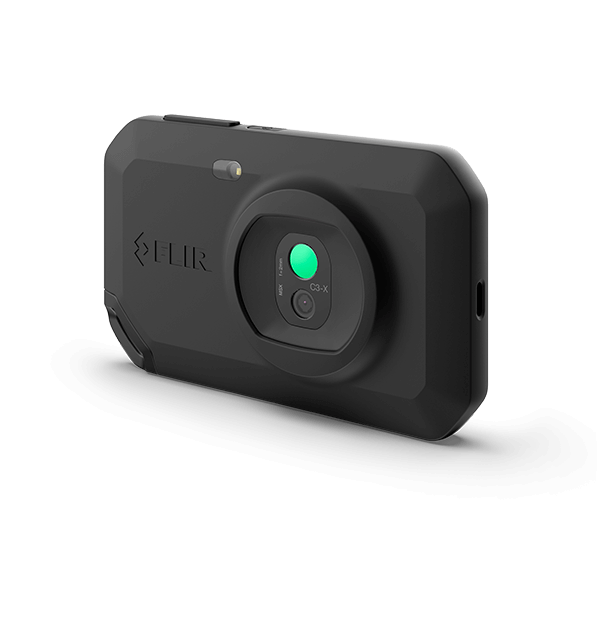

FLIR C3-X Compact Professional Thermal Camera w/MSX

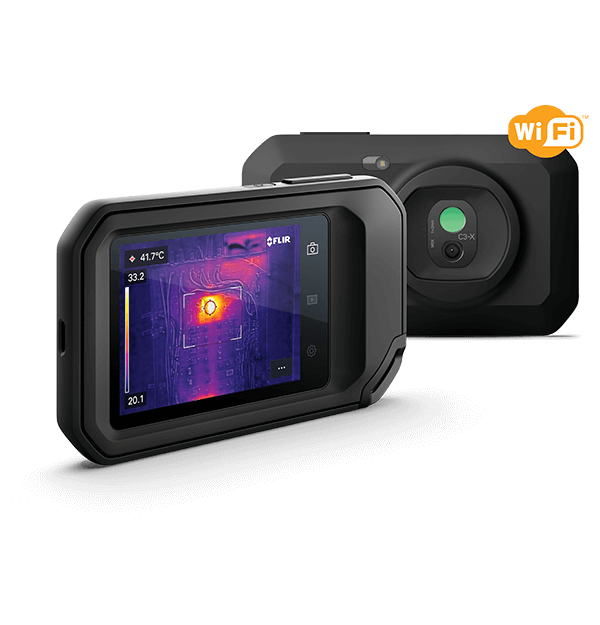

The FLIR C3-X makes it easier than ever to inspect for hidden problems, document repairs, and share evidence with customers. Featuring a 128 × 96 pixel thermal sensor, MSX® (Multi-Spectral Dynamic Imaging), a 5-megapixel visual camera, and LED flashlight, the C3-X is an affordable inspection tool for electrical/mechanical, building, and maintenance applications. Directly upload and store images to the FLIR Ignite™ cloud, where you can organize and back up files. Instantly share images with customers or create professional reports from a mobile device or computer.
*Sale price valid for the U.S. only
Identify & Troubleshoot

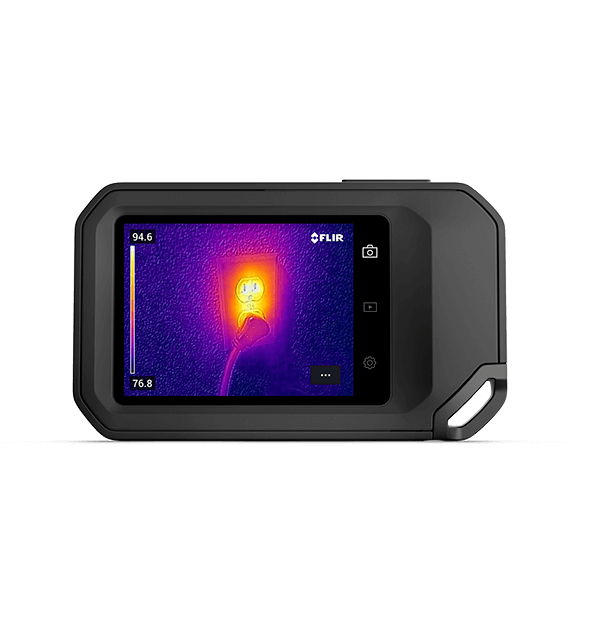

Quickly find hidden faults and reduce diagnostic time with MSX and 128 × 96 true thermal imaging
Document & Share
Directly upload images using FLIR Ignite cloud connectivity, then create professional reports and email them to customers
Rugged, reliable, compact
Take the pocket-portable C3-X with you to every job - it's IP54 rated for protection against water and dust and designed to withstand a 2 m drop
SPECIFICATIONS:
| Highlighted |
| IR Resolution |
128 × 96 pixels |
| Thermal Sensitivity/NETD |
<70 mK |
| Accuracy |
0 to 100°C (32 to 212°F): ±3°C (±5.5°F); 100 to 300°C (212 to 572°F): ±3% [ambient temp. 15 to 35°C (59 to 95°F) and object temp. above 0°C (32°F)] |
| Field of view (FOV) |
53.6° |
| Digital Camera |
5 MP resolution |
| Image Modes |
Infrared image, Visual image, MSX (Embossed visual details on thermal image), Picture-in-picture (IR area on visual image) |
| Storage Media |
Internal memory and onboard FLIR Ignite cloud connectivity (with Wi-Fi) |
| Imaging & Optical |
| Auto orientation |
Yes |
| Camera software update |
Automatic over Wi-Fi, USB via computer |
| Color |
Black |
| Color Palettes |
Iron, Gray, Rainbow, Rainbow HC |
| Detector Pitch |
12 µm |
| Detector Type |
Focal plane array, uncooled microbolometer |
| Digital Camera |
5 MP resolution |
| Digital Camera FOV |
71.5° × 56° (84° diagonal) |
| Digital Zoom |
No |
| Display resolution |
640 × 480 pixels |
| f-number |
1.1 |
| Field of view (FOV) |
53.6° |
| Focus |
Focus free |
| Gallery |
Thumbnails and custom folder structure |
| Image Frequency |
8.7 Hz |
| Image Modes |
Infrared image, Visual image, MSX (Embossed visual details on thermal image), Picture-in-picture (IR area on visual image) |
| IR Resolution |
128 × 96 pixels |
| Minimum Focus Distance |
Thermal: 0.1 m (0.32 ft), MSX: 0.3 m (0.98 ft) |
| Spatial resolution (IFOV) |
7.9 mrad/pixel |
| Spectral Range |
8 to 14 µm |
| Thermal Sensitivity/NETD |
<70 mK |
| Video Lamp |
Yes |
| Measurement & Analysis |
| Accuracy |
0 to 100°C (32 to 212°F): ±3°C (±5.5°F); 100 to 300°C (212 to 572°F): ±3% [ambient temp. 15 to 35°C (59 to 95°F) and object temp. above 0°C (32°F)] |
| Camera size (L x W x H) |
138 × 84 × 24 mm (5.4 × 3.3 × 0.94 in) |
| Measurements correction |
Emissivity; matt/semi-matt/semi-gloss + custom value, Reflected apparent temperature, Atmospheric compensation |
| Object Temperature Range |
-20 to 300°C (-4 to 572°F) |
| Set-up Commands |
Local adaptation of units, language, date and time formats, and screen brightness (high, medium, low) |
| User Interface |
| Display Technology |
IPS |
| Languages |
Arabic, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, simplified Chinese, Spanish, Swedish, traditional Chinese, Turkish |
| Text |

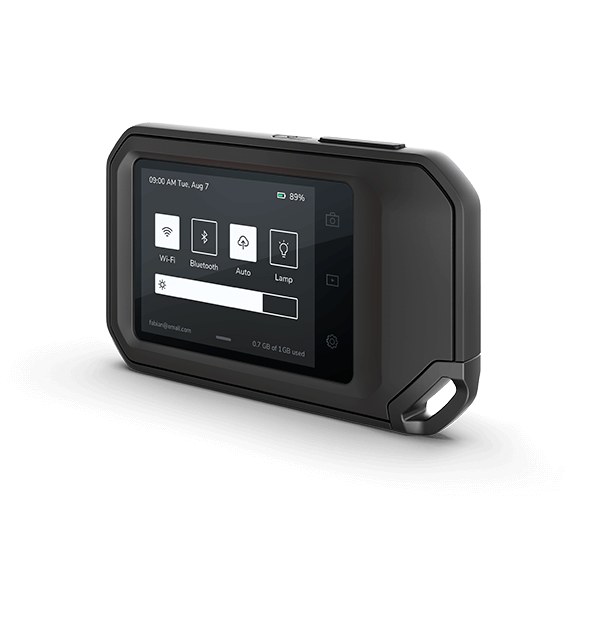

Soft keyboard on touchscreen |
| Touchscreen |
Capacitive touch |
| Communication & Data Storage |
| Bluetooth |
PAN |
| Image File Format |
Standard JPEG, 14-bit measurement data included |
| Image Storage |
>5000 images |
| Storage Media |
Internal memory and onboard FLIR Ignite cloud connectivity (with Wi-Fi) |
| USB |
USB 2.0, Type-C connector |
| WiFi |
802.11 a/ac/b/g/n (2.4 and 5 GHz) |
| Power |
| Battery capacity |
1800 mAh |
| Battery charge life |
>500 cycles |
| Battery operating time |
4 hours |
| Battery Type |
Rechargeable built-in Lithium-ion battery |
| Battery voltage |
3.7 V |
| Battery weight |
40 g (1.4 oz) |
| Charging system |
USB-C (1 A) |
| Charging Temperature |
35°C (95°F) |
| Charging Time |
2 hours |
| External Power Operation |
5 V, USB-C |
| Power Management |
Adjustable stand-by and automatic shut-down |
| Environmental & Certifications |
| Drop test |
2 m (6.56 ft) |
| EMC |
EN 301 487-1; EN 301 489-17; FCC 47 CFR Part 15 Class B |
| Encapsulation |
Camera housing and lens: IP54 rated (IEC 60529) |
| Humidity (Operating and Storage) |
IEC 60068-2-30/24 h 95% relative humidity 25 to 40°C (77 to 104°F) / 2 cycles |
| Magnetic fields |
EN 61000-4-8 level 5 |
| Operating Temperature Range |
-10 to 50°C (14 to 122°F) |
| Radio Spectrum |
ETSI EN 300 328; EN 301 489; FCC Title 47 CFR Part 15; RSS-247 Issue 2 |
| Relative Humidity |
95% relative humidity 25 to 40°C (77 to 104°F) non-condensing |
| Safety |
EN 62368-1 |
| Shock |
25 g (IEC 60068-2-27) |
| Storage Temperature Range |
-40 to 70°C (-40 to 158°F) |
| Tripod Mounting |
UNC ¼"-20 (built-in) |
| Vibration |
2 g (IEC 60068-2-6) |
| Warranty |
http://www.flir.com/warranty/ |
| General |
| Form Factor |
Pocket |
| Housing material |
PC and ABS, partially covered with TPE; aluminum |
| Packaging Size |
160 × 118 × 93 mm (6.3 × 4.6 × 3.7 in) |
| Packaging Weight |
0.52 kg (1.14 lb) |
| Size (L x W x H) |
138 × 84 × 24 mm (5.4 × 3.3 × 0.94 in) |
WHAT'S IN THE BOX:
1 x FLIR C3-X Thermal Camera Unit
1 x USB Cable
1 x Wrist Strap Lanyard
1 x Owner’s Manual / Documentation
1 x Warranty Information
