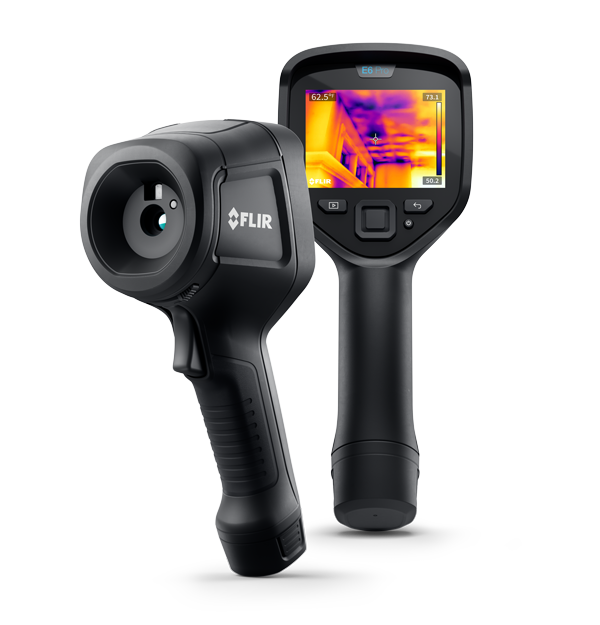

FLIR E6 Pro NIST Infrared Camera
The FLIR E6 Pro is a rugged point-and-shoot thermal camera that can help you work more efficiently than ever before in building surveys, HVAC, automotive, and general electrical and mechanical inspections. Locate and diagnose problems quickly with 240 x 180 thermal resolution (43,200 pixels) and vibrant thermal imagery supported by FLIR-patented MSX® (Multi-Spectral Dynamic Imaging) enhancement.
Featuring a 3.5-inch, 640 × 480 touchscreen, the E6 Pro simplifies your workflow. You can edit and organize photos, add detailed notes, and upload files directly from the camera to the FLIR Ignite cloud for convenient access from any device. Share images with clients and create quick reports directly in FLIR Ignite or create advanced reports in FLIR Thermal Studio.
All new FLIR Ex Pro-Series purchases include an extended FLIR Protect warranty, a 12-month FLIR Ignite Pro subscription, and FLIR Ex Pro-Series & IR Fundamentals training from FLIR Academy, making it the best-value thermal imaging camera in its class and an essential tool for your daily work.
MSX Image Enhancement
All Ex Pro-Series thermal cameras feature Flir's unique Multi-Spectral Dynamic Imaging (MSX®), which adds key details from the onboard visible-light camera to the entire infrared image in real time. The result: an all-in-one, undiluted thermal picture with visible light features that lets you instantly recognize where the problematic heat pattern is. MSX is real-time, so you can see its results immediately in the camera's LCD.
Over-the-Air Updates Keep Your Camera Current
With Over-the-air (OTA) updates, your Flir camera will always have the latest firmware, bug fixes, and features. When you connect your camera to the internet, it will automatically search for firmware updates.
Professional Reports that Help Your Customer and Your Business
The right image analysis and reporting software can greatly improve your business by making it easier for your customers to understand the problem and feel confident that you fixed it.
The Flir Ignite cloud service allows you to back up images directly to the cloud, organize and edit files, and create simple reports. And for advanced editing and reporting, there's Flir Thermal Studio Suite: a desktop software offering batch processing, feature-rich measurement tools, and customized reports.
Save Time With 1-Touch Level/Span
1-Touch Level/Span allows you to choose a small area of focus in a thermal image - with one touch of the screen - and the camera will auto-adjust the level and span based on the thermal contrast at that spot in the image. The result: time saved on manual adjustments.
Become a Thermal Studio Expert
Learn to edit images, analyze them, and produce custom reports using FLIR Thermal Studio Suite software with online training from the Infrared Training Center. This virtual class covers everything you need to know, including:
• How to adjust image parameters and optimize thermal contrast
• How to create batch functions for image processing
• How to design a new report template
Inspect Efficiently
Edit and organize your photos, add detailed notes, and upload files from the camera to the FLIR Ignite cloud for convenient access from any device.
Identify Problems Fast
FLIR-patented MSX® (Multi-Spectral Dynamic Imaging) enhancement provides highly detailed thermal images to help you quickly recognize where a problem is located.
Hassle-free Sharing and Reporting
Share images instantly and create quick reports in FLIR Ignite, or create advanced client reports in FLIR Ignite or FLIR Thermal Studio.
Difference Between FLIR E6 Pro and E6 Pro NIST
The FLIR E6 Pro NIST and the standard FLIR E6 Pro are identical in hardware, features, and thermal performance — both offer a 160 × 120 infrared sensor, MSX image enhancement, 3.5″ touchscreen, Wi-Fi/FLIR Ignite connectivity, and reliable temperature measurement for inspections. The key difference lies in certification: the E6 Pro NIST is supplied with a NIST-traceable calibration certificate, providing documented accuracy traceable to the National Institute of Standards and Technology. This certification makes the NIST version suitable for regulated environments, quality audits, ISO compliance, and formal reporting, whereas the standard E5 Pro is ideal for general maintenance, building, electrical, and HVAC inspections where such traceable certification is not required.
SPECIFICATIONS:
| Highlighted |
| IR Resolution |
160 × 180 (43,200 pixels) |
| Thermal Sensitivity/NETD |
<0.06°C (0.11°F) / <60 mK at 30°C (86°F) |
| Accuracy |
±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F) |
| Field of view (FOV) |
33° × 25° |
| Digital Camera |
5 MP |
| Image Modes |
Thermal MSX, Thermal, Picture-in-Picture, Digital camera |
| Display |
3.5 in. 640 × 480 color LCD |
| Storage Media |
Internal memory and onboard FLIR Ignite cloud connectivity (with Wi-Fi) |
| Imaging & Optical |
| Color Palettes |
Iron, White hot, Black hot, Rainbow, Arctic, Lava, Rainbow HC |
| Detector Type |
Uncooled microbolometer |
| Digital Camera |
5 MP |
| f-number |
1.4 |
| Field of view (FOV) |
33° × 25° |
| Focus |
Focus free |
| Gallery |
Thumbnails and custom folder structure |
| Image Frequency |
9 Hz |
| Image Modes |
Thermal MSX, Thermal, Picture-in-Picture, Digital camera |
| IR Resolution |
240 × 180 (43,200 pixels) |
| Minimum Focus Distance |
0.36 m (1.18 ft) |
| Picture-in-Picture |
IR area on visual image |
| Spatial resolution (IFOV) |
3.7 mrad |
| Spectral Range |
7.5 µm to 13 µm |
| Thermal Sensitivity/NETD |
<0.06°C (0.11°F) / <50 mK at 30°C (86°F) |
| Measurement & Analysis |
| Accuracy |
±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F) |
| Camera size (L x W x H) |
244 × 95 × 140 mm (9.6 × 3.7 × 5.5 in) |
| Camera weight incl battery |
0.590 kg (1.30 lb) |
| Delta T |
Yes, NFPA 70B compliant |
| Isotherm |
Above alarm, below alarm |
| Measurements correction |
Emissivity; matt/semi-matt/semi-gloss + custom value, Reflected apparent temperature, Atmospheric compensation |
| Object Temperature Range |
-20°C to 550°C (-4°F to 1022°F) in two ranges |
| Spot Meter |
Center spot; box with min./max. |
| User Interface |
| Display |
3.5 in. 640 × 480 color LCD |
| Text |
Text annotation on an image using an onscreen keyboard |
| Touchscreen |
Capacitive touch |
| Communication & Data Storage |
| Storage Media |
Internal memory and onboard FLIR Ignite cloud connectivity (with Wi-Fi) |
| WiFi |
Standard: 802.11 a/b/g/n (2.4 and 5 GHz) |
| Power |
| Battery operating time |
4 hours |
| Battery Type |
Rechargeable Lithium-ion battery |
| Charging system |
The battery is charged inside the camera or in a specific charger. |
| Charging Time |
2 hours |
| Power Management |
Automatic shut-down |
| Environmental & Certifications |
| Certifications |
UL, CSA, CE, PSE, and CCC, WEEE 2012/19/EC, RoHs 2011/65/EC |
| Drop test |
2 m (6.6 ft) |
| EMC |
EN 301 489-1
EN 301 489-17
EN 61000-6-3
EN 61000-6-2
FCC 47 CFR Part 15 Class B
|
| Encapsulation |
IP54 (IEC 60529) |
| Humidity (Operating and Storage) |
IEC 60068-2-30/24 h 95% relative humidity |
| Operating Temperature Range |
-15°C to 50°C (5°F to 122°F) |
| Shock |
25 g (IEC 60068-2-27) |
| Storage Temperature Range |
-40°C to 70°C (-40°F to 158°F) |
| Vibration |
2 g (IEC 60068-2-6) |
| General |
| Flashlight |
Bright LED |
| List of Contents |
Infrared camera, hard transport case, battery (inside camera), power supply (with EU, UK, US, and AU plugs), FLIR Thermal Studio Starter, and printed documentation |
| Packaging Size |
385 × 165 × 315 mm (15.2 × 6.5 × 12.4 in) |
| Size (L x W x H) |
244 × 95 × 140 mm (9.6 × 3.7 × 5.5 in) |
| Weight |
0.610 kg (1.34 lbs) |
WHAT'S IN THE BOX:
1 x FLIR E6 Pro Infrared Camera
1 x Rechargeable Lithium-ion Battery (installed or separately packed)
1 x Power Supply and Charger with Multiple Plug Adapters (EU, UK, US & AU)
1 x Hard Protective Transport Case for Safe Storage and Transport
1 x FLIR Thermal Studio Starter Software
1 x Printed Documentation — quick start guide and user manuals
1 x Manufacturer Warranty Documentation
1 x NIST Traceable Calibration Certificate and Report
