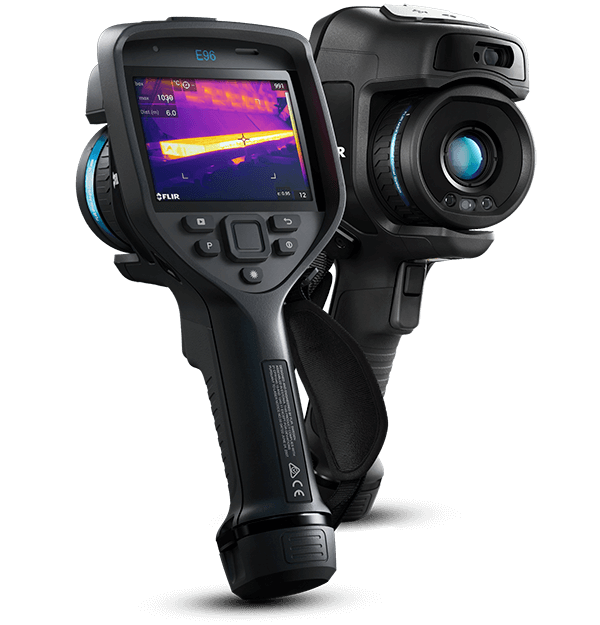

FLIR E96-14 Advanced Thermal Camera w/MSX 14° Lens
The FLIR E96 features 640×480 thermal resolution in a pistol-grip design, enabling safe inspection of high-voltage equipment and fast diagnosis of electrical and mechanical faults. The FLIR E96 offers complete coverage of near and distant targets through a range of lens options. Pair the E96 with a FLIR FlexView™ dual field-of-view lens to instantly switch from wide-area to telephoto scanning in one push of a button. The onboard FLIR Inspection Route runs pre-planned routes to help inspectors stay organized when surveying large or multiple locations. FLIR Ignite provides automatic uploading of E96 images directly from the camera to the cloud for easy, secure storage and sharing.
All FLIR Exx-Series cameras now come with a free credit to attend a FLIR Academy training session—a $399 value (details below).
Outstanding Thermal Imagery
The 640 × 480 thermal resolution plus FLIR UltraMax® and MSX® image enhancement ensure the E96 produces the most vibrant, easiest-to-interpret images in its class.
One Lens, Two Fields of View
Pair your Exx-Series camera with a FLIR FlexView dual field-of-view lens to conveniently switch from wide-area to telephoto scanning with one push of a button.
Streamlined Reporting
Onboard integration with FLIR routing software*, automatic image upload directly to the FLIR Ignite cloud library, a built-in mic for voice annotation, and report generation features all help the E96 streamline your workday. (*Optional accessory software)
SPECIFICATIONS:
Imaging & Detector
| Feature |
Details |
| Infrared Resolution |
640 × 480 pixels |
| UltraMax (Super-Resolution) |
Yes |
| Detector Type / Spectral Range |
Uncooled microbolometer / 7.5–14 µm |
| Detector Pitch |
12 µm |
| Thermal Sensitivity (NETD) |
< 50 mK @ +30°C (+86°F) |
| Field of View |
14° × 10° |
| Focal Length |
29 mm |
| Spatial Resolution (IFOV) |
0.4 mrad/pixel |
| Minimum Focus Distance |
1.0 m |
| f-number |
f/1.5 |
| Image Frequency |
30 Hz |
| Digital Zoom |
1–8× continuous |
| Lens Identification |
Automatic |
| Available Optional Lenses |
42° (AutoCal), 24° (AutoCal) |
Display & Image Presentation
| Feature |
Details |
| Display Resolution |
640 × 480 (VGA) |
| Screen Size |
4-inch |
| Display Technology |
IPS |
| Touchscreen |
Optically bonded PCAP |
| Surface Brightness |
400 cd/m² |
| Viewing Angle |
80° |
| Color Depth |
24-bit |
| Aspect Ratio |
4:3 |
| Auto-Rotation |
Yes |
| Cover Glass |
Dragontrail® |
| Programmable Buttons |
1 |
| Viewfinder |
No |
Image Modes
| Mode |
Availability |
| Infrared Image |
Yes |
| Visual Image |
Yes |
| MSX |
Yes |
| Thermal Fusion |
No |
| Picture-in-Picture |
Resizable & Movable |
| Gallery |
Yes |
Measurement & Accuracy
| Feature |
Details |
| Temperature Ranges |
–20 to 120°C / 0 to 650°C / 300 to 1500°C |
| Accuracy |
±2°C or ±2% (range dependent) |
| Screening Mode |
30–45°C (Drift ±0.3°C) |
| Spotmeter |
3 (live mode) |
| Area Measurement |
3 areas in live mode |
| Automatic Hot/Cold Detection |
Yes |
| Difference Temperature |
Yes |
| Reference Temperature |
Yes |
| Emissivity Correction |
0.01–1.0 (material list selectable) |
| Measurement Corrections |
Yes |
| External Optics/Windows Correction |
Yes |
Alarms & Presets
| Feature |
Details |
| Color Alarm (Isotherm) |
Above / Below / Interval / Condensation / Insulation |
| Measurement Function Alarm |
Audible & Visual |
| Measurement Presets |
Center Spot, Hot Spot, Cold Spot, User 1, User 2 |
Annotations & Data
| Feature |
Details |
| Voice Annotation |
60 sec (built-in mic & Bluetooth) |
| Text Annotation |
Predefined list / touchscreen keyboard |
| Sketch |
On touchscreen (IR only) |
| Visual Image Annotation |
Yes |
| GPS |
Built-in (auto-tagging) |
| Compass |
Yes |
| Laser Distance Meter Info |
Yes |
| Area Measurement Info |
Yes |
Video & Recording
| Feature |
Details |
| Radiometric IR Video |
RTRR (.csq) |
| Non-Radiometric IR Video |
H.264 |
| Visual Video |
H.264 |
| Radiometric Streaming |
Over UVC |
| Non-Radiometric Streaming |
H.264 / MPEG4 / MJPEG (RTSP/Wi-Fi) |
| Visual Streaming |
Yes |
Digital Camera & Laser
| Feature |
Details |
| Digital Camera |
5 MP with LED light |
| Visual FOV |
53° × 41° |
| Laser Pointer |
Yes |
| Laser Class |
Class 2 |
| Laser Distance Range |
0.05–40 m ±1% |
Connectivity & Interfaces
| Feature |
Details |
| USB |
USB Type-C (Data/Video/Power), USB 2.0 High Speed |
| Wireless |
Wi-Fi (2.4GHz & 5GHz), Bluetooth |
| Display Output |
DisplayPort over USB-C |
| Audio |
Microphone & Speaker |
| Remote Control |
USB or Wi-Fi |
| Storage Media |
SD Card (8 GB) |
Power System
| Feature |
Details |
| Battery Type |
Rechargeable Li-ion |
| Battery Voltage |
3.6 V |
| Operating Time |
> 2.5 hours |
| Charging Time |
2.5 hours (90%) |
| External Power |
AC 90–260V or 12V vehicle |
| Power Management |
Auto shut-down & sleep mode |
Environmental & Compliance
| Feature |
Details |
| Operating Temperature |
–15°C to +50°C |
| Storage Temperature |
–40°C to +70°C |
| Humidity |
95% RH |
| Encapsulation |
IP54 |
| Drop Rating |
2 m |
| Shock |
25g |
| Vibration |
2g |
| Safety |
EN/UL/CSA/PSE 60950-1 |
Physical Specifications
| Feature |
Details |
| Weight (with battery) |
1 kg |
| Size (L × W × H) |
278.4 × 116.1 × 113.1 mm |
| Battery Weight |
140 g |
| Tripod Mount |
UNC ¼″-20 |
| Housing Material |
PCABS with TPE, Magnesium |
| Color |
Black |
| Warranty |
Manufacturer warranty |
WHAT'S IN THE BOX:
1 x Infrared Camera with Lens
2 x S2 Batteries
1 x Battery Charger
1 x Hard Transport Case
1 x Lanyards
1 x Front Lens Cap
1 x Power Supply
1 x Printed Documentation
1 x SD Card (8 GB)
1 x USB 2.0 A to USB Type-C Cable
1 x USB Type-C to HDMI Cable
1 x USB Type-C to USB Type-C Cable
1 x License Card – FLIR Thermal Studio Starter
