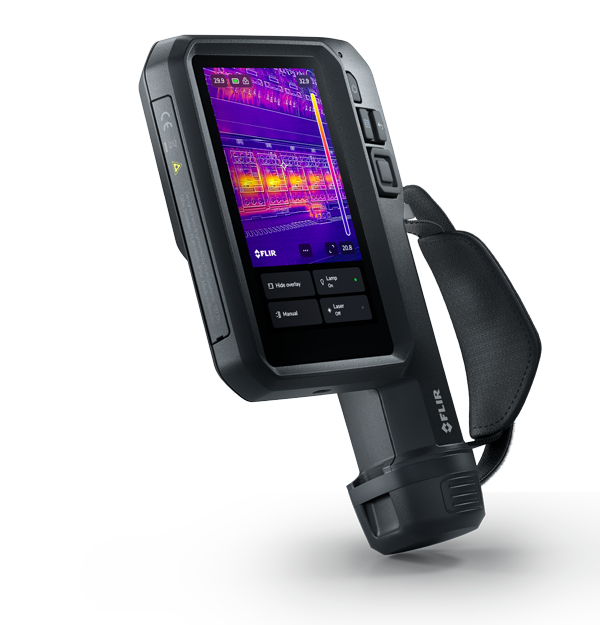

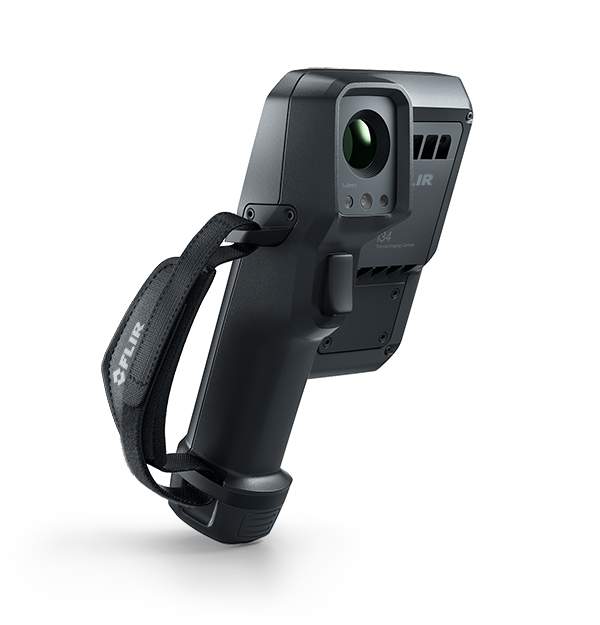

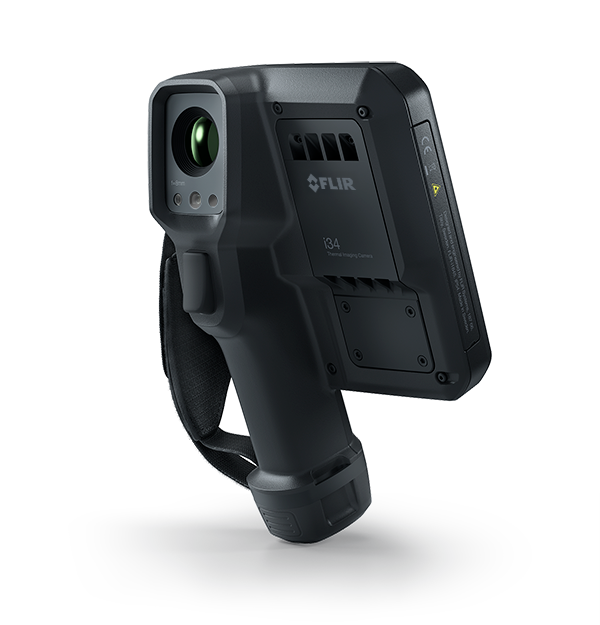

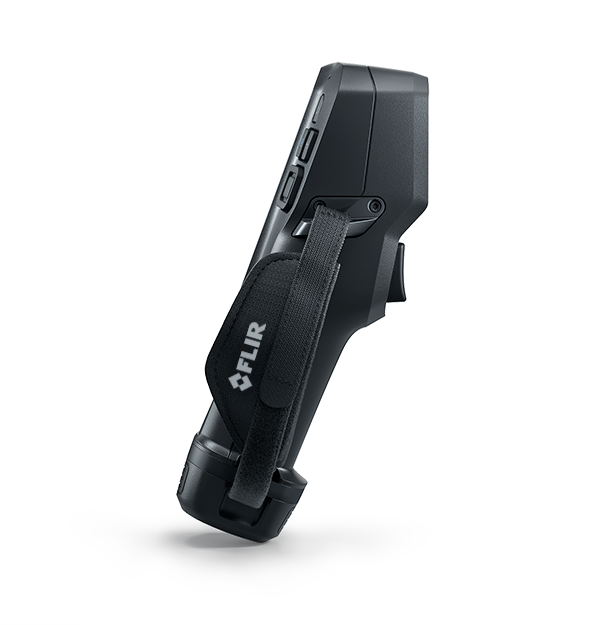

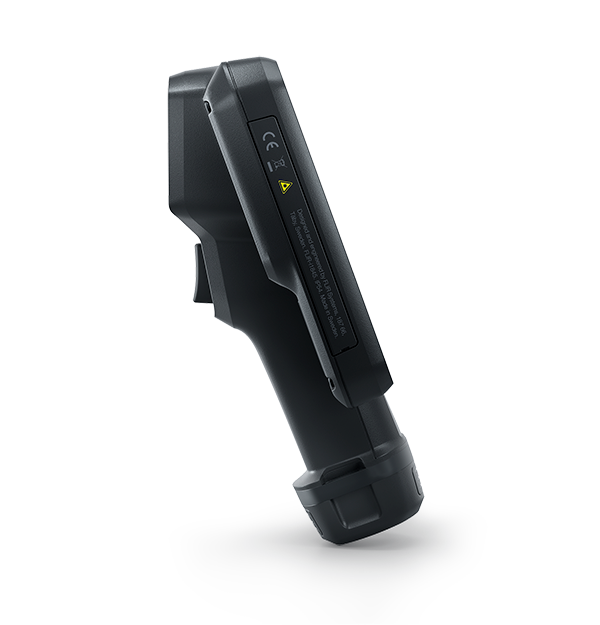

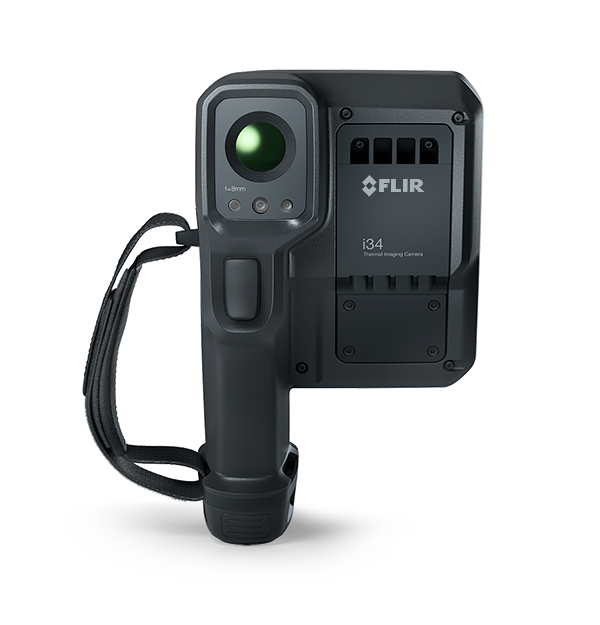

FLIR i34 App-enabled Thermal Camera
The Flir i34 is the smart, scalable way to bring thermography to more people across your team—without compromising on consistency or control. With 240 × 320 thermal resolution and the power of the Flir ACE platform, the i34 transforms inspections into app-guided, repeatable workflows that anyone can follow—helping you capture the right data, in the right place, at the right time.
The i34 supports fully guided inspection routes, on-camera fault detection, baseline image comparison, and direct integration with Flir Assetlink and Ignite. Whether you're expanding your predictive maintenance program or reducing reliance on paper-based reporting, the i34 helps standardize inspections and eliminate guesswork—no matter the user’s experience level.
With a wide field of view, glove-friendly controls, and cybersecure data transfer behind your IT firewall, the i34 is your entry point to smarter, more connected thermography—designed to scale with your goals, not your workload.
Simplify & Speed Workflows
With the advantage of Flir, 3rd-party, and custom apps, iXX-Series cameras simplify inspections and improve workflow for increased productivity. Apps can reduce the steps between data gathering and consumption, letting you work the way that makes the most sense for your organization.
Support Inexperienced Users
On-board apps can flatten the learning curve, provide safety information, host training, and offer remote support so inexperienced users can perform expert-level inspections.
Solve Documentation, Communication, and Decision Pains
Flir iXX cameras can host a range of apps—Flir-made, 3rd-party, and custom—designed to address communication, documentation, or decision-making needs.
SPECIFICATIONS:
| Highlighted |
| IR Resolution |
240 × 320 |
| Thermal Sensitivity/NETD |
<40 mK at 30°C (86°F) |
| Accuracy |
±2°C (±3.6°F) or ±2% |
| Field of view (FOV) |
38° × 49° |
| Digital Camera |
8 MP, Autofocus |
| Image Modes |
MSX®, Thermal, Picture-in-Picture, Digital camera |
| Storage Media |
Internal memory, onboard Flir Ignite cloud and Assetlink connectivity |
| Imaging & Optical |
| Automatic Image Adjustment |
Yes |
| Color |
Black |
| Color Palettes |
Iron, White hot, Black hot, Rainbow, Arctic, Lava, Rainbow HC |
| Digital Camera |
8 MP, Autofocus |
| Digital Camera FOV |
50.5° × 64.5° |
| Display resolution |
720 × 1280 |
| Display Type |
5 in. color LCD |
| f-number |
1.4 |
| Field of view (FOV) |
38° × 49° |
| Focus |
Fixed focus |
| Image Frequency |
30 Hz |
| Image Modes |
MSX®, Thermal, Picture-in-Picture, Digital camera |
| IR Resolution |
240 × 320 |
| Laser Alignment |
Position of laser pointer automatically displayed on the infrared image |
| Manual Image Adjustment |
Yes |
| Minimum Focus Distance |
0.5 m |
| Spatial resolution (IFOV) |
2.9 mrad |
| Spectral Range |
7.5 to 13 µm |
| Thermal Sensitivity/NETD |
<40 mK at 30°C (86°F) |
| Measurement & Analysis |
| Accuracy |
±2°C (±3.6°F) or ±2% |
| Camera size (L x W x H) |
225 × 136 × 73 mm (8.9 × 5.4 × 2.9 in) |
| Camera weight incl battery |
0.8 kg (1.76 lb) |
| Delta T |
Yes, NFPA 70B compliant |
| Emissivity Correction |
Variable from 0.1 to 1.0 |
| Isotherm |
Above, Below |
| Measurement Corrections |
Emissivity, matt/semi-matt/semi-gloss + custom value, reflected apparent temperature, atmospheric compensation |
| Object Temperature Range |
-20°C to 200°C (-4°F to 392°F)
10°C to 450°C (50°F to 842°F) |
| Spot Meter |
Center spot, box with min./max. |
| User Interface |
| Text |
Text annotation on image using onscreen keyboard |
| Touch Screen |
Capacitive touch |
| Communication & Data Storage |
| AC Operation |
Optional accessory: 45 W AC adapter, 100 V to 240 V AC input, 15 V DC, 3 A output to camera |
| File Formats |
Standard JPEG, 14-bit measurement data included |
| Interface |
USB-C: Data transfer to and from PC and Mac device
Display port over USB-C |
| Storage Media |
Internal memory, onboard Flir Ignite cloud and Assetlink connectivity |
| WiFi |
IEEE 802.11 a/ac/b/g/n (2.4 and 5 GHz) |
| Power |
| Battery operating time |
4 hours at 25°C (77°F) ambient temperature and typical use |
| Battery Type |
Rechargeable Lithium-ion battery |
| Charging system |
Battery is charged inside the camera or in specific charger (included) |
| Charging Time |
2 hours in charger / 4 hours to 90% capacity in camera |
| Power Management |
Automatic shut-down |
| Environmental & Certifications |
| Drop |
2 m (6ft 7 in) |
| EMC |
EN 301 489-1, EN 301 489-17, EN 61000-6-3, EN 61000-6-2, FCC 47 CFR Part 15 Class B |
| Emissivity Table |
Emissivity table of predefined materials |
| Encapsulation |
IP54 (IEC 60529) |
| Humidity |
IEC 60068-2-30/24 h 95% relative humidity |
| Laser Classification |
Class 2 |
| Operating Temperature Range |
-15°C to 50°C (5°F to 122°F) |
| Radio Spectrum |
ETSI EN 300 328
ETSI EN 301 893
FCC 47 CFR part 15
RSS-247 |
| Shock |
25 g (IEC 60068-2-27) |
| Storage Temperature Range |
-40°C to 70°C (-40°F to 158°F) |
| Vibration |
2 g (IEC 60068-2-6) |
| General |
| Flashlight |
Manually activated bright LED |
| Package Includes |
Infrared camera with battery
Extra battery
Battery charger
USB-C cable
Printed documentation
Hard transport case
Wrist strap |
WHAT'S IN THE BOX:
1 x Infrared camera with battery
1 x Extra battery
1 x Battery charger
1 x USB-C cable
1 x Printed documentation
1 x Hard transport case
1 x Wrist strap
