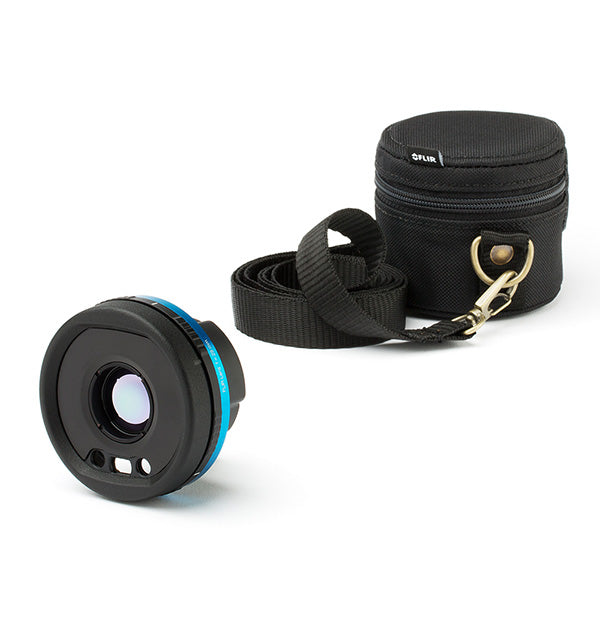

FLIR Macro Lens 2.0× with Case (Model T300238) macro lens is a specialized thermal-imaging accessory for R&D, engineering, and product development uses provides 2× magnification compared to the standard FLIR lenses, enabling users to capture much finer thermal details that are not easily visible with a normal field-of-view lens.

Engineered primarily for research and development, engineering, and product-development applications, the lens is ideal for examining small targets such as printed circuit boards, electronic components, and other miniature heat-generating objects.

By reducing the field of view and increasing magnification, the Macro Lens allows thermographers to perform highly precise temperature measurements and detailed thermal inspections at close distances.

Specifications:

Optical & Imaging

Magnification: 2.0× compared to a standard FLIR lens, for close-up thermal inspection

Field of View (FOV): ~15.36 × 11.52 mm (0.6 × 0.45 in) and ~19.2 mm diagonally (0.75 in)

Focal Length: 17.5 mm (0.69 in)

F-Number: f/1.1

Minimum Focus Distance: 18 mm (0.71 in) — great for detailed close-range imaging

Physical

Size (L × Diameter): ~46 × 72 mm (1.8 × 2.83 in)

Weight: ~0.19 kg (0.42 lb)

What's in the Box:

1 x Macro Lens 2.0× (T300238)

1 x Protective Lens Case

1 x Front Lens Cap

1 x Rear Lens Cap

1 x Lens Mounting Instructions
