00FLIR ONE Edge w/MSX

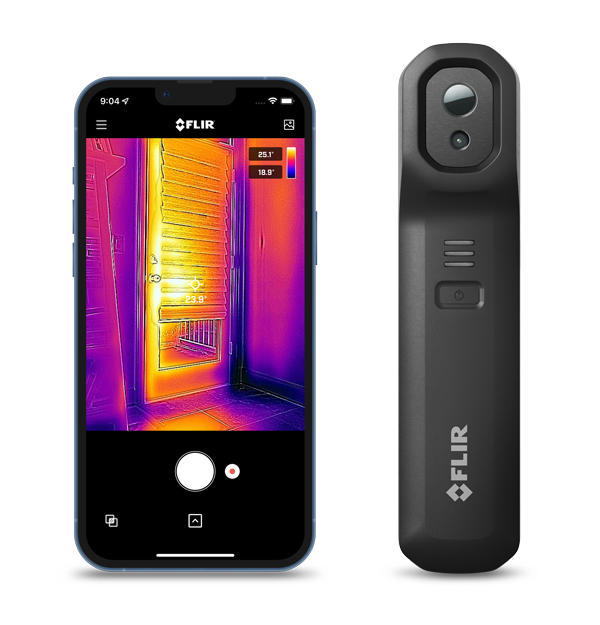

The Flir Edge (formerly Flir One Edge) allows you to easily inspect hard-to-reach areas from any position or angle. This infrared camera for smartphones connects wirelessly so you can inspect out-of-view targets—or clip it onto your phone or tablet for one-handed operation. The wireless connection also allows the same camera to be used with both Android and iOS devices, making it easy to share tools with your team members.
Flir One images are enhanced with Flir VividIR™ for brilliant thermal resolution; activate Flir's proprietary MSX® to add visual camera details to thermal images so you can clearly identify problems. All your thermal images and videos are saved directly to your mobile device and can be uploaded automatically to Flir Ignite™ for seamless reporting, sharing, and organization.
Easily Inspect Anywhere

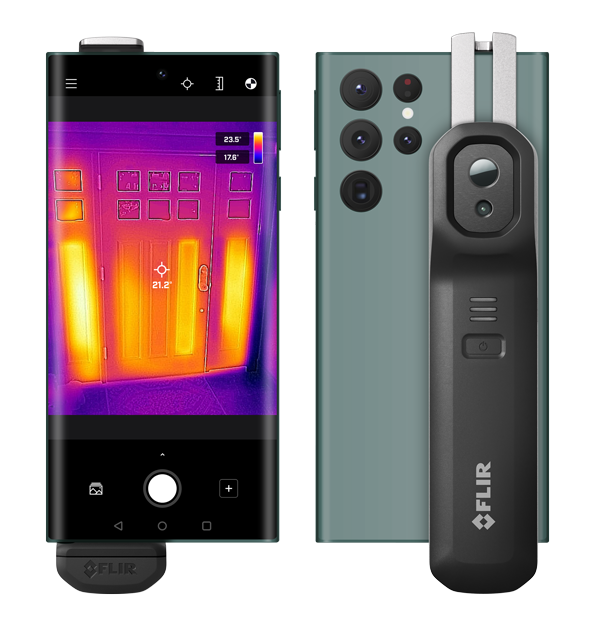

Conveniently scan targets out-of-reach or out-of-view while comfortably viewing images from your mobile device, or clip the Flir Edge to your smart device for one-handed operation with a natural grip.
High-quality Images and Performance
Take high-quality thermal images, easily identify targets, and recognize where problems are located with Flir MSX, VividIR, and 80 × 60 (4,800 pixels) thermal resolution.
A Professional Tool
With a battery time of up to 2.5 hours and fast-charging capabilities, the Flir Edge is ready when you need it. This rugged camera is IP54 rated and drop-tested from 2 meters.
MSX Image Enhancement
Flir Edge Series cameras feature our unique Multi Spectral Dynamic Imaging (MSX), which adds key details from the onboard visible light camera to the entire infrared image in real time. The result: an all-in-one, undiluted thermal picture with visible light features that lets you instantly recognize where the problematic heat pattern is. MSX happens in real time, so you can see it immediately on-screen.
Get More from the Flir One App
Flir One Series cameras connect to your smart device through the Flir One app, available on Google Play and the Apple App Store. Once connected, the app displays a live feed from your Flir One camera and can upload your recorded images and videos to the Flir IgniteTM cloud. You can also use the app to change camera and display settings, access help articles, activate step-by-step inspection guides, and find third-party apps for your specific application.
SPECIFICATIONS:
| Highlighted |
| Thermal Resolution |
80 × 60 (native resolution), 240 × 180 (super resolution) |
| Battery Life |
Approximately 2 hours and 30 minutes |
| Object Temperature Range |
-20°C to 120°C (-4°F to 248°F) |
| Accuracy |
±3°C (5.4°F) or ±5%. Applicable 60 seconds after start-up when the unit is within 15°C to 35°C (59°F to 95°F) and the scene is within 5°C to 120°C (41°F to 248°F) |
| Operating Temperature |
-10°C to 50°C (14°F to 122°F), battery charging 0°C to 45°C (32°F to 113°F) |
| Spot Meter |
Hottest, Coldest and 3 spot measurement |
| Imaging & Optical |
| Adjustable MSX distance |
30 cm - Infinity |
| Focus |
Fixed 30 cm - Infinity |
| Frame Rate |
8.7 Hz |
| HFOV/VFOV |
54° ±1° / 42° ±1° |
| Image Modes |
MSX, Infrared, Visual |
| Palette |
Gray (white hot), Hottest, Coldest, Iron, Contrast, Arctic, Lava and Color Wheel |
| Shutter |
Automatic/Manual |
| Thermal Resolution |
80 × 60 (native resolution), 240 × 180 (super resolution) |
| Thermal Sensitivity/NETD |
70 mK |
| Thermal Sensor |
Pixel size 12 µm, 8 to 14 µm spectral range |
| Visual Resolution |
640 × 480 |
| VividIR |
No |
| Power |
| Battery charge time |
60–90 min for fully charged
15 min charging, from an empty battery, gives 40 min operating time |
| Battery Life |
Approximately 2 hours and 30 minutes |
| Charging Method |
Female USB-C (5V/1A) |
| Measurement & Analysis |
| Accuracy |
±3°C (5.4°F) or ±5%. Applicable 60 seconds after start-up when the unit is within 15°C to 35°C (59°F to 95°F) and the scene is within 5°C to 120°C (41°F to 248°F) |
| Measurement Corrections |
Emissivity; Reflected apparent temperature (22°C / 72°F) |
| Object Temperature Range |
-20°C to 120°C (-4°F to 248°F) |
| Spot Meter |
Hottest, Coldest, and 3 spot measurement |
| General |
| Additional Integrations |
Available via device App Store. Development SDK available: https://www.flir.com/developer/mobile-sdk/ |
| Battery charge monitor |
0 to 100% |
| Clip Span |
130 mm (min) / 195 mm (max) |
| Compatible with FLIR software |
FLIR ONE app, FLIR Ignite, FLIR Thermal Studio |
| Device Compatibility |
iOS ( version 17 and later) or Android (version 13 and later) smartphones and tablets |
| Dimensions (H x W x D) |
37.5 mm × 35 mm × 149 mm (1.5 in × 1.4 in × 5.9 in) |
| Form Factor |
Phone |
| Remote Operation |
Up to 5 m (16.4 ft) from a smart device |
| Weight |
153 g (5.4 oz) |
| Environmental & Certifications |
| Certifications |
RoHS, CE/FCC, CEC-BC, EN62133, UL1642, WEEE 2012/19/EU |
| Drop test |
Drop from 2 m (6.56 ft) |
| Emissivity Settings |
Matte: 95%, Semi-Matte: 80%, Semi-Glossy: 60%, Glossy: 30% |
| IP Rating |
IP54 |
| Non-Operating Temperature |
-40°C to 70°C (-40°F to 158°F) |
| Operating Temperature |
-10°C to 50°C (14°F to 122°F), battery charging 0°C to 45°C (32°F to 113°F) |
| Communication & Data Storage |
| Bluetooth |
Uses Bluetooth to set up the peer-to-peer Wi-Fi network that the camera creates to connect to the mobile device |
| Capture modes |
Video, Still image |
| Charging |
Female USB-C (5V/1A) |
| File Formats |
Radiometric JPG, MPEG-4 (file format MOV (iOS), MP4 (Android) |
| WiFi |
802.11 a/b/g/n |
WHAT'S IN THE BOX:
1 x FLIR Edge Thermal Camera Unit
1 x USB Type-C Charging Cable
1 x Printed Documentation (Quick-start Guide, Safety Information, & Warranty)
