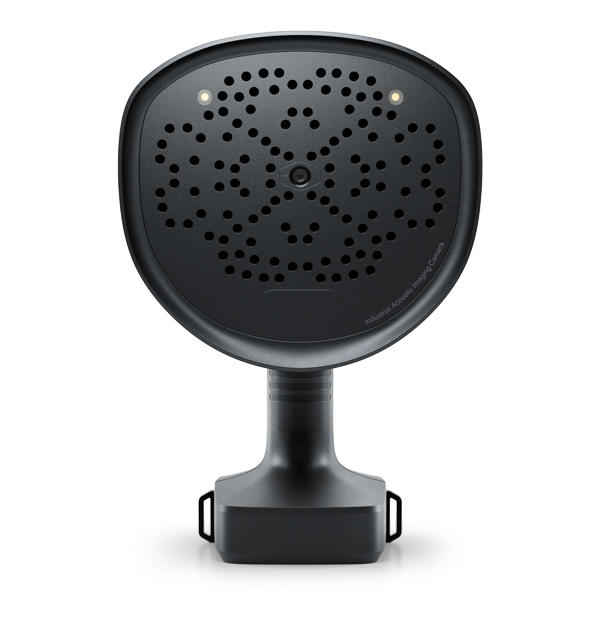

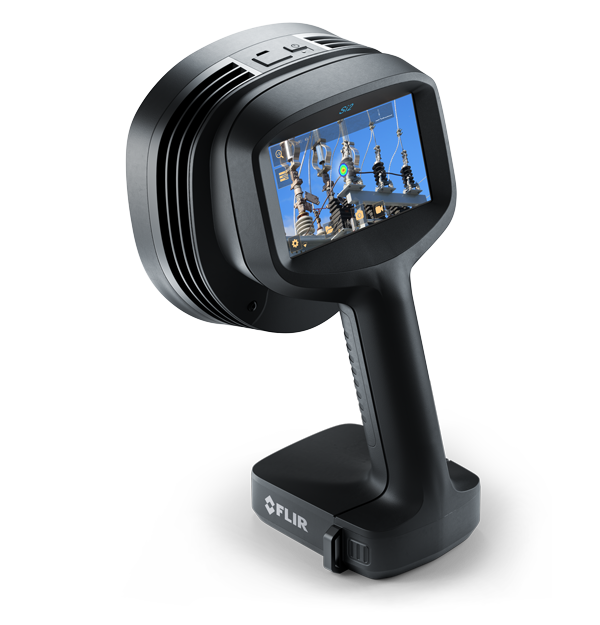

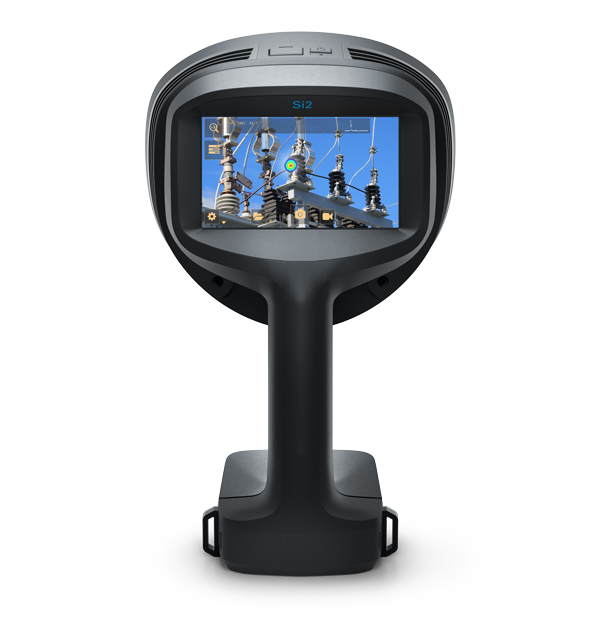

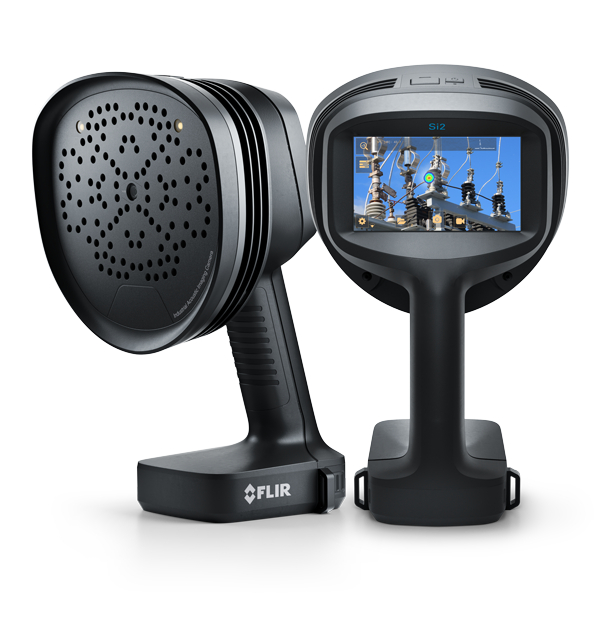

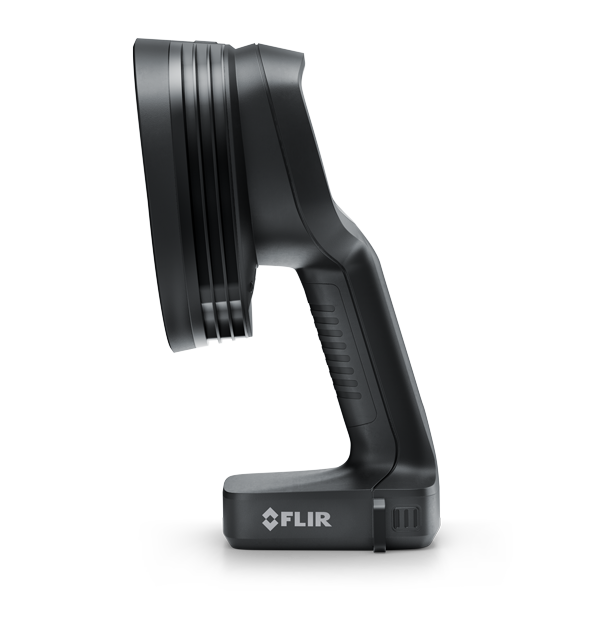

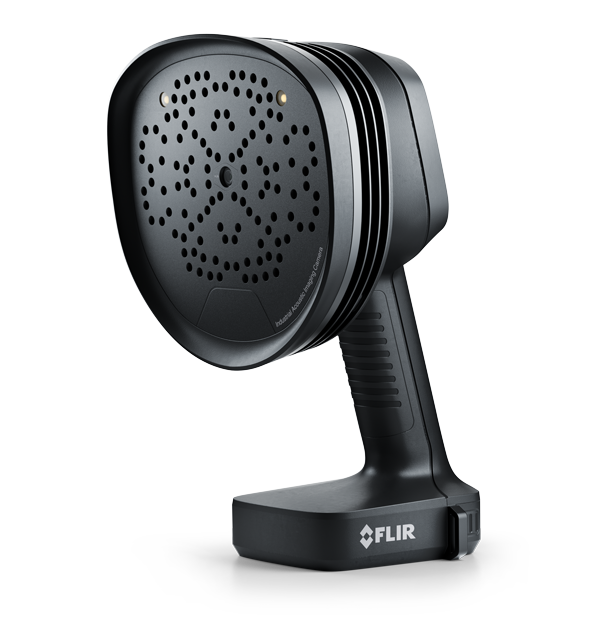

FLIR Si2-PD Acoustic Imaging Camera (No Wi-Fi)
The FLIR Si2-PD acoustic imaging camera helps you reduce maintenance costs for electrical equipment by offering an effective solution for partial discharge (PD) detection and response. This camera detects, locates, classifies, and assesses PD faults from up to 200 m (656 ft) away, identifying PD issues 30 times smaller than previously possible. It provides on-camera and software-based severity assessments, giving you the decision support needed for precise maintenance decisions.
Clear Vision, Sound Solutions
Identify PD issues from up to 200 m (656 ft) away and 30 times smaller than those detectable by previous generations, it is indispensable for ensuring operational efficiency and safety.
Comprehensive Analysis Tools
Detailed analysis tools, including in-device categorization of discharge type, severity, and recommended actions – aiding in swift decision-making and appropriate response planning.
Fleet Management Functionality
Ensure optimal use and maintenance of equipment in large-scale industrial settings with fleet management, cloud data integration, and OTA software updates. Combine acoustic and thermal imaging in the same report.
Same PD detection performance without Wi-Fi, ideal for secure or RF-restricted environments as the Standard Si2-PD.
SPECIFICATIONS:
| Highlighted |
| Acoustic Measurement |
124 low-noise MEMS microphones, real-time sound visualization
|
| Severity Assessment |
Automatic AI-based severity assessment including recommended actions onboard camera |
| Distance |
From 0.3 m (1.0 ft) up to 200 m (656 ft) |
| Imaging & Optical |
| Camera software update |
Automatic Over The Air (OTA) wireless update or via USB connection |
| Field of view (FOV) |
75° diagonal |
| Video Frame Rate |
Camera: 60 fps / Acoustic image: 30 fps / Screen: 70 fps |
| Video Image Resolution |
1280 × 720 |
| Zoom |
8x Digital zoom |
| Measurement & Analysis |
| Acoustic Measurement |
124 low-noise MEMS microphones, real-time sound visualization
|
| Bandwidth |
2 kHz to 130 kHz |
| Detection Threshold |
20 kHz: -15 dB SPL
35 kHz: 4 dB SPL
50 kHz: 10 dB SPL
80 kHz: 36 dB SPL
100 kHz: 51 dB SPL |
| Distance |
From 0.3 m (1.0 ft) up to 200 m (656 ft) |
| Severity Assessment |
Automatic AI-based severity assessment including recommended actions onboard camera |
| User Interface |
| Display |
Size: 5 in. 1280 × 720
Resistive touch screen, TFT LCD, MIPI DSI |
| Power |
| Battery |
Li-Ion rechargeable battery pack (RRC 2054):14.4 V DC, 3.45 Ah, 49.68 Wh
Max output: 16.8 V DC, 5 A |
| Battery Charger |
Input: 19-26 V DC, 2.8 A
Max output: 17.4 V DC, 4.8 A |
| Battery weight |
~ 0.25 kg |
| Nominal Input Voltage |
Nominal input voltage: 12 V DC
Max input: 17 V DC , 3.3 A (limited) |
| Environmental & Certifications |
| Operating And Storage Humidity |
0-90% recommended |
| Operating Temperature Range |
–10°C to 50°C (14°F to 122°F) |
| Protection Class |
IP54 |
| Storage Temperature Range |
–20°C to 70°C ( –4°F to 158°F) |
| Warranty |
http://www.flir.com/warranty/ |
| General |
| Annotations |
Image tags, comments, and GPS coordinates |
| Battery Size |
85 mm × 77 mm (RRC2054) |
| Worklights |
2 modes: On/Off |
WHAT'S IN THE BOX:
1 x Camera
1 x Battery
1 x Battery Charger
1 x Power Cable
1 x Neck Strap
1 x Hard Transport Case
1 x License Card: FLIR Si-Series Plugin for FLIR Thermal Studio, Perpetual License
1 x Printed Documentation
1 x USB Memory Stick
