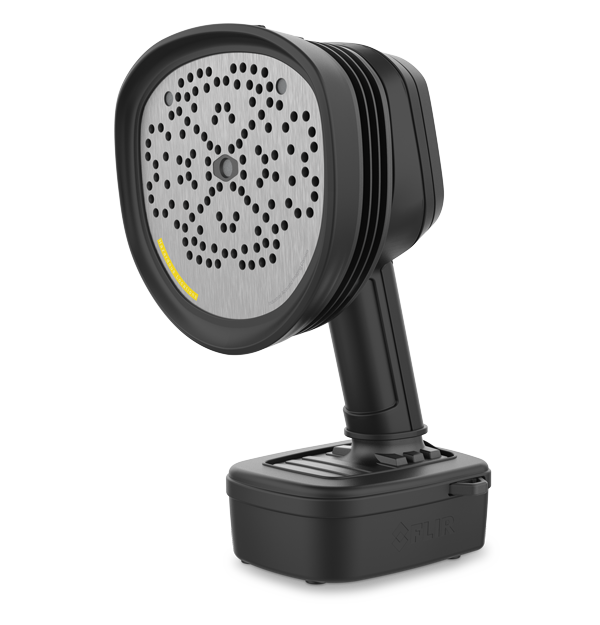

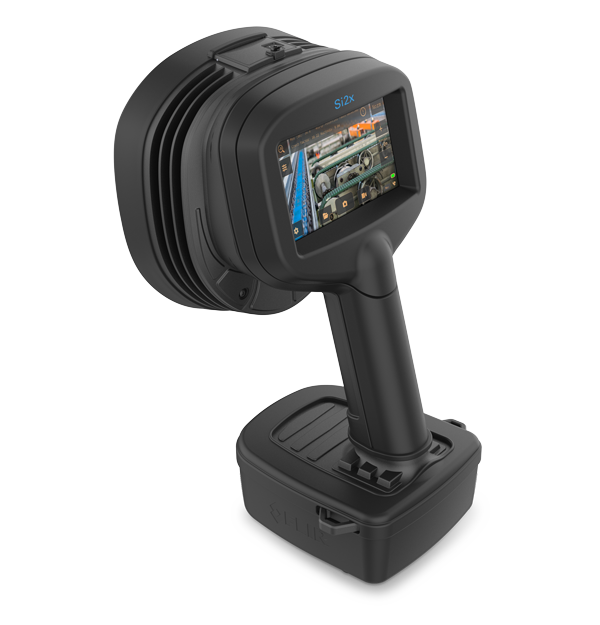

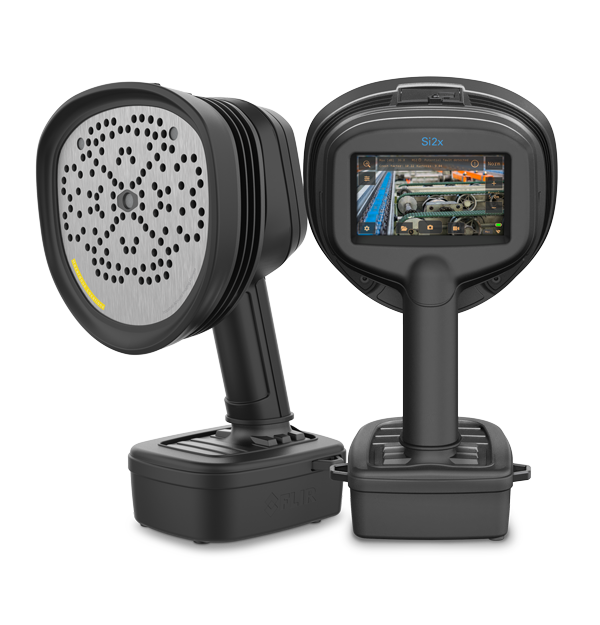

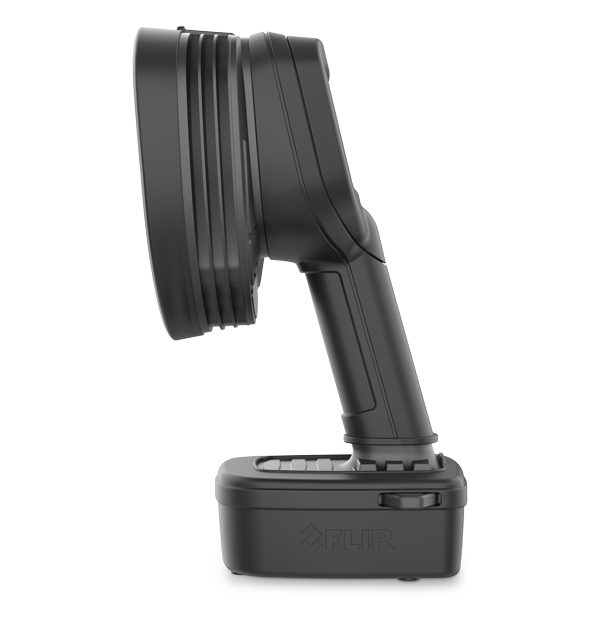

FLIR Si2x-Pro HazLoc Acoustic Imaging Camera (ATEX)

Roll over image to zoom in Click on image to zoom

$10 OFF with code NEW10

Free Shipping. Ships in 1-3 Days

This item qualifies for 2% Cashback

FLIR Si2x-Pro HazLoc Acoustic Imaging Camera (ATEX)

The Si2x-Pro Acoustic Imaging Camera is specifically designed for use in hazardous gas and explosive dust environments, to easily reduce leaks of toxic or flammable gases to improve safety, or cut expenses associated with compressed air or gas leaks in your facilities. With its advanced analysis tools, the Si2x-Pro provides a robust solution for lowering costs associated with mechanical bearing issues and partial discharge on electrical equipment. Engineered for hazardous operations, it offers best-in-class performance, decision support, and fleet management, along with enterprise data integration for optimal efficiency and safety.

For those not requiring partial discharge detection, you can opt for the Si2x-LD for leak and mechanical fault detection.

ATEX Only: Great for Europe, EU plants, or places that accept ATEX. ATEX + IECEx: Super flexible — works in way more countries thanks to the international IECEx stamp of approval. Under the hood, both cameras are the same beast acoustically; it’s just where you’re allowed to safely use them that changes.

ADVANCED LEAK DETECTION

Whether it’s a small hiss or a hard-to-find leak, this camera can identify and quantify compressed air and specific gas leaks from up to 200 m (656 ft) away, making it indispensable for ensuring operational efficiency and safety.

MECHANICAL FAULT ANALYSIS

Save on costly repairs, reduce downtime, and enhance maintenance efficiency by identifying bearing and other mechanical defects before they overheat or cause equipment failure.

FLEET MANAGEMENT FUNCTIONALITY

Ensure optimal use and maintenance of equipment in large-scale industrial settings with fleet management, cloud data integration, and OTA software updates. Combine acoustic and thermal imaging in the same report.

Specifications:

Highlighted

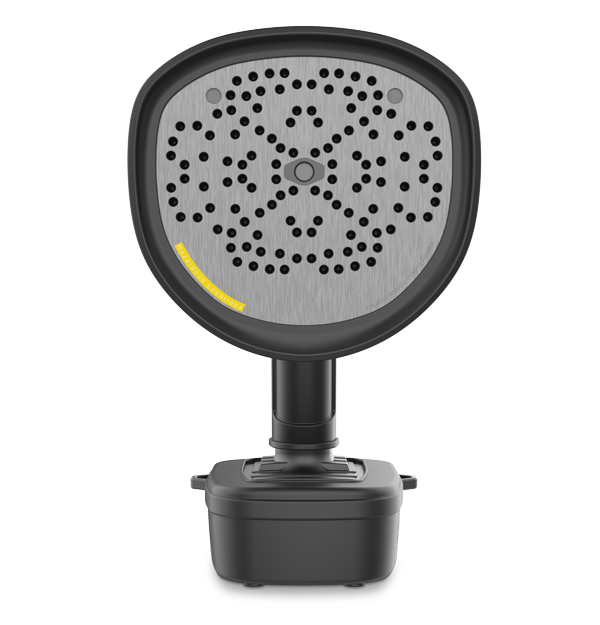

Acoustic Measurement	124 low-noise MEMS microphones, real-time sound visualization
Severity Assessment	Automatic AI-based partial discharge severity assessment including recommended actions onboard camera
Distance	From 0.3 m (1.0 ft) up to 200 m (656 ft)
Leak Rate	0.0032 l/min from 2.5 m (8.2 ft), 0.0044 l/min from 6 m (19.6 ft)

Imaging & Optical
Camera software update	Automatic Over The Air (OTA) wireless update or via USB connection
Field of view (FOV)	75° diagonal
Video Frame Rate	Camera: 60 fps / Acoustic image: 30 fps / Screen: 70 fps
Video Image Resolution	1280 × 720
Zoom	8x Digital zoom

Measurement & Analysis
Acoustic Measurement	124 low-noise MEMS microphones, real-time sound visualization
Bandwidth	2 kHz to 130 kHz
Detection Threshold	20 kHz: -8 dB SPL 35 kHz: 4 dB SPL 50 kHz: 13 dB SPL 80 kHz: 42 dB SPL 100 kHz: 58 dB SPL
Detects Following Gases	Compressed Air, Nitrogen, Ammonia, Hydrogen, Carbon Dioxide, Methane, Helium, and Argon
Distance	From 0.3 m (1.0 ft) up to 200 m (656 ft)
Leak Rate	0.0032 l/min from 2.5 m (8.2 ft), 0.0044 l/min from 6 m (19.6 ft)
Mechanical Analysis	Mechanical Sound Indicator (MSI) Confirmation, Sound Pressure Level (dB), Crest factor, Kurtosis factor
Severity Assessment	Automatic AI-based partial discharge severity assessment including recommended actions onboard camera

User Interface

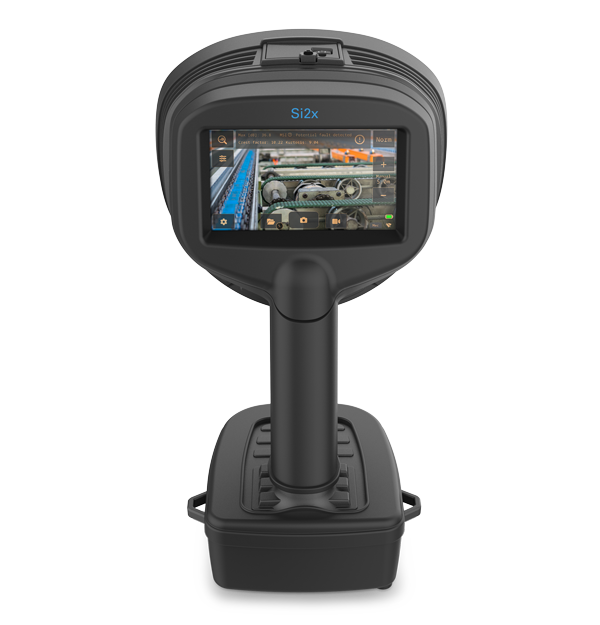

Display	Size: 5 in. 1280 × 720 Resistive touch screen, TFT LCD, MIPI DSI

Power
Battery	Li-Ion rechargeable battery pack: 14.4 V DC, 3.45 Ah, 49.68 Wh. Max output: 16.8 V DC, 5 A Usage: up to 2.5 Charge time: approx. 2 h
Battery Charger	Input: 19-26 V DC, 2.8 A Max output: 17.4 V DC, 4.8 A
Battery weight	~ 0.25 kg
Nominal Input Voltage	Nominal input voltage: 12 V DC Max input: 17 V DC , 3.3 A (limited)

Environmental & Certifications
Explosive [hazardous] Environment	Ex II 3 G Ex ic IIIC T4 Gc Ex II 3 D Ex ic IIIC T135°C Dc Tamb -10°C to 40°C
Operating And Storage Humidity	0-90% recommended
Operating Temperature Range	–10°C to 50°C (14°F to 122°F)
Protection Class	IP54
Storage Temperature Range	–20°C to 70°C ( –4°F to 158°F)
Warranty	support.flir.com/Si2

General
Size	T912503: 184 × 276 × 167 mm (7.2 × 10.8 × 6.5 in) T912588: 188 × 313 × 176 mm (7.5 × 12.5 × 7 in)
Weight	T912503: ~ 1.2 kg (2.6 lbs) T912588: ~ 2.1 kg (4.5 lbs)
Worklights	LEDs, 2 modes: On/Off

What's in the Box:

1 x FLIR Si2x-LD Acoustic Imaging Camera – the main unit itself

2 x Rechargeable Batteries – so you don’t run out of juice mid-inspection

1 x Battery Charger – for charging both batteries

4 x Power Cables – adapters for different regions/plug types

1 x Hard Transport Case – rugged carry/storage case to protect the camera

1 x Neck Strap – so you can hold/handle it comfortably

1 x USB Memory Stick – usually includes manuals, software, drivers, or starter files

1 x License Card – for the FLIR Si-series Plugin (Perpetual license for FLIR Thermal Studio)

1 x Printed Documentation – user guides, quick start info, warranty info
