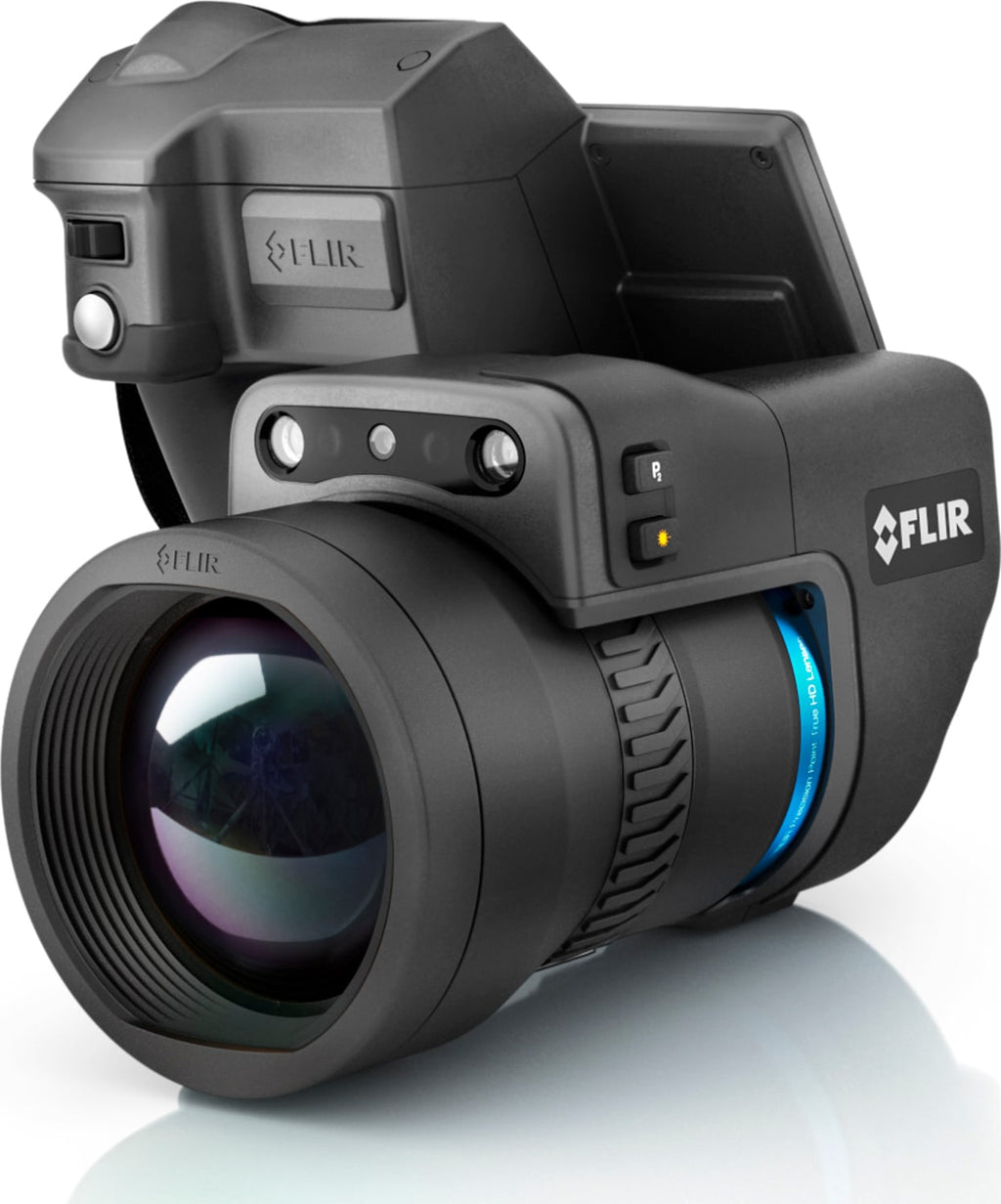

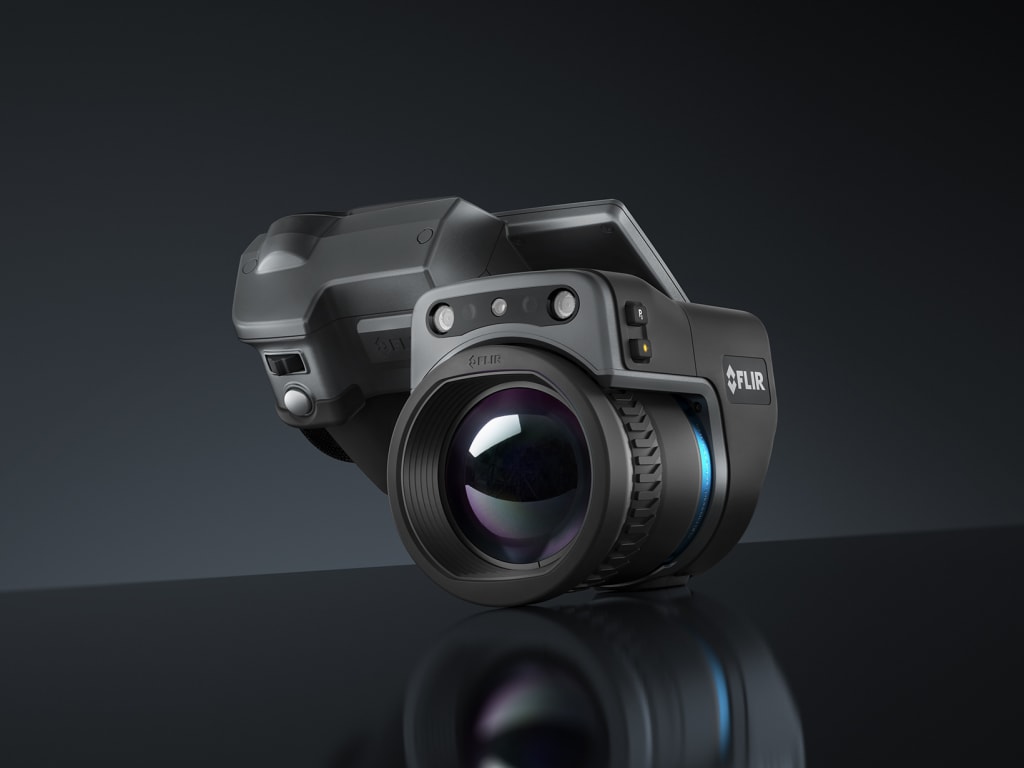

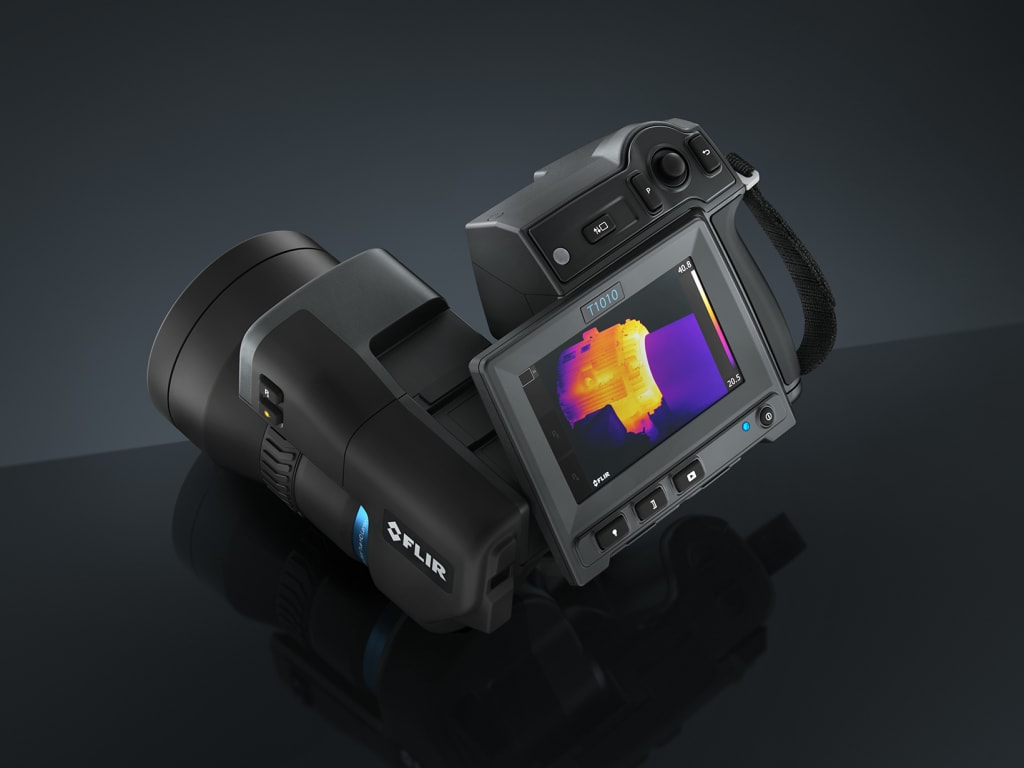

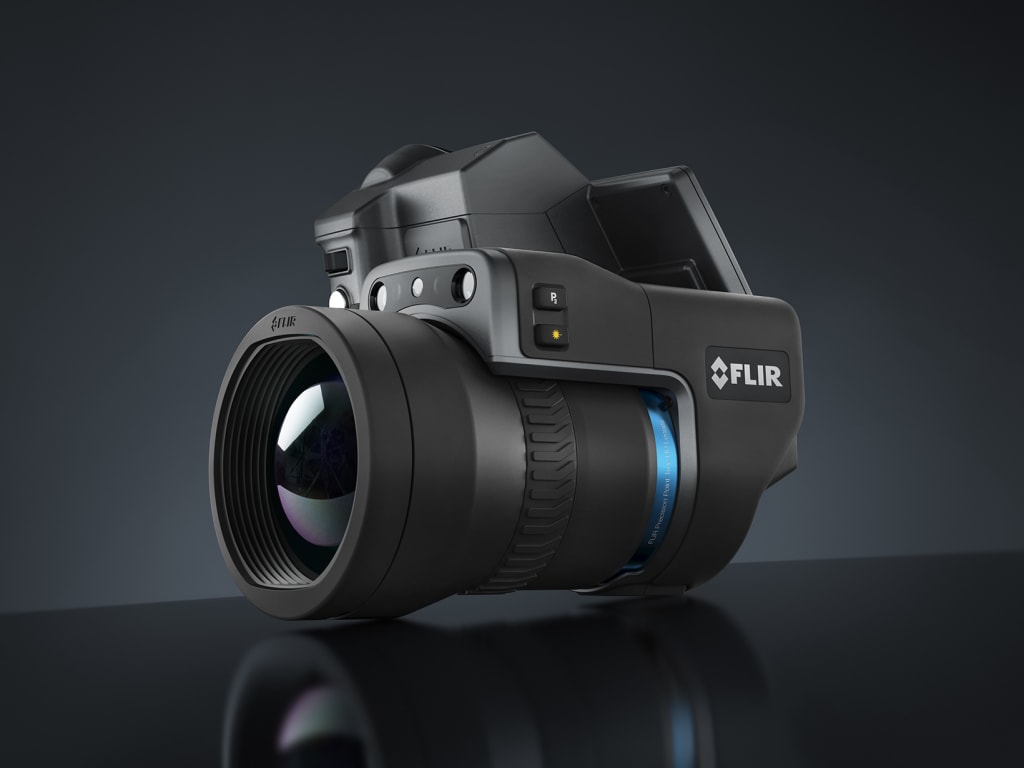

FLIR T1010 High-Definition Thermal Camera 1024 x 768 Resolution/30Hz, -40°C to 650°C w/28° Lens
The FLIR T1010 is your entry to the world of outstanding thermal imaging performance. With up to 3.1 MP resolution (UltraMax®), superior thermal sensitivity, and FLIR's most advanced user interface, the T1010 is designed to streamline your workday, and make you the hero. The FLIR T1010 comes with on-board Inspection Route mode so you can download and run survey plans to your camera from FLIR Thermal Studio Pro (with Route Creator plugin). The purchase of a T1010 camera includes a 3-month subscription to FLIR Thermal Studio Pro and FLIR Route Creator.
Specifications:
| Highlighted |
| IR Resolution |
1024 × 768; up to 3.1 MP with UltraMax |
| Thermal Sensitivity/NETD |
<25 mK @ 30°C (86°F) |
| Field of view (FOV) |
FLIR T1010 28°: 28° × 21°
|
| Digital Camera |
Field of view adapts to the infrared lens |
| Image Modes |
Thermal, thermal MSX, digital camera |
| Display |
Built-in touchscreen, 4.3 in. wide screen LCD, 800 × 480 pixels |
| Storage Media |
Removable media SD or SDHC card. Class 10 or better recommended |
| Imaging & Optical |
| 4.3” Display |
800 × 480 pixels |
| Auto orientation |
Automatic landscape or portrait |
| Automatic Image Adjustment |
Standard or histogram based on the image content |
| Built-in Digital Camera |
5 Mpixel with LED light |
| Camera size excl lens (L x W x H) |
167.2 mm × 204.5 mm × 180.4 mm (6.6 in. × 8.0 in. × 7.1 in.) |
| Camera software update |
Using USB cable or SD card |
| Color Palettes |
Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava |
| Detector Pitch |
17 µm |
| Detector Type |
Focal plane array (FPA), uncooled microbolometer |
| Digital Camera |
Field of view adapts to the infrared lens |
| Digital image enhancement |
Adaptive digital noise reduction |
| Digital Zoom |
1–8× continuous |
| Display Type |
Capacitive touchscreen |
| f-number |
FLIR T1010 28°: 1.15
|
| Field of view (FOV) |
FLIR T1010 28°: 28° × 21°
|
| Focal Length |
FLIR T1010 28°: 36 mm (1.42 in)
|
| Focus |
One shot or manual |
| Frame Rate [Full Window] |
30 Hz |
| Gallery |
Review thumbnail/full image on the camera Edit measurements/palettes/image modes on the camera |
| Image Description |
No |
| Image Frequency |
30 Hz |
| Image Modes |
Thermal, thermal MSX, digital camera |
| Infrared Image |
Full color infrared image |
| IR Resolution |
1024 × 768; up to 3.1 MP with UltraMax |
| Laser |
Activated by a dedicated button |
| Laser Alignment |
Position is automatically displayed on the infrared image |
| Lens Identification |
Automatic |
| Manual Image Adjustment |
Linear based, possible to adjust level/span/max./min. |
| Minimum IR focus distance |
1.3 m (4.26 ft) |
| Minimum IR–visual alignment distance |
1.3 m (4.26 ft) |
| MSX Resolution |
1024 × 768 pixels |
| Multi Spectral Dynamic Imaging (MSX) |
Thermal image with enhanced detail presentation |
| Non-radiometric IR video recording |
H.264 to the memory card |
| Non-radiometric IR video streaming |
H.264 video using USB |
| Optional Lenses |
FLIR T1010 28°: 7°, 12°, 45°, and 3x close-up lenses
|
| Picture-in-Picture |
No |
| Sketch |
No |
| Spatial resolution (IFOV) |
FLIR T1010 28°: 0.47 mrad
|
| Spectral Range |
7.5–14 µm |
| Thermal Sensitivity/NETD |
<25 mK @ 30°C (86°F) |
| UltraMax |
Yes |
| Video Lamp |
Built-in LED light |
| Viewfinder |
No |
| Visual Image |
Full color visual image |
| Visual Video Recording |
H.264 to the memory card |
| Visual Video Streaming |
H.264 video using USB |
| Measurement & Analysis |
| Area |
1 box with max./min./average |
| Color Alarm (Isotherm) |
No |
| Difference Temperature |
Delta temperature between the measurement functions and the reference temperature |
| Emissivity Correction |
Variable from 0.01 to 1.0 or selected from the materials list |
| External Optics & Windows Correction |
Automatic, based on the inputs of the window transmission and temperature |
| Measurement Corrections |
Emissivity, reflected temperature, relative humidity, atmospheric temperature, object distance, external infrared window compensation |
| Measurement Function Alarm |
No |
| Measurement Presets |
No measurements, Center spot, Hot spot, Cold spot, User preset 1, User preset 2 |
| Object Temperature Range |
-40°C to 650°C (-40°F to 1202°F) |
| Object temperature range Accuracy |
±2°C (±3.6°F) or ±2% of reading at 25°C for temperatures from -40°C up to 1200°C |
| Optics Transmission Correction |
Automatic, based on signals from internal sensors |
| Profile |
No |
| Reference Temperature |
Yes |
| Reflected apparent temperature correction |
Automatic, based on the input of the reflected temperature |
| Set-up Commands |
Save options, programmable button, reset options, set-up camera, language, time & units, camera information |
| Spot Meter |
1 |
| User Presets |
The user can select and combine measurements from one box and one delta |
| User Interface |
| Display |
Built-in touchscreen, 4.3 in. wide screen LCD, 800 × 480 pixels |
| Languages |
Arabic, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, simplified Chinese, Swedish, traditional Chinese, Turkish |
| Text |
No |
| Touch Screen |
Yes |
| Voice |
No |
| Communication & Data Storage |
| Antenna |
Internal (disabled) |
| Audio |
No |
| File Formats |
Standard JPEG, measurement data included No CSQ, measurement data included No CSQ storage on camera |
| File Formats - Visual |
Standard JPEG, automatically associated with the corresponding thermal image |
| Image Storage |
Standard JPEG, including digital image and measurement data, on a memory card |
| Image Storage Mode |
Simultaneous storage of thermal and digital images in the same JPEG file Option to store a digital photo as a separate JPEG file |
| Interface |
USB Micro-B, HDMI |
| METERLiNK |
No |
| METERLiNK - Bluetooth |
No |
| SD Card |
One card slot for removable SD memory cards |
| Storage Media |
Removable media SD or SDHC card. Class 10 or better recommended |
| Time Lapse |
No |
| USB |
USB Micro-B: data transfer to and from a PC, uncompressed colorized video |
| USB - Standard |
USB 2.0 High Speed USB Micro-B connector |
| Video Connector Type |
HDMI type C |
| WiFi |
No |
| Power |
| Battery operating time |
>2.5 hours at 25°C (68°F) and typical use |
| Battery Type |
Rechargeable Li ion battery |
| Charging system |
In camera (AC adapter or 12 V from a vehicle) or two-bay charger |
| Charging Temperature |
0°C to 45°C (32°F to 113°F), except for the Korean market: 10°C to 45°C (50°F to 113°F) |
| Charging Time |
2.5 hours to 90% capacity, charging status indicated by LEDs |
| External Power Operation |
AC adapter 90–260 V AC, 50/60 Hz or 12 V from a vehicle (cable with a standard plug, optional) |
| Power Management |
Automatic power-off functionality, user configurable between 5 minutes, 20 minutes, and no automatic shutdown |
| Environmental & Certifications |
| EMC |
ETSI EN 301 489-1 (radio) ETSI EN 301 489-17 EN 61000-6-2 (Immunity) EN 61000-6-3 (Emission) FCC 47 CFR Part 15 Class B (Emission) ICES-003 |
| Encapsulation |
IP 54 (IEC 60529) |
| Ergonomics |
The 120° rotating optical block allows you to point the camera in multiple directions while maintaining a comfortable position |
| Humidity (Operating and Storage) |
IEC 60068-2-30 / 24 hours, 95% relative humidity, 25–40°C (77–104°F) / 2 cycles |
| Laser Classification |
Class 2 |
| Laser Type |
Semiconductor AlGaInP diode laser, 1 mW, 635 nm (red) |
| Operating Temperature Range |
-15°C to 50°C (5°F to 122°F) |
| Radio Spectrum |
ETSI EN 300 328 FCC Part 15.247 RSS-247 Issue 2 |
| Safety |
EN/UL/CSA/PSE 60950-1 |
| Shock |
25 g (IEC 60068-2-29) |
| Storage Temperature Range |
–40 to 70°C (–40 to 158°F) |
| Tripod Mounting |
UNC ¼"-20 |
| Vibration |
2 g (IEC 60068-2-6) |
| General |
| Compass |
No |
| GPS [compass] |
No |
| Housing material |
Magnesium |
| Packaging |
Infrared camera with lens, small viewfinder eyecup, 2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C), License card: FLIR Thermal Studio Pro (3 month subscription) + FLIR Route Creator Plugin for Thermal Studio Pro (3 month subscription)
|
| Weight |
1.9 kg (4.3 lb) |
WHAT'S IN THE BOX:
- 1 x Infrared camera with lens
- 1 x small viewfinder eyecup
- 2 x batteries
- 1 x battery charger
- 1 x hard transport case
- 1 x lanyards
- 1 x front lens cap
- 1 x power supplies
- 1 x printed documentation
- 1 x SD card (8 GB)
- 1 x cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C)
- 1 x License card: FLIR Thermal Studio Pro (3 month subscription) + FLIR Route Creator Plugin for Thermal Studio Pro (3 month subscription)
