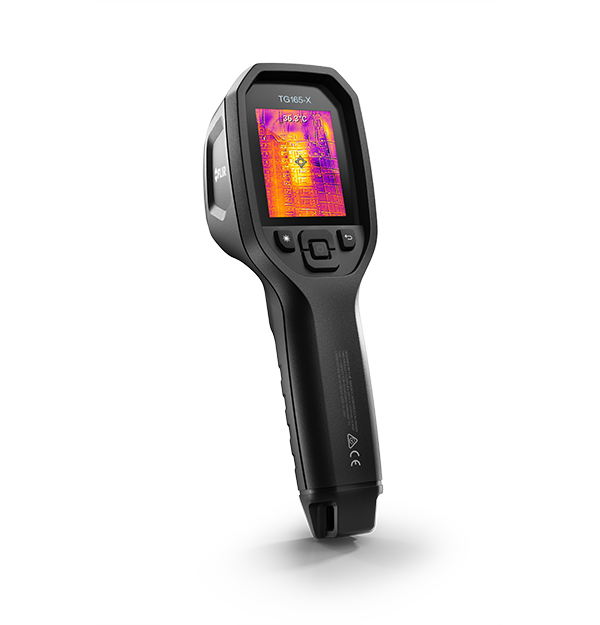

FLIR TG165-X MSX Thermal Camera

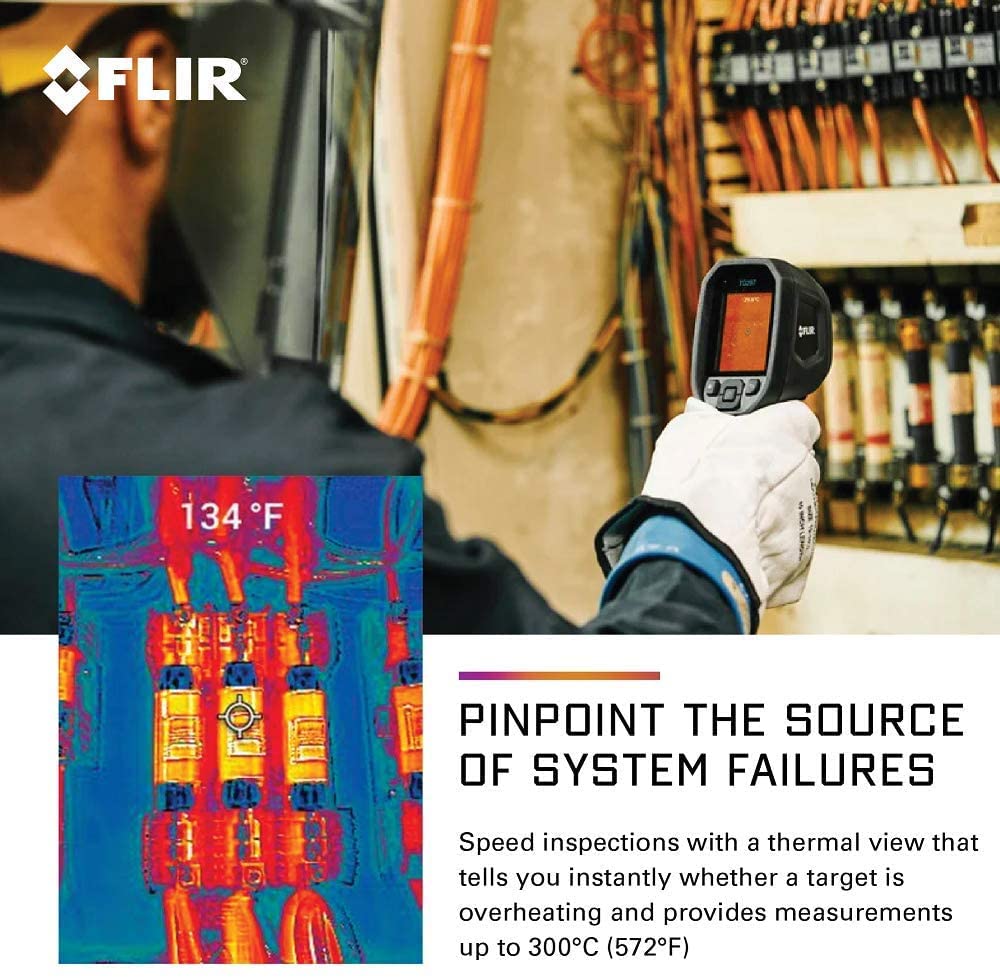

The Flir TG165-X helps you visualize the hot and cold spots that can indicate electrical faults, mechanical breakdowns, or air and water leaks. This all-in-one, non-contact measurement and imaging tool displays temperature anomalies on screen, allowing you to inspect efficiently and pinpoint the source of problems faster than with a single-spot IR thermometer.

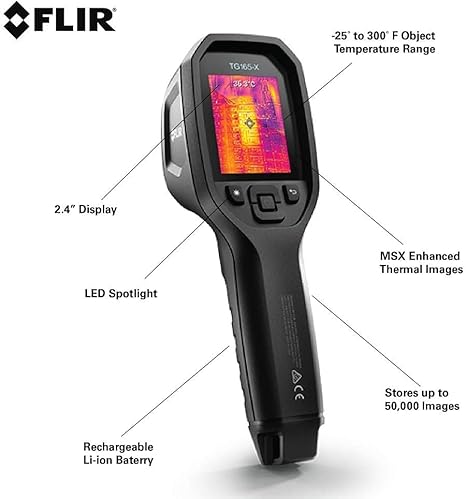

See components clearly and even read labels thanks to Flir's patented MSX image enhancement, which adds visual details to full thermal images. The bullseye laser ensures you’re always targeting the right component for measurement, while easy-to-use buttons and settings help you complete the job quickly and stress-free. With internal storage for up to 50,000 images and a rechargeable Li-ion battery, the Flir TG165-X is ready to go right out of the box.
SPECIFICATIONS:
Highlights

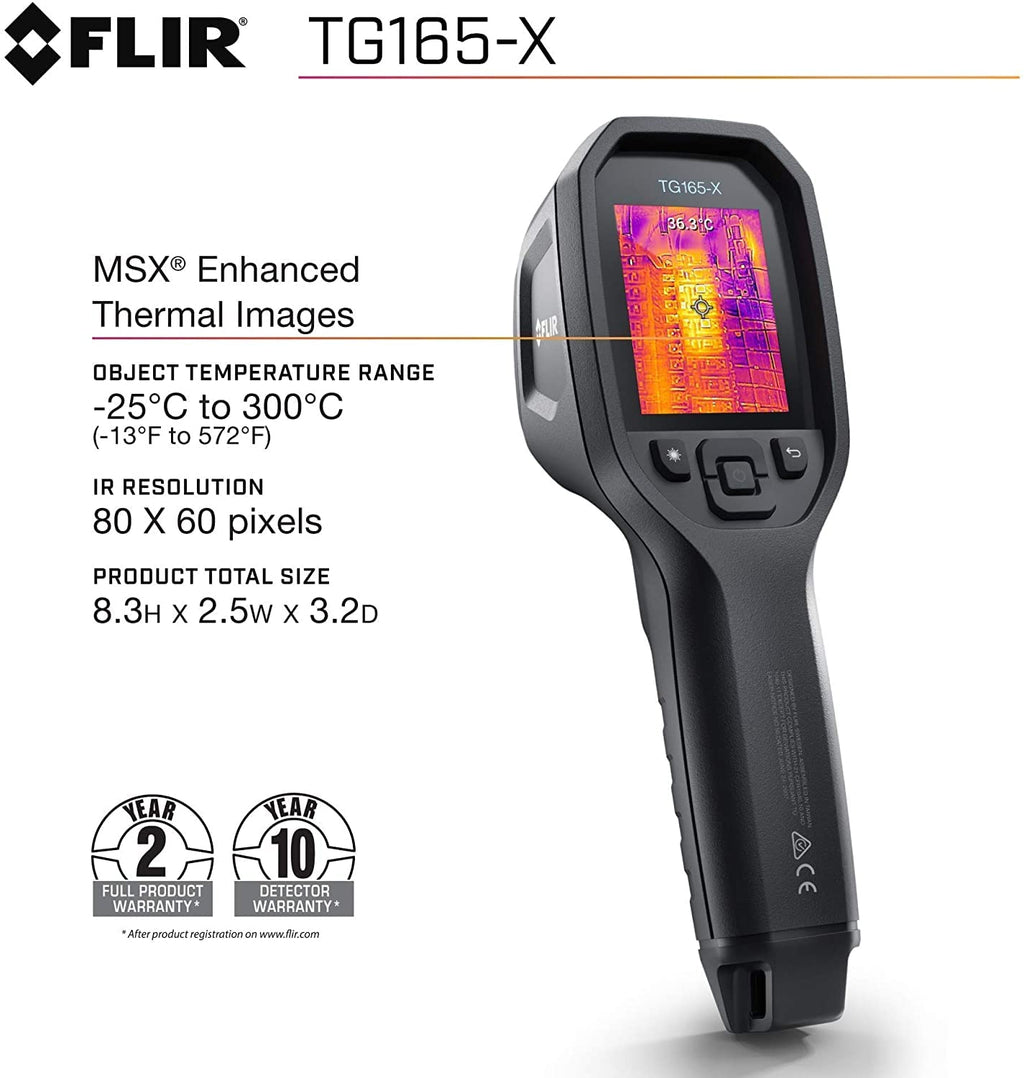

IR Resolution: 80 × 60 Pixels
Thermal Sensitivity / NETD: <70 mK
Accuracy: 50°C to 100°C (122°F to 212°F) ±1.5°C (±3°F); 0°C to 50°C (32°F to 122°F) and 100°C to 300°C (212°F to 572°F) ±2.5°C (±5°F); -25°C to 0°C (-13°F to 32°F) ±3°C (±7°F)
Field of View (FOV): 71° × 56°, Adapts to IR Lens
Image Modes: MSX® (Multi Spectral Dynamic Imaging), Visual
Storage Media: eMMC 4 GB
Imaging & Optical
Camera Software Update: Using USB Cable or SD Card
Color Palettes: Iron, Rainbow, Whitehot, Blackhot, Arctic, Lava
Detector Pitch: 17 µm
Digital Image Enhancement: No

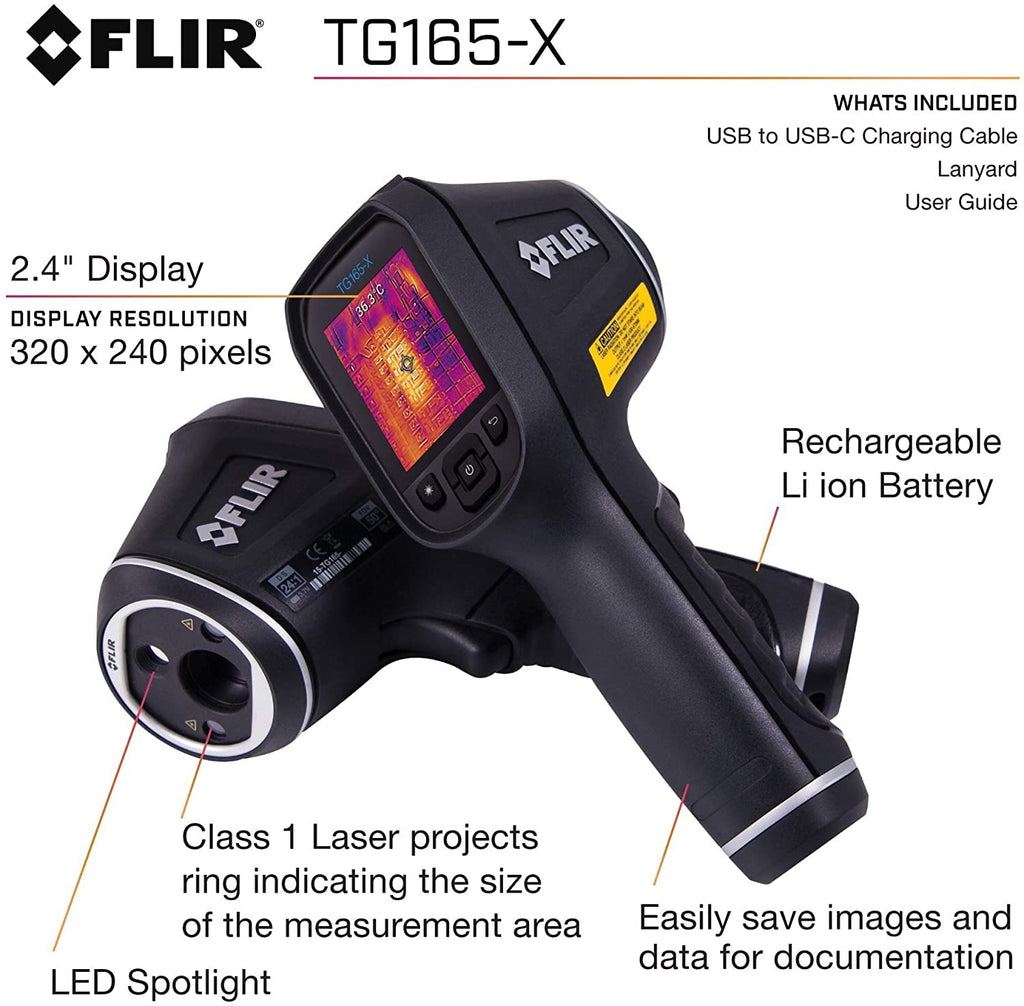

Display Resolution: 320 × 240 Pixels
Focal Plane Array (FPA) – Spectral Range: Uncooled Microbolometer / 7.5–14 µm
Focus: Fixed
Gallery: Yes
Image Frequency: 8.7 Hz
Laser: Class 1
Minimum Focus Distance: 0.3 m (0.98 ft)
Minimum Measurement Distance: 0.26 m (0.85 ft)
Resolution: 2 MP (1600 × 1200 Pixels)
Thermal Sensitivity /NETD: <70 mK
Measurement & Analysis
Accuracy: 50°C to 100°C (122°F to 212°F) ±1.5°C (±3°F); 0°C to 50°C (32°F to 122°F) And 100°C to 300°C (212°F to 572°F) ±2.5°C (±5°F); -25°C to 0°C (-13°F to 32°F) ±3°C (±7°F)
Distance to Spot Ratio (D:S): 24:1
Emissivity Correction: Yes, 4 Pre-Set Levels with Custom Adjustment of 0.1–0.99
Object Temperature Range: -25°C to 300°C (-13°F to 572°F)
Set-up Commands: Local Adaptation of Units, Language, Date and Time Formats; Screen Brightness (High, Medium, Low); Gallery, Deletion of Images
Spot Meter: Center Spot On/Off
User Interface
Display Technology: TFT
Languages: Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish
Communication & Data Storage
Image File Format: JPEG With Spot Temperature in Meta Tag
Image Storage Capacity: 50,000 Images
Interface: USB 2.0
Storage Media: eMMC 4 GB
USB: USB Type-C (Data Transfer / Power)
USB Standard: USB Type-C High Speed (Data Transfer / Power)
Power
Battery Charge Life: Minimum 30 Days
Battery Operating Time: 5 Hours of Scanning (LCM Medium Brightness); 4.5 Hours With Laser On (LCM Medium Brightness)
Battery Type: Rechargeable Li-Ion Battery
Battery Voltage: 3.7 V
Charging System: Battery Charged Inside the Camera
Charging Temperature: 0°C to 45°C (32°F to 113°F)
Charging Time: 4 Hours to 90%, 6 Hours to 100%
Power Management: Adjustable Off, 5 Minutes, 15 Minutes, 30 Minutes
Environmental & Certifications
Drop: Designed for 2 m (6.56 ft)
EMC: EN 61000-6-3 / EN 61000-6-2 / FCC 47 CFR Part 15 Class B
Encapsulation: IP54 (IEC 60529)
Humidity (Operating and Storage): 0–90% Relative Humidity (RH) (0°C to 37°C / 32°F to 98.6°F); 0–65% RH (37°C to 45°C / 98.6°F to 113°F); 0–45% RH (45°C to 55°C / 113°F to 131°F)
Magnetic Fields: EN 61000-4-8 Class 3
Operating Temperature Range: -10°C to 45°C (14°F to 113°F)
Radio Spectrum: ETSI EN 300 328 / FCC Part 15.249 / RSS-247 Issue 2 / EN 301 489-1:2011 / EN 301 489-17:2009
Safety: CE / CB / EN 61010 / UL
Shock: 25 g (IEC 60068-2-27)
Storage Temperature Range: -30°C to 55°C (-22°F to 131°F)
Tripod Mounting: UNC ¼″-20
Vibration: 2 g (IEC 60068-2-6)
General
Flashlight: LED On/Off
Form Factor: Pistol
Laser Pointer: Indicating the Size of the Measurement Area
Light Output: 100 Lumens
Size (L × W × H): 210 × 64 × 81 mm (8.3 × 2.5 × 3.2 in)
Weight (Battery Included): 0.394 kg (13.9 oz)
WHAT’S IN THE BOX:
1 x Flir TG165-X Thermal Imaging Camera unit
1 x USB Cable (for charging and data transfer)
1 x Printed Documentation (Owner’s Manual / Quick Start Guide)
