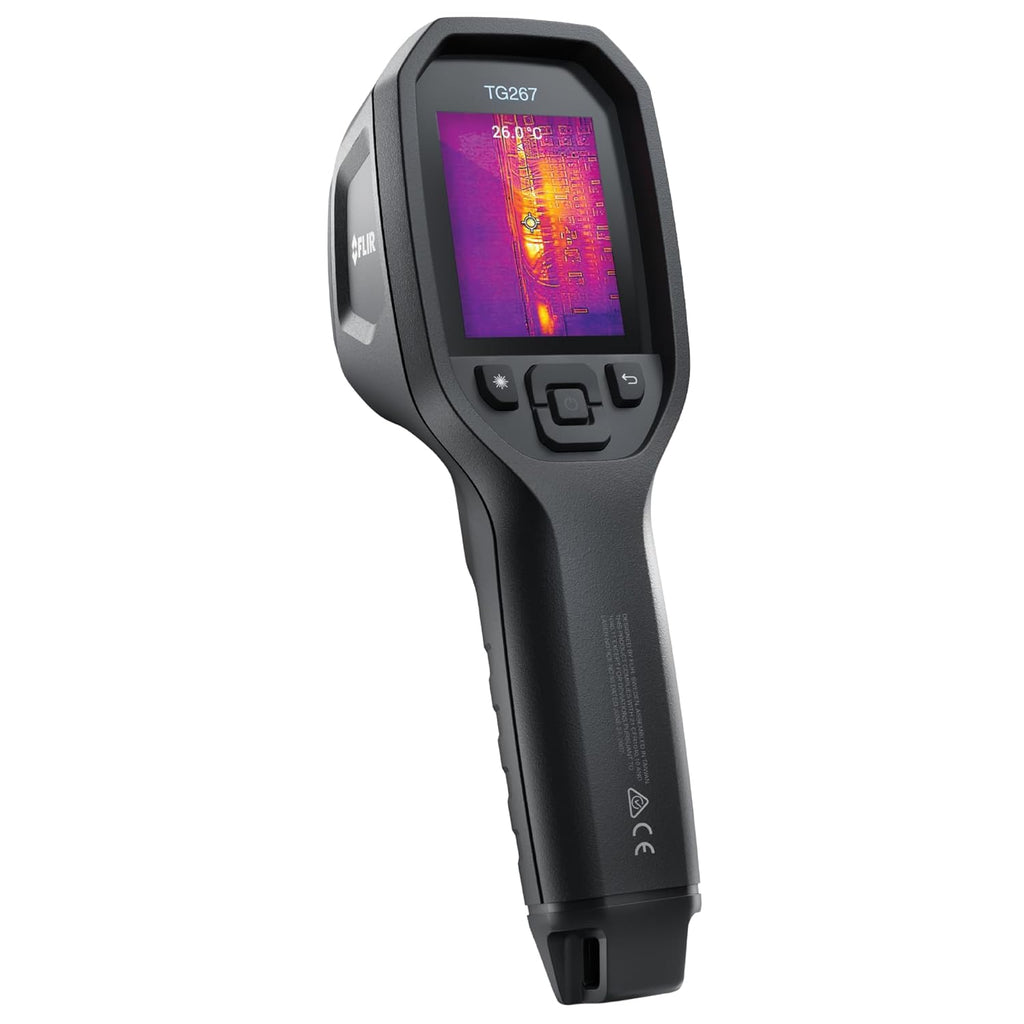

FLIR TG267 Thermal Camera
The FLIR TG267 takes you beyond the limitations of single-spot IR thermometers to both see and evaluate the hot and cold spots that can indicate serious issues. Ideal for commercial electrical, facility maintenance, and HVAC applications, this advanced thermal camera with a brilliant 2.4-inch screen reduces diagnostic time while simplifying repair and maintenance reporting.

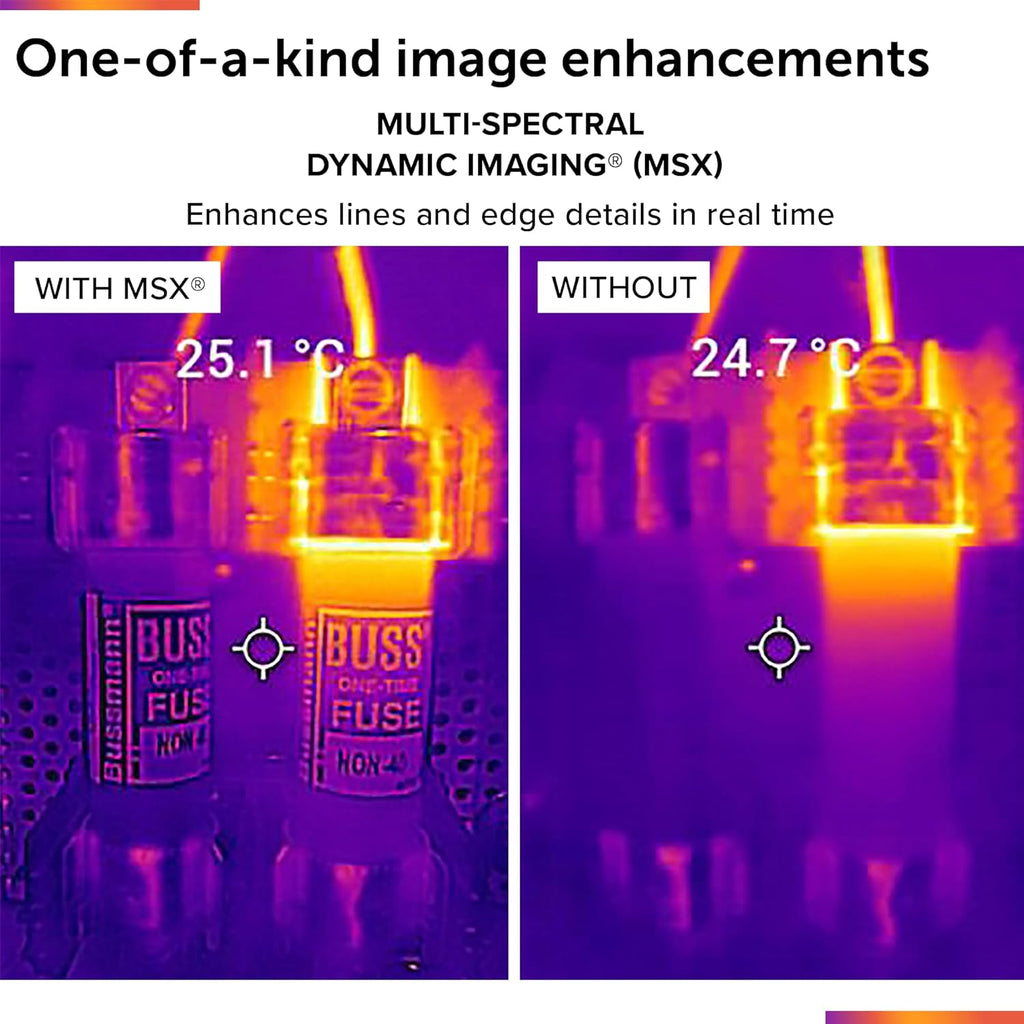

Patented FLIR MSX (Multi-Spectral Dynamic Imaging) enhancement improves image clarity by embossing visual scene details on full thermal images, providing added context to help you accurately target potential faults and troubleshoot repairs, record images to monitor maintenance history, and reassure your customer that problems have been resolved.
Designed for Affordable Diagnostic Thermal Imaging
Identify Problems Quickly: Measure a wide range of temperatures from -25°C to 380°C (-13°F to 716°F) with a true 160 × 120 IR pixel imager (19,200 pixels)
Produce Crisp Thermal Images: Display and record MSX -enhanced thermal images or visual images with temperature readings
Work With Confidence In Rugged Environments: Work safely and worry-free knowing that the IP54 enclosure can withstand a 2-meter drop and protect against dust and water

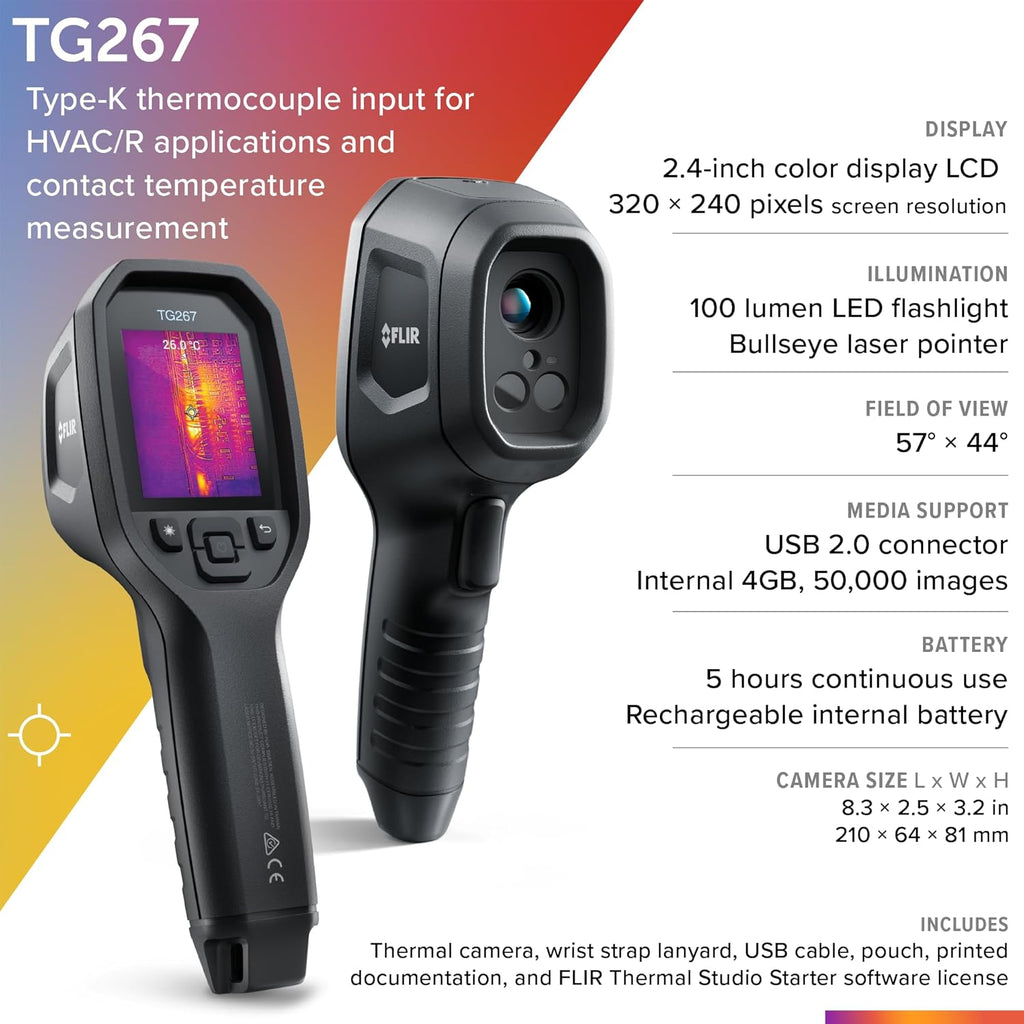

SPECIFICATIONS:
Highlights
IR Resolution: 160 × 120 Pixels
Thermal Sensitivity / NETD: <70 mK
Accuracy: ±1.5°C (2.7°F) for Temperatures 50°C to 100°C (122°F to 212°F); Up to ±3°C (±5.4°F) for -25°C to 50°C (-13°F to 122°F) and 100°C to 380°C (212°F to 716°F)
Field of View (FOV): 57° × 44°
Image Modes: MSX (Multi Spectral Dynamic Imaging); Visual With Temperature Reading
Display: 320 × 240 pixels, 2.4 in Color LCD
Storage Media: eMMC 4 GB
Imaging & Optical
Built-in Digital Camera: Yes
Color Palettes: Iron, Rainbow, White Hot, Black Hot, Arctic, Lava
Detector Pitch: 12 µm
Digital Image Enhancement: Yes
Focus: Focus Free
Gallery: Yes
Image Frequency: 8.7 Hz
Image Modes: MSX (Multi Spectral Dynamic Imaging); Visual with temperature reading
IR Resolution: 160 × 120 pixels

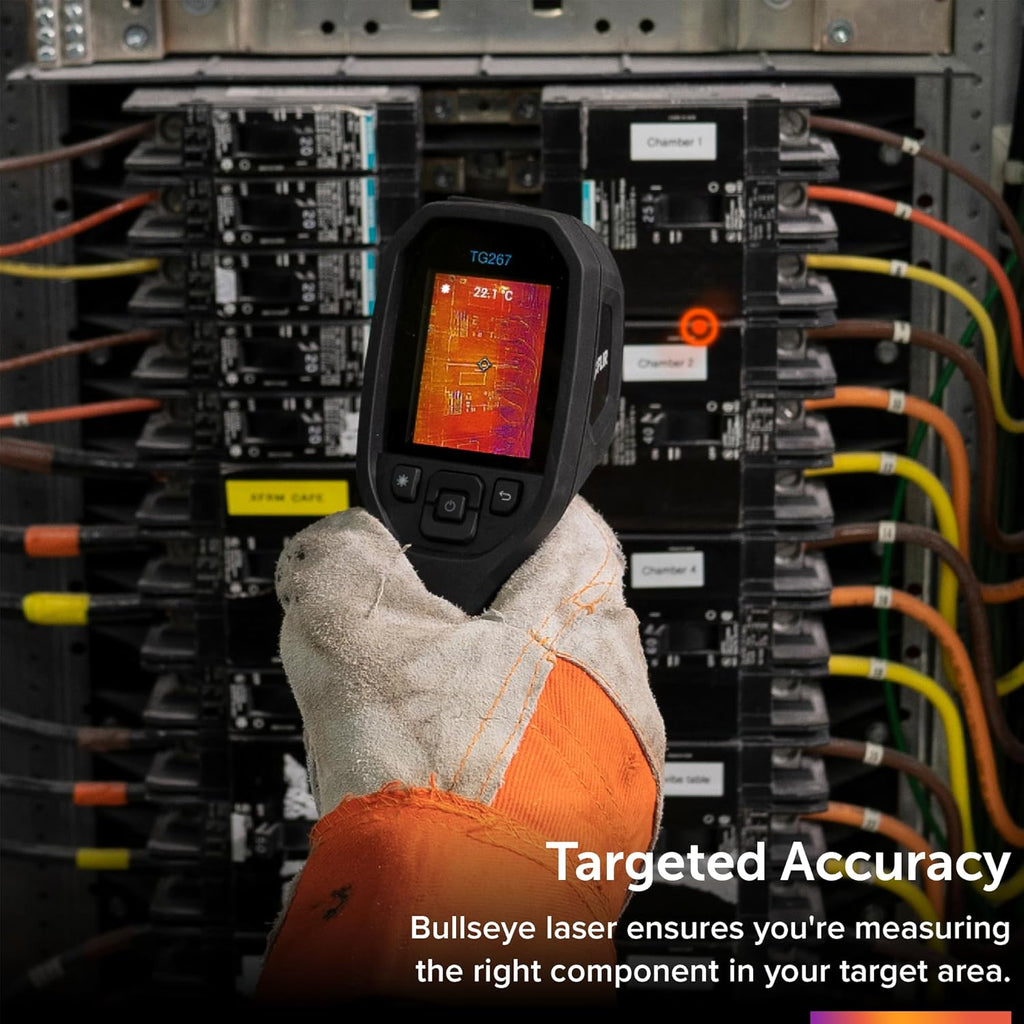

Laser: Class 1 Laser Indicating the Temperature Measurement Area, Button-Activated
Minimum Focus Distance: 0.3 m (0.98 ft)
Minimum Measurement Distance: 0.26 m (0.85 ft)
Spectral Range: 7.5–14 µm
Thermal Sensitivity/NETD: <70 mK
Measurement & Analysis
Accuracy: ±1.5°C (2.7°F) for temperatures 50°C to 100°C (122°F to 212°F); up to ±3°C (±5.4°F) for -25°C to 50°C (-13°F to 122°F) and 100°C to 380°C (212°F to 716°F)
Camera Size (L × W × H): 210 × 64 × 81 mm (8.3 × 2.5 × 3.2 in)
Camera Weight (Battery Included): 0.394 kg (13.9 oz)
Center Spot: Yes
Emissivity Correction: Yes, 4 Preset Levels with Custom Adjustment of 0.1–0.99
Languages: Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish

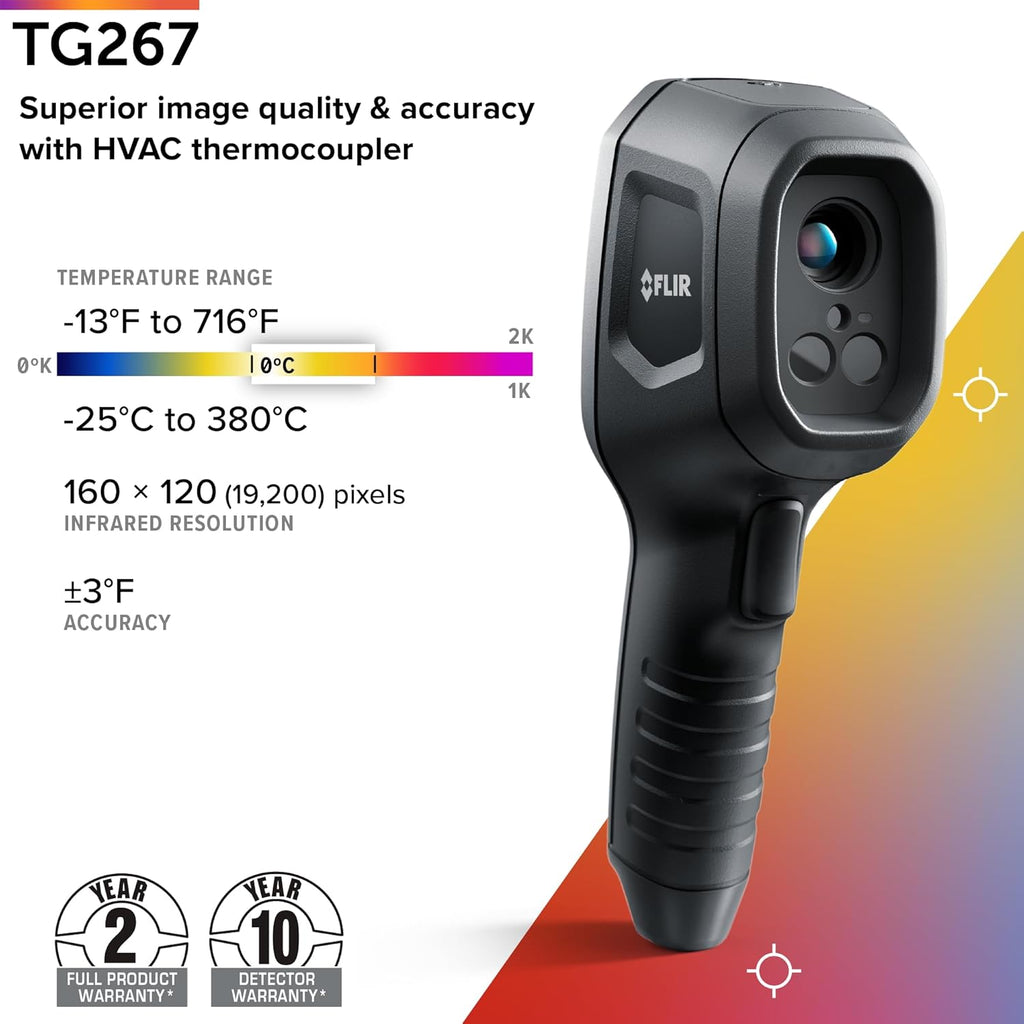

Object Temperature Range: -25°C to 380°C (-13°F to 716°F)
Set-up Commands: Local Adaptation of Units, Language, Date and Time Formats; Screen Brightness (High, Medium, Low); Gallery, Deletion of Images
Spot Meter: Center Spot On/Off
User Interface
Display: 320 × 240 pixels, 2.4 in color LCD
Power
Battery Charge Life: Minimum 30 Days
Battery Operating Time: 5 Hours Continuous Scanning; 4.5 Hours with Laser On
Battery Type: Rechargeable Li-Ion Battery
Battery Voltage: 3.7 V
Charging System: Battery Charged Inside the Camera
Charging Temperature: 0°C to 45°C (32°F to 113°F)
Charging Time: 4 Hours to 90%, 6 Hours to 100%
Power Management: Adjustable Off, 5 Minutes, 15 Minutes, 30 Minutes
Communication & Data Storage
Image Storage Capacity: 4 GB for the storage of up to 50,000 Pictures

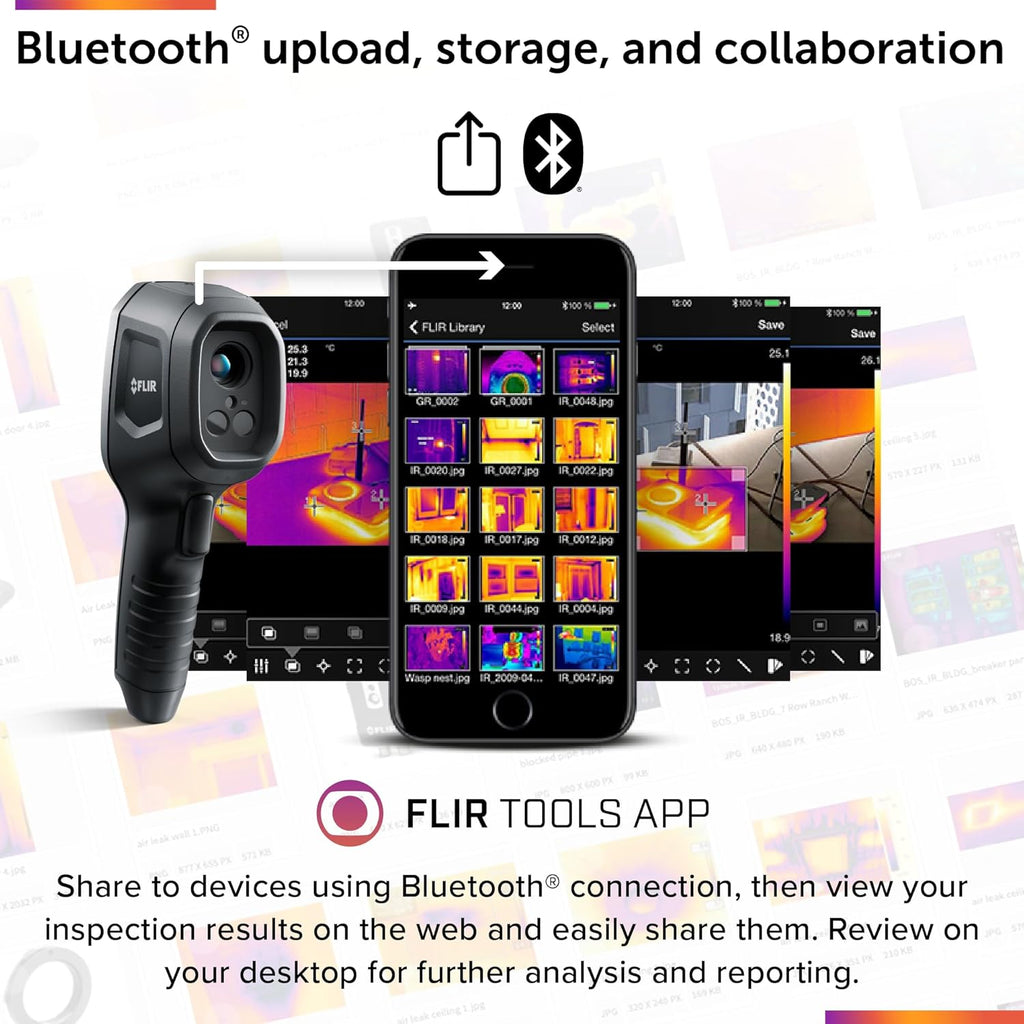

Interface: USB 2.0, Bluetooth
Memory Type: Internal
Saved Image Format: JPEG
Storage Media: eMMC 4 GB
USB: USB Type-C (Data Transfer / Power)
USB Standard: USB 2.0 High Speed
Environmental & Certifications
Certifications: CE, CB, RCM, IEC 60825-1, FDA, UL, CEC, NRCan
Drop Test: Designed for 2 m (6.6 ft)
EMC: EN 61000-6-3; EN 61000-6-2; FCC 47 CFR Part 15 Class B
Encapsulation: IP54 (IEC 60529)
Humidity (Operating and Storage): 0–90% RH (0–37°C / 32–98.6°F); 0–65% RH (37–45°C / 98.6–113°F); 0–45% RH (45–55°C / 113–131°F)
Operating Temperature Range: -10°C to 45°C (14°F to 113°F)
Radio Spectrum: ETSI EN 300 328; FCC Part 15.249; RSS-247 Issue 2; EN 301 489-1:2011; EN 301 489-17:2009
Safety: CE / CB / EN 61010 / UL
Shock: 25 g (IEC 60068-2-27)
Storage Temperature Range: -30°C to 55°C (-22°F to 131°F)
Tripod Mounting: 1/4 in.-20 on Handle Bottom
Vibration: 2 g (IEC 60068-2-6)
Warranty: FLIR 2-10 Warranty
WHAT’S IN THE BOX:
1 x FLIR TG267 Thermal Camera
1 x Wrist Strap Lanyard
1 x USB Cable
1 x Pouch
1 x Thermocouple
1 x Printed Documentation
1 x Manuals/Guides
