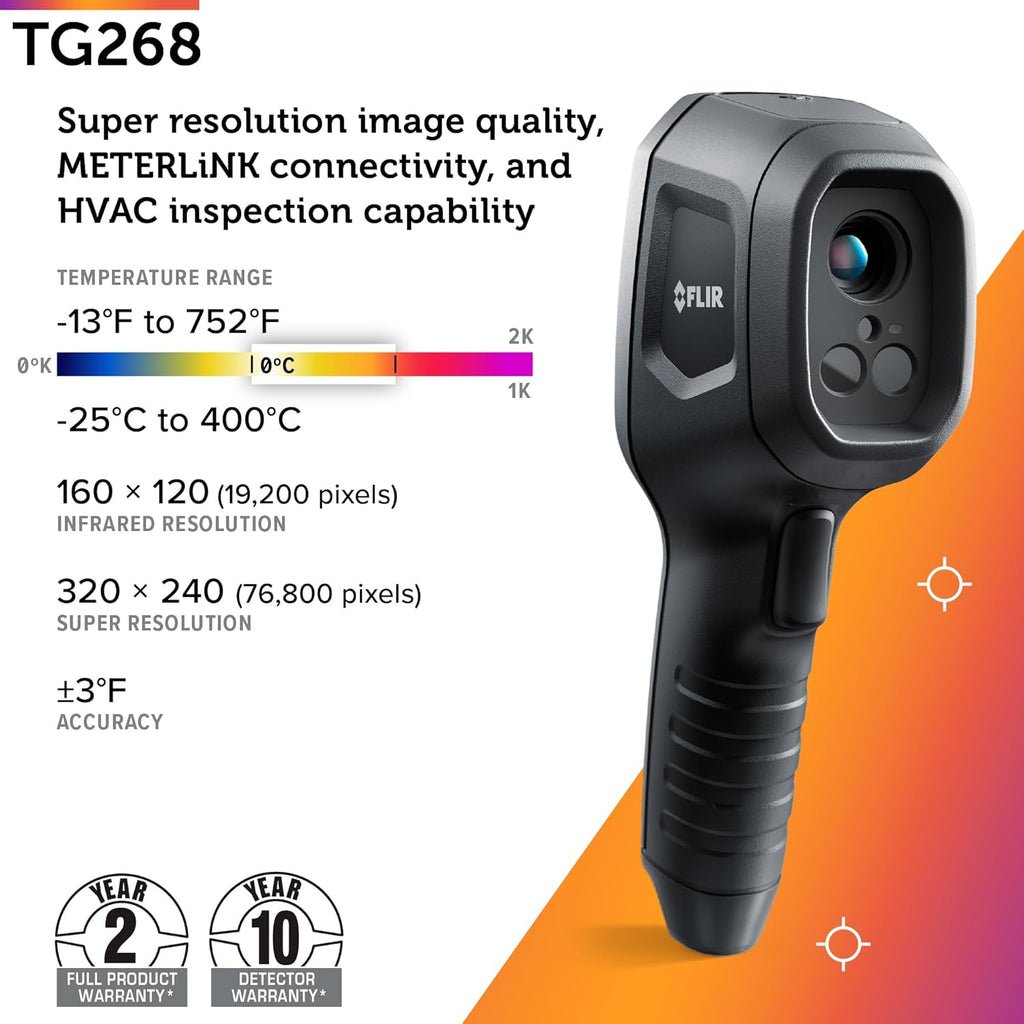

FLIR TG268 Spot Thermal Camera
The FLIR TG-Series puts the power of thermal imaging in your hands—without the learning curve or bulky equipment. Whether you’re tracking down overheating electrical connections, inspecting buildings for energy loss, or ensuring motors and machinery run cool and clean, these thermal spot IR thermal cameras deliver fast, reliable answers.

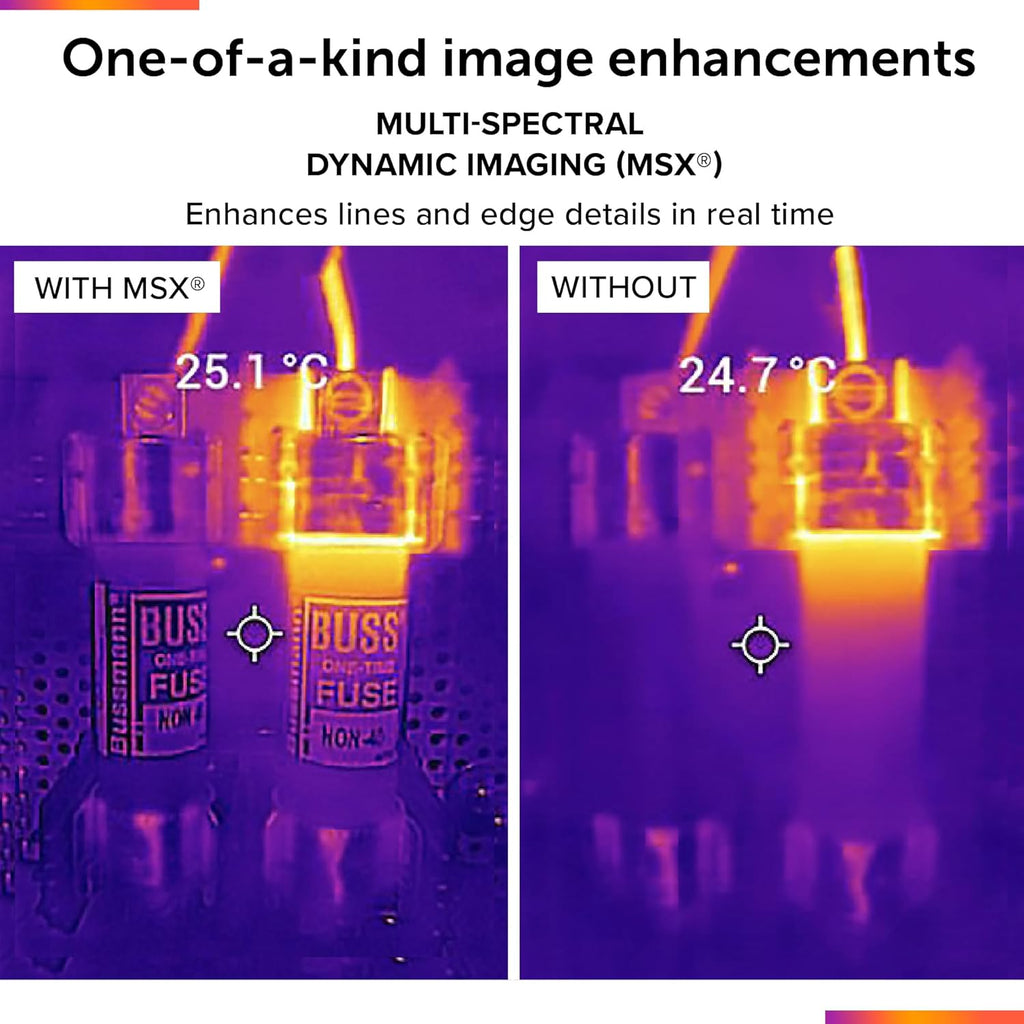

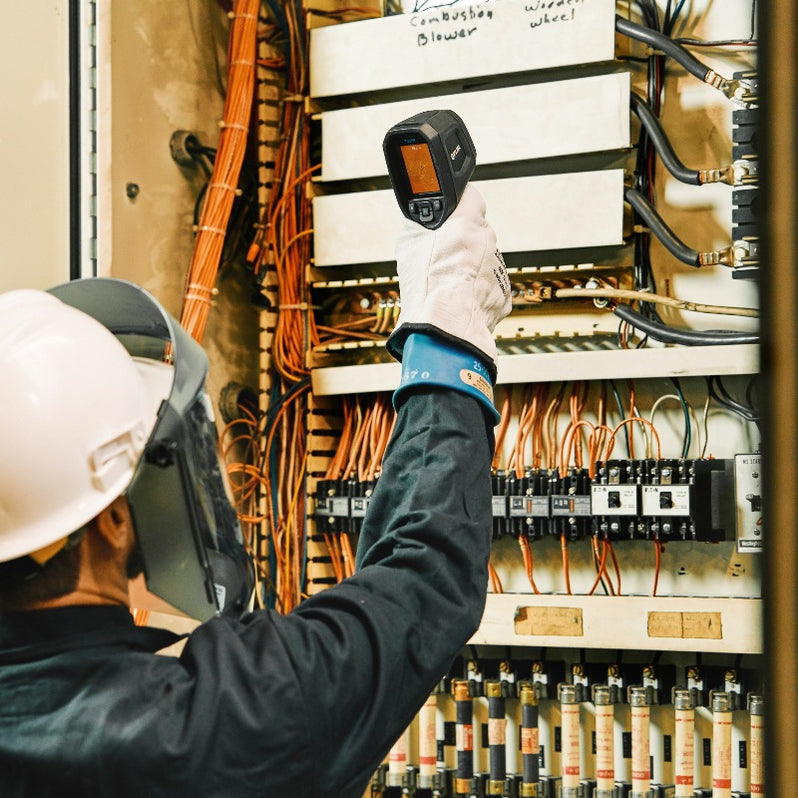

The Flir TG268 takes you beyond the limitations of single-spot IR thermometers to both see and evaluate the hot and cold spots that can indicate serious issues. Ideal for commercial electrical, facility maintenance, automotive, and HVAC applications, this advanced thermal camera with a brilliant 2.4-inch screen reduces diagnostic time while simplifying repair and maintenance reporting. Patented Flir MSX® (Multi-Spectral Dynamic Imaging) enhancement improves image clarity by embossing visual scene details on full thermal images, and super resolution allows you to upscale images from 160 × 120 to 320 × 240 for superior detail to help you accurately target potential faults and troubleshoot repairs. Then, with the Flir Meterlink® app, you can quickly and efficiently capture and compare readings, analyze and share images and videos, and create reports and easily share them with your team.
SPECIFICATIONS:
Highlights
IR Resolution: 160 × 120
Super Resolution: 320 × 240
Thermal Sensitivity / NETD: <70 mK
Accuracy: ±2.5% or 2.5°C (6°F) at 0°C to 50°C (33°F to 122°F) and 100°C to 400°C (213°F to 752°F); ±3% or 3°C (7°F) at -25°C to 0°C (-13°F to 32°F)
Field of View (FOV): 57° × 44°
Image Modes: MSX® (Multi Spectral Dynamic Imaging); Visual with Temperature Reading
Display: 320 × 240, 2.4 in Color LCD
Storage Media: 8 GB
Imaging & Optical
Built-in Digital Camera: Yes
Color Palettes: Iron, Rainbow, White Hot, Black Hot, Arctic, Lava
Detector Pitch: 12 µm
Detector Type: Focal Plane Array (FPA), Uncooled Microbolometer
Digital Image Enhancement: Yes
Field of View (FOV): 57° × 44°
Focus: Focus Free
Gallery: Yes
Image Frequency: 8.7 Hz
Image Modes: MSX (Multi Spectral Dynamic Imaging); Visual with temperature reading
IR Resolution: 160 x 120 pixels; Super Resolution: 320 x 240
Laser: Class 1 Laser Indicating the Temperature Measurement Area, Button-Activated
Minimum Focus Distance: 0.3 m (0.98 ft)
Minimum Measurement Distance: 0.26 m (0.85 ft)
Non-radiometric IR Video Recording: Yes
Spectral Range: 7.5–14 µm
Thermal Sensitivity/NETD: <70 mK
Measurement & Analysis
Accuracy: ±2.5% or 2.5°C (6°F) at 0°C to 50°C (33°F to 122°F) and 100°C to 400°C (213°F to 752°F); ±3% or 3°C (7°F) at −25°C to 0°C (−13°F to 32°F
Camera Size (L × W × H): 210 × 64 × 81 mm (8.3 × 2.5 × 3.2 in)
Camera Weight (Battery Included): 0.394 kg (13.9 oz)
Center Spot: Yes

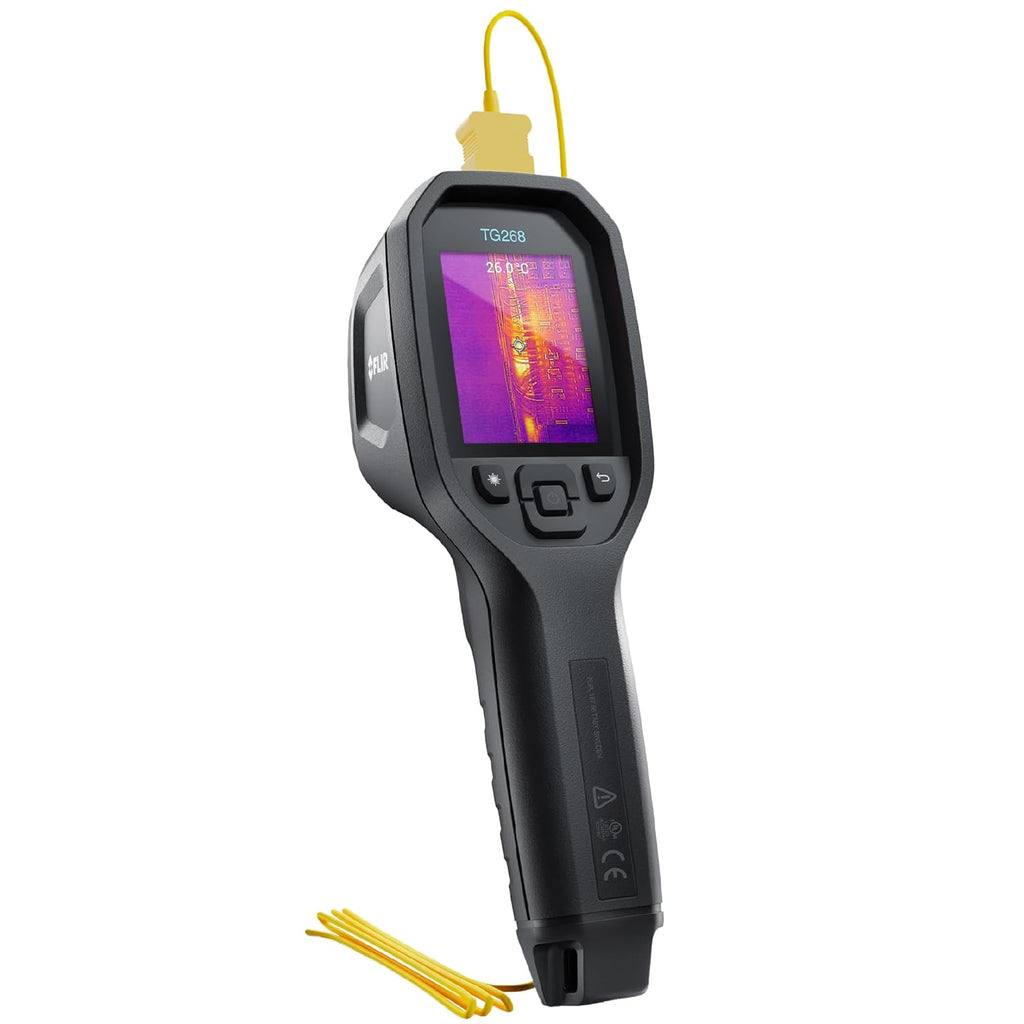

Measurement Option: Non-contact Surface / Contact with Type-K
Object Temperature Range: −25°C to 400°C (−13°F to 752°F)
User Interface
Display: 320 × 240 pixels, 2.4 in color LCD
Power
Battery Operating Time: 5 hours Continuous Scanning, 4.5 hours with Laser On
Battery Type: Rechargeable Li-ion Battery
Battery Voltage: 3.7 V
Charging System: Battery is Charged Inside the Camera
Charging Temperature: 0°C to 45°C (32°F to 113°F)
Charging Time: 3 hours to 90%, 4 hours to 100%
Communication & Data Storage
Image Storage Capacity: 8GB
Interface: USB 2.0, Bluetooth
Memory Type: Internal
Saved Image Format: JPEG
METERLiNK: Yes
Saved Image Format: JPEG with Spot Temperature Data
Storage Media: 8 GB
USB: USB Type-C (Data Transfer / Power)
USB Standard: USB 2.0 High Speed
Environmental & Certifications
Certifications: CE, CB, RCM, IEC 60825-1, FDA, UL, CEC, NRCan
Drop Test: Designed for 2 m (6.6 ft)
EMC: EN 61000-6-3; EN 61000-6-2; FCC 47 CFR Part 15 Class B
Encapsulation: IP54 (IEC 60529)
Humidity (Operating and Storage): 0–90% RH (0–37°C / 32–98.6°F); 0–65% RH (37–45°C / 98.6–113°F); 0–45% RH (45–55°C / 113–131°F)
Operating Temperature Range: -10°C to 45°C (14°F to 113°F)
Radio Spectrum: ETSI EN 300 328; FCC Part 15.249; RSS-247 Issue 2; EN 301 489-1:2011; EN 301 489-17:2009
Safety: CE / CB / EN 61010 / UL
Shock: 25 g (IEC 60068-2-27)
Storage Temperature Range: -30°C to 55°C (-22°F to 131°F)
Tripod Mounting: 1/4 in.-20 on Handle Bottom
Vibration: 2 g (IEC 60068-2-6)
Warranty: FLIR 2-10 Warranty
WHAT’S IN THE BOX:
1 x FLIR TG268 Thermal Camera
1 x Wrist Strap Lanyard
1 x USB Type-C Cable
1 x Pouch
1 x Type-K Thermocouple
1 x Printed Documentation
1 x Manuals/Guides
