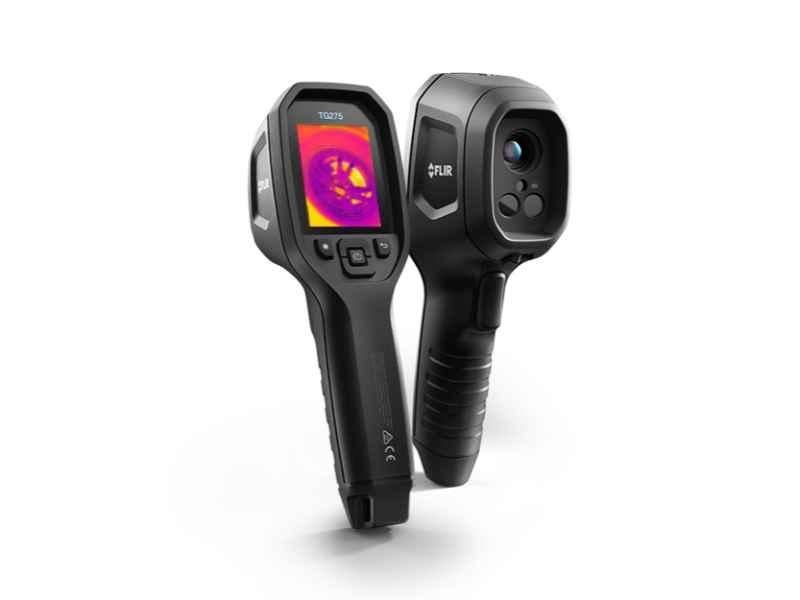

FLIR TG275 Automotive Diagnostic Thermal Camera
The Flir TG-275 Thermal Camera is designed specifically for automotive maintenance and repair technicians who want to accelerate diagnostic procedures and avoid undetected problems. Featuring IGM™ (Infrared Guided Measurement), this diagnostic tool combines non-contact temperature measurement and thermal imaging to help you troubleshoot repairs, spot potential faults, and record images that will reassure your customer that the problem has been fixed. This affordable thermal imager is ideal for diagnosing problems in relays and switches, parasitic drain on the battery, drive train components, HVAC system (vents), and much more.
SPECIFICATIONS:
Highlights
IR Resolution: 160 × 120 Pixels
Thermal Sensitivity / NETD: <70 mK
Accuracy: ±1.5°C (2.7°F) for Temperatures 50°C to 100°C (122°F to 212°F); Up to ±3°C (±5.4°F) for -25°C to 50°C (-13°F to 122°F) and 100°C to 550°C (212°F to 1022°F)
Field of View (FOV): 57° × 44°
Image Modes: MSX® (Multi Spectral Dynamic Imaging); Visual with Temperature Reading
Display: 320 × 240 Pixel, 2.4 in Color LCD
Storage Media: eMMC 4 GB
Imaging & Optical
Automatic Image Adjustment: Yes
Built-in Digital Camera: Yes
Color Palettes: Iron, Rainbow, White Hot, Black Hot, Arctic, Lava
Detector Pitch: 12 µm
Detector Type: Focal Plane Array (FPA), Uncooled Microbolometer
Digital Image Enhancement: Yes
Field of View (FOV): 57° × 44°
Focus: Focus Free
Gallery: Yes
Image Frequency: 8.7 Hz
Image Modes: MSX® (Multi Spectral Dynamic Imaging); Visual With Temperature Reading
IR Resolution: 160 × 120 Pixels
Laser: Class 1 Laser Indicating the Temperature Measurement Area, Button-Activated
Minimum Focus Distance: 0.3 m (0.98 ft)
Minimum Measurement Distance: 0.26 m (0.85 ft)
Spectral Range: 7.5–14 µm
Thermal Sensitivity / NETD: <70 mK
Measurement & Analysis
Accuracy: ±1.5°C (2.7°F) for Temperatures 50°C to 100°C (122°F to 212°F); Up to ±3°C (±5.4°F) for -25°C to 50°C (-13°F to 122°F) and 100°C to 550°C (212°F to 1022°F)
Camera Size (L × W × H): 210 mm × 64 mm × 81 mm (8.3 in × 2.5 in × 3.2 in)
Camera Weight (Battery Included): 0.394 kg (13.9 oz)
Center Spot: Yes
Emissivity Correction: Yes, 4 Preset Levels With Custom Adjustment of 0.1–0.99
Object Temperature Range: -25°C to 550°C (-13°F to 1022°F)
Set-up Commands: Local Adaptation of Units, Language, Date and Time Formats; Screen Brightness (High, Medium, Low); Gallery, Deletion of Images
Spot Meter: Center Spot On/Off
User Interface
Display: 320 × 240 Pixel, 2.4 in Color LCD
Languages: Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish
Power
Battery Charge Life: Minimum 30 Days
Battery Operating Time: 5 Hours Continuous Scanning; 4.5 Hours With Laser On
Battery Type: Rechargeable Li-Ion Battery
Battery Voltage: 3.7 V
Charging System: Battery Charged Inside the Camera
Charging Temperature: 0°C to 45°C (32°F to 113°F)
Charging Time: 4 Hours to 90%, 6 Hours to 100%
Power Management: Adjustable Off, 5 Minutes, 15 Minutes, 30 Minutes
Communication & Data Storage
Image Storage Capacity: 4 GB for Storage of up to 50,000 Pictures
Interface: USB 2.0, Bluetooth
Memory Expansion: NA
Memory Type: Internal
Saved Image Format: JPEG
Storage Media: eMMC 4 GB
USB: USB Type-C (Data Transfer / Power)
USB Standard: USB 2.0 High Speed
Environmental & Certifications
Drop Test: Designed for 2 m (6.6 ft)
EMC: EN 61000-6-3; EN 61000-6-2; FCC 47 CFR Part 15 Class B
Encapsulation: IP54 (IEC 60529)
Humidity (Operating and Storage): 0–90% RH (0–37°C / 32–98.6°F); 0–65% RH (37–45°C / 98.6–113°F); 0–45% RH (45–55°C / 113–131°F)
Operating Temperature Range: Up to 10 min. with flashlight on, -10°C to 90°C (14°F to 194°F) • Up to 2 min. with flashlight on, -10°C to 115°C (14°F to 239°F)
Radio Spectrum: ETSI EN 300 328; FCC Part 15.249; RSS-247 Issue 2; EN 301 489-1:2011; EN 301 489-17:2009
Safety: CE / CB / EN 61010 / UL
Shock: 25 g (IEC 60068-2-27)
Storage Temperature Range: -30°C to 55°C (-22°F to 131°F)
Tripod Mounting: 1/4 in.-20 on Handle Bottom
Vibration: 2 g (IEC 60068-2-6)
Warranty: FLIR 2-10 Warranty
WHAT’S IN THE BOX:
1 x FLIR TG275 Thermal Camera
1 x Wrist Strap Lanyard
1 x USB Type-A to USN C Cable
1 x Pouch
1 x Printed Documentation
1 x Manuals/Guides
