Flir

437-640S95018-6X

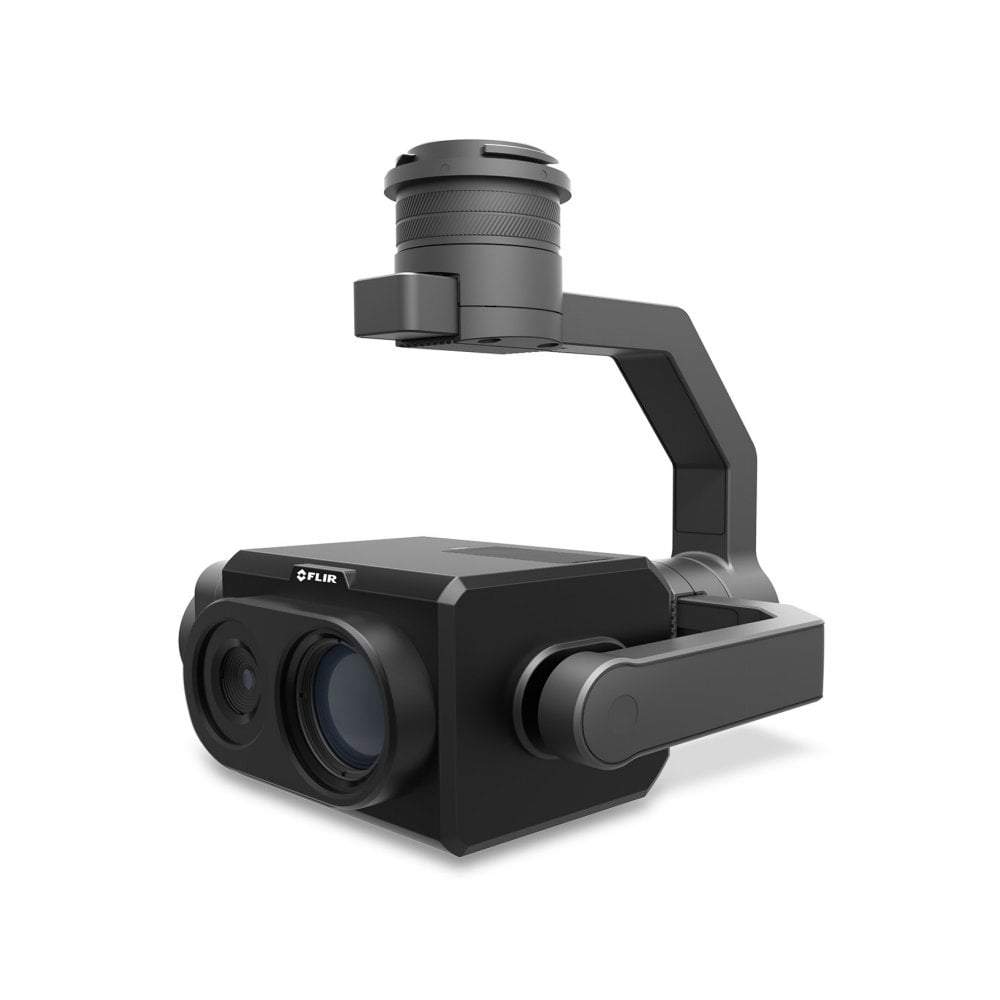

FLIR VUE TZ20

Get Reward Points

Enjoy $20 OFF TODAY with code NEW20

Free shipping over $100. Ships in 2-3 days


  • FLIR Systems VUE TZ20

    Shipping in early October and shipped on a first come first serve basis.

    PRE-ORDER TODAY.

    The FLIR Vue TZ20 Thermal Camera is a powerful tool for public safety and industrial inspection, combining improved image detail with magnification to help assess situations and make critical decisions.

    The FLIR Vue TZ20 is compatible with the DJI M300 VTK and DJI M200 Series V2 and offers a plug-and-play FLIR thermal imaging solution with a wide 95° field of view (FOV) to cover large areas during a single flight, as well as a narrow 18° FOV to instantly put more pixels on target.

    Operators are also able to record in-flight with two included MicroSD cards.

    The DJI Pilot app can be used with the FLIR Vue TZ20.

    The three-axis gimbalised camera has a 20x thermal zoom to provide  acute deep analysis of a particular spot if needed and grasp clear data through the two 640 × 512 non-radiometric Boson cameras and record clear imagery with a full-featured VGA thermal camera module.

    Main Features

    HIGH RESOLUTION DUAL FLIR BOSON CAMERAS

    Factory calibrated, dual 640 × 512 Boson thermal cameras equipped with expandable infrared video streaming at 30 Hz

    READY TO FLY

    Plug and play model quickly connects with Skyport V2.0 gimbal.

    MISSION-READY AERIAL THERMAL IMAGING

    Easy to inspect, search, or explore from the air, VUE TZ20 is ideal for firefighting, SAR, infrastructure thermal imaging and more.

    SEAMLESS INTEGRATION

    Mounted to the DJI M300 VTK and DJI M200 Series V2 , the Zenmuse XT allows professionals to takeoff and capture detailed thermal aerial images in a matter of seconds.

    MAX 20X THERMAL ZOOM

    Features wide field of view to cover large areas in a single flight or narrow in on a target with 2x to 20x zoom for enhanced image detail






    • 1 x FLIR VUE TZ20
  • Dimensions
    Payload: 75 × 70 × 55 mm
    With gimbal: 128 × 154 × 141 mm
    Pixel Pitch
    12 µm LWIR
    Thermal Sensitivity
    85 mK @ F/1.0
    Weight
    640 g
    Zoom
    5x optical (WFOV/NFOV), 4x digital
    Effective zoom: 1x (95°), 2x, 5x, 10x, 20x (4.5°)
    Ground Control
    DJI Pilot App
    Airframe Capability
    DJI V2 Matrice 200-series and Matrice 300
    ELECTRICAL & MECHANICAL
    Mechanical Interface
    Skyport 2.0
    ENVIRONMENTAL & APPROVALS
    Storage
    2 micro SD cards
    Operational & Storage Temperature
    -20 to 45°C (-4 to 113°F)
    Tested EMI Performance
    -20 to 60°C (-4 to 140°F)
    Environmental Sealing
    IP44
    IMAGING & OPTICAL
    Array format
    2 Boson 640 × 512
    Streaming Video
    640 × 512 @ 30 Hz
    IR Camera Optics
    Wide FOV: 95° HFOV, 4.9 mm EFL
    Narrow FOV: 18° HFOV, 24 mm EFL
    METER DATA
    Recording
    Still: TIFF
    Video: MPEG (same as streaming)
    Multipage TIFF: wide and narrow FOV
    POWER
    Electrical Interface
    Skyport 2.0, 13.6 V/4 A
