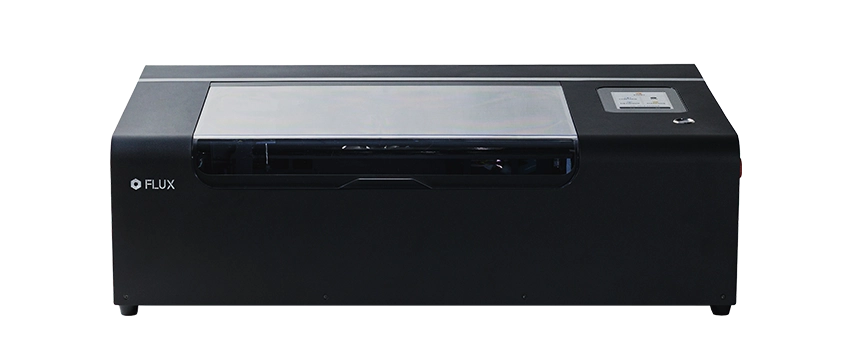

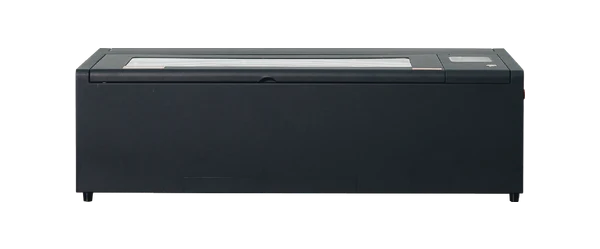

FLUX Beambox II
FLUX Beambox II, 55w upgraded CO2 laser is a game changer, delivering exceptional cutting performance. Effortlessly cut through 20 mm acrylic and 18 mm Japanese cypress—from intricate designs to bold creations, precision is built in.
900mm/s Ultra-Fast Engraving. Triple the Efficiency
Engraving speeds of up to 900mm/s accelerate creation to new heights. The upgrade boosts efficiency by three times, handling intricate patterns and large projects quickly and accurately.
Larger Working Area, Expanded Creative Space

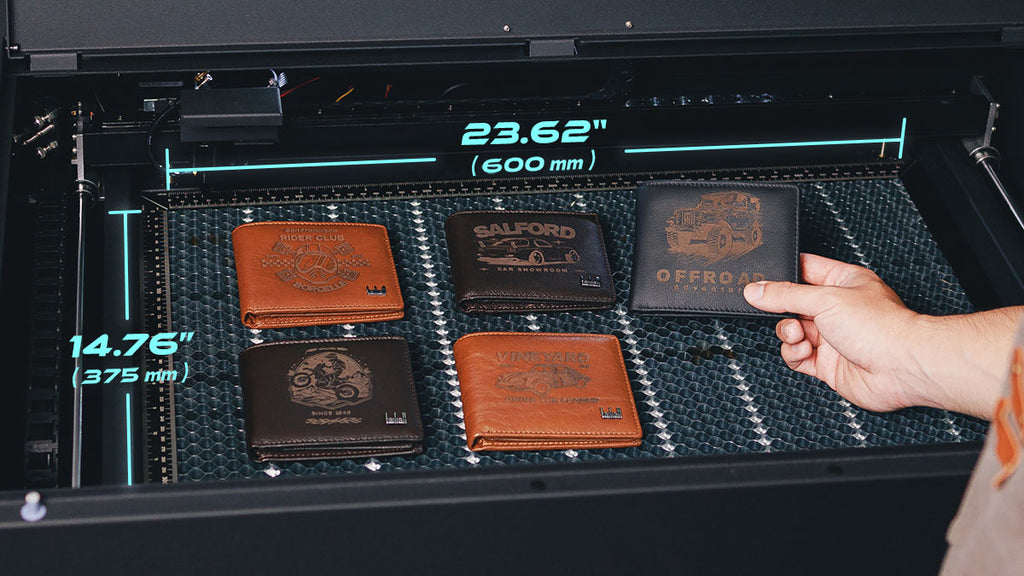

Beambox II features an expanded 23.62 × 14.76 in work area with a depth of 4.92 in, extendable to 8.46 in with the optional bottom tray. Handle larger materials or process multiple items in one go.
Deeper Work Depth. Endless Possibilities

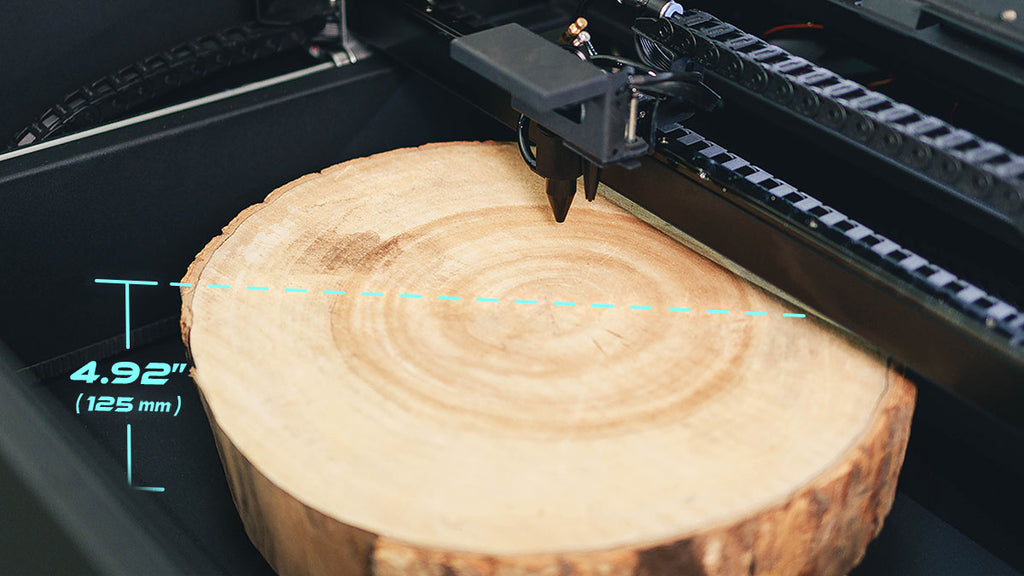

Upgraded from 3.15 to 4.92 in, the deeper work area adds material flexibility. Remove the honeycomb tray to engrave even thicker pieces and unlock new creative possibilities.
Extension Pocket Add-on. Unlock Thicker Possibilities
The Extension Pocket handles thicker materials and supports the Chuck Rotary for cylindrical and varied objects, adding a 15.16 × 8.27 in area and up to 8.46 in of depth. Opening the machine bottom changes the classification to Class 4 and requires the additional protections in the safety guidance.
Passthrough, Beambox II Makes It Happen
Open ends at the front and back let Beambox II handle longer materials with ease. Opening the front or rear passthrough, or the machine bottom, changes the classification to Class 4. Complete operator training and follow the safety SOP, wear compliant laser safety glasses throughout operation, and keep a trained operator continuously present.
Smooth, Smart, and Built for More
Optimize your workflow with the Auto Feeder—seamless handling, precise alignment and continuous production for maximum efficiency.
Effortless Curve Engraving
Designed for curved objects, this feature measures height with red light and dynamically adjusts the Z-axis throughout engraving. Every curve and detail stays precise beyond the limits of a flat surface.
Specifications:
Machine
Size: 39.57 × 27.24 × 13.15 in (1005 × 692 × 334 mm)
Weight: 107 lb (48.5 kg)
Max. engraving speed: 35.43 in/s (900 mm/s)
Max. acceleration: 314.96 in/s² (8000 mm/s²)
Resolution: 1000 DPI
Display: 5 in HD LCD touchscreen
Workflow
Focus mode: Auto Focus
Laser alignment: Camera Preview / Red Light Preview
Camera: 8 MP CMOS
Connectivity: Wi-Fi / USB / Ethernet (USB dongle)
Software: Beam Studio / LightBurn
Operating systems: Windows 10+ / macOS 13+ / Ubuntu 20+ / ChromeOS
Work Area
Bed size: 24.80 × 17.13 in (630 × 435 mm)
Work area: 23.62 × 14.76 in (600 × 375 mm)
Depth without honeycomb: 4.92 in (125 mm)
Depth with honeycomb: 2.36 in (60 mm)
Depth with Extension Pocket: 8.46 in (215 mm)
Extension Pocket area: 15.16 × 8.27 in (385 × 210 mm)
What's in the Box:
1 x Beambox II 55W CO₂ laser cutter/engraver
1 x Honeycomb cutting platform
1 x Power cord
1 x Vent hose
1 x USB cable
1 x Wi-Fi dongle/receiver
1 x Funnel
1 x Clamp
1 x Torx wrench
1 x 2.5 mm hex wrench
1 x 3 mm hex wrench
1 x Double-head wrench
1 x Lubricating oil
1 x Double-sided tape
1 x Test wood piece
1 x A4/letter-size paper
1 x Quick Start Guide
