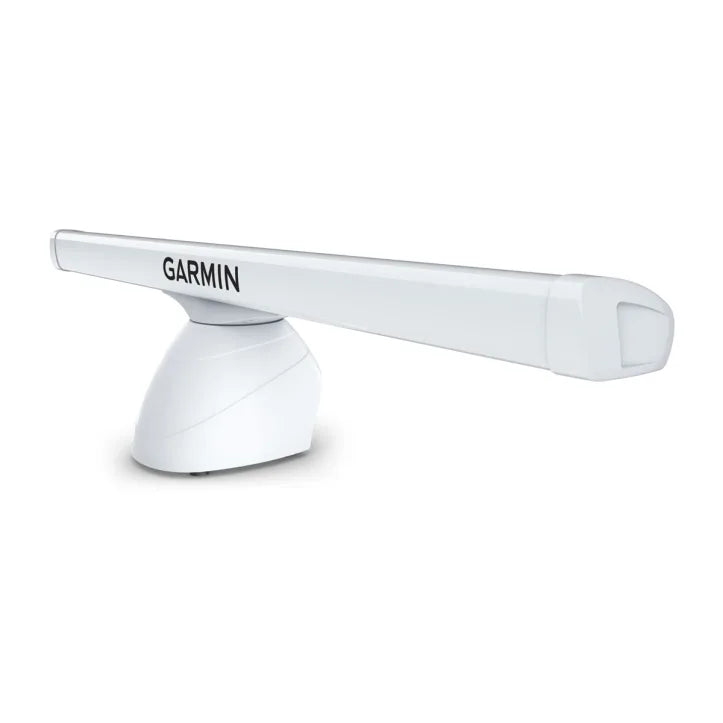

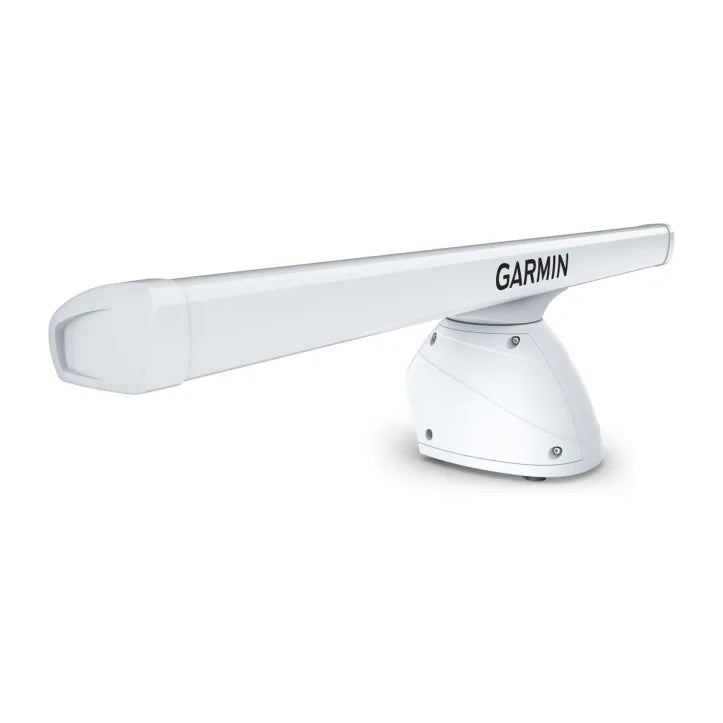

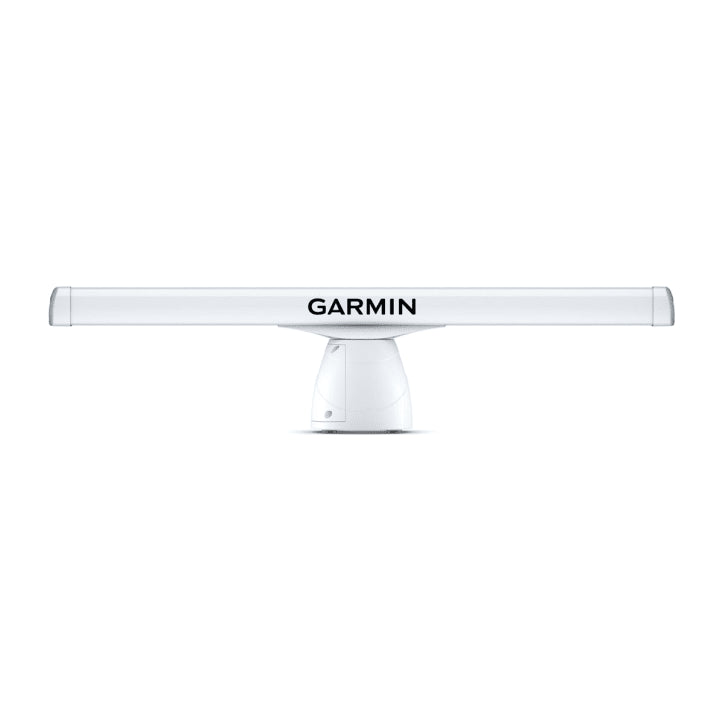

Garmin Kit, GMR 2536 xHD3, Antenna & Pedestal
Garmin introduces the powerful 25kW open array radar and pedestal, the GMR 2536 xHD3, a clever fusion of high-definition imaging and latest Garmin platform technology, perfected to conquer the vast expanse of waters like a pro mariner.
SCAN AVERAGING TECHNOLOGY
Garmin features for the very first time a scan averaging technology that filters out sea clutter and any other interference allowing enhanced detection and display of consistent targets.
HIGH PERFORMANCE ANTENNAS
The 6' open-array radar antennas are 100-knot wind-rated with rotation speeds of 24 and 48 RPM powerful enough to scan max range of up to 96 nautical miles on the 25kW version. (Covers up to 72 nautical miles on the 4 and 12kW versions).
IMPROVED TARGET SIZE PROCESSING
Garmin's pulse expansion and angular target-size processing technology allows for enhanced interpretation of on-screen object shapes.
DUAL RANGE WITH OVERLAY
Garmin's radar is a dual-range scanner with split-screen overlay that provides side-by-side images on your compatible chart plotter with independent setting for both long and close range objects.
Highlights:
- High resolution radar overlay
- Dual radar support to pull data from different sources
- True echo trails to quicky identify moving targets and potential collision threats
- Dynamic auto gain adjusts for harbors, near shore and off shore in open waters
- Dynamic sea filter to negate sea clutter for calm, medium and rough sea conditions
- Auto bird gain to locate flocks and likely baitfish spots
- Marpa target tracking
- Guard zone with alert on breach for added safety
- Variable range markers and electronic bearing lines
Specifications:
Dimension: 76.5 x 4.8 x 6.7 in.
Pedestal: 20.5″ x 12.9″ x 12.4″
Weight: 6’ array and pedestal: 67.02lbs
Water rating: IPX6
Max Wind Load: 100kt
Antenna Length: 72″
Rotation speed (RPM): 24 and 48 rpm
Beam width: 1.1° horizontal, 23° vertical
Maximum range: 96 nm
Minimum range: 20 metres
Radar type: Open-Array
Electrical features
Power Input: 10 - 32 V DC
Power Consumption (standby): 18 W
Typical power consumption, transmitting (normal mode): 70 W
Transmit power: 25 kW
Radar Features
DUAL RANGE: Yes
Overlay: Yes
Dual radar support: Yes
Auto Bird Gain: Yes
Auto Gain: Dynamic
MARPA target tracking: Yes (requires heading sensor, sold separately)
Echo Trails: True
Programmable antenna parking: Yes
Target size: Yes
Scan averaging: Yes
What's in the Box:
1 x GMR xHD3 25 kW open array radar with 6’ antenna
1 x Power cable (15 m/49.21 ft)
1 x Network cable (15 m/49.21 ft)
1 x Mounting hardware kit and template
1 x Installation instructions
