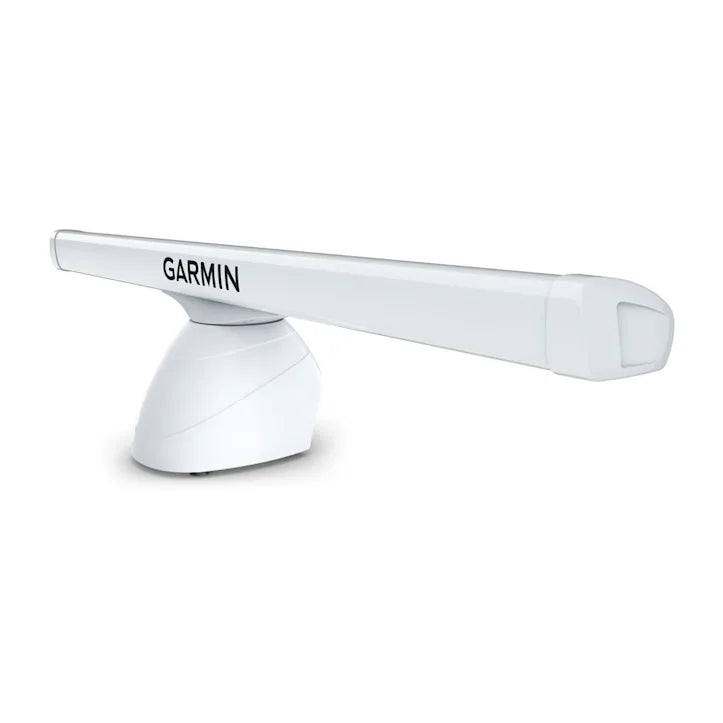

Garmin Kit, GMR 434 xHD3, Antenna & Pedestal
Garmin's GMR 434 XHD3 is a 4' magnetron scanner with Zopen array radar and includes antenna and pedestal, a comprehensive kit that detects weather, obstacles and traffic making your marine expedition a confident experience.
POWERFUL MAGNETRON
A clever fusion of high-definition imaging with Garmin's latest platform technology is custom-made for amateurs and pro alike with a 96-nautical mile max range on 25kW power output.
SCAN AVERAGING TECHNOLOGY
Detect and display consistent targets in crystal clear clarity with Garmin's all new scan averaging technology that filters out sea clutter and interferences.
IMPROVED TARGET-SIZE PROCESSING
GMR 434 allows optimal interpretation of on-screen object shapes at all range scales thanks to Garmin's pulse expansion and angular target-size processing.
HIGH PERFORMANCE ANTENNAS
Garmin's 100-knot wind-rated open array 4' antennas boasts of 24 and 48 RPM speeds covering a max range of up to 96 nautical miles on the 25kW versions and up to 72 nautical miles on the 4 and 12kW versions.
TRUE ECHO TRAILS
Garmin eliminates relative motion influence with historic Echo trails of boats on the water to help identify moving targets and potential collision threats.
Highlights:
- Scan averaging technology
- Split-screen dual-range display
- 100-knot commercial grade wind rating
- Quiet open-array drive motor
- Dynamic auto gain adjusts to harbors, near shore and offshore in open waters
- High-resolution radar
- Marpa target tracking
- Guard zone with alert on breach
- Variable range markers and electronic bearing lines
Specifications:
Dimension: 52.2 x 4.8 x 6.7 in.
Pedestal: 20.5″ x 12.9″ x 12.4″
Weight: 4’ array and pedestal: 65.25lbs
Water rating: IPX6
Max Wind Load: 80kt (100kt with optional voltage converter upgrade)
Antenna Length: 48″
Rotation speed (RPM): 24 and 48 rpm
Beam width: 1.8° horizontal, 23° vertical
Maximum range: 72 nm
Minimum range: 20 metres
Radar type: Open-Array
Electrical features
Power Input: 11 - 32 V DC
Power Consumption (standby): 18 W
Typical power consumption, transmitting (normal mode): 55 W
Transmit power: 4 kW
Radar Features
DUAL RANGE: Yes
Overlay: Yes
Dual radar support: Yes
Auto Bird Gain: Yes
Auto Gain: Dynamic
MARPA target tracking: Yes (requires heading sensor, sold separately)
Echo Trails: True
Programmable antenna parking:
Target size: Yes
Scan averaging: Yes
What's in the Box:
1 x GMR xHD3 4 kW open array radar with 4’ antenna
1 x Power cable (15 m/49.21 ft)
1 x Network cable (15 m/49.21 ft)
1 x Mounting hardware kit and template
1 x Installation instructions
