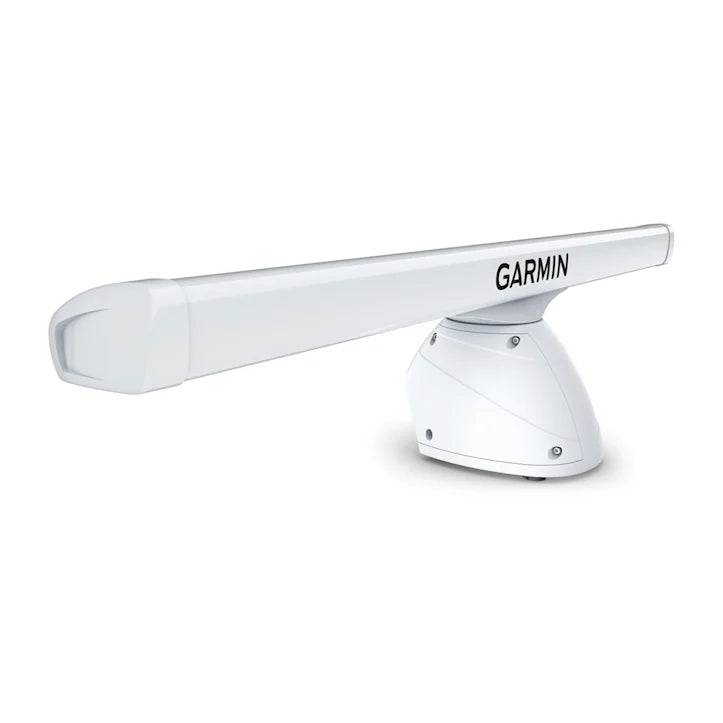

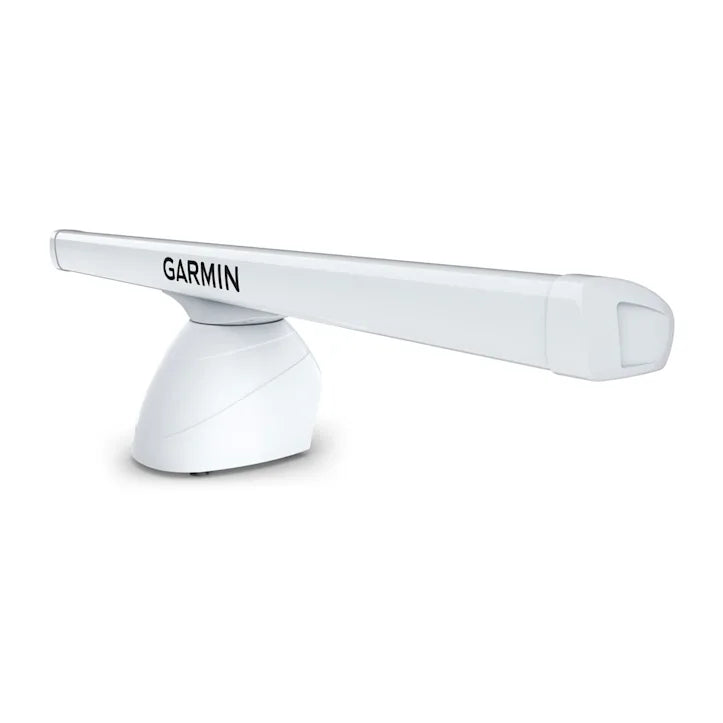

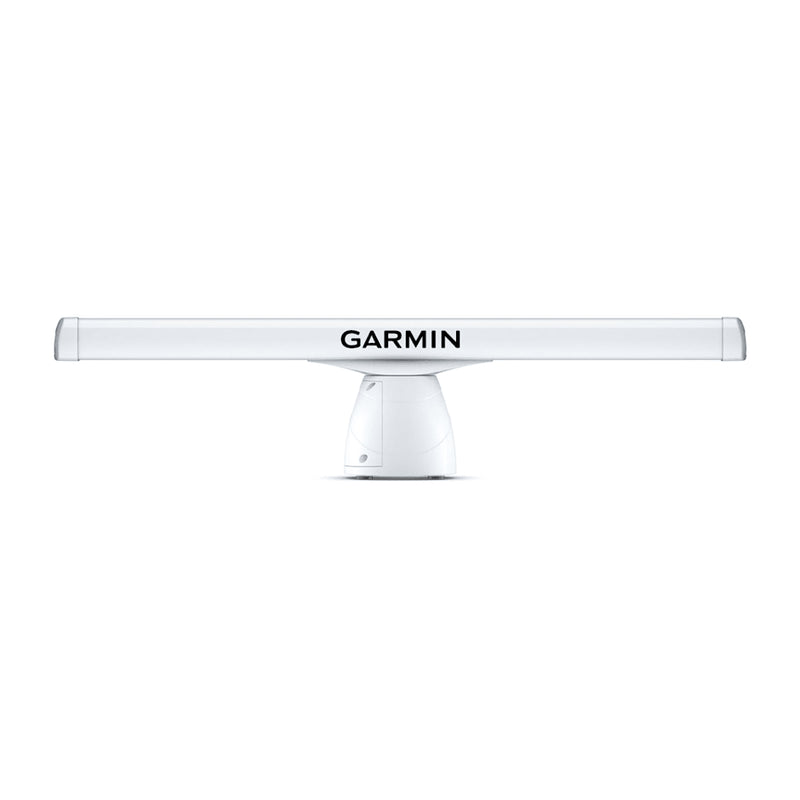

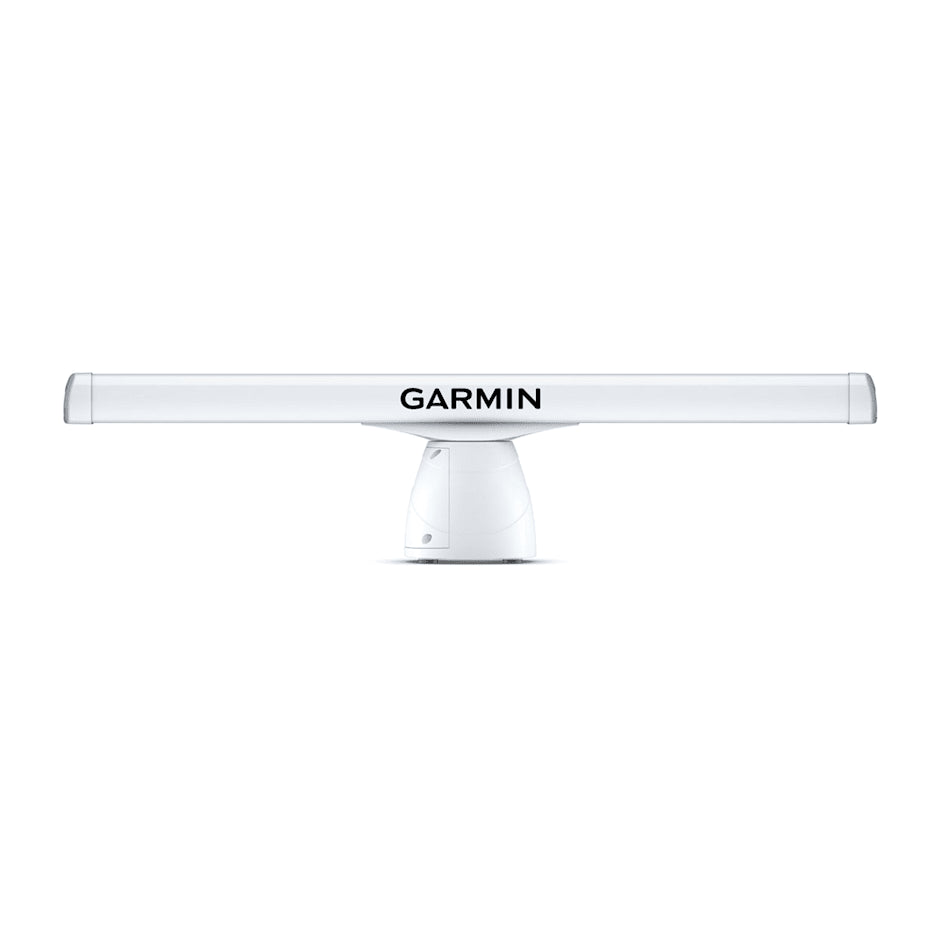

Garmin Kit, GMR 436 xHD3, Antenna & Pedestal
The penultimate radar kit from Garmin, GMR 436 xHD3, a 6' open array radar with powerful magnetron scanner complete with antenna and pedestal that combines high definition imaging, custom-made for pro mariners and amateurs like us to cruise and fish offshore.
POWERFUL MAGNETRON
Scanning a whopping 96-nautical mile range, the 4, 12 or 25KW output offers superior weather, obstacle and traffic detection with true echo trails to identify moving targets and potential collision threats.
SCAN AVERAGING TECHNOLOGY
Garmin GMR 436 boasts of the all new scan averaging tech for its magnetron radar that filters out unwanted sea clutter and any interferences to enhance detection and display of targets.
HIGH PERFORMANCE ANTENNAS
The Garmin Kit comes with 100-knot wind-rated open-array antennas with rotation speeds of 24 and 48 RPMs that can scan up to 72 nautical miles on the 4 and 12 KW versions and up to 96 nautical miles on the 25KW version.
IMPROVED TARGET SIZE ADJUSTMENT
Efficiently interpret on-screen object shapes with pulse expansion and angular target size processing techniques at all range scales.
Highlights:
- New scan averaging technology
- 100-knot commercial grade wind rating
- Quiet open-array drive motor
- Dual range with overlay
- Dynamic auto gain adjusts settings to harbors, near and off shore in open waters
- High-resolution, dual-radar support
- Dynamic sea filter
- Auto Bird Gain
- Marpa Target Tracking
- Customized Guard zone with trigger alarm for breach alerts
- Variable range markers and electronic bearing lines
Specifications:
Dimension: 76.5″ x 4.8″ x 6.7"
Pedestal: 20.5″ x 12.9″ x 12.4″
Weight: 6’ array and pedestal: 65.25lbs
Water rating: IPX6
Max Wind Load: 80kt (100kt with optional voltage converter upgrade)
Antenna Length: 72″
Rotation speed (RPM): 24 and 48 rpm
Beam width: 1.1° horizontal, 23° vertical
Maximum range: 72 nm
Minimum range: 20 metres
Radar type: Open-Array
Electrical features
Power Input: 11 - 32 V DC
Power Consumption (standby): 18 W
Typical power consumption, transmitting (normal mode): 55 W
Transmit power: 4 kW
Radar Features
DUAL RANGE: Yes
Overlay: Yes
Dual radar support: Yes
Auto Bird Gain: Yes
Auto Gain: Dynamic
MARPA target tracking: Yes (requires heading sensor, sold separately)
Echo Trails: True
Programmable antenna parking:
Target size: Yes
Scan averaging: Yes
What's in the Box:
1 x GMR xHD3 4 kW open array radar with 6’ antenna
1 x Power cable (15 m/49.21 ft)
1 x Network cable (15 m/49.21 ft)
1 x Mounting hardware kit and template
1 x Installation instructions
