Garmin MS-RA60K1SPG,Fusion,Kit, MS-RA60+EL-F653SPG+Suncover+Antenna

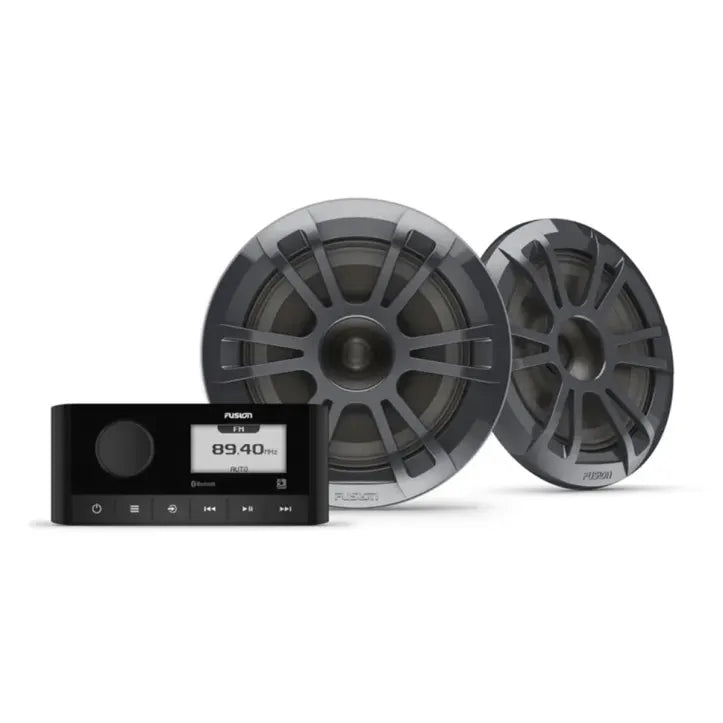

Garmin MS-RA60K1SPG is a sporty sound system perfected for your boat trails, a curated kit with Fusion MS-RA60 marine stereo and EL series F653SPG sports speaker with Fusion stealth antenna and sun cover, to pep your musical sojourn even to the deepest ends of the ocean.
Ready-to-install kit, the marine stereo and speakers hook on to your compatible Garmin MFD, smart device or Garmin watch to play the perfect soundtrack right out of the box. Enjoy deeper bass to precise tenors with the built-in Class D amplifier.
Our multi-zone technology lets you captain two individual audio zones in one go, adding an orchestrator cap to your attire. While you can update the software via Bluetooth from Fusion audio app, die-hard music lovers and grow this Fusion kit to include compatible Fusion speakers, subwoofers and amplifiers to create an ethereal concert right on the watery expanse.
Specifications:
Physical dimensions (H x W x D): MS-RA60: 2.68" x 6.18" x 4.06"
Weight: MS-RA60: 11.1 oz
Water rating: IPX6 and IPX7 (front panel only, when properly installed)
Power input: 10.8-16 VDC
Operating temperature range: 32° to 122° F (0° to 50° C)
Current (max.): 15 A
BLUETOOTH® wireless range: Up to 30 ft (10 meters)
ANT wireless range: Up to 10 ft (3 meters)
Wireless frequencies/protocols: BLUETOOTH 2.4 GHz @ +12 dBm nominal
ANT 2.4 GHz @ +7 dBm nominal
Compass-safe distance: 5.9" (150 mm)

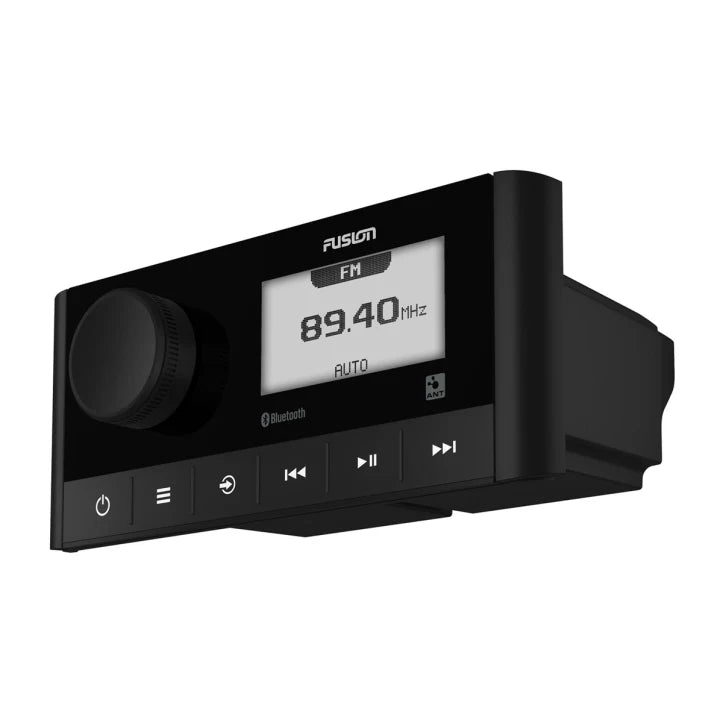

Display: MS-RA60: 2.3" perimeter bonded monochrome dot matrix LCD
Built-in amplifier: Class-D (minimum 4 ohm impedance)
Peak power: MS-RA210: 200 W
Rated power output (4 ohm): MS-RA60: 22 W rms x 4 @ 14.4 V input < 10% THD
Fusion-Link™ control: MS-RA60: yes (with smartphone and Garmin watch)
Multi-Zone™ technology: 2 zones
BLUETOOTH wireless technology: yes
ANT wireless technology: yes
DAB+ ready: MS-RA60: yes (DAB tuner built in)
Multi-language interface: MS-RA60: Dutch, English, French, German, Italian, Spanish
Software updates: MS-RA60: Over-the-air software updates via BLUETOOTH wireless technology using the Fusion-Link app
Warranty: 1 year
Sources: MS-RA60: AM/FM/BLUETOOTH/AUX x1/DAB+ (available in Europe and Australia only)
Auxiliary input: One RCA input (AUX)
AM/FM radio: One Motorola antenna connector port
Speaker: MS-RA60: 4 speaker connections (2 zone amplified)
RCA pre-out (left, right and subwoofer): MS-RA60: 1 zone (requires external amplification)
Line out: MS-RA60: Zone 1 (L + R, requires external amplification)
Subwoofer out: MS-RA60: Zone 1 (requires external amplification)

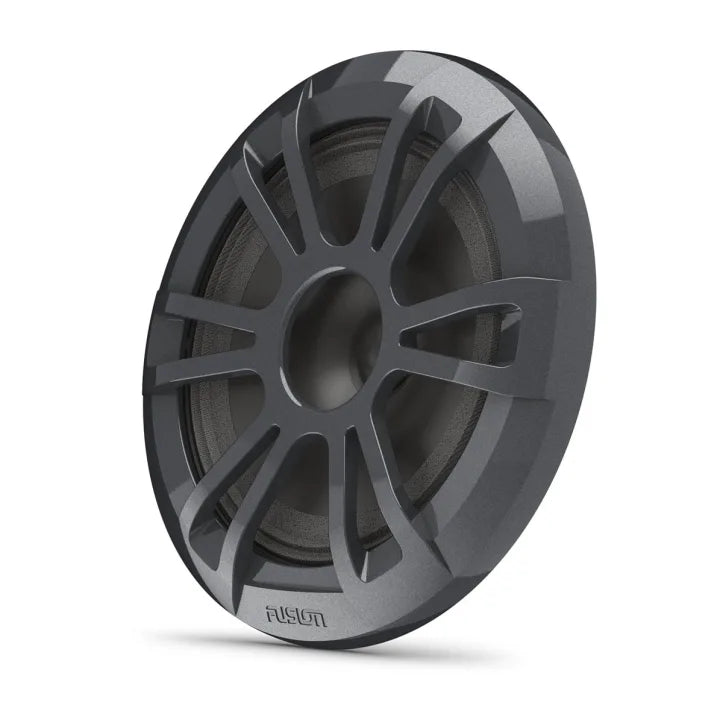

Speaker
Dimensions (Diameter x Depth) EL Sports Speaker: 6.93" x 2.32"
Water rating: IP65
Configuration EL Speaker: Full range
Speaker size: 6.5"
Peak power (watts): EL Speaker: 80 W
RMS Power (watts): EL Speaker: 20 W
Sensitivity (1 watt/1 meter): EL Speaker: 88 dB
Frequency response: EL Speaker: 45 Hz-16 kHz
Nominal impedance: 4 ohm
Recommended amplifier power (RMS): EL Speaker: 20-40 W/Ch
Operating temperature range: 32° to 122° F (0° to 50° C)
Voice coil diameter: EL Speaker: 0.79"
Cone material: Polypropylene cone with cloth surround
Tweeter type XS Speaker: Aluminum dome
Compass-safe distance: EL Speaker: 100" (254 cm)
Warranty: EL Speaker: 1 year
Mounting diameter clearance: EL Speaker: 5.12" (130 mm)
Mounting depth clearance: EL Speaker: 1.69" (43 mm)
What's in the Box:
1 x MS-RA60 marine stereo

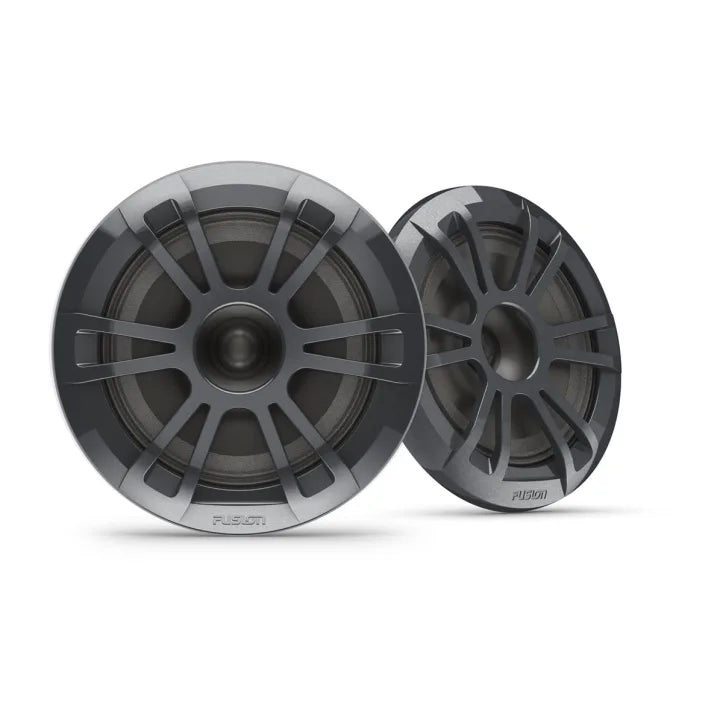

1 x One pair of EL Series sports gray marine speakers

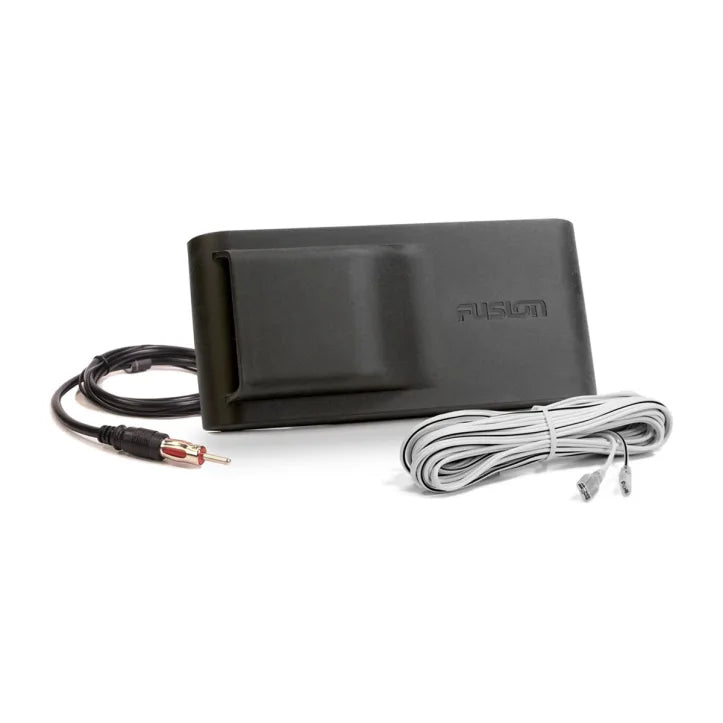

1 x AM/FM stealth antenna
1 x Two 19 ft (6 meter) speaker wires
1 x Dust cover
1 x Mounting gasket
1 x Four 6-gauge, self-tapping screws
1 x Two screw covers
1 x Power and speaker wiring harness
1 x Auxiliary-in, line-out, and subwoofer-out wiring harnesses
12 x Phillips stainless steel mounting screws (4.2 mm x 25.4 mm (8 gauge x 1”))
