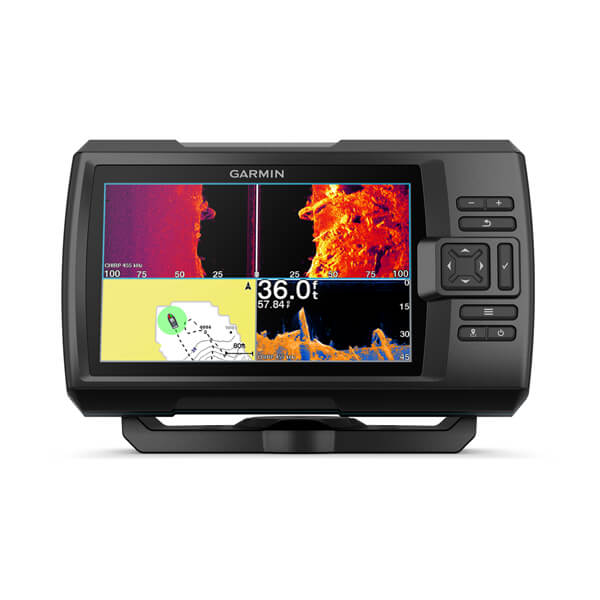

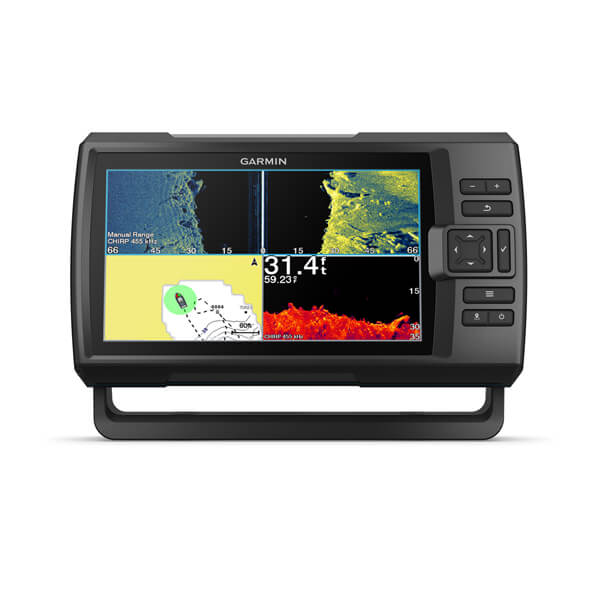

Garmin Striker Vivid GPS Fish Finder

Cash Back Rewards: $12.00
Display Size

Free shipping. Ships in 2-3 days


The Striker Vivid 9sv GPS fish finder is a fisherman’s delight to use. With the exceptional data availability, and new ways to see what is beneath the surface and to the sides of your boat, the Striker Vivid has 7 new vivid color options that present the view in maximum contrast and clarity on your 9” fishfinder.

Built-in transducer, waypoint marking to mark hotspots to find way back, high-sensitivity GPS, quickdraw contours, Wi-Fi connectivity, and a tilt/swivel mount plus transom and trolling motor mounting hardware and cable facilities in the Striker Vivid 9sv marks for a great fishing expedition.


Physical dimensions: 11.1” x 6.5” x 2.4” (28.2 x 16.5 x 6.0 cm)

Display resolution: 800 x 480 pixels

Display type: WVGA color

Weight: 2.4 lbs (1.1 kg)

Water Rating:IPX7

Transmit Power: 500 W (RMS)

Sonar Features & Specifications:

Dual-frequency (50/200 khz) sonar capable: Yes

Dual-beam (77/200 khz) sonar capable: Yes

Frequencies supported: Traditional: 50/77/200 kHz

CHIRP (mid and high)

ClearVü and SideVü 260/455/800 kHz

Bottom lock (shows return from the bottom up): Yes

Water temperature log and graph: Yes

Fishfinder Features:

Split-screen zoom: Yes

Ultrascroll® (displays fish targets at higher boat speeds): Yes

Fish symbol ID (helps identify fish targets): Yes

Autogain technology (minimizes clutter, maximizes targets): Yes

Adjustable depth line (measures depth of underwater objects): Yes

A-Scope (real time display of fish passing through transducer beam): Yes

Water temperature sensor included: Yes


One 4-pin transducer port

One 4-pin SideVü transducer port

Wireless Connectivity: Yes

Quickdraw Contours

Integrated GPS

Mark Waypoints

Course over Ground (COG)

Current draw @ 12V: 0.75A

Waypoints: 5,000

Track Log: 50,000 points; 50 saved tracks

Routes: 100


1x STRIKER Vivid 9sv fishfinder

1x GT52HW-TM transducer

1x Power/data cable

1x 12-pin to dual 4-pin transducer adapter cable

1x Tilt mount

1x Hardware

1x Garmin bumper sticker

1x Documentation
