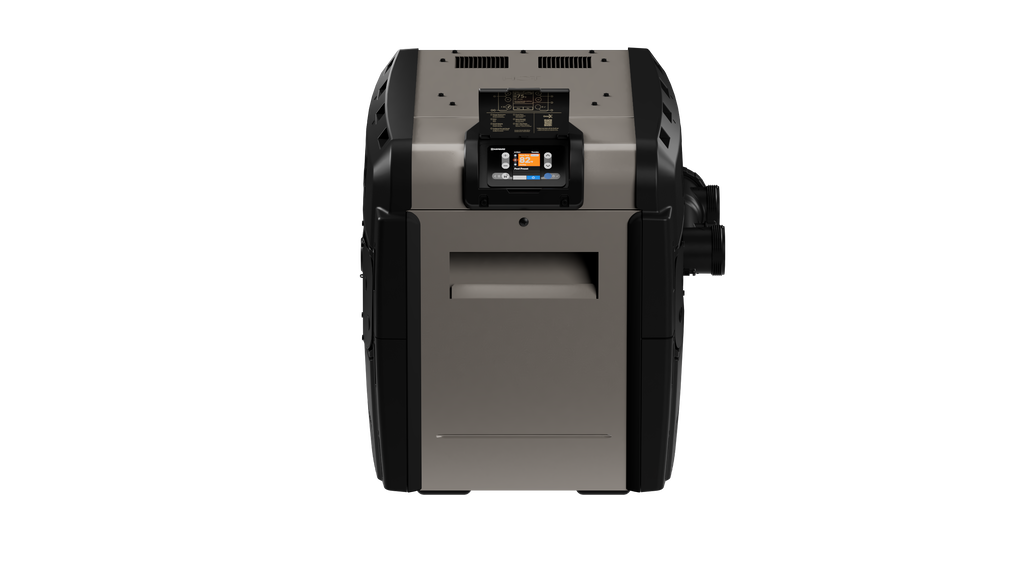

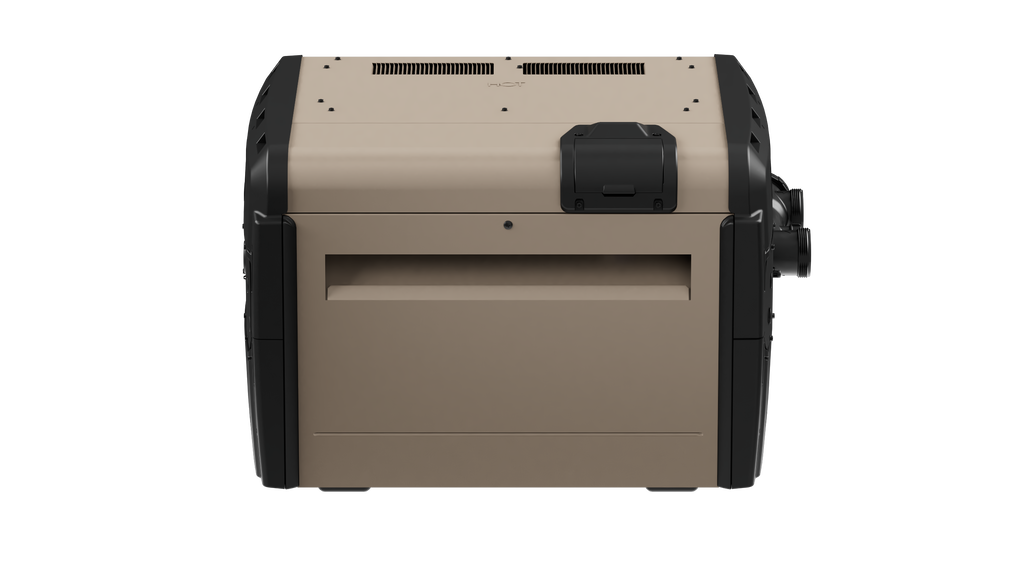

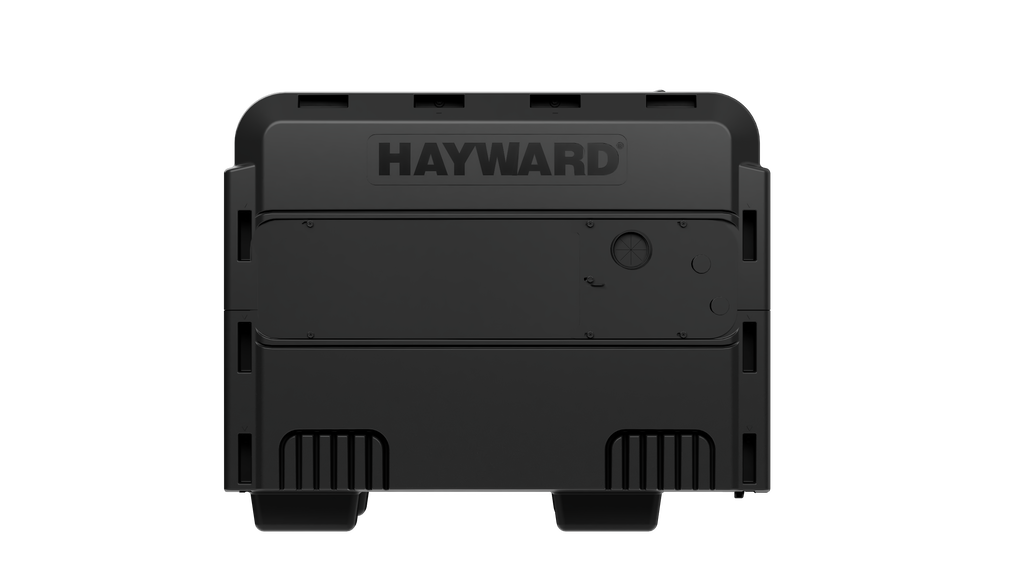

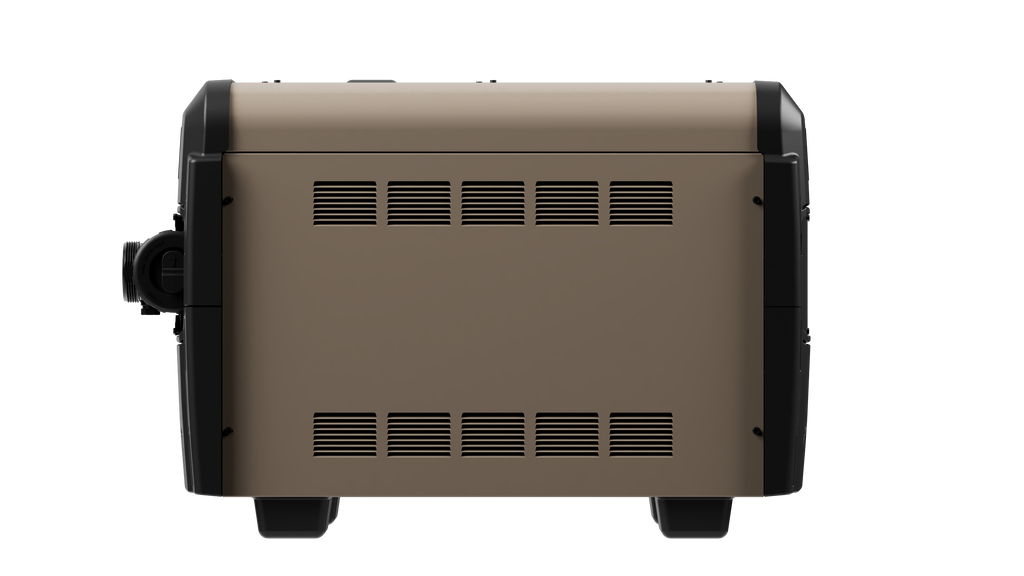

HAYWARD Universal H-Series Above-Ground Natural Gas Heater Low NOx
The Universal H-Series is an energy efficient, high performance, installation adaptable commitment to the pool service professional.
Hayward Universal H-Series gas heaters are the “universal” energy efficient remedy for any new or existing pool or spa. An industry-leading hydraulic design reduces circulation pump run time to provide energy savings of up to 18% when compared to less efficient competitors. The energy efficiency of the Universal H-Series gas heater combines with environmentally friendly low NOx emissions, a standard cupro nickel heat exchanger, and ultimate installation flexibility to responsibly heat a pool or spa today and for years to come.
Features and Benefits:
- Standard cupro nickel heat exchanger
- Excellent salt water and chemical corrosion resistance
- Exclusive "Totally Managed" cupro nickel heat exchanger water flow
- Same water velocity through all tubes for faster heating
- Patented header by-pass design
- Reduction in pump run-time results in significant cost savings

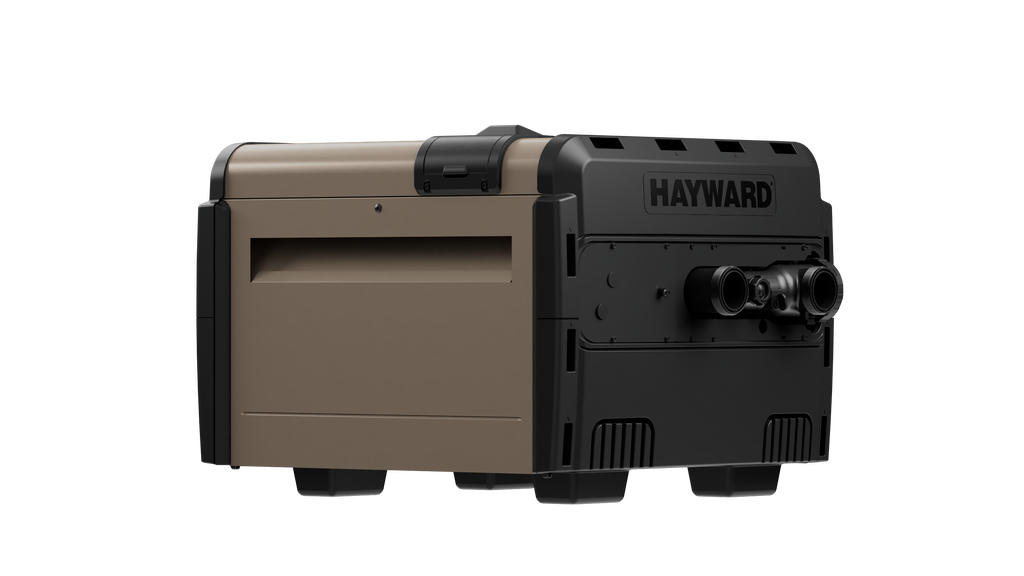

- 2" x 2 1/2" CPVC union plumbing connections
- Forced draft system constantly moves air through the combustion chamber at a precise flow rate, eliminating the need for a high-wind stack
- Low NOx emissions - meets clean air quality standards
Specifications:
| Specifications |
135 000 BTU |
150 000 BTU |
200 000 BTU |
250 000 BTU |
400 000 BTU |
| Active Defrost |
No |
No |
No |
No |
No |
| Application |
|
New Construction, Aftermarket |
New Construction, Renovation |
New Construction, Renovation |
New Construction, Renovation |
| Boost Mode |
No |
No |
No |
No |
No |
| Brand |
Hayward |
Hayward |
Hayward |
Hayward |
Hayward |
| Channel |
Open Line |
Open Line |
Open Line |
Open Line |
Open Line |
| Circuit Amps |
5.5 |
5.5 |
5.5 |
5.5 |
5.5 |
| Compressor Speed |
N/A |
N/A |
N/A |
N/A |
N/A |
| Cooling Capability |
No |
No |
No |
No |
No |
| Fuel Type |
Natural Gas (NA) |
Natural Gas (NA) |
Natural Gas (NA) |
Natural Gas (NA) |
Natural Gas (NA) |
| Heating Capacity (BTU/hr) |
1,35,000 |
1,50,000 |
2,00,000 |
2,50,000 |
4,00,000 |
| Hertz - Heaters |
60 Hz |
60 Hz |
60 Hz |
60 Hz |
60 Hz |
| Kilowatts |
40 kW |
44 kW |
59 kW |
73 kW |
117 kW |
| Labor Warranty |
None |
None |
None |
None |
None |
| Low Ambient Operation |
Yes |
Yes |
Yes |
Yes |
Yes |
| Master Carton Qty |
1 |
1 |
1 |
1 |
1 |
| Maximum Breaker Size (Amps) |
15 |
15 |
15 |
15 |
15 |
| Pallet Qty |
1 |
1 |
1 |
1 |
1 |
| Parts Warranty |
1-year |
1-year |
1-year |
1-year |
1-year |
| Phase Heaters |
1 |
1 |
1 |
1 |
1 |
| Pool Type |
Above Ground |
In Ground |
In Ground |
In Ground |
In Ground |
| Rear Clearance - Heaters |
6" |
6" |
6" |
6" |
6" |
| Refrigerant |
Yes |
No |
No |
No |
No |
| Series Heaters |
OmniX |
OmniX |
OmniX |
OmniX |
OmniX |
| Shipping Dimensions |
30.6 " x 32.8 " x 33.3 " |
30.6 " x 32.8 " x 33.3 " |
30.6 " x 32.8 " x 33.3 " |
30.6 " x 32.8 " x 33.3 " |
30.6 " x 32.8 " x 39.5 " |
| Shipping Weight |
129 lb |
129 lb |
144 lb |
170.5 lb |
213.5 lb |
| Side Clearance - Heaters |
12" |
12" |
12" |
12" |
12" |
| Silent Mode |
No |
No |
No |
No |
No |
| Voltage - Heaters |
120V |
120/240V |
120/240V |
120/240V |
120/240V |
What's in the Box:
1 x Universal H-Series Heater Unit (Natural Gas)

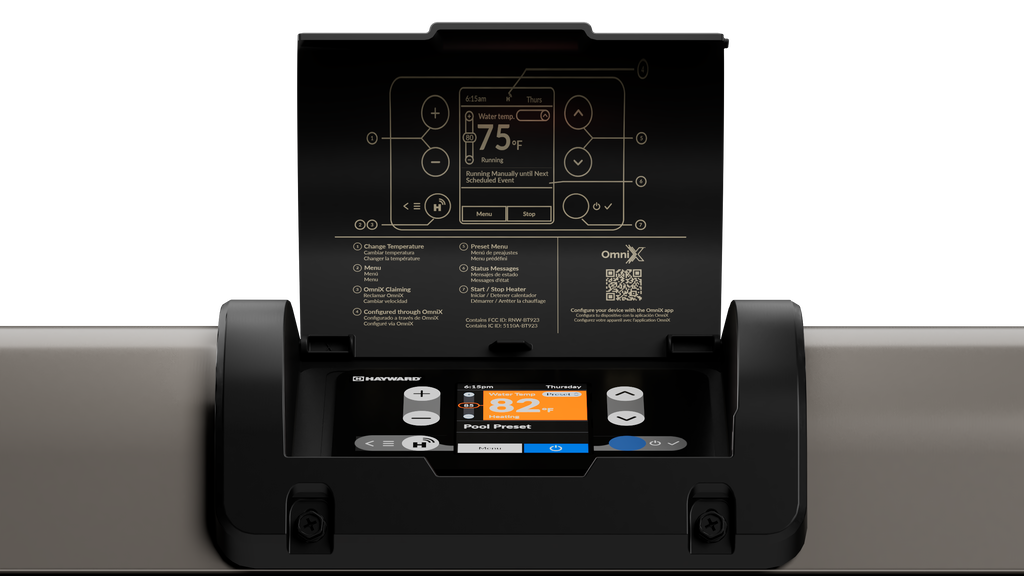

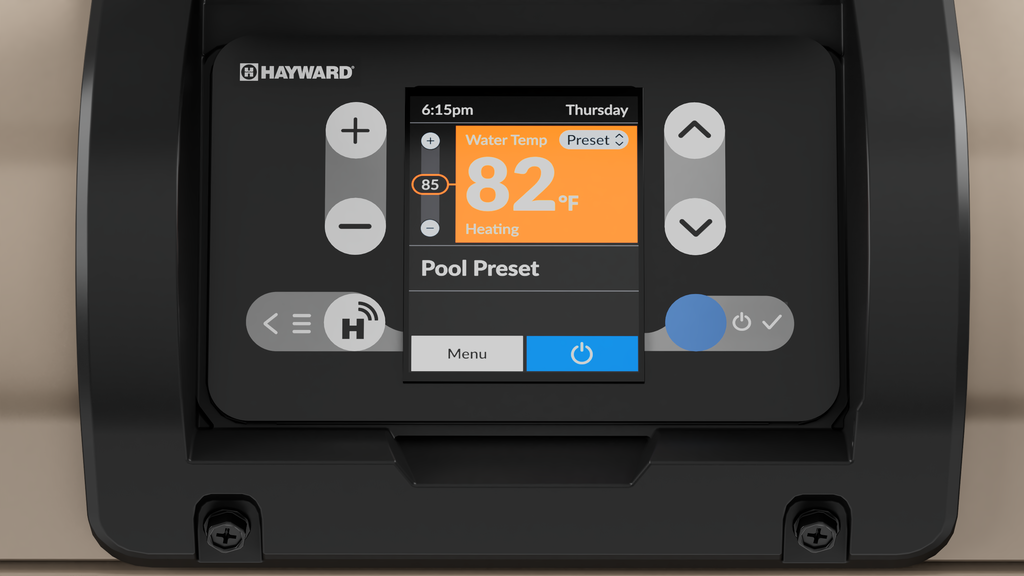

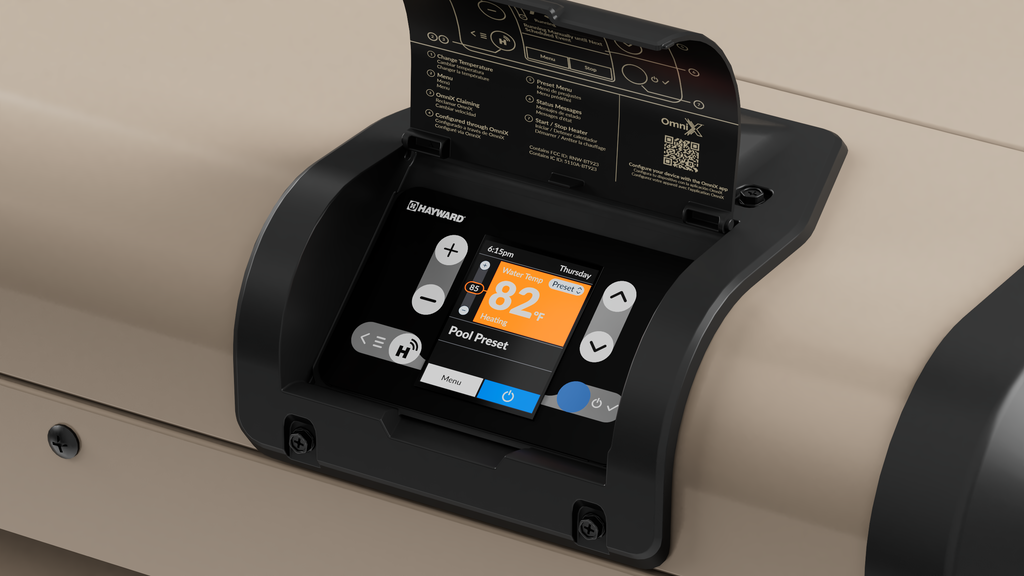

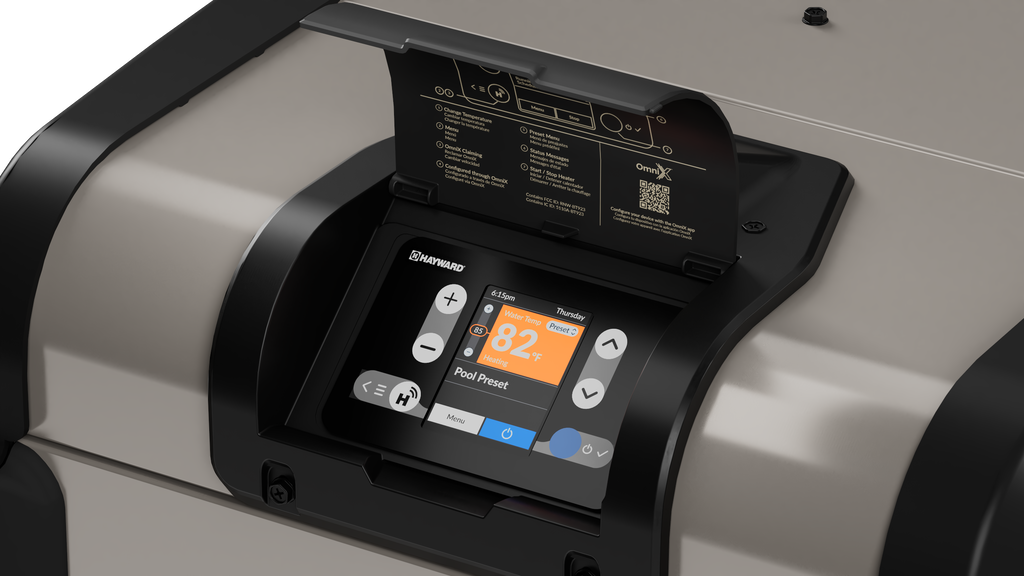

1 x Built-in Digital Control Panel (OmniX-enabled)
1 x OmniX Smart Control System (integrated)
1 x Cupro-Nickel Heat Exchanger (pre-installed)
1 x Gas Valve & Burner Assembly (factory installed)
1 x Water Connection Ports (2” / 2.5”)
1 x Electrical Connection Components / Terminal Block
1 x Drain Valve / Plug Assembly
1 x Front Access Panel (pre-installed)
1 x Owner’s Manual & Installation Guide
