Name: HDMI ARC & S/PDIF Audio Extender Up To 150m using CAT 6/7 (ARC-EX300-K)
Brand: OREI
SKU: ARC-EX300-K
Price: 69.99 USD
Availability: InStock

HDMI ARC & S/PDIF Audio Extender Up To 150m using CAT 6/7 (ARC-EX300-K)

Roll over image to zoom in Click on image to zoom

Free Shipping. Ships in 1-3 Days

This item qualifies for 2% Cashback

ARC-EX300-K: HDMI ARC & S/PDIF Audio Extender Up To 150m using CAT 6/7

Key Features:

Extends HDMI ARC signals up to 495 feet (96kHz) or 295 Feet (192kHz) over a single CAT 6/7 cable
Extends S/PDIF audio signal up to a distance of 150m/495ft (96kHz)
Supports PCM 2.0ch, Dolby 5.1ch, DTS 5.1ch audio formats
CEC pass-through (when ARC is enabled)
Utilizes an ultra-low jitter design to minimize audio distortion
Robust and small design and plug-and-play setup

The ARC-EX300-K can transmit HDMI ARC and S/PDIF audio signals up to a distance of 150m/492ft (96kHz) or 90m/295ft (192kHz) over a single CAT cable. CEC pass-through between HDMI ARC input port and ARC output port. For TVs without an ARC port, the extender provides an independent S/PDIF audio pass-through channel to transmit S/PDIF audio from the S/PDIF IN port on the Transmitter to the S/PDIF OUT port on the Receiver. This is a fantastic plug-and-play solution for sending HDMI ARC and S/PDIF audio from a TV back to an amplifier, AVR, or a multi-room audio system.

[shortdes]

Extends HDMI ARC signals up to 495 feet (96kHz) or 295 Feet (192kHz)
Extends S/PDIF audio signal up to a distance of 150m/495ft (96kHz)
CEC pass-through when HDMI ARC mode is enabled

[/shortdes]

[tab]

CONNECTIVITY

Transmitter:	INPUT:	1 × S/PDIF [Optical Audio Jack]
		1 × HDMI [Type A, 19-pin female]
		1 × DC 5V [Micro-USB]
	OUTPUT:	1 × CAT OUT [RJ45]
Receiver:	INPUT:	1 × CAT IN [RJ45]
		1 × DC 5V [Micro-USB]
	OUTPUT:	1 × S/PDIF [Optical Audio Jack]
		1 × HDMI [Type A, 19-pin female]

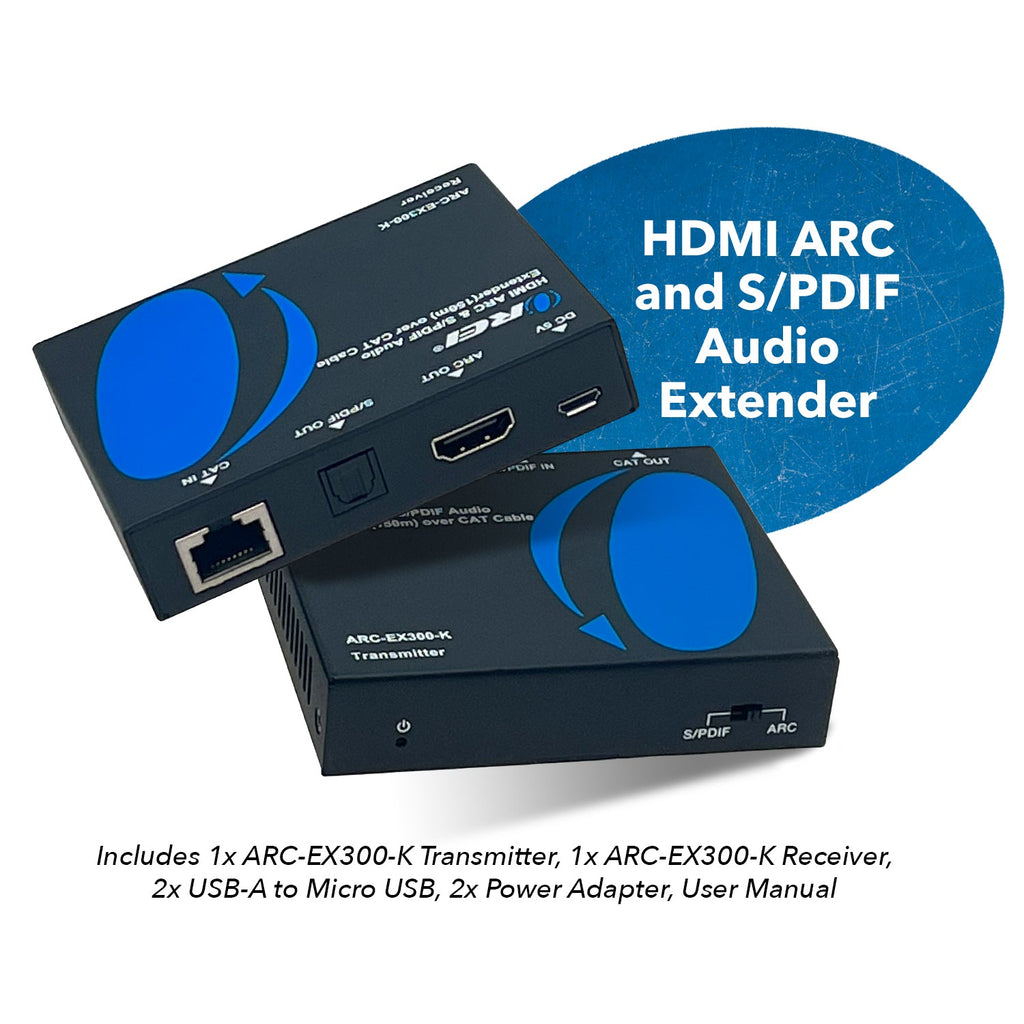

PACKAGE CONTENTS

1x Transmitter

1x Receiver

2x USB Cable (USB-A to Micro USB)

2x Power Adapter

User Manual

SUPPORTED CAT CABLES

CAT5e, CAT6, CAT7:

We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance

EXTENDING DISTANCE

ARC audio:	495Ft - 96kHz / 295 - 192kHz
S/PDIF audio:	495Ft - 96kHz

ADDITIONAL FEATURES

CEC:	No
ARC:	Yes
USB KVM:	No
PoC/PoE:	No
IR Control:	No
Downmix:	No
Downscale:	No
Over IP:	No
HDBaseT:	No
RS-232:	No

AUDIO SUPPORT

HDMI and Optical Audio Formats:

PCM 2.0ch, Dolby 5.1ch, DTS 5.1ch

COMPLIANCES

HDMI Compliance	HDMI 2.0
HDCP Compliance	HDCP 2.2

POWER

Power Consumption:	Transmitter: 0.35W / Receiver: 0.7W
Power Supply:	Input: AC 100-240V 50/60Hz
	Output: DC 5V/1A

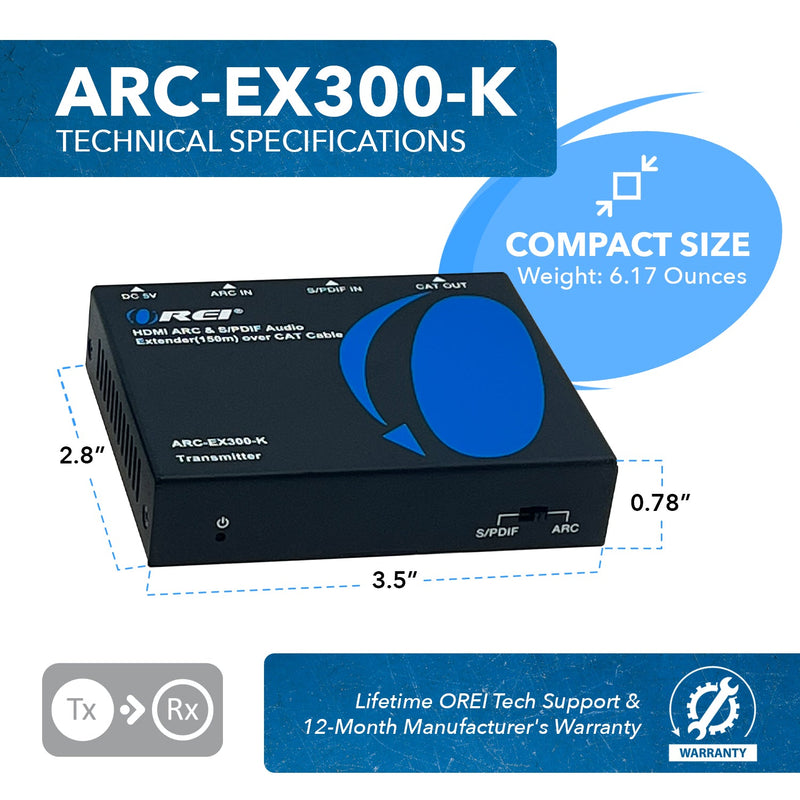

DIMENSIONS & WEIGHT

Transmitter:	Length:	90mm / 3.54in
	Width:	72mm / 2.84in
	Height:	20mm / 0.79n
	Weight:	175g / 6.17oz
Receiver:	Length:	90mm / 3.54in
	Width:	72mm / 2.84in
	Height:	20mm / 0.79n
	Weight:	175g / 6.17oz

PROPERTIES

Color:	Black
Housing:	Metal Enclosure

WARRANTY

1-Year Manufacturer's Warranty

[/tab]

[tab1]

FAQs

Yes, you can purchase these things directly from us. Please contact us & we will assist you further.

No, this product doesn not extend multiple screens. It will duplicate the input sources to multple outputs.

Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.

Yes, you can implement the daisy chain method.

Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.

We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.

Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.

Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.

No, this product doesn't upscale/downscale the video resolutions.

You can extend the display devices up to 400 Feet when using with a shielded CAT6 cable.

The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.

If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.

Please contact us so that we can troubleshoot the issue.

You can upgrade the firmware by connecting the PC & this device via RS-232 cable.

Please note that this product only supports the CEC function between HDMI input & HDMI output 1.

No, optical output doesn't supports CEC due to its limitations. CEC will work only with HDMI devices.

HDBaseT is the technology used for long distance transmission of lossless signals, resulting extremely low latency & giving the best picture quality.

In normal extenders, if you extend your signals up to some extend, the quality of the signals will degrade & you may find some latency issues. HDBaseT is the lastest standard which provides extending your signals to the longer distance without degrading the quality of the signals & with 0 latency.

We recommend you using a shielded CAT6 cables for optimum performance.

Our all the extenders supports IR Frequency & the devices using RF frequency will not be compatible with our products.

The IR Blaster/Emitter should be connected to the IR out port on the Transmitter and the IR Receiver should be connected to the IR in on the Receiver.

Here's a quick overview of the IR connection on our extenders: IR Blaster Explained | Use IR with HDMI Extender Kit - Remote Control
