- Essential power management for IF800 TOMCAT
- Intelligent batteries with internal brain for health maintenance
- Safety features include storage discharge and over-discharge prevention
- Hot-swappable with NFC chip for quick health checks
- Engineered for internal cell balancing and cycle tracking
- Direct communication with the drone for comprehensive status updates

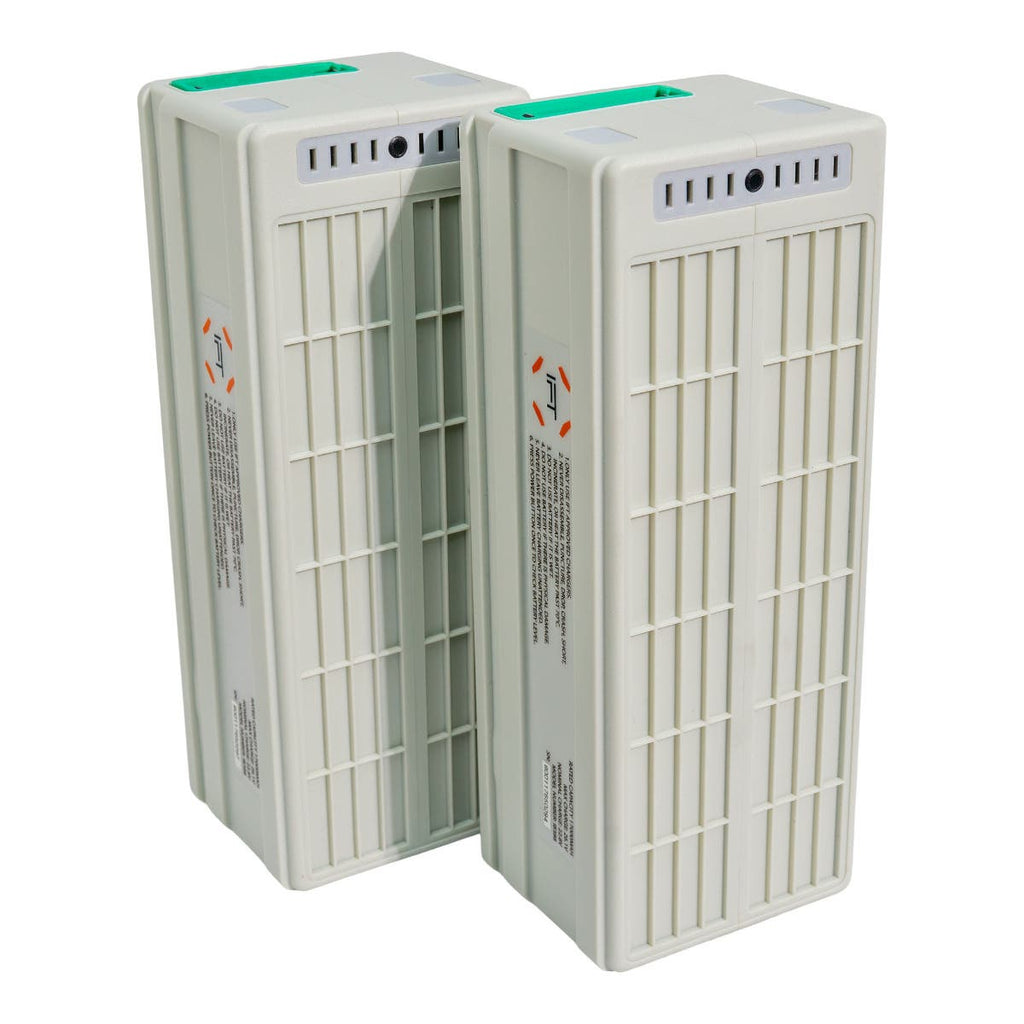

- American-made IB388 batteries
Specifications:
Battery type: Lithium Polymer High-Voltage (LiHV)
Configuration: 6S1P with internal BMS
Electrical
Nominal capacity: 17,000 mAh
Nominal energy: 387.6 Wh
Nominal voltage: 22.8 V
Max voltage (full): 26.1 V
Normal minimum voltage: 21.0 V
Minimum safe voltage: 19.8 V
Charge & Discharge
Max continuous discharge: 40 A
Max burst discharge: 55 A
Max charge current: 17 A (1C)
Max charge voltage: 26.1 V (4.35 V/cell)
Cell balancing: BMS-controlled (<0.01 V delta)
Self-discharge: to 3.8 V/cell after 48 hrs
Smart Features
Internal BMS with health monitoring
Cycle tracking
NFC status connectivity
Hot-swappable design
Environmental
Operating temperature: −10°C to 45°C
Max internal temp: 70°C
Storage temperature: 10°C to 40°C
Physical
Weight (each): 2.08 kg
Dimensions: 74 × 89 × 228 mm
Lifecycle
Life expectancy: ~150 cycles (up to ~300 depending usage)
Maintenance: cycle every 3 months for storage
What's in the Box:
4 × IB388 smart batteries
2 × IF800 chargers
2 × AC power cords
2 × charging cables
Rugged transport case
