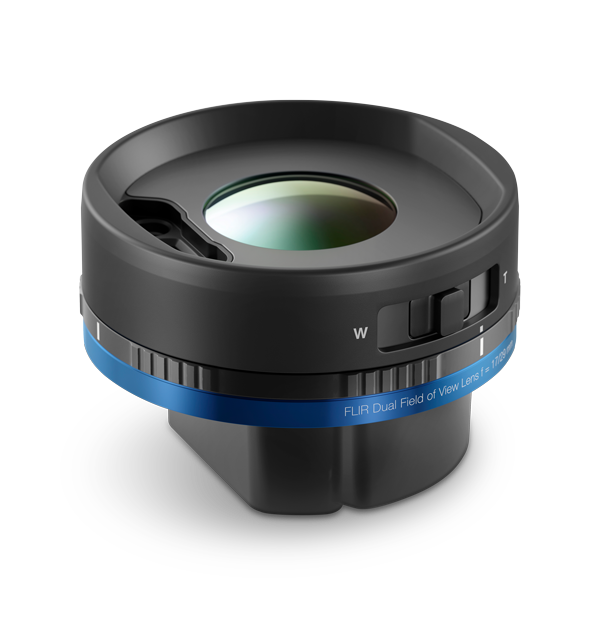

T300587- IR Lens Dual FOV, f=17/29 mm (24°/14°) w/Case (EXX/T5XX/T8XX/AXXX)
FlexView® dual field of view infrared lens (24°/14°) f=17/29 mm, with lens case. For FLIR T500-Series, T800-Series, and Exx-Series cameras.
(T300587)
You never have to change your lens in the field again—with the push of a button—now, with the FlexView dual field of view lens, you can instantly switch from wide views for scene context or tighter views for accurate temperature measurement.
SPECIFICATIONS:
Imaging & Optical
Field of View (FOV):
• 24° × 18° (Wide)
• 14° × 10° (Telephoto)
Focal Length:
• 17 mm (Wide)
• 29 mm (Telephoto)
Minimum Focus Distance:
• 0.15 m (0.49 ft) – 24° mode
• 1.0 m (3.28 ft) – 14° mode
Minimum Focus Distance with MSX:
• 0.5 m (1.64 ft) – 24° mode
• 1.0 m (3.28 ft) – 14° mode
Lens Identification: Yes, AutoCal
F-number:
• f/1.3 (24°)
• f/1.5 (14°)
Spatial Resolution (IFOV)
(Dependent on IR resolution of the camera)
24° Mode (17 mm):
• 320 × 240: 1.31 mrad/pixel
• 464 × 348: 0.90 mrad/pixel
• 640 × 480: 0.66 mrad/pixel
14° Mode (29 mm):
• 320 × 240: 0.75 mrad/pixel
• 464 × 348: 0.52 mrad/pixel
• 640 × 480: 0.38 mrad/pixel
Measurement
Accuracy: ±3°C (±5.4°F) or ±3% of reading
Accuracy Conditions: Ambient temperature 15–35°C (59–95°F); object temperature above 0°C (32°F)
Physical
Weight: 0.140 kg (0.31 lb)
Dimensions (L × D): 45.4 × 72 mm (1.79 × 2.83 in)
WHAT'S IN THE BOX:
1 x FLIR Dual FOV IR Lens (24° / 14°)

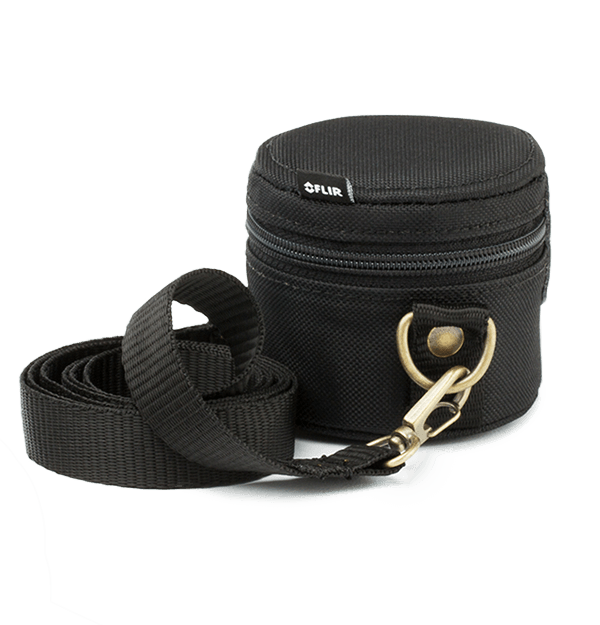

1 x Protective Hard Lens Case
