Description

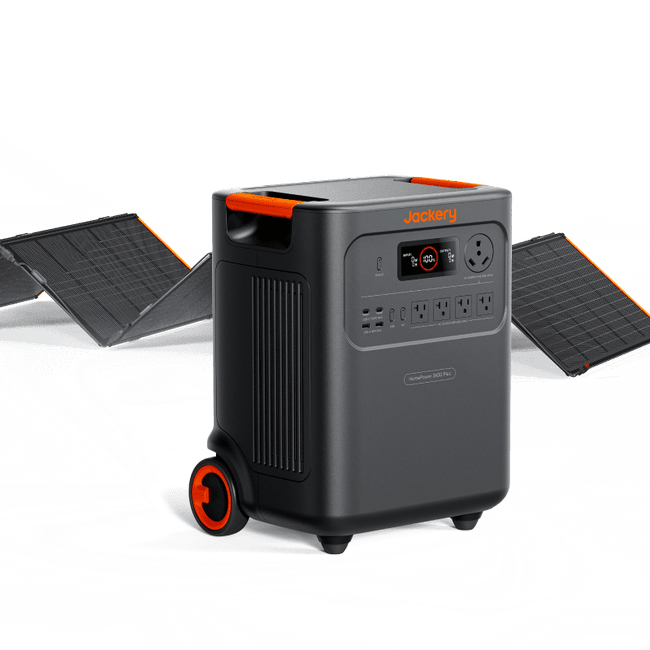

Jackery HomePower 3600 Plus + Battery Pack 3600 + SolarSaga 500 X
An all inclusive power station from Jackery the HomePower 3600 Plus with a dedicated battery pack and 500W SolarSaga panel to harness the sustainable solar energy and deliver consistent power to all your essential, entertainment and emergency appliances.

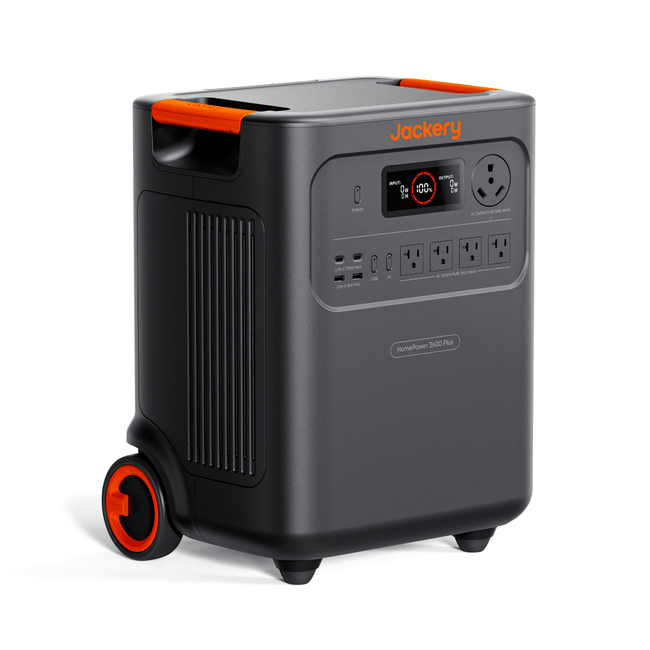

HOMEPOWER 3600 PLUS
HomePower 3600 Plus with automotive-grade CTB tech is a ready-to-roll, ultra portable module that can power all your essentials and emergency appliances from kitchen to garage to tool shed powering your home office and laundry zone.
Powerful to keep your family up and running with essentials for over 2 weeks, this 3600 plus HomePower with dual 120/240V dual voltage (in parallel). With multiple output ports at your disposal, HomePower 3600 Plus can power up to 9 devices in one go.

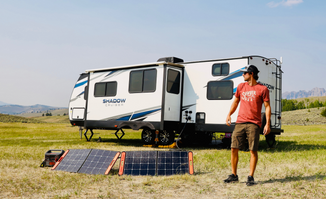

Designed to power your impromptu RV adventures this portable solar generator power station is an automotive-grade CTB tech fitted with wheels and telescopic handle to effortlessly roll along with your whims and fancies.
SOLAR SAGA 500X
Venture into the world of green energy with the included Solar Saga, the 500W TOPCon Panel with 25% solar efficiency designed to pair with your Jackery and delivers a rapid 4-hour charging. The panels' 'M' shaped design generates bifacial energy eliminating front shading harnessing the sun's potential to its optimal.

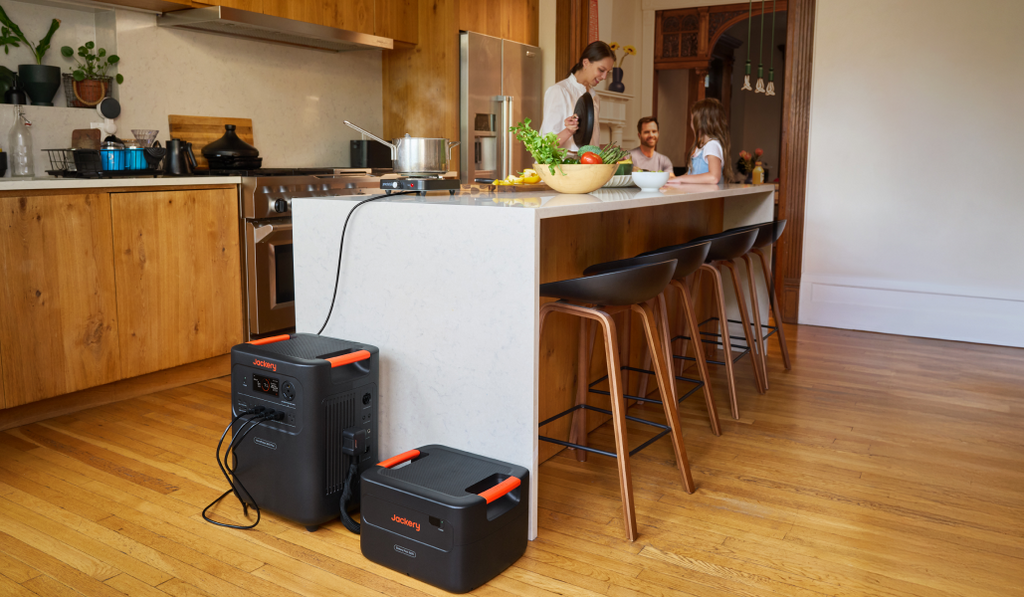

Jackery Battery Pack 3600

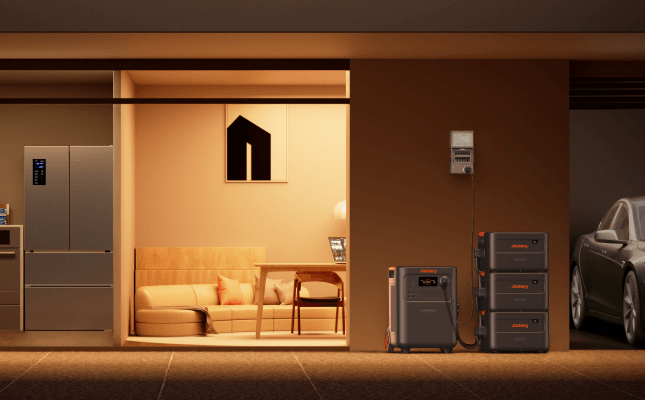

Jackery introduces a 3584kWh capacity Battery Pack exclusively engineered for your HomePower 3600 plus power station with an expandable capacity of up to 21.4kWh with 5 additional packs.
Tested for extreme Jackery standards, this battery pack retains ≥70% of its capacity for over 6000+ cycles giving you 10+ years of reliable performance. Hailed as the smallest and lightest in its class, Jackery battery pack 3600 powered by CTB technology operates relentless even in -20°C delivering optimal reliability at all times.
Specifications:
HomePower 3600 Plus
Weight: About 77.16 lbs (35 kg)
Dimensions: 15.2×12.2×19.3 in / 38.5×30.9×49.1 cm
Charge Temperature: -4°F to 113°F ( -20°C to 45°C)
Discharge Temperature: -4°F to 113°F ( -20°C to 45°C)
Warranty: 3+2 Years
Battery Capacity: 80Ah / 44.8V DC (3584 Wh)
Cell Chemistry: LiFePO4
Cycle life: 6000 cycles to 70%+ capacity
Output Ports: AC Output (4x) 120V~ 60Hz, 20A Max, 2400W (1x) 120V~ 60Hz, 30A Max, 3600W
AC Total Output: 3600W Rated, 7200W Surge peak
USB-C Output: (2x) 100W Max, 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A
USB-A Output: (2x) 18W Max, 5-6V⎓3A, 6-9V⎓2A, 9-12V⎓1.5A
Cigarette Lighter Port: 12V⎓10A Max
Input Ports Charge Mode AC Input: 100V-120V~ 60Hz, 15A Max
Bypass Mode AC Input/Output: 120V~ 60Hz, 12A Max, 1440W
DC Input: (2x) DC 8mm Ports: 12-16V (Working Voltage)⎓8A Max, Double to 8A Max; 16-60V (Working Voltage)⎓12A Max, Double to 24A/1000W Max
Charging Time
AC Adapter: 2.5 Hours
Car Adapter: Supported
Solar Saga 500W
Weight: 22.05 lbs ± 2.20 lbs (10.5 kg±0.5 kg)
Protection Class Against Electric Shock: Class II
Waterproof: IP68
Operating Temperature Range: -40~185℉（-40~85℃）
Warranty: 5 Years
Solar Maximum System Voltage: 600V DC
Maximum Reverse Current: 15A
Bifaciality Coefficient (back/front): Pmax>80%，Voc>97%，Isc>80%
Voltage Temperature Coefficient: -0.26%/℃
Power Temperature Coefficient: -0.32%/℃
STC (1000W/㎡, 25℃, AM 1.5)
Peak Power (Pmax): 500W±5%
Open Circuit Voltage (VOC): 48.5V±5%
Short Circuit Current (Isc): 13.02A±5%
Power Voltage (Vmp): 41.7V±5%
Power Current (Imp): 12.0A±5%
BNPI (Front 1000W/㎡, Rear 135W/㎡, 25°C, AM 1.5)
Peak Power (Pmax): 545W±5%
Open Circuit Voltage (Voc): 49.2V±5%
Short Circuit Current (Isc): 13.86A±5%
Power Voltage (Vmp): 42.5V±5%
Power Current (Imp): 12.84A±5%
Dimensions
Folded: Around 39.21 × 20.71 × 3.82 in (996 × 526 × 97mm)
Unfolded: Around 98.15 × 39.21 × 11.57 in (2493 × 996 × 294mm)
Battery Pack 3600
Model No.: JBP-3600A (Only use together with Jackery HomePower 3600 Plus)
Capacity: 80Ah/44.8Vdc (3584Wh)
Cell Chemistry: LiFePO4
Weight: About 55.1 lbs/25 kg
Dimension: 14.8 x 12.5 x 9.0 in/37.5 x 31.7 x 22.9 cm
Cycle Life: 6000 cycles to 70%+ capacity
DC Expansion Port (Input): 36.4V-50.4V⎓60A Max
DC Expansion Port (Output): 36.4V-50.4V⎓100A Max
Charge Temperature: -20°C~45°C (-4°F~113°F)
Discharge Temperature: -20°C~45°C (-4°F~113°F)
What's in the Box:
1 x HomePower 3600 Plus
1 x AC Charging Cable
1 x Solar Saga 500W
1 x Jackery Battery Pack 3600
1 x Expansion Cable
1 x User Manual
