Jackery HomePower 3600 Plus + Manual Transfer Switch
HomePower 3600 Plus, a 3584kWh power station from Jackery bundles up as a delectable combo with a pre-wired Manual Transfer Switch (MTS), a hassle-free plug and play module to hook up this reliable energy source to your home circuit.

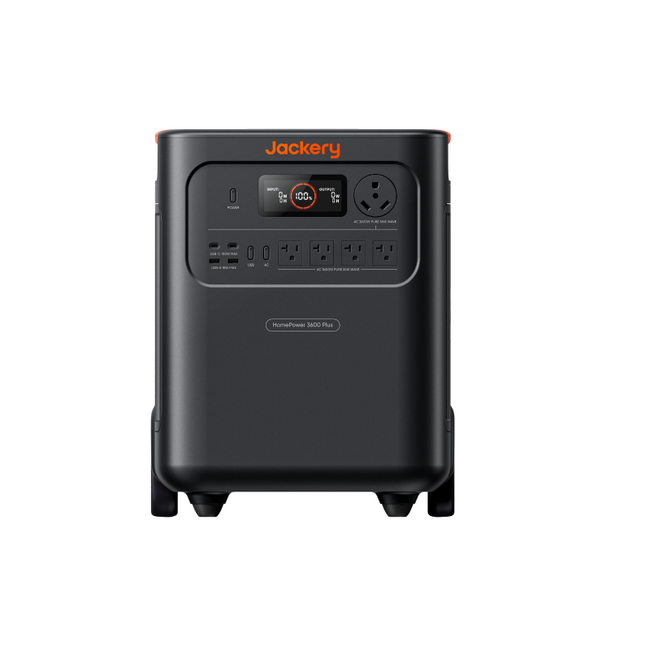

POWER ESSENTIAL BACKUP
A reliable power source for all your essentials, Jackery Solar Generator HomePower 3600 plus is the world's lightest 3.6kWh LFP power station expandable up to 21kWh with an ultra-long lifespan of 6000+ cycles delivering over 10 years of durable performance.

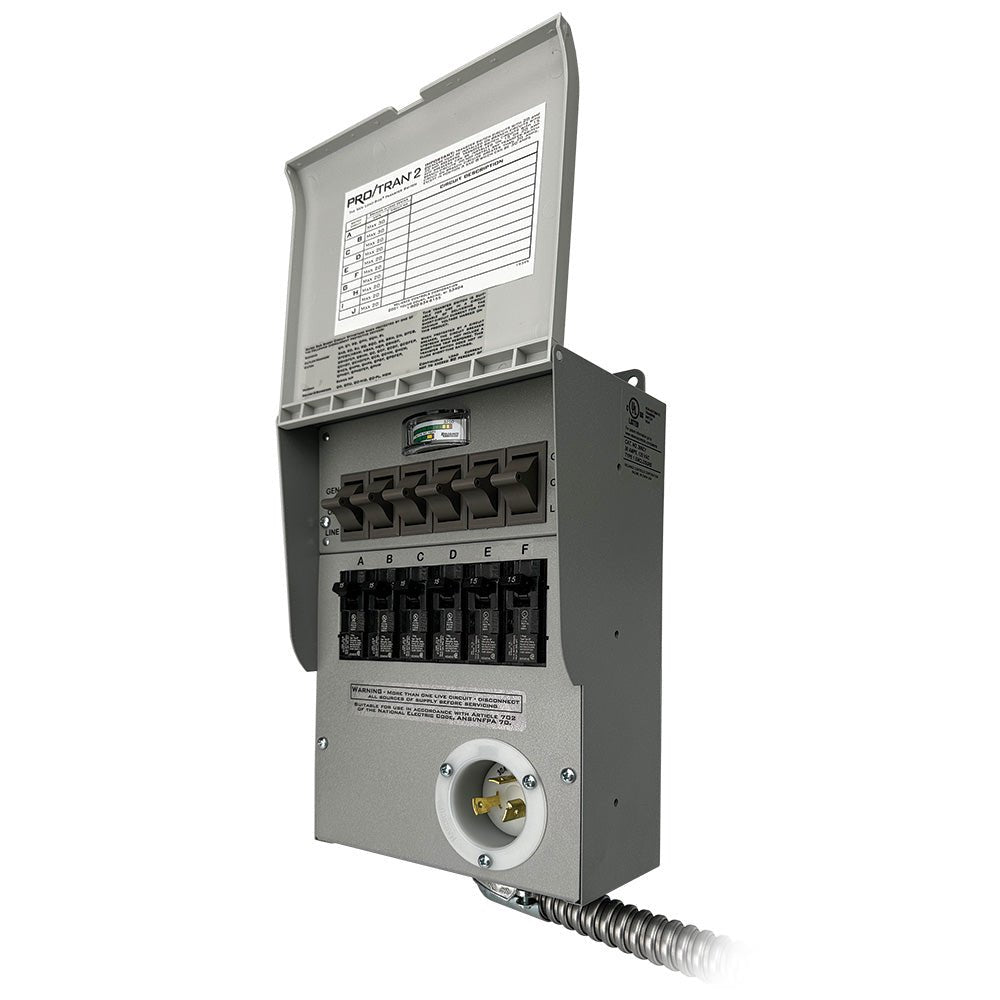

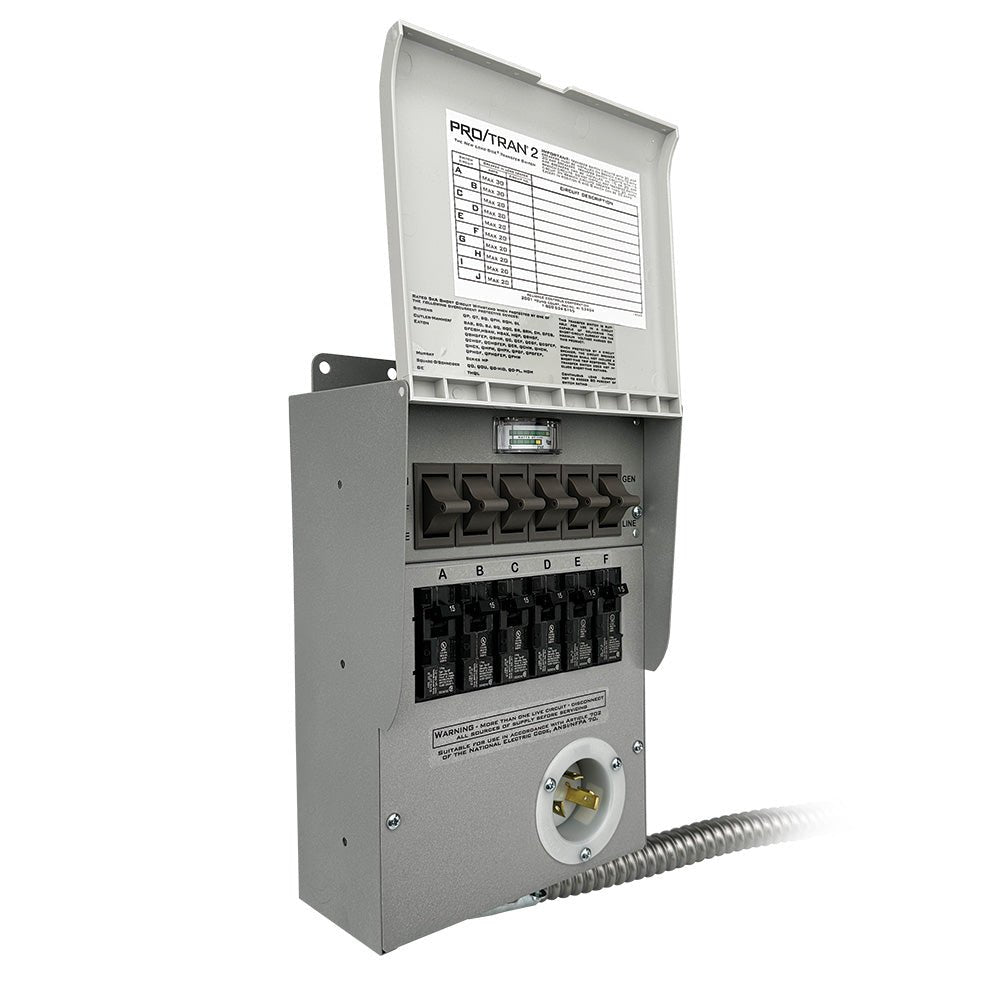

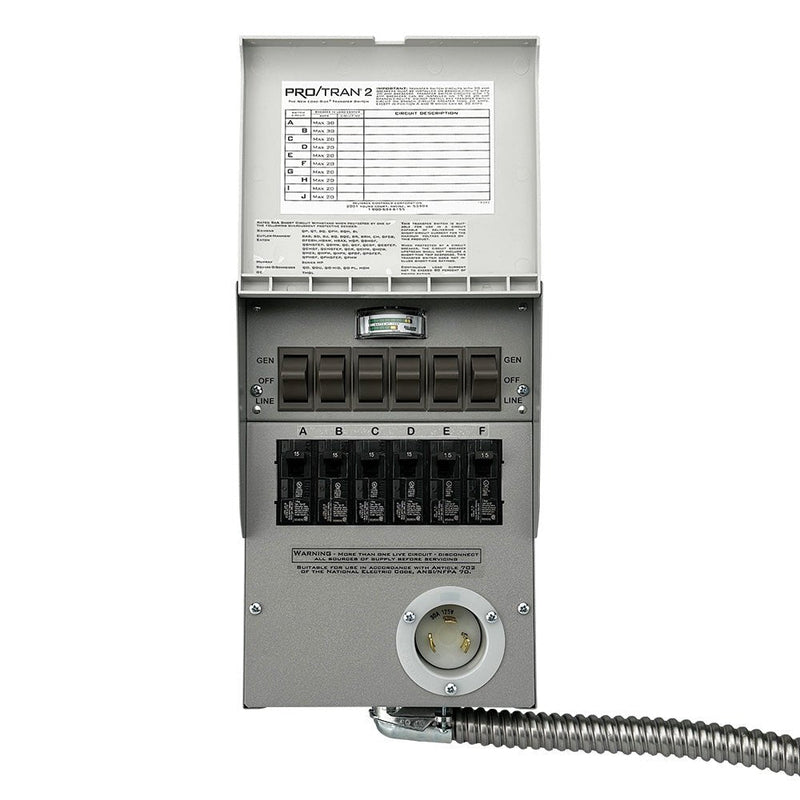

MTS
Designed to eliminate dangers of back-feeding, Jackery's Manual Transfer Switch is a pre-wired switch which allows for safe connectivity between your portable HomePower 3600 Plus and your home circuit. Its a comprehensive contraption with covers in place to protect the toggle switches and circuit breakers. The metal cabinet also includes color-coded wattmeters and an L5-30 power inlet.
BUILT TO LAST
Powerful to keep your family up and running with essentials for over 2 weeks, this 3600 plus HomePower with dual 120/240V dual voltage (in parallel) boasts of 6000+ cycles which mean you have a reliable power source that lasts for a full decade at 100% capacity.
COMPLETE BACKUP FOR CRITICAL CIRCUITS
Tailor made for emergencies, this plug and play power station switches to emergency backup in just 2 sec. while the one-touch MTS switch delivers consistent power to your essential spaces during outages including kitchen, living room and office space.

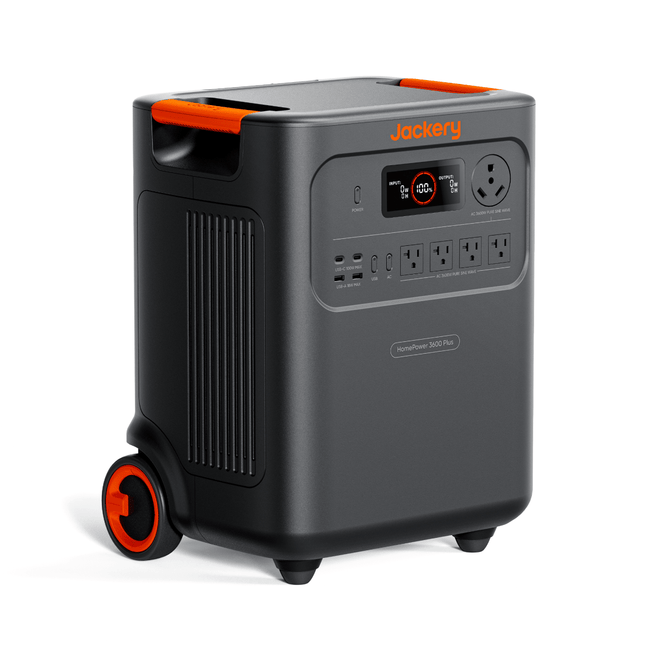

ULTRA PORTABLE
Designed to power your impromptu RV adventures this portable solar generator power station is an automotive-grade CTB tech fitted with wheels and telescopic handle to effortlessly roll along with your whims and fancies.
Highlights:
- Outstanding Performance at -4°F, Built for Safety
- Surge protection up to 2000V, safe for kitchen use
- Lightest and Smallest 3.6kWh LFP Power Station
- Luggage-style design with wheels and a telescopic handle for easy portability
- Jackery ZeroDrain™ technology delivers ultra-low self-discharge
- Power 9 devices in one go
- ≤10ms UPS Switching
Specifications:
HomePower 3600 Plus
Weight: About 77.16 lbs (35 kg)
Dimensions: 15.2×12.2×19.3 in / 38.5×30.9×49.1 cm
Charge Temperature: -4°F to 113°F ( -20°C to 45°C)
Discharge Temperature: -4°F to 113°F ( -20°C to 45°C)
Warranty: 3+2 Years
Battery Capacity: 80Ah / 44.8V DC (3584 Wh)
Cell Chemistry: LiFePO4
Cycle life: 6000 cycles to 70%+ capacity
Output Ports: AC Output (4x) 120V~ 60Hz, 20A Max, 2400W (1x) 120V~ 60Hz, 30A Max, 3600W
AC Total Output: 3600W Rated, 7200W Surge peak
USB-C Output: (2x) 100W Max, 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A
USB-A Output: (2x) 18W Max, 5-6V⎓3A, 6-9V⎓2A, 9-12V⎓1.5A
Cigarette Lighter Port: 12V⎓10A Max
Input Ports Charge Mode AC Input: 100V-120V~ 60Hz, 15A Max
Bypass Mode AC Input/Output: 120V~ 60Hz, 12A Max, 1440W
DC Input: (2x) DC 8mm Ports: 12-16V (Working Voltage)⎓8A Max, Double to 8A Max; 16-60V (Working Voltage)⎓12A Max, Double to 24A/1000W Max
Charging Time
AC Adapter: 2.5 Hours
Car Adapter: Supported
Manual Transfer Switch
Voltage: 125V
Amps: 30A
Circuits: 6
Enclosure: Metal
Color: Gray
POWER INLET, NEMA: NEMA L5-30
UOM: Each
DIMENSIONS (W x H x D): 7.75 x 11.25 x 4.75
WEIGHT (lbs.): 10.92
What's in the Box:
1 x HomePower 3600 Plus
1 x AC Charging Cable
1 x Manual Transfer Switch
1 x User Manual
