Jackery Solar Generator 5000 Plus Home Kit 1000W (10kwh): 1*E5000Plus+ 1*Battery Pack + 2*SolarSaga 500 X + 1*Smart Transfer Switch
A residential power hub from Jackery, the Solar Generator 5000 plus is a 1000W (10kWh) comprehensive home kit that includes the unmatched E5000 plus, a E5000 plus battery pack, a Smart Transfer Switch and 2 of SolarSaga 500X to kickstart your eco-energy drive.
From thunderstorms to hurricanes, Jackery Solar Generator can backup your energy needs and also give wings of power to your off-grid living dreams.
LARGE CAPACITY
From freezers to dryers to every essential devices, this 5-60kWh capacity Solar Generator can power multiple devices up to 30 days and with a 7200-14400W output can handle even your heavy machinery and power devices with ease.
DUAL UPS FUNCTIONALITY
While the system limits its AC output to 13.2A in Backup Mode (20ms transition) which can still run your fridge, dryer and others without a hint of a flicker, our Online UPS mode allows up to 30A, which means your Wi-Fi router is backed up in 0ms and you never drop another zoom call, ever.
SMART TRANSFER SWITCH
This solar generator from Jackery ensures your home is optimally powered and uses Smart Transfer Switch that supplies uninterrupted power to your essential rooms. From kitchen to home office to living room, customize your power needs with the ultimate power of sun.
SOLARSAGA
Harness the power of unlimited solar energy with the included 500X SolarSaga panels and with 2 of them to tap into the sun, you get 1000W of solar input to power your essentials and entertainment devices in one go.
PATENTED ZERO DRAIN
A storm-ready design, this Solar Generator from Jackery has in all 96.8% power after 3 months of usage and even after a year, you can still tap into the 92.5% of power left thanks to Jackery's Patented ZeroDrain engineering that guarantees 365 days of readiness for emergencies.
MULTIPLE CHARGING SOURCES
With a 4000W solar input always ready to serve you, it takes less than a movie runtime to power up with power horse. With 5 ways to energize your backup power solution you will never run out of power.
- AC Charging: 1800W, 3.5 hours
- Charging via Smart Transfer Switch: 4000W, 1.7 hours
- Solar Charging (500X x 2): 1000W, 6.5 hours
- Hybrid Charging (AC, Solar Panels, Smart Transfer Switch): Max 4000W, 1.7 hours
- High-Voltage PV Charging: 4000W, 1.7 hours
Highlights:
- Prioritized Solar and Off-peak charging
- ChargeShield 2.0 tech & LFP battery deliver zero-carbon emission for an odor-free experience
- 62 Protective mechanisms to ensure safe charging even in 113-degree F extreme temperatures
- Adjusts charging speed to optimize battery health and efficiency

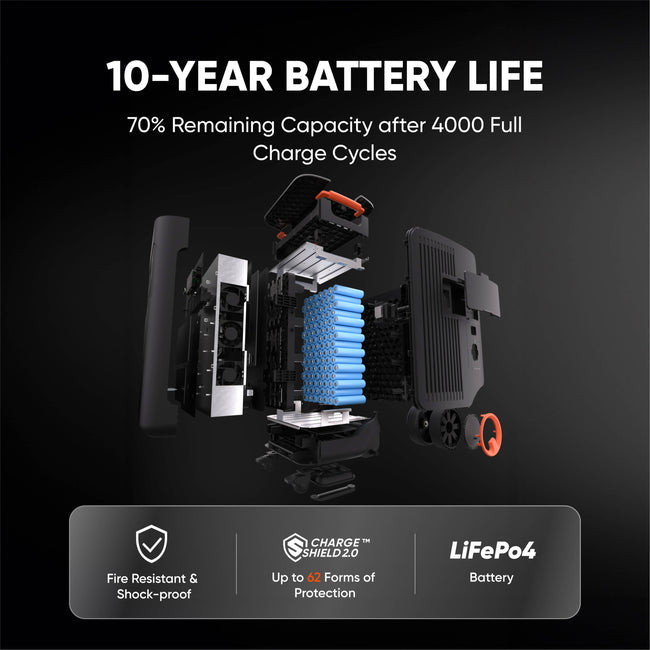

- 4000 Cycles retaining 70% capacity for long years of reliable use
- Safe for indoor and outdoor use
- No installation needed for standalone usage
- Seamless 20ms power switching

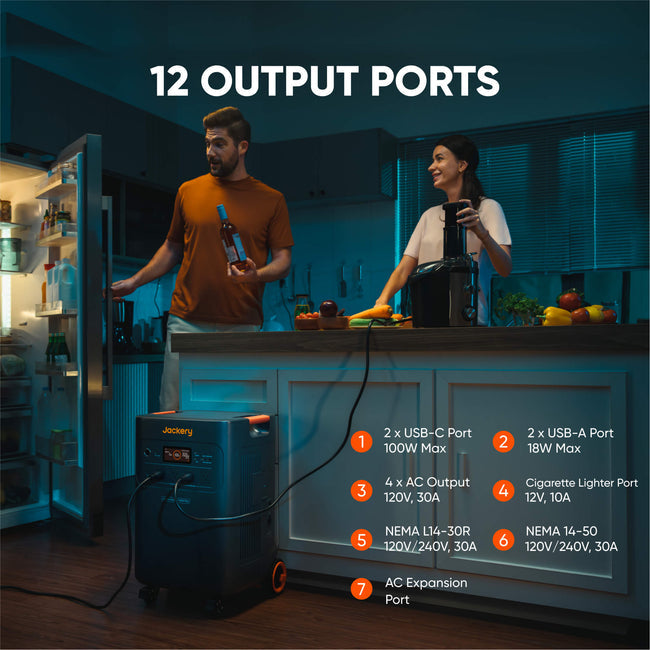

- 12 Output ports to hook and power up multiple devices simultaneously

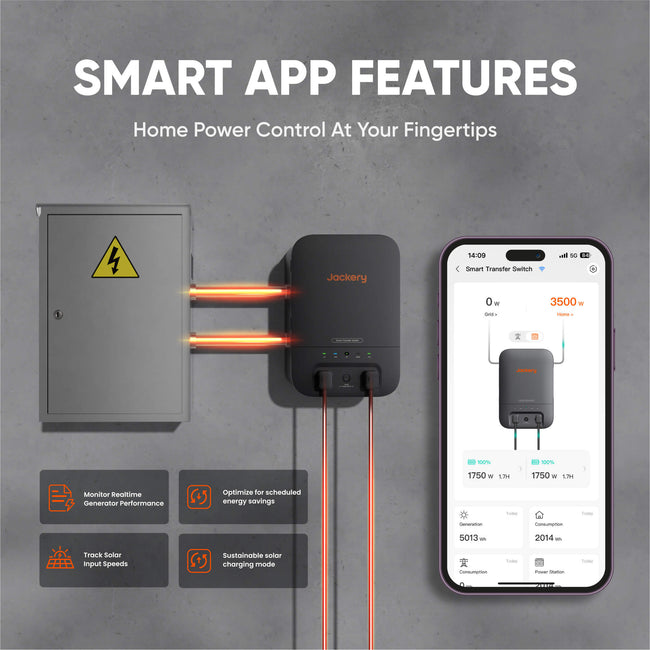

- Smart App Control
Specifications:

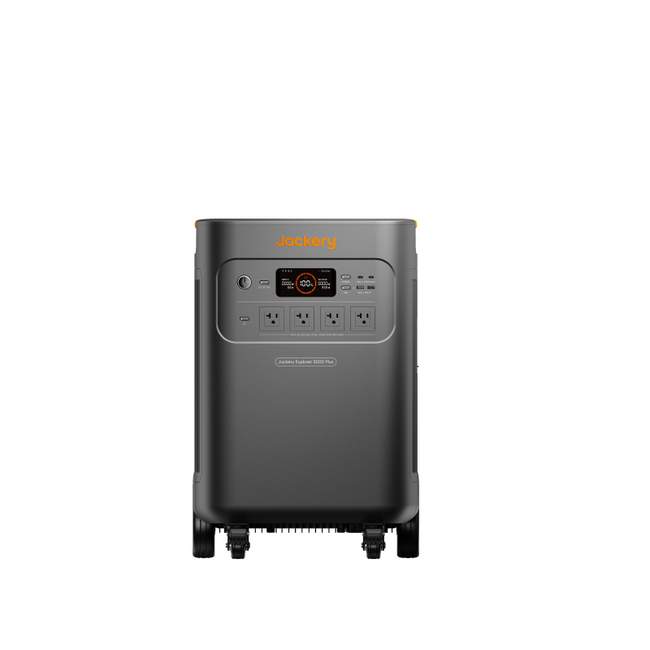

EXPLORER 5000 PLUS
Weight: About 134.5 lbs (61 kg)
Dimensions: 16.5×15.5×25 in/41.8×39.5×63.5 cm
Charge Temperature: 32~113 °F (0~45°C)
Discharge Temperature: 5~113°F (-15~45°C)
Warranty: 5 Years
Battery Capacity: 45Ah/112V DC (5040 Wh)
Cell Chemistry: LiFePO4
Cycle life: 4000 cycles to 70%+ capacity
Output Ports AC Output: (4x) 120V, 20A, 2400W
(1x) NEMA L14-30R/14-50：120V/240V~60Hz, 30A, 7200W Max
AC Total Output: 7200W Max, 14400W Surge
USB-C Output: (2x) 100W Max, 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A
USB-A Output: (2x) 18W Max, 5-6V⎓3A, 6-9V⎓2A, 9-12V⎓1.5A
Cigarette Lighter Port: 12V⎓10A
AC Expansion Port: 240V~60Hz, 30A, 7200W
DC Expansion Port: 80.5V-126V⎓41A Max
Input Ports Charge Mode AC Input: 120V~60Hz, 15A Max
Bypass Mode AC Input/Output: 120V~60Hz, 12A Max; 240V~60Hz, 16.7A Max
AC Expansion Port (Input): 240V~60Hz, 16.7A Max
DC Input: DC Expansion Port (Input)：80.5V-126V⎓98A Max
High-PV: 135V-450V⎓15A Max
Low-PV: (2x) DC 8mm Ports; 16V-60V⎓10.5A Max, Double to 21A/1200W Max；11V-16V(Working Voltage)⎓8A Max, Double to 8A Max
Charging Time AC Adapter: 3.5 Hours
Car Adapter: NO
Other Specifications UPS:
Backup UPS: ＜20ms, Online UPS: 0ms
Inverter Topology: Non-isolated
Power Factor: ≥0.98
Entire Unit: Type 1
BATTERY PACK 5000 PLUS
Capacity: 45Ah/112V DC (5040 Wh)
Weight: About 81.57 lbs (37 kg)
Dimensions: 16.5 x 13.5 x 13.2 in / 41.8 x 34.4 x 33.6 cm
Battery Lifecycles: 4000 cycles to 70%+ capacity
Warranty: 5 Years
Charge Temperature: 32~113 °F (0~45°C)
Discharge Temperature: 5~113°F (-15~45°C)
Ports DC Expansion Port (Input): 80.5V-126V⎓41A Max
DC Extension Ports (Output): 80.5V-126V⎓98A Max
SOLAR SAGA
Weight: 22.05 lbs ± 2.20 lbs (10.5 kg±0.5 kg)
Protection Class Against Electric Shock: Class II
Waterproof: IP68
Operating Temperature Range: -40~185℉（-40~85℃）
Warranty: 5 Years
Solar Maximum System Voltage: 600V DC
Maximum Reverse Current: 15A
Bifaciality Coefficient (back/front): Pmax>80%，Voc>97%，Isc>80%
Voltage Temperature Coefficient: -0.26%/℃
Power Temperature Coefficient: -0.32%/℃
STC (1000W/㎡, 25℃, AM 1.5)
Peak Power (Pmax): 500W±5%
Open Circuit Voltage (VOC): 48.5V±5%
Short Circuit Current (Isc): 13.02A±5%
Power Voltage (Vmp): 41.7V±5%
Power Current (Imp): 12.0A±5%
BNPI (Front 1000W/㎡, Rear 135W/㎡, 25°C, AM 1.5)
Peak Power (Pmax): 545W±5%
Open Circuit Voltage (Voc): 49.2V±5%
Short Circuit Current (Isc): 13.86A±5%
Power Voltage (Vmp): 42.5V±5%
Power Current (Imp): 12.84A±5%
SMART TRANSFER SWITCH
Dimensions: 22 x 14.7 x 7.87 in / 56 x 37.4 x 20 cm
Weight: About 25.57 lbs (11.6 kg)
Operating Temperature: -4°F~113°F (-20°C~45°C)
Ports AC Voltage (Nominal): 120V/240V~ 60Hz
Feed-In Type: Split Phase
Maximum Input Current: 100A Grid / 60A Power Station
Maximum Output Current: 60A Home Load / 33.4A Power Station
Maximum Input Short-Circuit Current: 10KA
Overvoltage Category: IV
UPS: ≤20ms
Enclosure Type (Distribution Panel): NEMA Type 1
Number of Load Branches: 12
Main Circuit: 2 AWG
Branch Circuit: 14 AWG 12 AWG 10 AWG
Communication: Wi-Fi and Bluetooth
What's in the Box:
What's in the Box:
1 x Jackery Explorer 5000 Plus
1 x AC Charging Cable
1 x MC4 Wrench
1 x Jackery Battery Pack 5000 Plus
1 x Expansion Cable
2 x SolarSaga 500X
6 x SolarSaga 85
1 x Solar Charging Cable
1 x Storage Bag
10 x Hinge
8 x Ground Stakes
1 x Hex Key
40 x Screw
2 x Anderson Rubber Plug
2 x Compass Carabiner
1 x Jackery Smart Transfer Switch
1 x Marking-Off Template
1 x Power input/output Cable
2 x Wall Bracket
4 x M4 Philips Flat Head Screw
1 x User Manual
