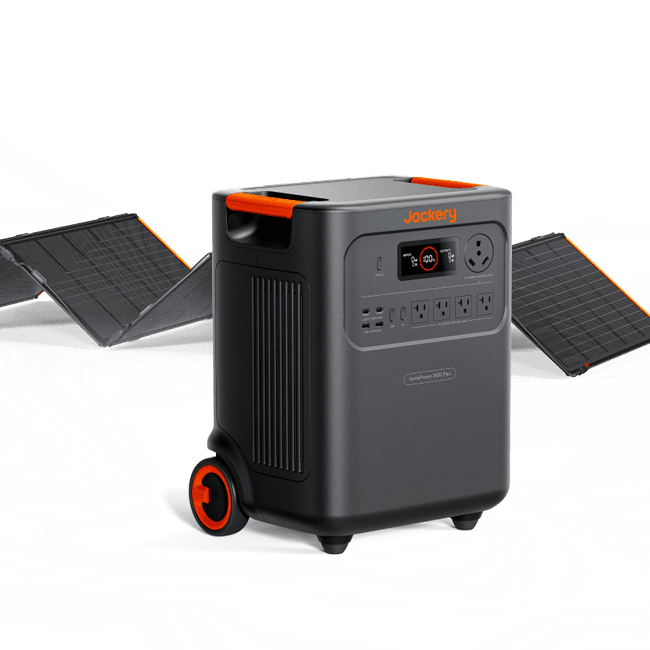

Jackery Solar Generator HomePower 3600 Plus + Solar Saga 500W X

Bring home the world's lightest, smallest 3.6kWh LFP power station, the HomePower 3600  Plus solar generator from Jackery is an impressive bundle that comes with a Solar Saga 500W solar panel that lets you tap into the non-exhaustive, sustainable solar energy to wait out even the worst of power outages.

HIGH POWER, EXPANDABLE CAPACITY

An impressive 3600W output with a 3584kWh capacity, HomePower 3600 Plus is expandable to a whopping 21kWh to keep all your essentials, entertainment and emergency appliances up and running for weeks together.

DUAL VOLTAGE SUPPORT

With multiple output ports at your disposal, HomePower 3600 Plus can power up to 9 devices in one go and since it supports 120/240V dual voltage in parallel, you can run your fridge, space heater, water pump, dryer and power tools simultaneously.

SOLAR SAGA 500X

Venture into the world of green energy with the included Solar Saga, the 500W TOPCon Panel with 25% solar efficiency designed to pair with your Jackery and delivers a rapid 4-hour charging. The panels' 'M' shaped design generates bifacial energy eliminating front shading harnessing the sun's potential to its optimal.

ULTRA PORTABLE

Designed to power your impromptu RV adventures this portable solar generator power station is an automotive-grade CTB tech fitted with wheels and telescopic handle to effortlessly roll along with your whims and fancies.

ULTRA LONG LIFESPAN

Unlike any power station seen before, HomePower 3600 plus delivers 100% in a 6000+ cycles assuring durable performance for over a decade. With a 5 year warranty, sit back and enjoy as your energy needs are now in good hands.

COMPLETE BACKUP FOR CRITICAL CIRCUITS

This plug and play module with 2s switchover lets you add a one-touch MTS switch to hook up to your home circuit and instantly energize essential spaces including kitchen, living room and office space.

Highlights:

• Outstanding Performance at -4°F, Built for Safety
• Surge protection up to 2000V, safe for kitchen use
• Lightest and Smallest 3.6kWh LFP Power Station
• Luggage-style design with wheels and a telescopic handle for easy portability
• Jackery ZeroDrain™ technology delivers ultra-low self-discharge
• Power 9 devices in one go
• ≤10ms UPS Switching

Specifications:

HomePower 3600 Plus

Weight: About 77.16 lbs (35 kg)

Dimensions: 15.2×12.2×19.3 in / 38.5×30.9×49.1 cm

Charge Temperature: -4°F to 113°F ( -20°C to 45°C)

Discharge Temperature: -4°F to 113°F ( -20°C to 45°C)

Warranty: 3+2 Years

Battery Capacity: 80Ah / 44.8V DC (3584 Wh)

Cell Chemistry: LiFePO4

Cycle life: 6000 cycles to 70%+ capacity

Output Ports: AC Output (4x) 120V~ 60Hz, 20A Max, 2400W (1x) 120V~ 60Hz, 30A Max, 3600W

AC Total Output: 3600W Rated, 7200W Surge peak

USB-C Output: (2x) 100W Max, 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A

USB-A Output: (2x) 18W Max, 5-6V⎓3A, 6-9V⎓2A, 9-12V⎓1.5A

Cigarette Lighter Port: 12V⎓10A Max

Input Ports Charge Mode AC Input: 100V-120V~ 60Hz, 15A Max

Bypass Mode AC Input/Output: 120V~ 60Hz, 12A Max, 1440W

DC Input: (2x) DC 8mm Ports: 12-16V (Working Voltage)⎓8A Max, Double to 8A Max; 16-60V (Working Voltage)⎓12A Max, Double to 24A/1000W Max

Charging Time
AC Adapter: 2.5 Hours

Car Adapter: Supported

Solar Saga 500W

Weight: 22.05 lbs ± 2.20 lbs (10.5 kg±0.5 kg)

Protection Class Against Electric Shock: Class II

Waterproof: IP68

Operating Temperature Range: -40~185℉（-40~85℃）

Warranty: 5 Years

Solar Maximum System Voltage: 600V DC

Maximum Reverse Current: 15A

Bifaciality Coefficient (back/front): Pmax>80%，Voc>97%，Isc>80%

Voltage Temperature Coefficient: -0.26%/℃

Power Temperature Coefficient: -0.32%/℃

STC (1000W/㎡, 25℃, AM 1.5)
Peak Power (Pmax): 500W±5%

Open Circuit Voltage (VOC): 48.5V±5%

Short Circuit Current (Isc): 13.02A±5%

Power Voltage (Vmp): 41.7V±5%

Power Current (Imp): 12.0A±5%

BNPI (Front 1000W/㎡, Rear 135W/㎡, 25°C, AM 1.5)
Peak Power (Pmax): 545W±5%

Open Circuit Voltage (Voc): 49.2V±5%

Short Circuit Current (Isc): 13.86A±5%

Power Voltage (Vmp): 42.5V±5%

Power Current (Imp): 12.84A±5%

Dimensions
Folded: Around 39.21 × 20.71 × 3.82 in (996 × 526 × 97mm)

Unfolded: Around 98.15 × 39.21 × 11.57 in (2493 × 996 × 294mm)

What's in the Box:

1 x HomePower 3600 Plus

1 x AC Charging Cable

1 x Solar Saga 500W

1 x User Manual
