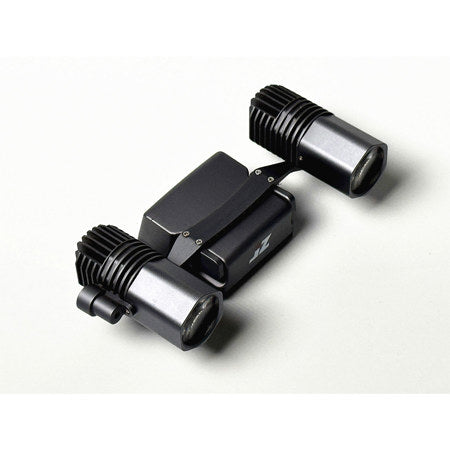

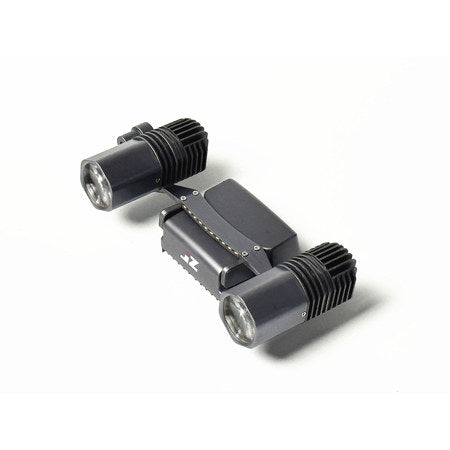

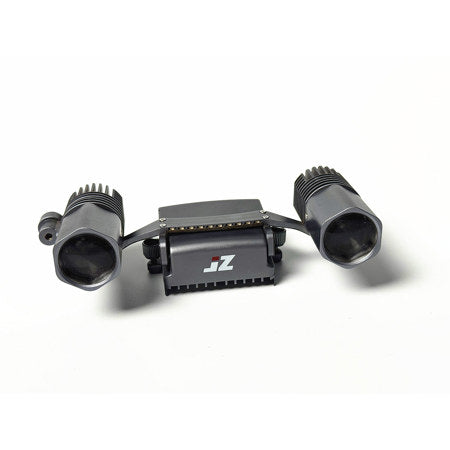

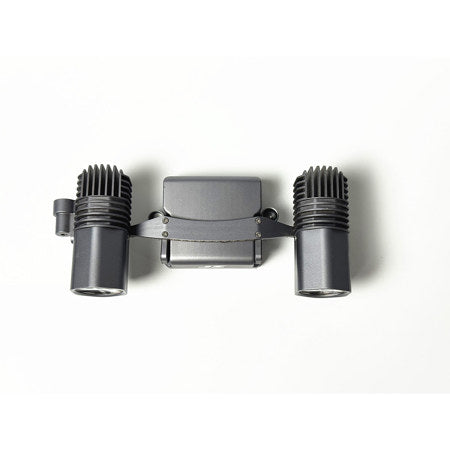

JZ Drones T30 V2 Matrix Lamp for DJI Matrice 4T/4E
JZ_T30_V2 MATRIX LAMP has 40W lighting power and weighs only 117g. It features a 14 Degree concentrated lighting design, capable of providing more than 24Lux illumination at a distance of 50 meters. It is equipped with a single-axis augmented stability gimbal that can be linked to the camera gimbal for stable lighting, and it also supports DJI Pilot 2 control for the DJI Matrice 4E and DJI Matrice 4T.
Lighting
One-click switch, supports brightness adjustment, provides remote illumination and search.
Laser Indication Function
Support the center of the light spot for more precise illumination.
Strong Light Flash
Support for burst brightness and flash frequency adjustment.
Gimbal
Controllable Gimbal, support gimbal 0 to -90 Degree control, support gimbal and camera linkage.
Specifications:
Lighting Performance
Maximum power: 40 W
Beam angle: 14° concentrated beam
Center brightness: ≥24 lux @ 50 m
Effective lighting distance: up to 150 m
Lighting area:
50 m: 113 m² (24 lux)
100 m: 471 m² (5 lux)
150 m: 1063 m² (2.5 lux)
Gimbal & Control
Gimbal type: Single-axis stabilized head
Tilt range: 0° to –90°
Camera linkage: Supported (syncs with drone camera)
Control app: DJI Pilot 2
Functions:
Brightness adjustment
Flash/burst mode
One-click switch
Laser Indication (if equipped)
Laser centering function: Supported
Laser distance: ≥500 m
Wavelength:
Green: 520–525 nm
Red: 620–625 nm
Physical Specs
Weight: 117 g
Dimensions: 143 × 43.5 × 63.5 mm
Protection rating: IP4X
Installation: Screw quick-release mount
Electrical interface: DJI SDK
Environmental
Operating temperature: –10 °C to 50 °C
Storage temperature: –20 °C to 60 °C
What's in the Box:
1 x JZ T30 V2 40W Matrix Lamp Spotlight
