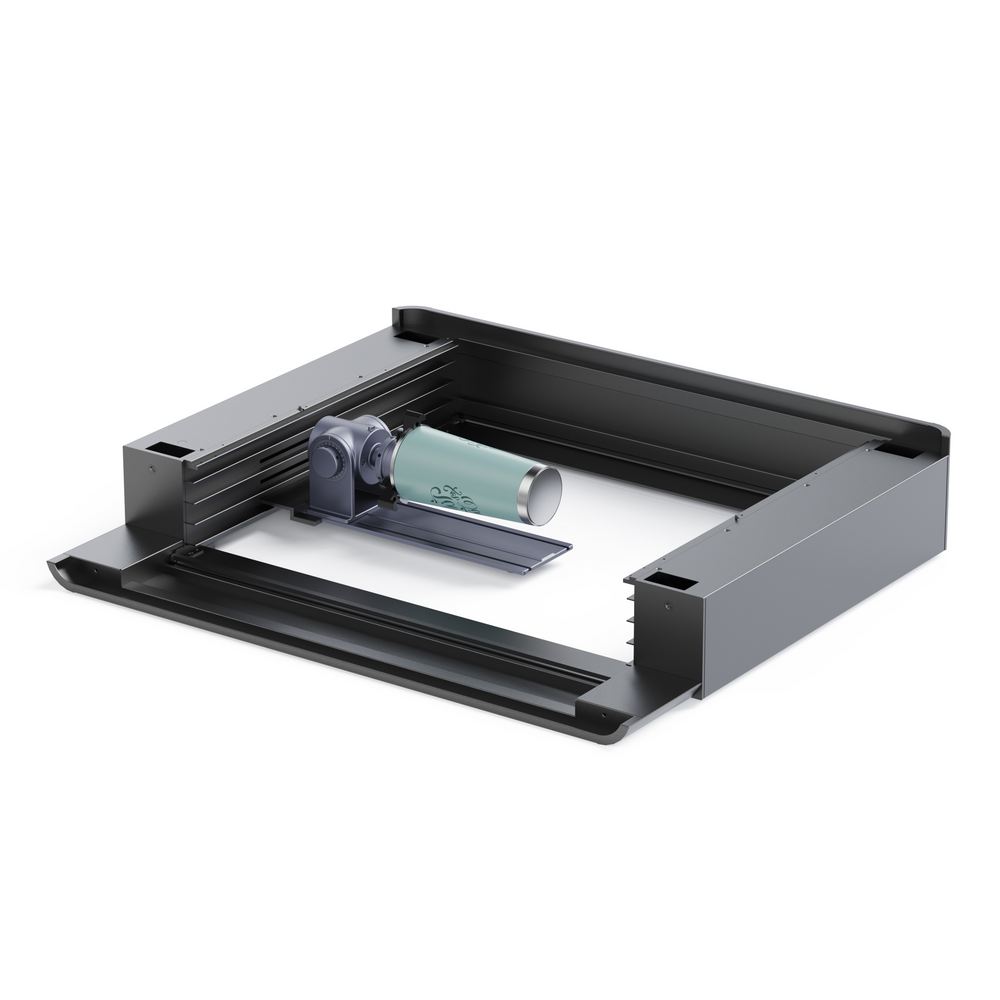

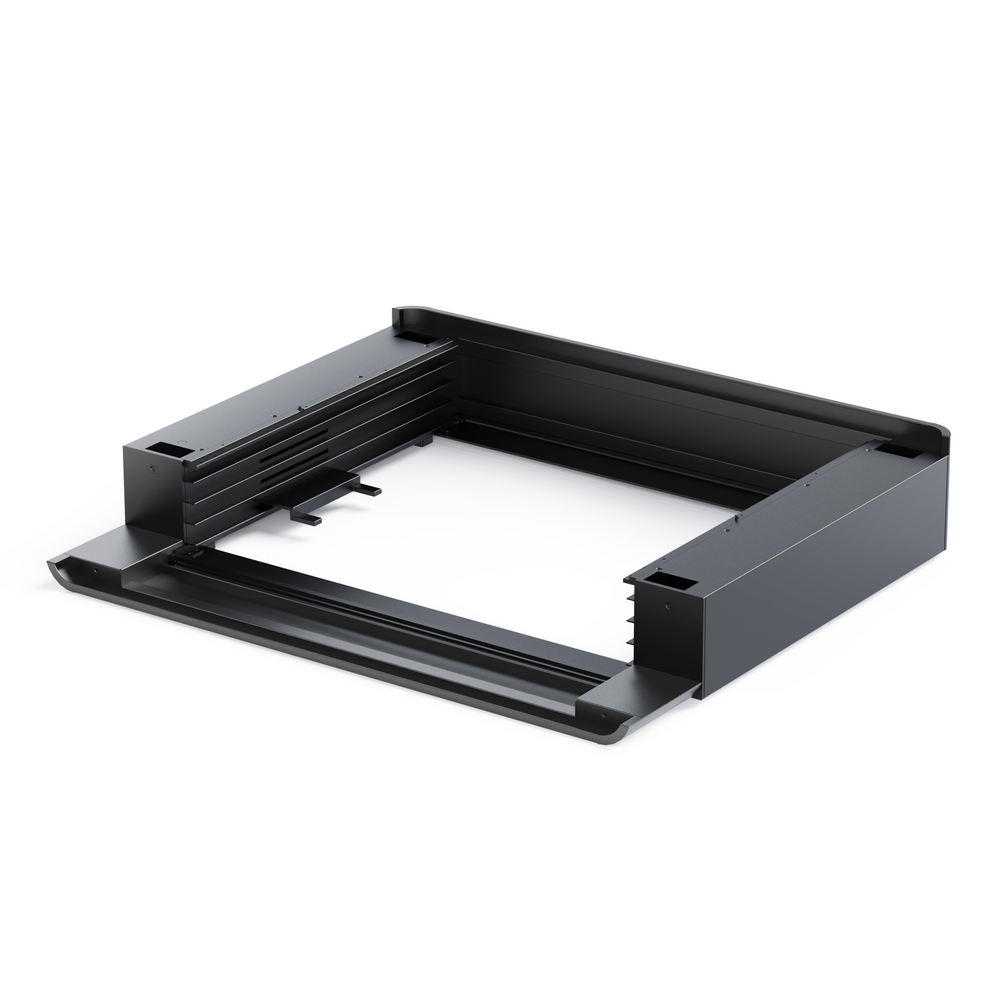

LaserPecker LX2 Riser Base(with rotary) For LX2 Only
The LaserPecker LX2 Riser Base with Rotary is designed exclusively for the LaserPecker LX2, providing additional working height for engraving ultra-thick materials and cylindrical objects. With four adjustable height levels ranging from 16.5 mm to 150 mm, the riser base offers flexible positioning for a wide variety of projects. It can also be combined with a rotation extension to accommodate cylindrical objects with diameters of up to 130 mm, making it a versatile accessory for expanding the LX2's engraving capabilities.
Key Features
-
Designed for LX2: Compatible exclusively with the LaserPecker LX2.
-
Expanded Working Height: Supports materials requiring engraving heights from 16.5 mm up to 150 mm.
-
Four Adjustable Levels: Choose from four height settings for different material sizes.
-
Ultra-Thick Material Support: Expands the working range for engraving thicker objects.
-
Cylindrical Object Support: Can be combined with a rotation extension for cylindrical objects up to 130 mm in diameter.
-
Flexible Positioning: Provides greater control over engraving height and setup.
-
Sturdy Construction: Designed to provide a stable elevated platform for LX2 engraving projects.
Specifications
| Specification |
Details |
| Product Type |
Riser Base with Rotary |
| Compatible Model |
LaserPecker LX2 |
| SKU |
C-L00TYPJ140 |
| Height Range |
16.5–150 mm |
| Number of Height Levels |
4 |
| Stage 1 |
16.5–76.5 mm |
| Stage 2 |
41–101 mm |
| Stage 3 |
65.5–125.5 mm |
| Stage 4 |
90–150 mm |
| Maximum Cylindrical Object Diameter |
Up to 130 mm with rotation extension |
| Product Dimensions |
762 × 555 × 142 mm |
| Carton Dimensions |
815 × 345 × 205 mm |
| Gross Weight |
14.7 kg |
What's in the Box
1 x LX2 Riser Base with Rotary
