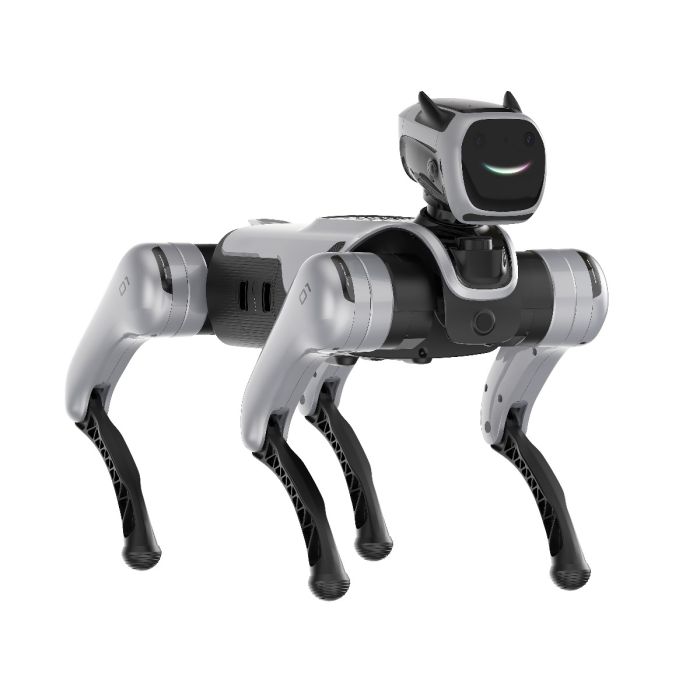

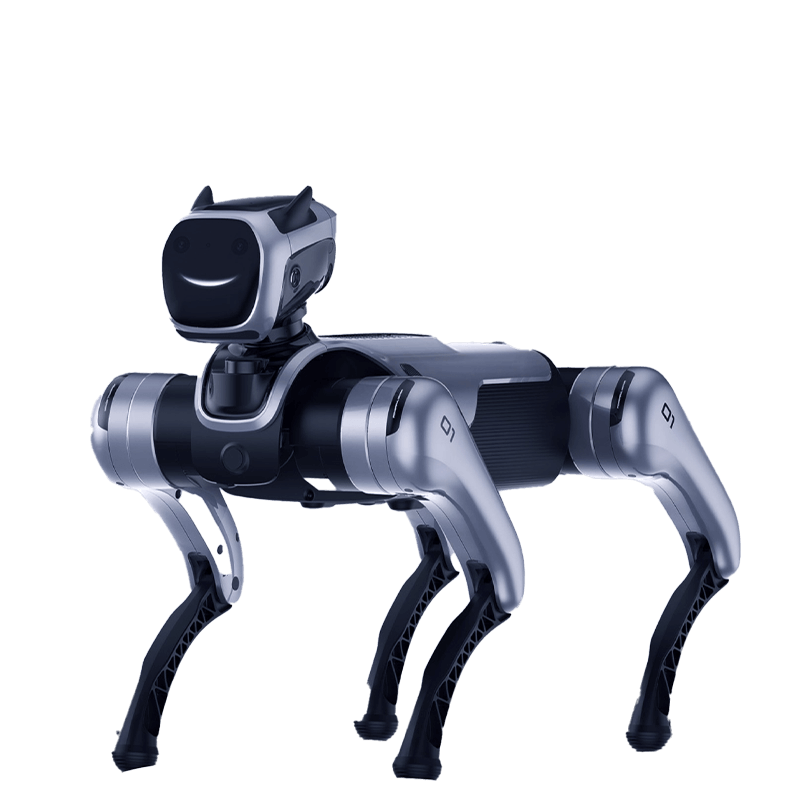

Magiclab MagicDog

MagicDog

MagicDog™ is the world’s first quadruped robot dog capable of autonomously expressing emotions, bringing lifelike interaction and intelligent companionship to robotics. Powered by MagicLab’s proprietary Emotional Interaction System, MagicDog responds naturally to voice, vision, and touch—perceiving and reacting to human emotions anytime, anywhere. This gives MagicDog a sense of “vitality,” transforming it from a machine into an engaging, emotionally aware companion.

At its core is the Intelligent AI SAGE Algorithm, enabling independent thinking, real-time environmental perception, and autonomous decision-making. From emotional interaction to task execution, MagicDog adapts fluidly to complex environments with understanding and precision. Advanced sensor fusion—including LiDAR, stereo and depth cameras, RealSense technology, microphones, and touch sensors—allows MagicDog to navigate uneven terrain, identify seven categories of obstacles, climb up to 15–16 cm, and handle inclines of up to 40° with stability and confidence.

Designed with 13 degrees of freedom and low-noise, high-torque joint motors, MagicDog delivers agile, realistic movement and can perform over 30 high-difficulty actions such as backflips, moonwalks, handshakes, and stretches. Intelligent target locking and following use top-down vision and depth-based 3D tracking to ensure smooth, responsive interaction. A head-mounted 4K HD camera enables one-click photo and video capture, offering a unique dog’s-eye view of every moment.

Built for education, research, and industrial use, MagicDog features a powerful 8-core CPU, durable aluminum and high-strength composite construction, and a 29.6V 8200mAh battery providing 1.5–3 hours of operation with fast battery swapping. With graphical free programming, Wi-Fi and Bluetooth connectivity, and app-based control, MagicDog is an open, versatile platform for robotics learning, AI development, inspection, monitoring, and interactive demonstrations.

Highlights:

•    World’s first emotionally autonomous quadruped robot dog: Expresses emotions independently through MagicLab’s emotional interaction system.
•    Omni-directional perception: Interacts naturally using voice, vision, and touch—responding to human emotions anytime, anywhere.
•    AI SAGE intelligent algorithm: Enables independent thinking, real-time environment perception, and autonomous decision-making.
•    Precise target locking & intelligent following: Top-down visual detection with depth cameras ensures smooth, accurate tracking and adaptive follow speeds.
•    Advanced all-terrain navigation: LiDAR, stereo cameras, and RealSense technology detect seven obstacle types, handling slopes, gravel, and uneven terrain with ease.
•    Exceptional mobility & agility: 13 degrees of freedom and high-torque, low-noise motors perform over 30 complex movements, including backflips and moonwalks.
•    4K HD vision & one-click photography: Head-mounted camera captures photos and videos from a dog’s-eye perspective.

•    Powerful hardware architecture: 8-core CPU, rich sensor suite, and durable aluminum-composite body for intensive use.
•    Flexible programming & open development: Intuitive graphical programming supports creativity, research, and custom AI development.
•    Designed for education, research & industry: Ideal for robotics learning, AI R&D, inspection, monitoring, entertainment, and security applications.

SPECIFICATIONS:

Hardware Specifications
Product type: AI-powered quadruped robot dog
Developer: MagicLab
Degrees of freedom: 13 DOF
Joint motors: 12 high-torque, low-noise precision aluminum motors
Chassis material: Aluminum alloy and high-strength engineering plastics
Maximum speed: Up to 3 m/s
Maximum obstacle height: 15–16 cm
Maximum incline angle: Up to 40°
Movement capabilities: Walking, running, turning, climbing, jumping, backflips, moonwalks, handshakes, stretching, 30+ complex actions
Camera system: 4K HD camera, dual-lens camera, ultra-wide-angle camera, depth camera
Navigation sensors: Single-line LiDAR, stereo cameras, Intel RealSense
Interaction sensors: Microphone array, touch sensors, ultrasonic sensors, laser sensors
Obstacle recognition: Seven obstacle categories

Software & AI Specifications
Processor: High-performance 8-core CPU
AI system: AI SAGE intelligent algorithm
Emotional system: MagicLab emotional interaction system
Autonomous functions: Independent thinking, real-time perception, autonomous decision-making
Target tracking: Top-down visual detection with depth-based 3D continuous tracking
Interaction modes: Voice, vision, and touch (omnidirectional)
Control methods: Mobile app, autonomous modes, programmable behaviors
Programming method: Graphical programming interface
Development support: Custom AI algorithms and behavior development
Joints with Range of Motion
Torso: -37.0° to 45.0°
Thigh: -207.5° to 72.5°
Calf: -143.0° to -30.0°

Power & Connectivity Specifications
Battery voltage: 29.6 V
Battery capacity: 8200 mAh
Operating time: Approx. 1.5–3 hours per charge
Battery replacement: Fast battery swapping supported
Wireless connectivity: Wi-Fi (2.4 GHz and 5 GHz), Bluetooth, USB ports (for charging and data transfer), App-based remote control.

General
Length: 670 mm
Width: 350 mm
Height (rest): 290 mm
Height (stand): 560 mm
Height (min): 290 mm
Height (max): 560 mm
Weight (with battery): 17 kg
Weight (no battery): 15.8 kg
Max step height: 180 mm
Max slope: ±40°
Operating temperature (min): -5 °C
Operating temperature (max): 40 °C

Application Areas
Education: Robotics learning, AI training, programming education
Research & development: Autonomous navigation, control algorithm testing, AI experimentation
Industrial applications: Inspection, monitoring, logistics support
Entertainment: Interactive demonstrations, performances, exhibitions
Security: Patrol, monitoring, surveillance potential

WHAT’S IN THE BOX:

1 x MagicDog Quadruped Robot

1 x Battery Pack

1 x Battery Charger

1 x Power Cable

1 x User Manual

1 x Quick Start Guide

1 x Programming Guide

1 x Tool Kit

1 x Warranty Card
