MagicLab MagicDog-W Robot

MagicDog-W

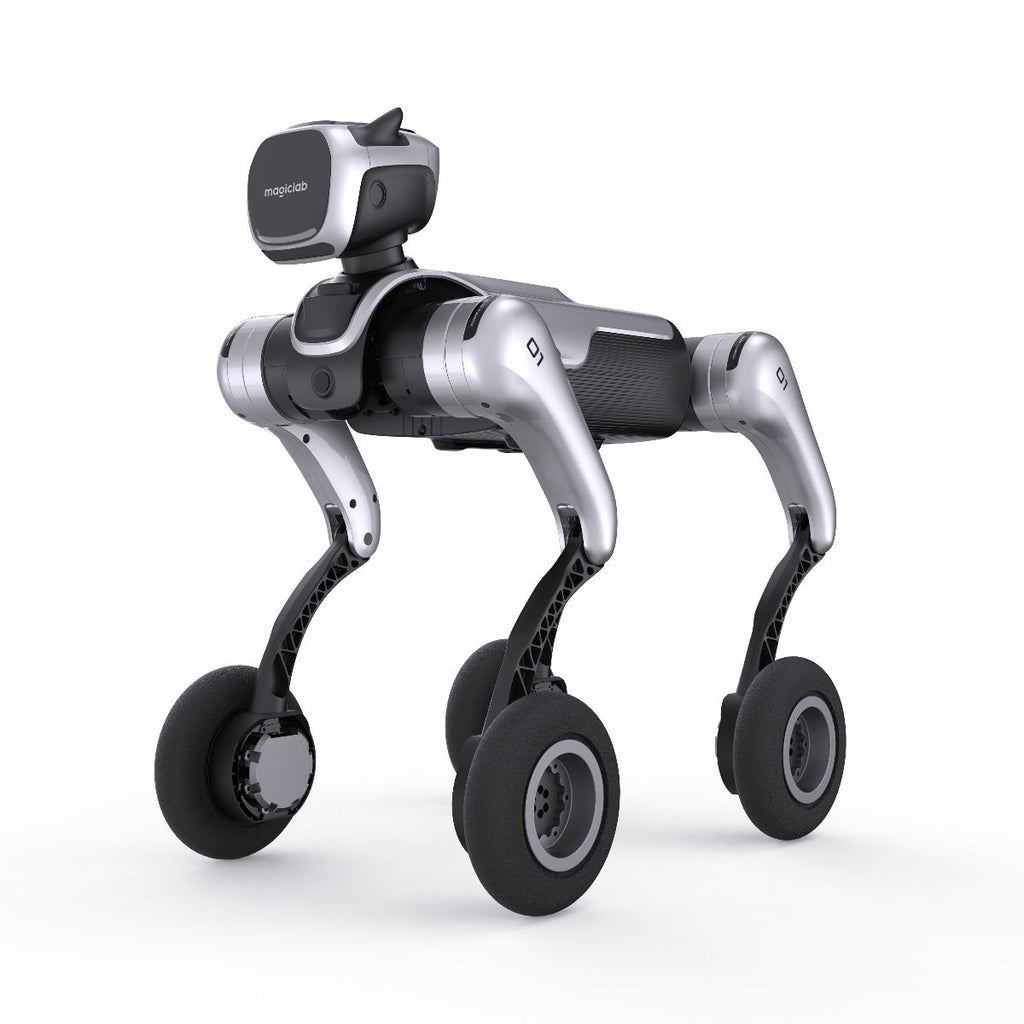

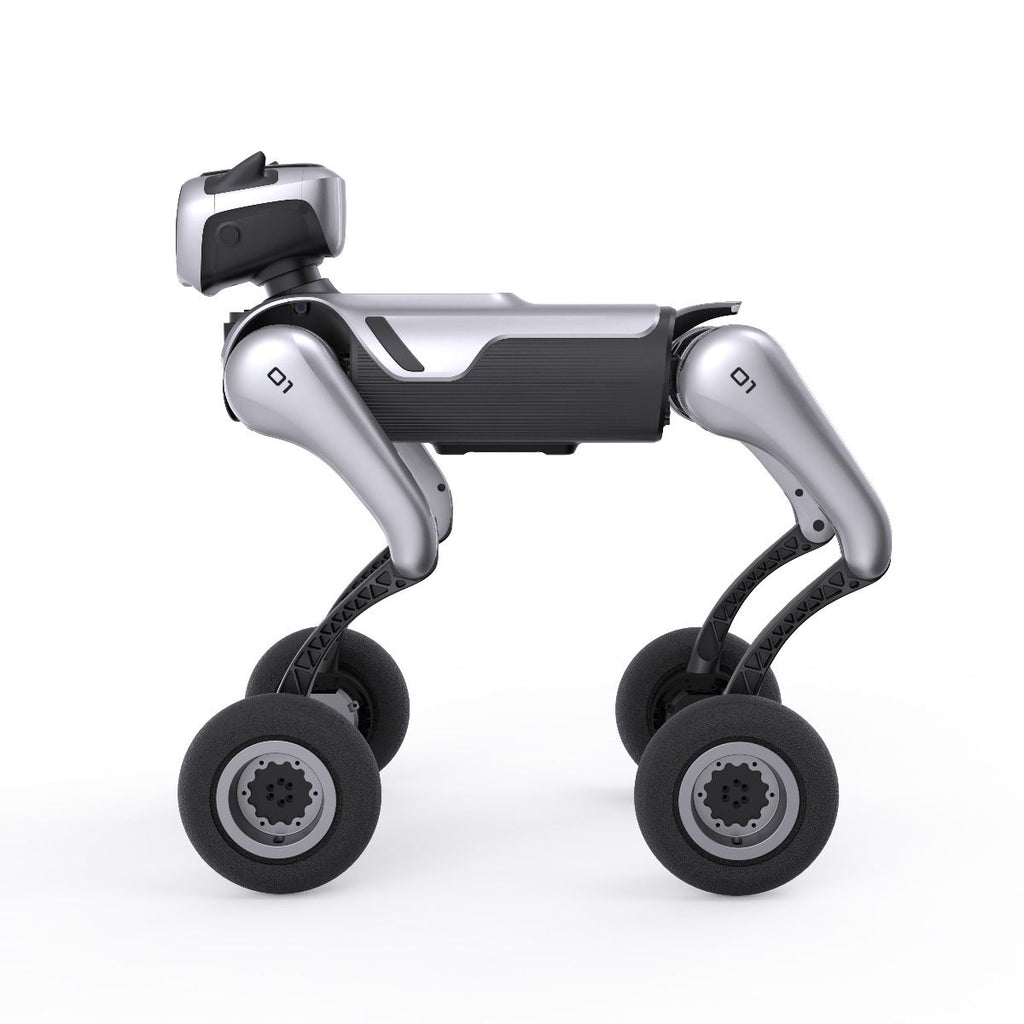

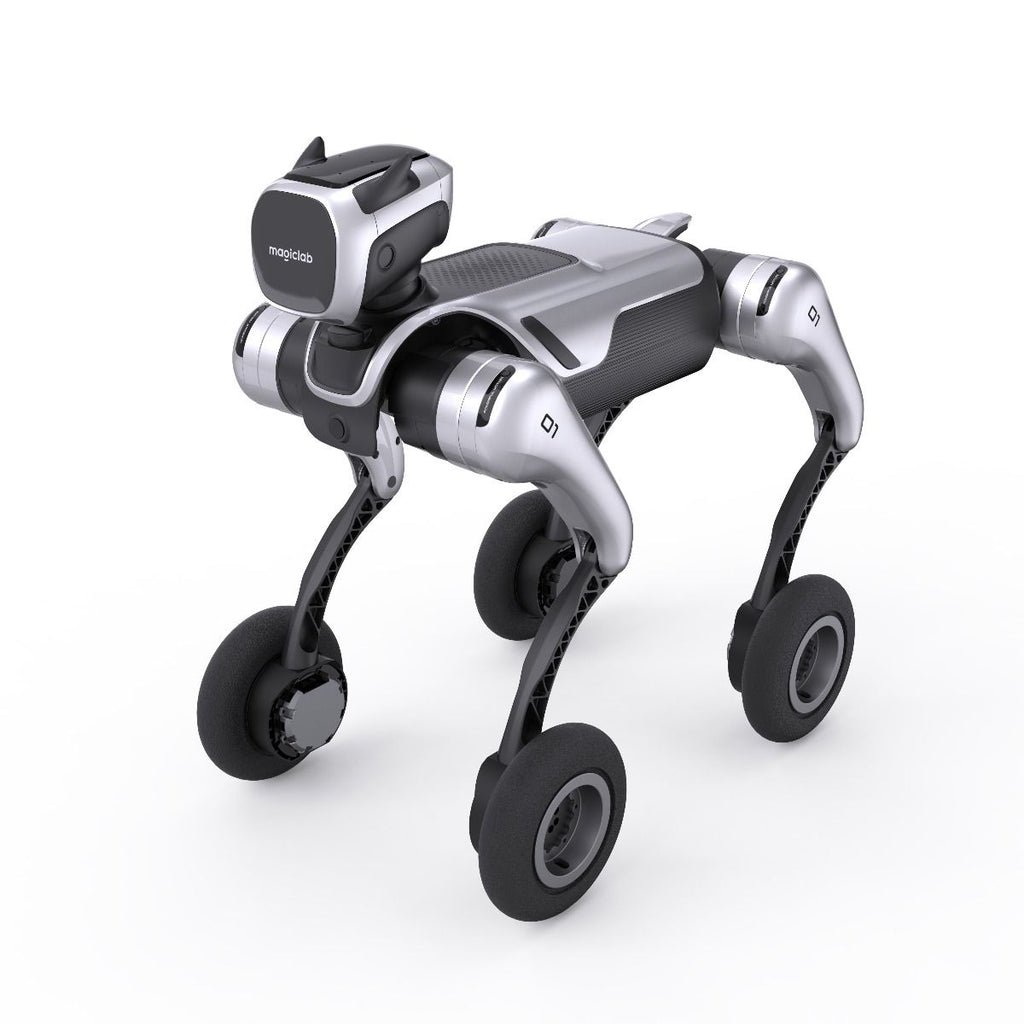

MagicLab MagicDog-W is an advanced wheel-legged quadruped robot designed to push the boundaries of speed, agility, and intelligent mobility. Built for education, research, and innovation, it combines high-performance hardware with dynamic motion capabilities, making it a powerful platform for real-world robotics exploration.

Wheel-Legged Hybrid Design

MagicDog-W features a unique wheel-legged structure that delivers the flexibility of legs with the speed of wheels. This hybrid design allows the robot to seamlessly transition across flat surfaces, slopes, and high steps, ensuring stability and agility in complex environments.

High-Performance Motor System

Powered by a 16+1 motor configuration, MagicDog-W achieves precise motion control and exceptional balance. This advanced motor setup enables dynamic actions such as flips, handstands, and bidirectional climbing, demonstrating superior coordination and strength.

Speed, Payload, and Endurance

Engineered for performance, MagicDog-W reaches an impressive top speed of 3 meters per second while supporting a maximum payload of up to 10 kg. With a nominal endurance of 2 to 4 hours, it delivers sustained operation for extended experiments, demonstrations, and training sessions.

Advanced Mobility and Terrain Handling

MagicDog-W is designed to handle challenging terrains with ease, including steep slopes, uneven surfaces, and high obstacles. Its agile movement and real-time responsiveness enable smooth navigation through complex environments, making it ideal for mobility research and autonomous navigation testing.

Dynamic Motion and Interaction

Demonstrated through official showcases, MagicDog-W can perform advanced maneuvers such as flips, handstands, and climbing in both directions. These dynamic capabilities make it not only a research tool but also an engaging robot for live demonstrations, exhibitions, and STEM outreach programs.

A Versatile Platform for Learning and Innovation

Combining intelligent mobility, robust engineering, and expressive motion, MagicLab MagicDog-W serves as a future-ready platform for robotics education, AI development, and advanced research. Whether in classrooms, innovation labs, or technology expos, it delivers a compelling blend of performance, durability, and inspiration.

Highlights:

•    Wheel-legged hybrid quadruped design combining the speed of wheels with the flexibility of legs
•    Powered by an advanced 16+1 motor system for precise control, balance, and dynamic movement
•    Capable of performing flips, handstands, and bidirectional climbing
•    Handles complex terrains, including slopes, uneven surfaces, and high steps with ease
•    Impressive top speed of up to 3 meters per second
•    Supports a maximum payload capacity of 10 kg
•    Nominal endurance of 2 to 4 hours for extended operation
•    Agile, stable, and lifelike mobility suitable for real-world robotics applications
•    Ideal for education, research, robotics experimentation, and innovation labs
•    Engaging performance for demonstrations, exhibitions, and STEM outreach programs

SPECIFICATIONS:

Mechanical Parameters
Standing Dimensions: 670*350*650mm
Prone Dimensions: 720*500*290mm
Material Information: Aluminum Alloy + High-Strength Engineering Plastic
Tire Type and Size: 7-inch Pneumatic Tire
Motor Number: 16+1 (Head Motor)
Head Rotation Angle: ≥ 100°
Maximum Joint Torque: 37.5 N·m
Total Weight: 23 kg (with battery)
Payload    Maximum: 10 kg
Motion Speed: ≥ 3.0 m/s
Climbing Drop Height: ≥ 60 cm
Climbing Slope Angle: ≥ 40°

Electrical Parameters
Basic Computing Power: 8-core High-Performance CPU
Sensors: 2D LiDAR + Dual Camera + Depth Camera + 4K HD Camera + Fisheye Camera + Ultrasonic Sensors
Audio Module: Omnidirectional Microphone, Speaker
Communication Module: WiFi 5, 4G Module, BT 5.0
Touch Perception: Touch Sensors
Touch Feedback: Supports ≥4 touch methods. The robot’s head provides a corresponding facial.

Accessories
Expansion Modules: Standard High-Performance Computing Accelerator Module
Battery    Capacity: 8200 mAh, Rated Voltage: 29.6 V

Other
Facial Expression Display: 24
Battery Life: 2-4 h
Standby Time: Up to 8 hours (tested)
OTA Upgrade: Support
Operating Temperature Range: -5° ~ 40°

WHAT’S IN THE BOX:

1 × MagicLab MagicDog-W Wheel-Legged Quadruped Robot

1 × Rechargeable High-capacity Battery

1 × Battery Charger / Power Adapter

1 × Remote Controller

1 × User Manual & Quick Start Guide

1 × Tool Kit for Basic Setup and Maintenance

1 × USB / Data Cable for Programming and Connectivity
