Makeblock

90092

Makeblock mBot Ranger STEM Educational 3 in 1 Programmable Robotic Kit

Enjoy $20 OFF TODAY with code NEW20

Also Enjoy Free Shipping on all orders over $200.


  • Makeblock mBot Ranger Robot Kit (Bluetooth version)



    Overview

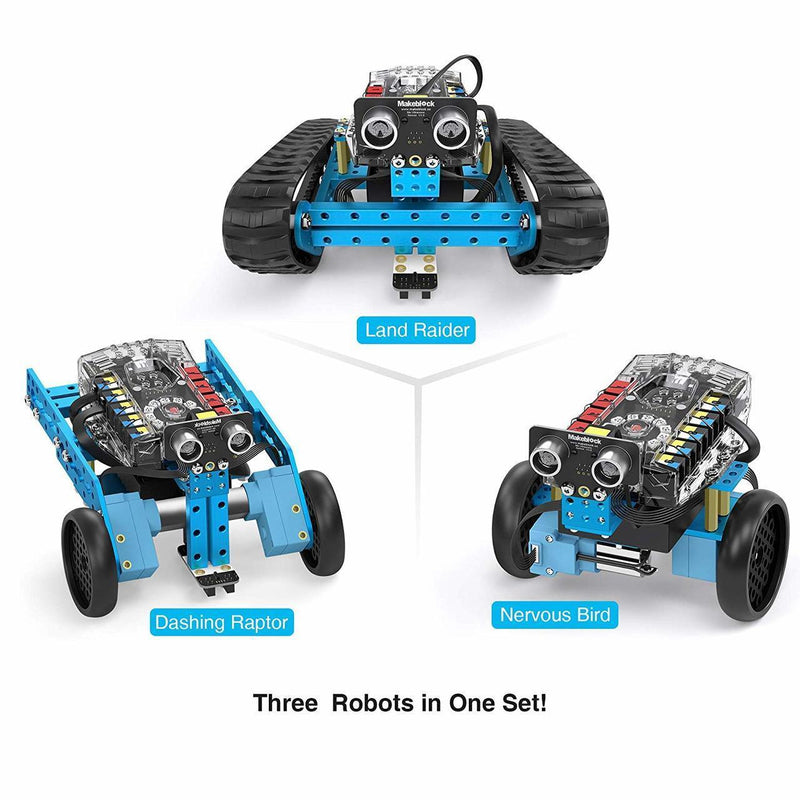

    mBot Ranger can conquer any terrain thanks to its 3 preset forms: the tank-like Off-road Land Raider, the three-wheel racing car Dashing Raptor, and the Self-balancing Nervous Bird. Its broad range of sensors (Light, Temperature, Sound, Ultrasonic, Line Follower and Gyroscope) allows this robot to perform a variety of functions including data collection, line following and obstacle avoidance.




    Software

    All Makeblock robots can be controlled and programmed by a standard app that also comes with 3D Model Modelling Tutorials, Multiple Control Modes and Lots of Add-on Packs. If you are coding for the first time there is a game-based app for robotics programming learning with project-based free creative approach. But if you are getting serious about programming there is a powerful tool for coding designed for STEM education that gets you to learn the basis of Python programming language.




    FAQ

    Can mBot Ranger connect directly to my phone via Bluetooth?

    Yes, it connects directly with your phone or iPad via Bluetooth.

    Does the coding software need to be purchased?

    No separate purchase is required, you can download software from our website for free.

    Does any warranty come with mBot Ranger? How long is the warranty period?

    mBot Ranger comes with a warranty – for electronic parts, the warranty is for 6 months, while for electrical parts, the warranty is for 2 months. Other parts (structural parts, consumables and batteries), however, are not covered by any warranty but can be replaced if damaged.

    Why doesn't my mBot Ranger respond when powered on?

    The possible reasons and solutions are as follow:
    1. The supplied voltage may be too low to run the robot. Please charge the battery or replace with a fresh one.
    2. The wires of the Motor Connector may be broken. Please try to replace the wires with new ones.
    3. Try to reset your mBot Ranger to factory defaults.

    When I control the Ranger to move forward or right, it moves backwards or left. How can I fix it?

    1. Swap the place of the M1 and M2 interface cables that are connected to the motors. See if your Ranger is now moving according to your controls.
    2. If not, reset your mBot Ranger to factory defaults using the latest version of mblock 5.

    How do I know when the robot needs a new battery?

    If any of the following happens, you will need to replace the battery:
    1. If the Land Raider or Dashing Raptor moves very slowly or restarts itself while turning or bumping against objects.
    2. If the Land Raider or Dashing Raptor remains motionless even if you set the motor speed to high speed.

    What can I do if Self-Balancing Car doesn't work normally (for example, if it fails to balance or doesn't smoothly respond to commands)?

    The possible reasons and solutions are as follow:
    1. Please check if the battery charge level is sufficient; if not, replace it.
    2. Please check if the Self-Balancing Car is correctly assembled. Confirm that all the wheels are assembled correctly and that there is nothing obstructing its movements.



    You can find user manual here.

  • mBot Ranger - Transformable Robot Kit for STEM Education and Fun 01:44
    mBot Ranger will be on pre-sale on March 8th (CST) at www.makeblock.cc! mBot Ranger is a transformable robot kit that is both educational and fun. It supports 3 building forms: robot tank (Land Raider), 3-wheeled robot car (Dashing Raptor), and self-balance car(Nervous Bird). Program it via mBlock based on Scratch, or MakeblockHD app from iPad. Enjoy programming at maximum fun. Like, Share, and Subscribe! Share your interesting experience of Makeblock robots: Facebook: @Makeblock twitter: @Makeblock Instagram: @Makeblock www.Makeblock.com Construct Your Dreams.

  • 1x Makeblock mBot Ranger Robot Kit
    1x User manual
    (6 AA batteries required)
  • Warranty for electronic parts:
    6 months

    Warranty for electrical parts:
    2 month

    Other parts (structural parts, consumables, batteries):
    Can be replaced if damaged

    Product properties:
    3-in-1 educational robot

    Ages:
    Ages 8+

    Assembly needed?:
    Yes

    Building time:
    About 45 minutes

    Weight:
    800g assembled (1.76 lbs)

    Main Control Board/ Chip:
    Arduino Mega2560

    Sensors:
    Light Sensor×2, Temp erature Sensor, Sound Sensor, Ultrasonic Sensor, Line Follower Sensor, Gyroscope

    Other Programmable Modules:
    Button, Buzzer, RGB LED,Motor×2

    Working Voltage:
    DC6-12V

    Working Current:
    2A

    Connectivity:
    Bluetooth / USB

    Operating Temperature Range:
    -10℃~50℃

    Power Supply:
    AA Battery×6 (not included)

    Compatibility:
    Compatible with Makeblock Maker’s Platform and Lego bricks

    Add-on Pack:
    Laser Sword Add-on Pack, Perception Gizmos Add-on Pack, Variety Gizmos Add-on Pack

    Dimensions:
    Off-road Land Raider: 200×175×125mm (L×W×H) Dashing Raptor: 204×158×120mm (L×W×H) Self-balancing Nervous Bird: 149×133×129mm (L×W×H)

    mBlock Software:
    Mac OS: 10.10.0 and higher; Windows: XP/7/8/8.1/10; Chrome OS; Linux

    mBlock APP:
    iOS 9.0 and higher; Android 4.4 and higher

    Battery Requirements:
    6 pcs AA batteries

    SKU:
    90092

    UPC:
    06928819504400
