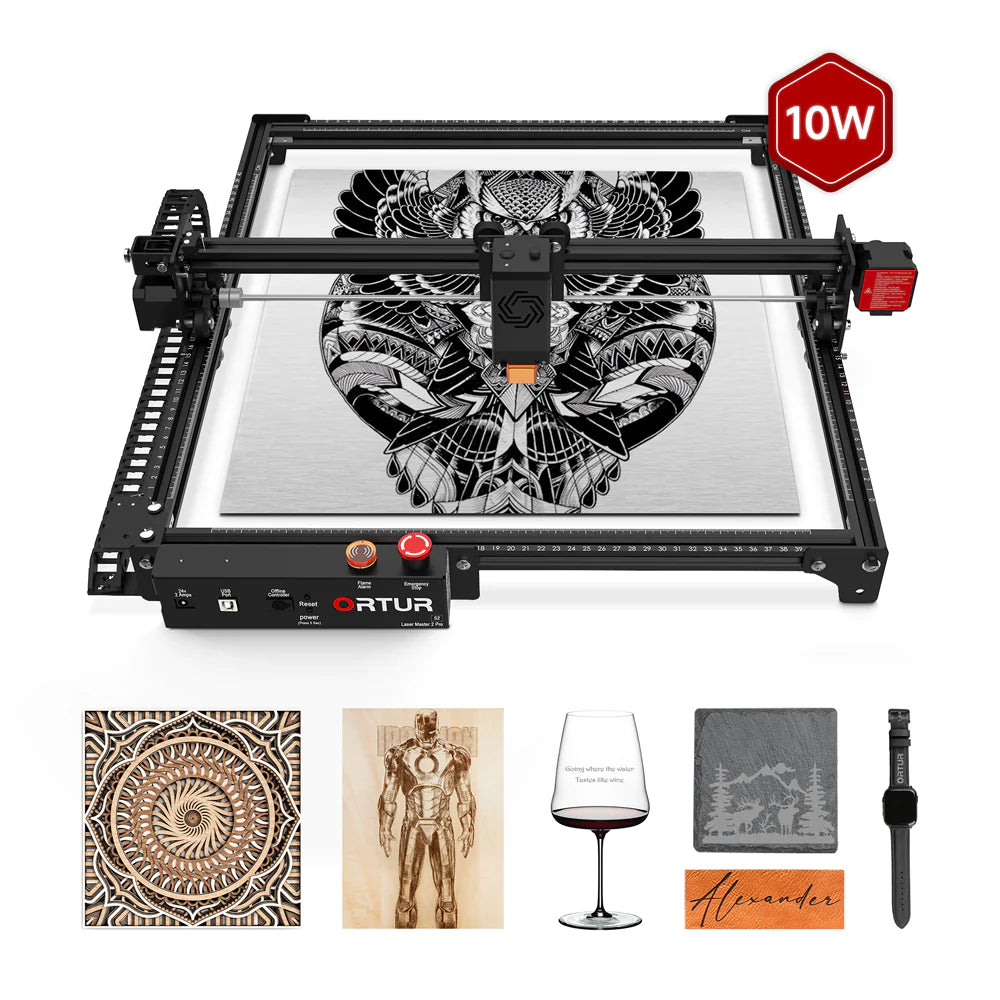

Ortur LM2 Pro S2 Laser Engraving & Cutting Machine 15,000mm/min 10W & 5W

Looking for an engraving and cutting machine, the Ortur LM2 Pro S2 is your best weapon?

The Ortur LM2 Pro has a sturdy aluminum profile frame and a maximum speed of up to 15,000mm/min. A very smooth operating machine, it weighs only 0.518 lb including the integrated air assist, dual fans, and foldable focal gauge.

The Ortur Laser Master 2 Pro S2 is the company's most recent engraving device. It comes in two types: LM2 Pro S2-SF and LM2 Pro S2-LF, both of which have significantly enhanced engraving and cutting capabilities. It has 4 safety features:

• Active position protection
• Stops working when the USB cable is disconnected
• Emergency stop switch and flame alarm
• Exposure time detection and limitation

The motion algorithm is optimized in the ESP32 MCU-compatible Ortur Laser 1.8 firmware, which also raises the maximum stepper motor speed from 4,000 mm/min to 15,000 mm/mm. It is perfectly compatible with the software LightBurn (paid), and LaserGRBL (free). It is compatible with Windows from XP to W10 / Linux / Mac OS and supports JPG / PNG / BMP / DXF / NC, etc.

 With the Ortur LM2 Pro S2, get the best engraving experience possible with precision!

•  Speed up to 15,000mm/min
• 400mm*400mm Engraving area
• 4-Safety protections
• 10W Laser power 0.05mm*0.1mm
• Enhanced grayscale
• Flame detector
• Emergency stop button
• 9th Ortur 32 Bit’s Motherboard
• Ortur 1.8 Series Filmware
• Integrated air assist, foldable focal gauge, dual fans
• Precise
• Compatible with software LightBurn (Paid), LaserGRBL (Free)
• Full-body metal structure

SPECIFICATIONS:

Product Name: Ortur Laser Master 2 Pro S2

Certification: CE

Laser Power: LU2-2 Luminous Power 1-1.6W, Electrical Power 7W. LU2-4 SF/ LF Luminous Power 5-5.5W, Electrical Power 20W

Pixel Accuracy: Adjustable (Default: 300 pixels per inch, about 0.8um Pixel Accuracy)

Weight: 0.518 lb

Speed: Up to 15,000mm/min

Engraving Area: 400*400 mm

Product Size: 600*570*189mm

Safety Precautions: Active Position Protection, Exposure Duration Detection and Limitation, Laser Beam Safety Guard

File Format: JPEG/ JPG/ PNG/ BMP/ SVG/ ETC

Product Material: Aluminum Profile + Sheet Metal

Rated Power: 24V 2A 48W

Control Software: LaserGRBL (Free) - Support only Windows OS; LightBurn (Not Free) - Support Windows, Mac, Linux

Warranty: 1 Year

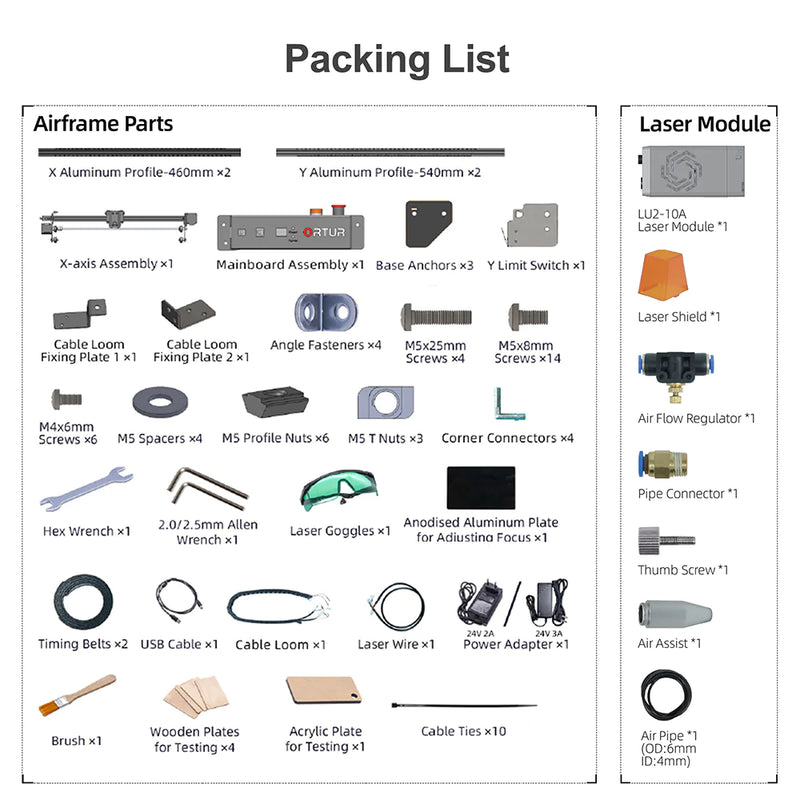

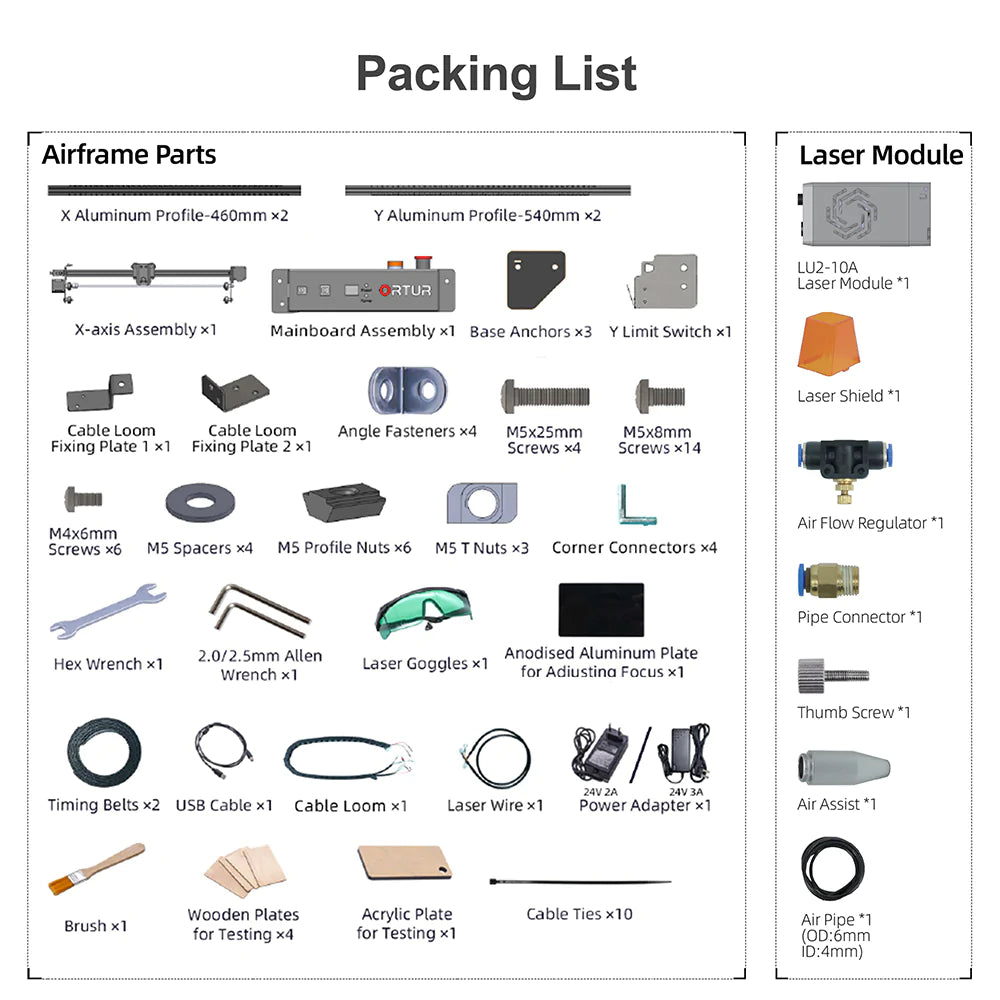

WHAT’S IN THE BOX:

2 x X-Aluminum Profile 460mm

2 x Y-Aluminum Profile 540mm

1 x X-Axis Assembly

1 x Mainboard Assembly

3 x base Anchors

1 x Y-Limit Switch

1 x Cable Loom Fixing Plate 1x1

1 x Cable Loom Fixing Plate 2x1

4 x Angle Fasteners

4 x M5x25mm Screws

14 x M5x8mm Screws

6 x M4x6mm Screws

4 x M5 Spacers

6 x M5 Profile Nuts

3 x M5 T Nuts

4 x Corner Connectors

1 x Hex Wrench

1 x 2.0/2.5mm Allen Wrench

1 x Laser Goggles

1 x Anodised Aluminum Plate for Aduistina Focus

2 x Timing Belts

1 x USB Cable

1x Cable Loom

1 x Laser Wire

1 x Power Adaptor (24V 2A; 24V 3A)

1 x Brush

4 x Wooden Plates for Brushing

1 x Acrylic Plate for Testing

10 x Cable Ties

1 x Lu2-10A Laser Module

1 x Laser Shield

1 x Air Flow Regulator

1 x Pipe Connector

1 x Thumb Screw

1 x Air Assist

1 x Air Pipe (6mm x 4mm)

Speed up to 15,000mm/min

Integrated Air Assist, Dual Fans, Foldable Focal Gauge
All in 235g Weight

Ultimate Engraving Experience with Precision

The Improved Mechanical Structure
Focal Spot 0.05x0.1mm
Bring Delicate Details at 0.01mm

12mm Wood Cutting in One-PASS

10mm Acrylic Cutting in One-PASS

Pine Board, Maximum Cutting Thickness 20mm

Acrylic Sheet, Maximum Cutting Thickness 30mm

4 Safety Features

Thousands of tests, just to create a safe operating state
1. Active position protection
2. Stops working when the usb cable is disconnected
3. Emergency stop switch and flame alarm
4. Exposure time detection and limitation

Ortur Laser 1.8 Series Firmware

Ortur Laser 1.8 firmware, qualified for ESP32 MCUs, optimizes the motion algorithm, and increases the maximum stepper motors speed from 4,000mm/min to15,000mm/mm.

Perfectly Compatible With Software

· LightBurn (Paid)—Advanced and highly customizable
· LaserGRBL (Free)—Basic and easy-to-use
· Compatible with Windows from XP to W10 / Linux / Mac OS. Supports JPG / PNG / BMP / DXF / NC, etc.

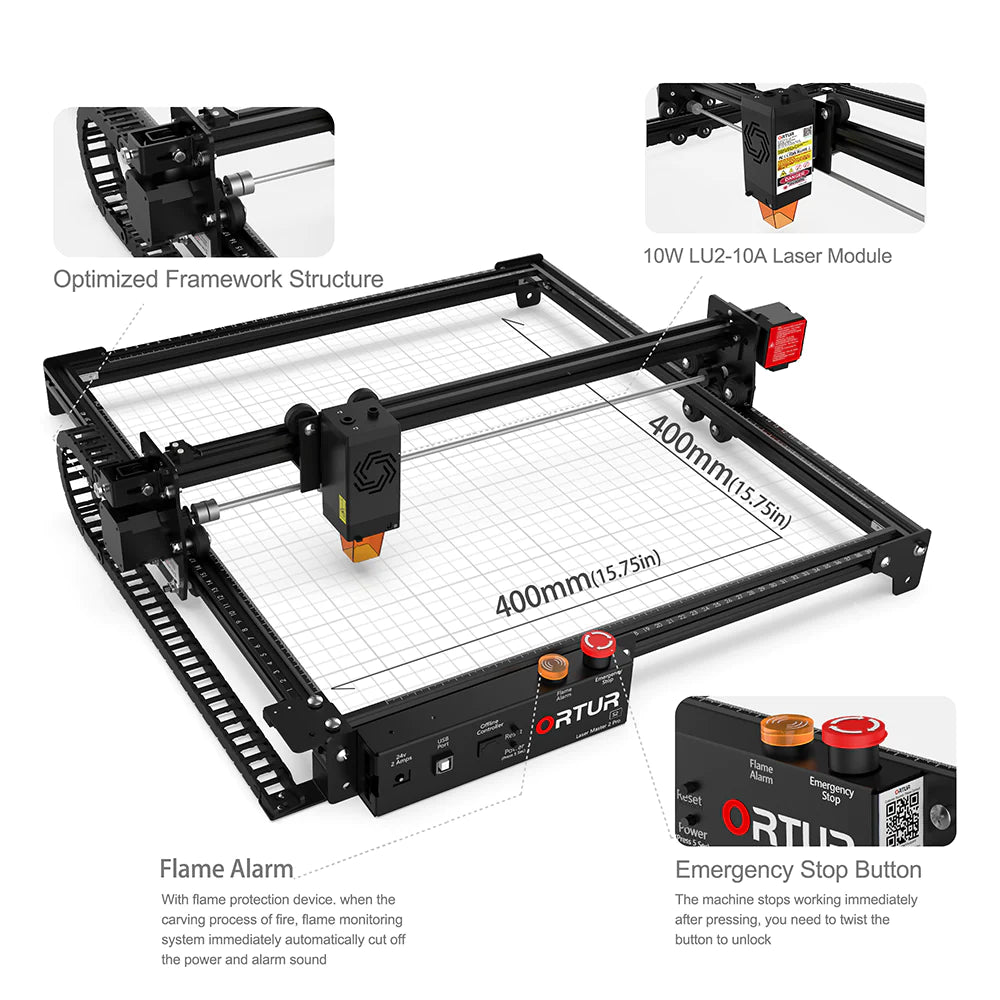

Product Details

· Emergency Stop Button + Flame Detector and Buzzer Alarm

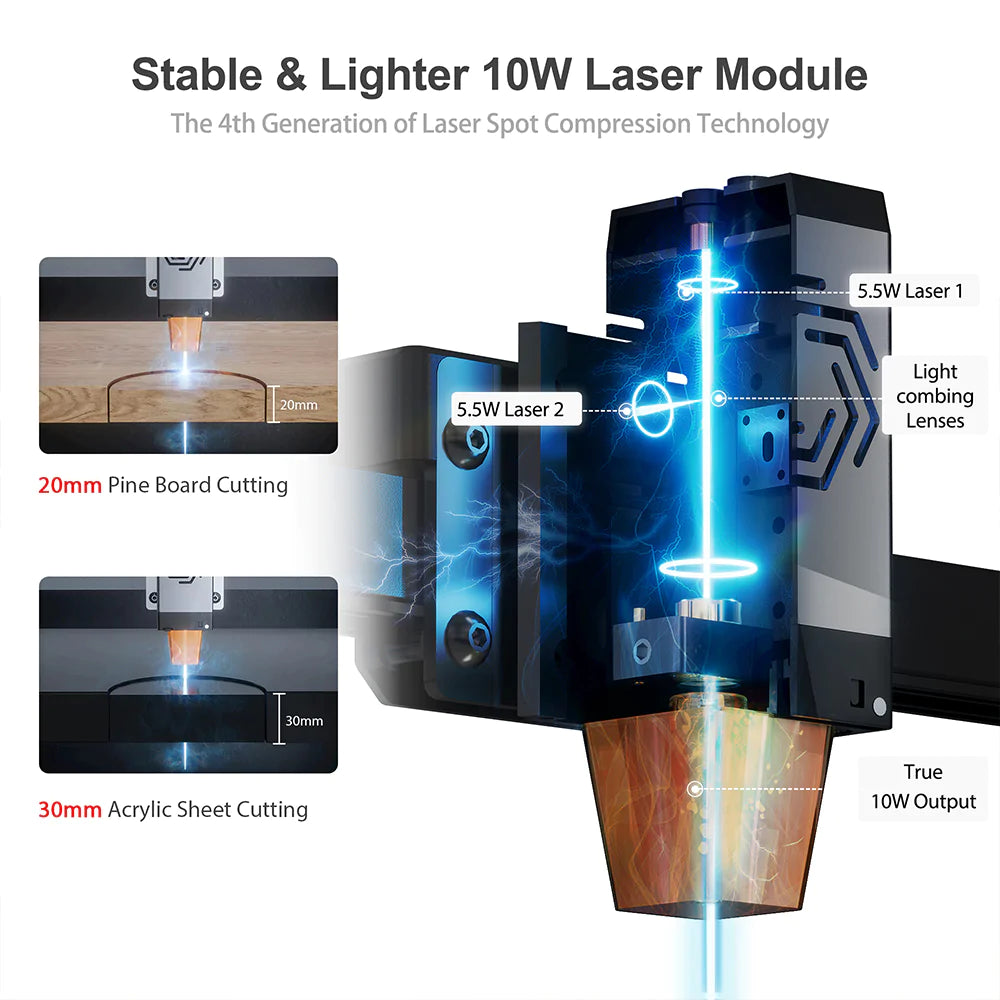

· 10W LU2-10A Laser Module
· Flexible Cable Chain
· Scale Mark Auxiliary Use
· Full Metal Body Structure
